SONOFF ZBBRIDGE PRO Zigbee 3.0 Bridge WiFi MQTT Home Assistant ZHA Tasmota

SONOFF ZBBRIDGE PRO Zigbee 3.0 Bridge WiFi MQTT Home Assistant ZHA Tasmota

Regular price €30,24 EUR
Regular price €0,00 EUR Sale price €30,24 EUR
Sale Sold out
Shipping calculated at checkout.

In stock - Delivery time 6-14 working days

ZIGBEE PROMOTION:

Get 5% discount on your purchase in the online store!

Use the code:

ZIGBEE5%

When buying 2 or more cigbeal products and enjoying intelligent technology at an unbeatable price.

Beat and save now!


Article description:

ZigBee Pro 3.0 WiFi Bridge

Already flashed with the latest Tasmota firmware.

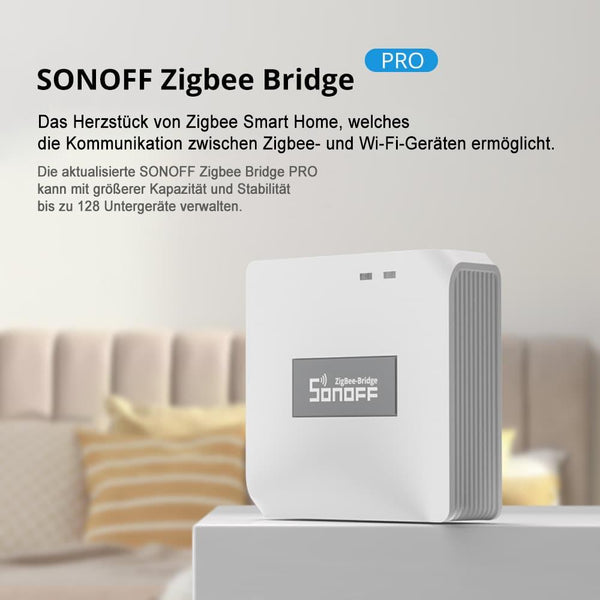

Sonoff ZigBee Bridge Pro is the updated ZigBee-Bridge, which enables you to manage up to 128 tubes with greater capacity and stability, connector devices can act as a ZigBee router to expand the network area.

Sonoff ZigBee Bridge Pro offers newly added functions such as smart home security, local smart scene and easy to activate and deactivate. You can adapt 3 modes by adjusting different subsequent ties. The local smart scene always works well, even if the Wi-Fi connection is interrupted. Thanks to the built -in high -precision of local RTC, a short power failure will not affect the time synchronization. The schedule can work again after the power supply has been restored. Note that the local scene is only suitable for ZigBee devices and only works with the Ewelink variant.

It enables you to manage a variety of ZigBee devices and sensors for surveillance and control purposes of the house.

The bridge can be connected to intelligent switches, temperature and humidity sensors, motion sensors, wireless door/window sensors and water sensors that are certified by the ZigBee Alliance.


Choose between the ZigBee2Tasmota variant (MQTT) or Home Assistant (ZHA).

Both variants have the same firmware and differ only in the pre -configuration.

A change to the other mode is possible at any time.

ZigBee2tasmota (mqtt)

This variant communicates via the MQTT protocol with your MQTT -compatible Home Atutomation System. The devices are set up directly via the consists in the webgui.

Run this command in the Tasmota console to apply the template:

Backlog Template {"NAME":"Sonoff ZBBridge Pro","GPIO":[0,0,576,0,480,0,0,0,0,1,1,5792,0,0,0,3552,0,320,5793,3584,0,640,608,32,0,0,0,0,0,1,0,0,0,0,0,0],"FLAG":0,"BASE":1}; module 0


Home Assistant (ZHA)

This variant creates a TCP bridge from the ZigBee module to the Home Assistant. In this case, Tasmota only leads all the news from the ZigBee module to the ZHA. In this mode you can not use ZigBee commands in the Tasmota console. All settings must be made via the ZHA integration of Home Assistant.

Run this command in the Tasmota console to apply the template and the required rule in a single command:

Backlog Template {"NAME":"TCP ZBBridge Pro","GPIO":[0,0,576,0,480,0,0,0,0,1,1,5792,0,0,0,5472,0,320,5793,5504,0,640,608,32,0,0,0,0,0,1,0,0,0,0,0,0],"FLAG":0,"BASE":1,"CMND":"Rule1 on system#boot do TCPStart 8888 endon"} ; Rule1 1; Module 0

You can change 8888 to a port you prefer.

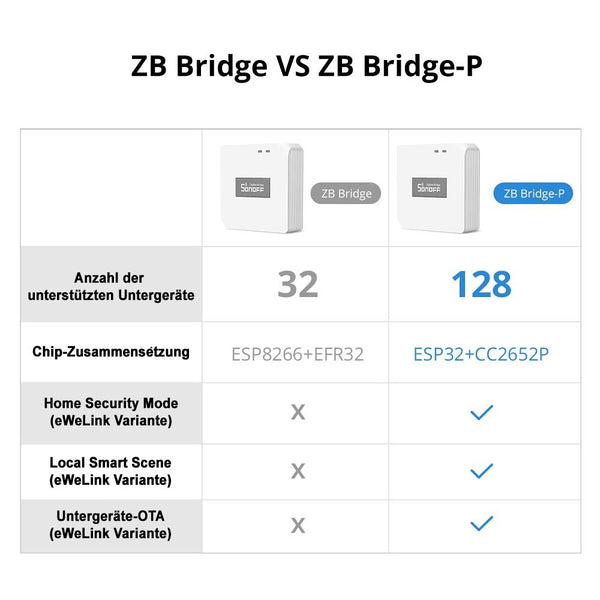

Note: The Bridge-P, for example, can connect 26 subsequent devices directly (10 end devices + 16 routers, or 26 routers). If you want to establish a connection to 128 submerces, routers (socket devices) are required. A router device can be expanded to connect 20-32 sauce.

Technical data:

Model: e.g. Bridge-P

Tigbee type: IEEE 802.15.4 2.4GHz ZigBee 3.0

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Size: 62 x 62 x 20 mm

Weight: 38g

Work temperature: -10 ° C - 40 ° C

Job moisture: 5% - 95%

Input voltage: 5V micro USB 1A, power supply is not included

Material: PC V0

Further information:


Additional:

Brand newimmediately availableWith Tasmota firmware


Smart Home version:


ZigBee2tasmota (mqtt)

Home Assistant (ZHA)Ewelink (No Tasmota)


Firmware languages:

Tasmota GermanTasmota EnglishTasmota Individual Language (Send US A Message)Ewelink (original)
