ATHOM SK01-TAS WiFi Smart Wall Socket with Consumption Measurement 16A 3680W TASMOTA

Article description:

WiFi smart wall socket with 16A and power consumption measurement

With English Tasmota 10 firmware pre -flashed.

The German and individual language variant is always delivered with the latest firmware.

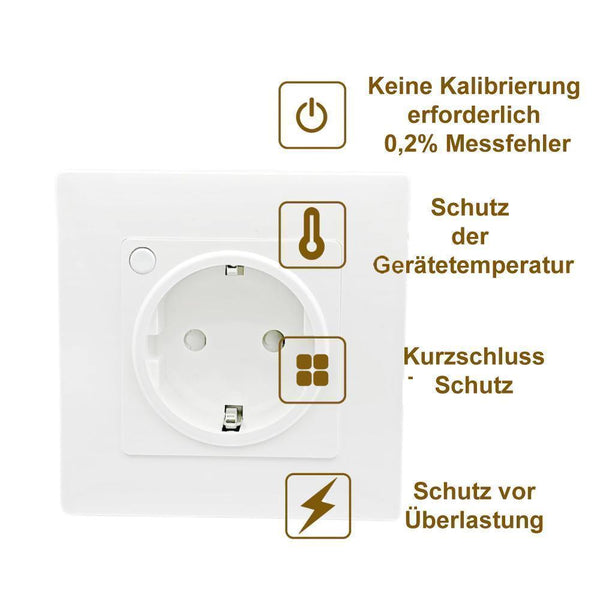

With an improved Energy Monitor Chipset HLW8032. Calibration is no longer necessary. The measurement error of the active power is only about 0.2%, the power current is only 0.5%and the effective voltage only 0.5%.

The smart wall socket allows a maximum stream of 16A and a maximum output of 3680W. This means that a washing machine or other bones with high performance requirements can also be connected without any problems in order to determine a precise power consumption.

Completely compatible with the official Tasmota OTA server. Pre -configured iOS - Plug and Play. Flashed before assembly. Built -in ESP8285 chip with 2m flash

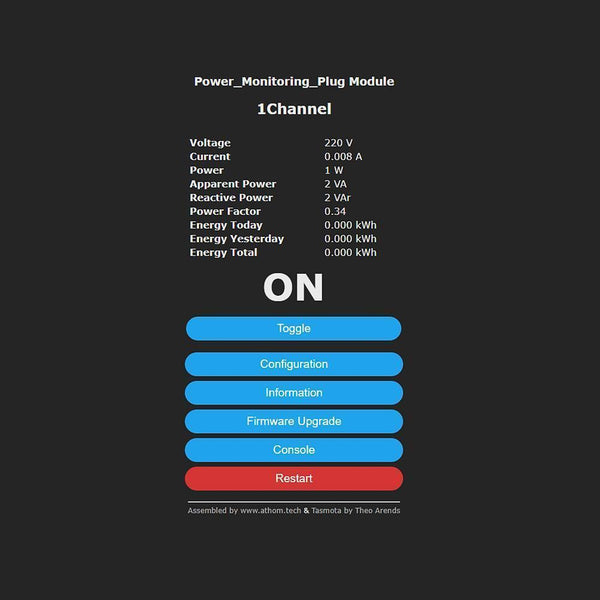

Complete local control with quick furnishings and update. Control via MQTT, Web UI, HTTP or serial. Automate the device with timers, rules or scripts. Integration in home automation solutions. Incredibly expandable and flexible.

A notice:

The HLW8032 occasionally reports invalid performance measurements for load values ​​below 5W. In this situation, this sometimes reports a valid load. By setting Setoption39 to 128 (standard), this must read at least 128 invalid performance measurements before reporting that there is no load. In order to reject all loads below 6 W, simply set 1 (0 will be reset to the default setting in the next restart), so that it does not report any load below 6 W.

Technical data:

Manufacturer no.: SK01-TAS-1

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

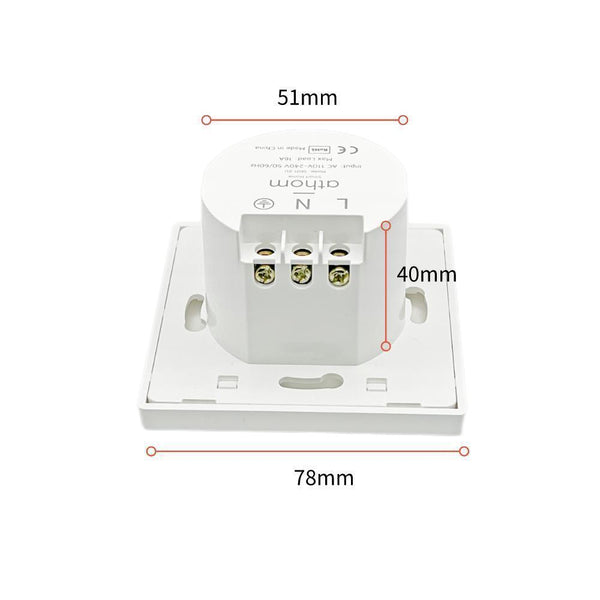

Size: 78 x 78 x 50 mm

Weight: 83g

Work temperature: -20 ° C - 50 ° C

Input voltage: 100-240 V AC (50/60Hz)

Max. Input current: 16A (max)

Max. Power: 3680W

Power consumption measurement: yes

Energy meter chipset: HLW8032

Device temperature protection

Material: ABS+PC

Fire protection class: 94-V0

Further information:

Additional:

Model variants:

Tasmota English (Preflashed)
