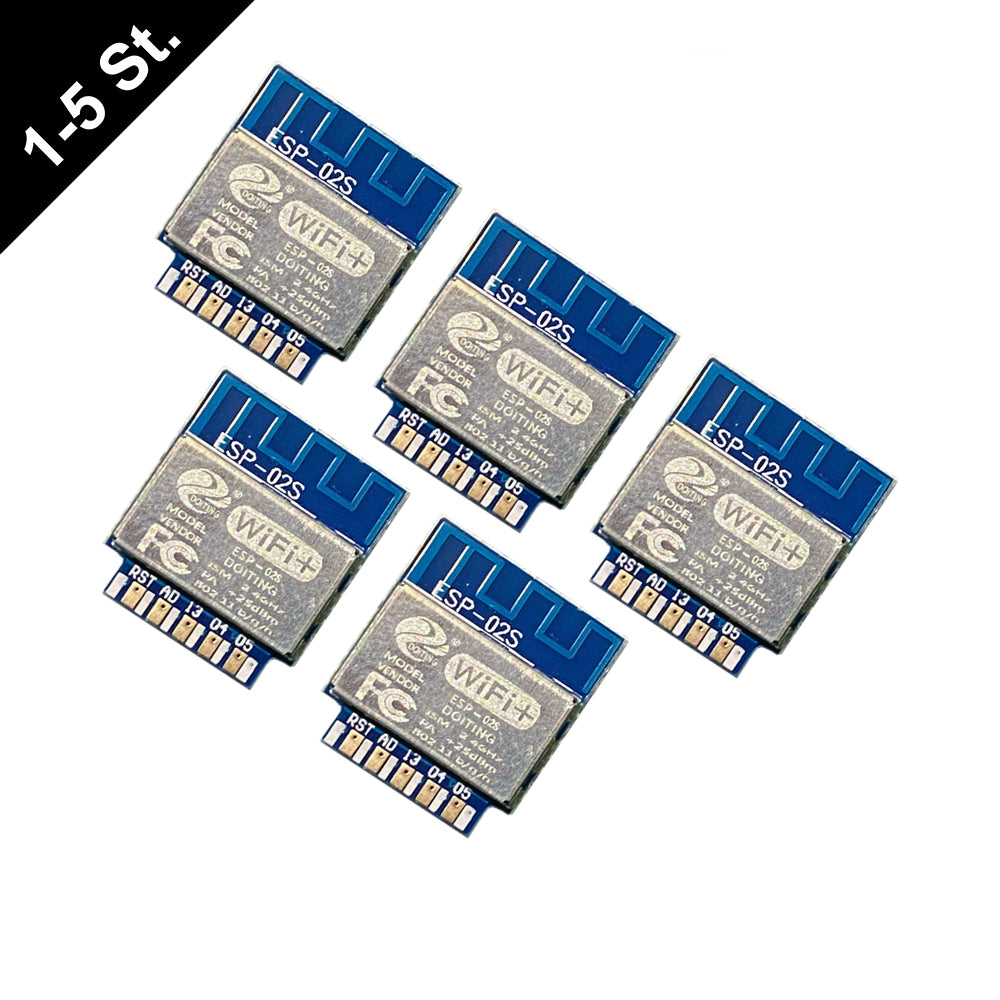

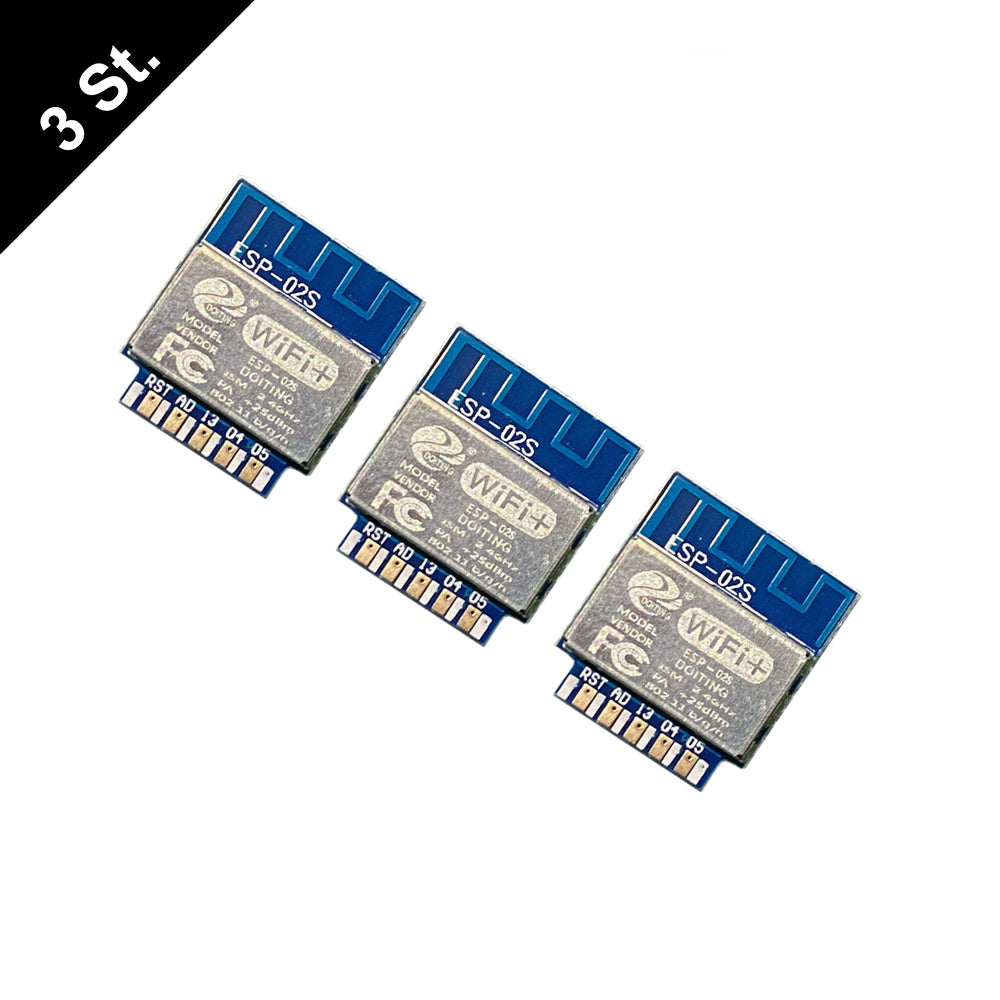

ESP-02S TYWE2S ESP8285 ESP8266 WiFi Module Arduino IDE Serial Board Tasmota

Article description:

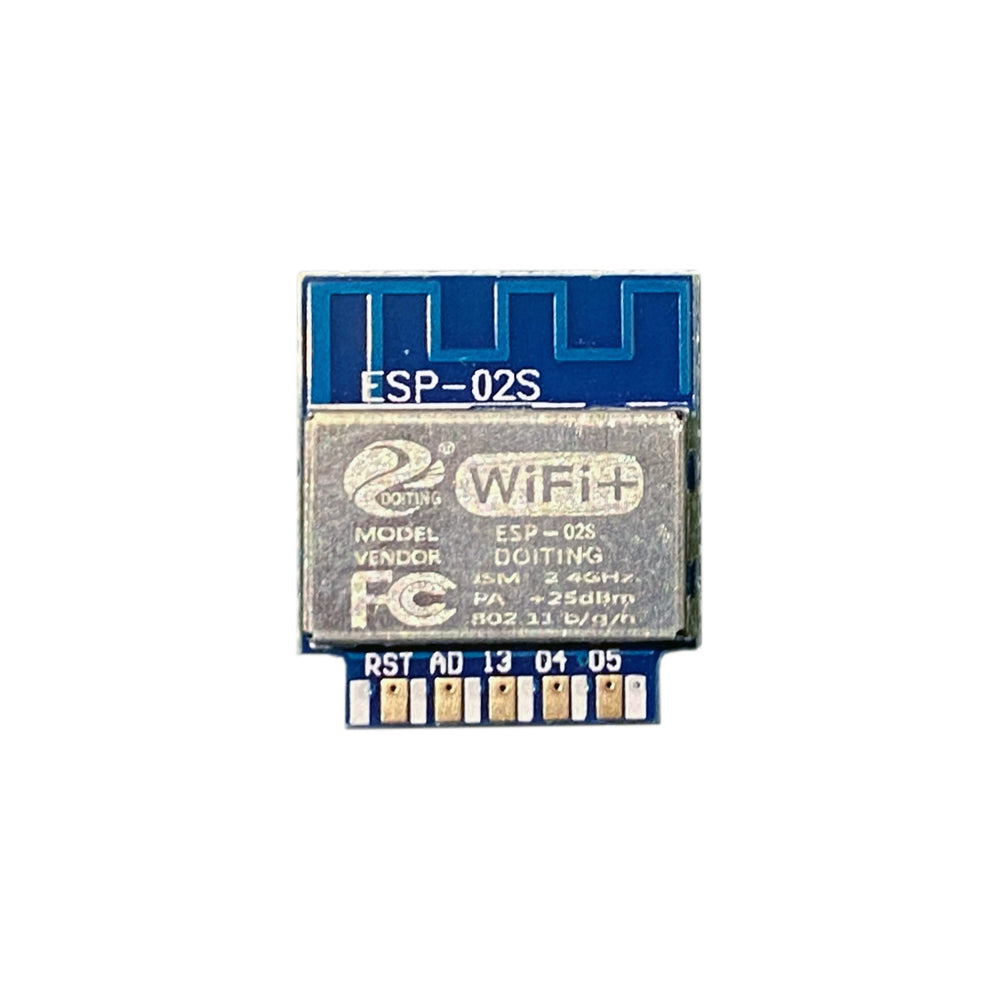

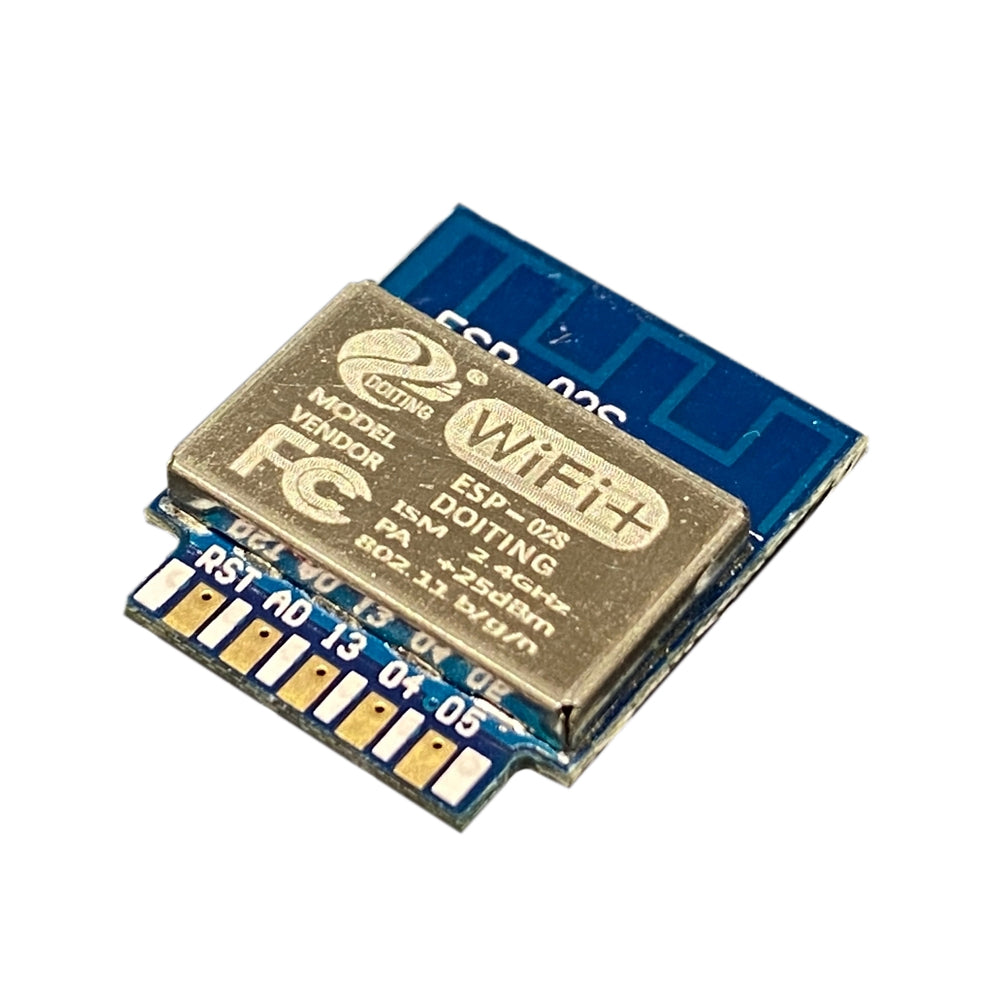

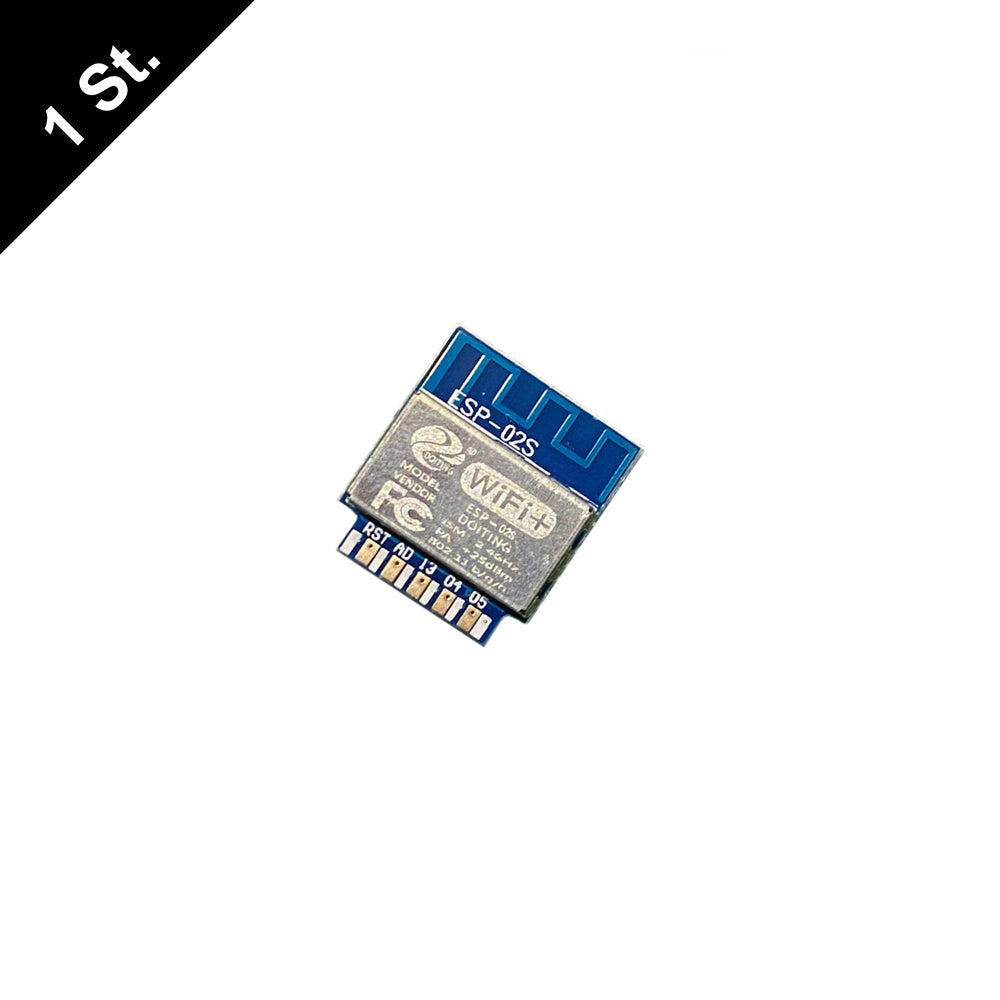

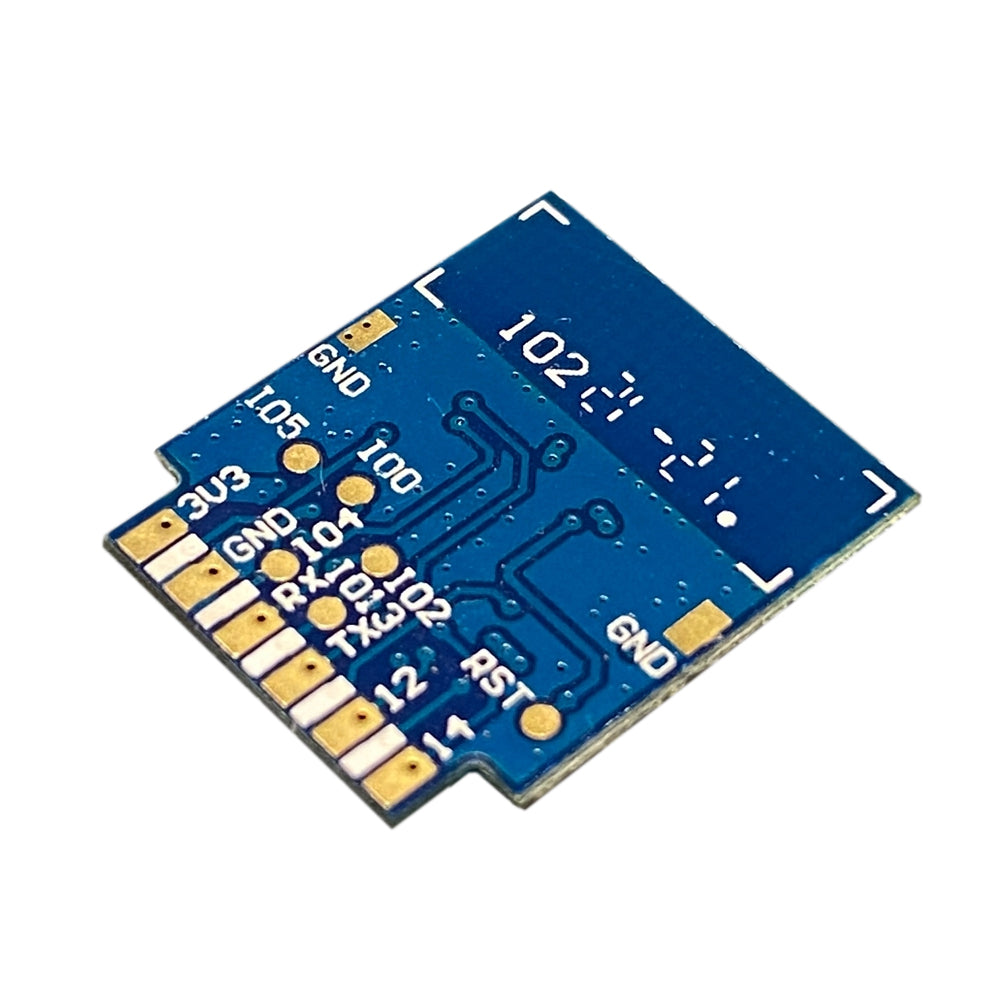

ESP-02S ESP8285 Wireless Transceiver module

Already flashed with the latest Tasmota firmware.

The ESP-02S is a small and powerful WiFi module with which you can easily integrate your projects into your WLAN network.

The built -in serial interface allows you to program your own IoT projects. Or you use the numerous sample libraries that you can find on the Internet.

Bring your projects online. The module can be used very well with Arduino, Raspberry Pi, Tasmota, or many other projects.

This module can also be exchanged for ESP incompatible modules of the same construction, for example to make Tasmota-capable.

Attention: The module and the iOS must be operated with 3.3V.

A operation with 5V voltage damages the module!

Technical data:

Model.: ESP-01S

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

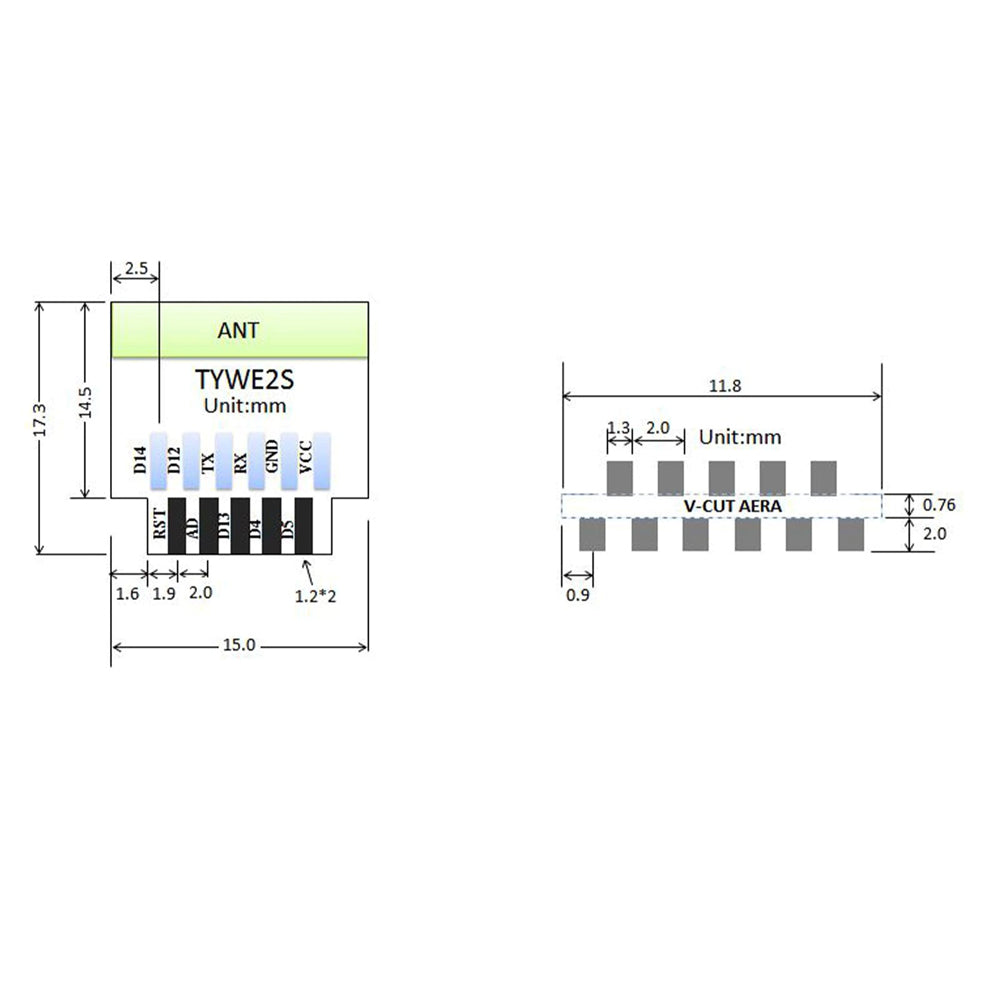

Size: 18 x 20 x 3 mm

Weight: 1G

Work temperature: -20 ° C - 70 ° C

Working current: 80mA

Input voltage: 2.5-3.6V (recommended 3.3V)

Interfaces: UART/HSPI/I2C/I2S/IR Remote Control/GPIO/PWM
