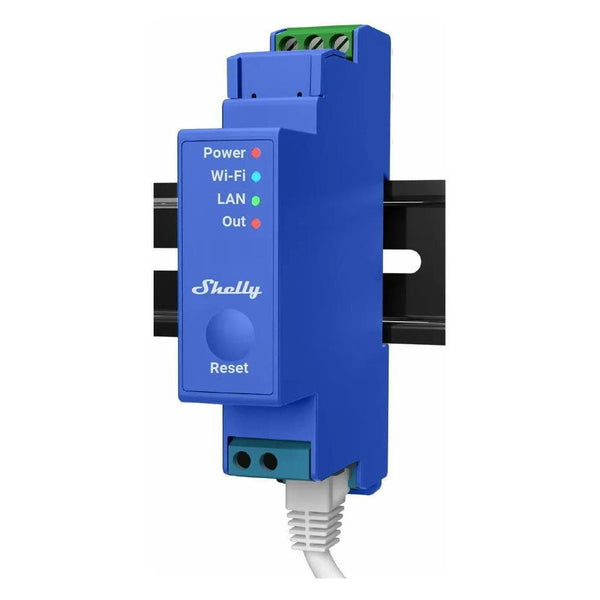

Shelly Pro 1 WiFi LAN 1 Channel DIN Rail Relay Switchch Actuator Tasmota
Shelly Pro 1 WiFi LAN 1 Channel DIN Rail Relay Switchch Actuator Tasmota
Low stock - Shipping on 30/12 - Delivery time 1-3 working days
Article description:
1-channel-din rail relay switch with Wi-Fi, LAN and Bluetooth connection
Already flashed with the latest Tasmota firmware.
First-class house or building automation with the new, professional line of the Shelly Wi-Fi and Bluetooth relay with LAN connection and exact energy management and control. Extended with temperature, over-current and overvoltage protection, the Shelly Pro series is designed for installation in the fuse box. The product series enables complete intelligent automation from the safety box without additional cables or wiring. The Shelly Pro series is perfect for residential buildings, offices, shops, companies and production facilities.
The best solution for new buildings
The Shelly Pro-Line enables complete intelligent automation in the control cabinet. This makes them the perfect solution for new buildings and production facilities, which they can plan and adapt individually according to their needs. In the meantime, she informs the precise consumption measurement of the PM devices about the electricity consumption of each connected device. In this way you can reliably analyze the data and reduce consumption costs.
Lan, Wi-Fi and Bluetooth simultaneous Wi-Fi and LAN use. Fast and easy adding of devices via Bluetooth connection.
Can be assembled on DIN rail. Enables intelligent automation to manage directly from the fuse box and control your system, no matter where you are.
Protection, overload and surge protection protection of the load.
Shelly Pro Line devices can be operated directly and without a hub via your smartphone with Shelly Cloud app.
Improved security functions
Overheating protection-In the event of too high temperature or rapid temperature rise, the device switches off the outputs and sends a notification. The internal temperature sensor measures the heat every 100 ms.
Overload protection-If the overload is recognized, the device switches off the outputs and immediately sends a notification. The overvoltage protection function protects the device and other electrical devices from possible damage.
Overvoltage protection- tension peaks can be dangerous for electrical devices and machines. In order to avoid damage to the electrical devices, the device switches off the outputs when overvoltage peaks are recognized and immediately sends a notification.
Flammable- all Shelly per components are made from flammable materials and keep their construction even with strong heat.
More properties
HTTP/HTTPS-Webhooks for a quick connection-expanded with HTTP/https webhooks, the Shelly Pro line can easily connect, notify or control other compatible devices or automation system of a third-party provider.
Smart processes (scenes) after sunrise/sunset- Shelly Pro Line can switch the current on and off depending on the sunset or sunrise, which is perfect for the dynamic control of the electrical devices.
Individual automation with a weekly schedule-Shelly Pro Line enables you to set up to 50 actions based on your daily or weekly plan, without you an external hub or server
Scripting for custom automation-the Shelly Pro line fully supports MJS Scripting so that customers can create their own features and functions! Several scripts can be carried out together.
Technical data:
Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz
Security protocol: WEP/WPA-PSK/WPA2-PSK
Size: 68.5 x 18.5 x 89.5 mm
Assembly type: hatchiene
Work temperature: -20 ° C - 40 ° C
Input voltage AC: 110-240 V ± 10%, 50/60Hz
1 output
Drying
Max. Input current: 16A
Power consumption measurement: no
Power of the radio signal: 1MW
Outdoor -wide outdoor: up to 50m
Operating range in the interior: up to 30m
Overheating protection: yes
Overload protection: yes
Surge protection: yes
Difficult to flame: yes
Further information:
Additional:
Brand newimmediately availableWith Tasmota firmware
Model variants:
Tasmota German
Tasmota + KNX GermanTasmota EnglishTasmota + KNX EnglishTasmota Individual Language (Send US A Message)Tasmota + KNX Individual Language (Send US A Message)Shelly Original (No Tasmota)
