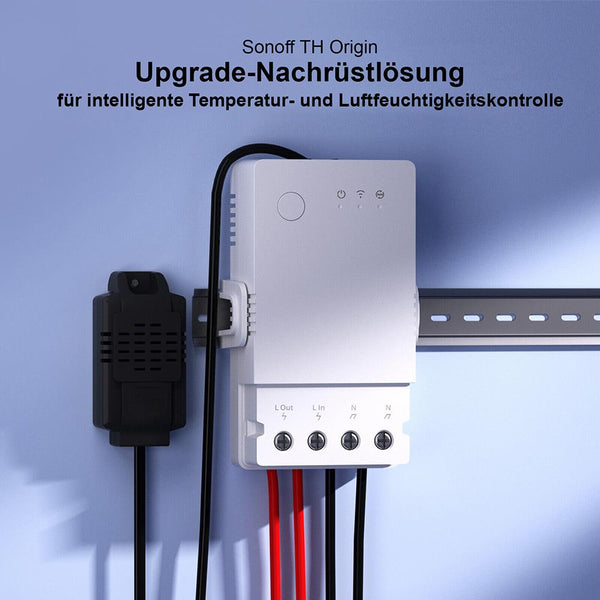

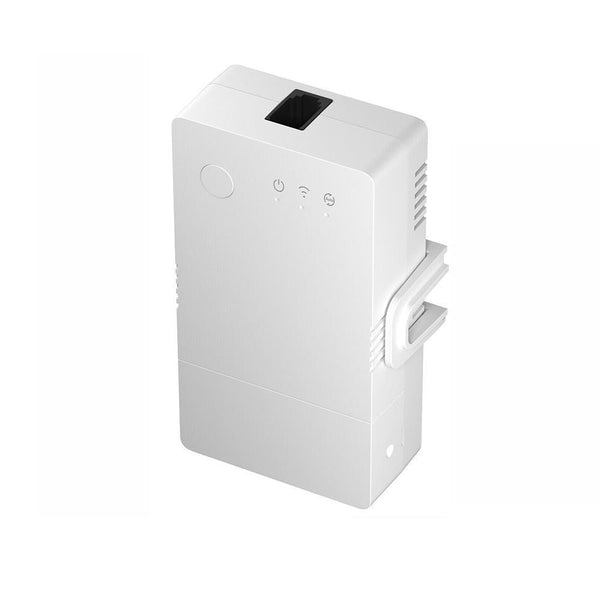

SONOFF THR316 TH Origin 16A Sensor Controlled WiFi Smart Switch Tasmota

Article description:

WiFi Smart Switch with sensor connection

Already flashed with the latest Tasmota firmware.

16a maximum load - supports a maximum of 16a load. The TH Origin is therefore compatible with more household appliances.

Historical 6-month data for temperature and humidity after hours - evaluation of the temperature and humidity data after hour, day and month. The data of the past 6 months can be exported in .xlSX format and are precisely for the hour.

Fully functional - The TH Origin has the most basic functions, such as app control, voice control, schedule, tip setting, switching on, etc.

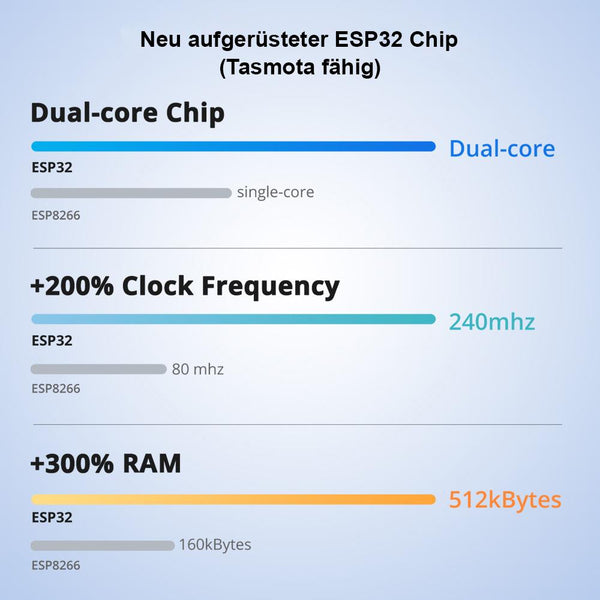

Sonoff TH Origin is an intelligent temperature and air humidity monitoring switch, with a newly upgraded ESP32 chip that is 200% faster than the previous ESP8622 chip. The TH Origin monitors the temperature and humidity in real time. As soon as the values ​​reach the preset threshold, it can be changed on/off the status of the device.

Supports the connection of devices with a maximum load of 16A, such as a washing machine.

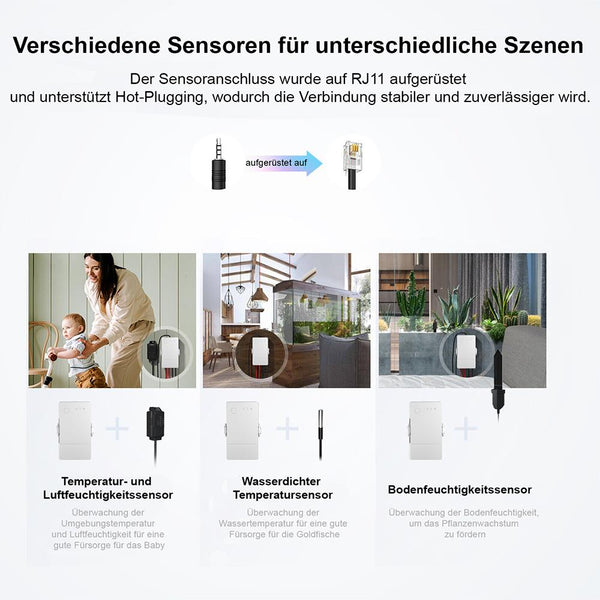

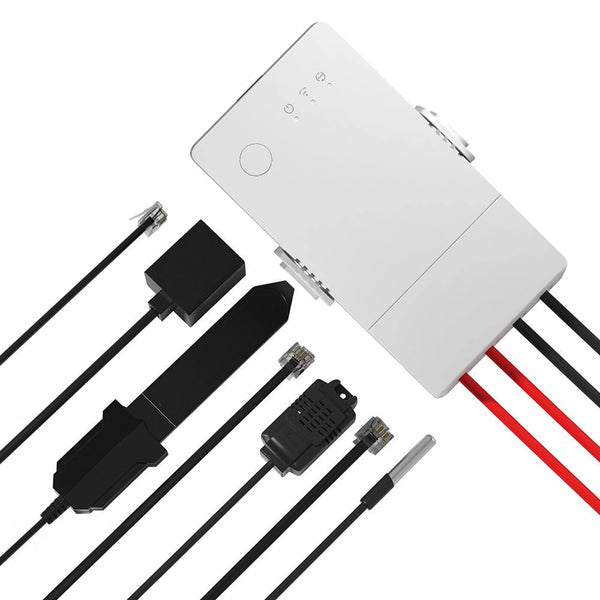

Sonoff TH Origin supports three types of temperature and humidity sensors: temperature & moisture sensor THS01, the waterproof temperature sensor DS18B20 and the soil moisture sensor MS01. The sensor connection was upgraded to RJ11 and supports hot plugging, making the connection more stable and reliable. Th Origin Hatsomit A wide range of application, such as heated swimming pools, irrigation systems, fermentation rooms, reptilient rariums, greenhouses, etc.

The Ewelink version is compatible with Amazon Alexa & Google Assistant. The Tasmota version is compatible with Amazon Alexa. Many other voice assistants can be controlled via the Home Automation Connection / MQTT.

also available as TH Elite. With LCD display and optionally with 16A or 20A:

SONOFF THR316D TH Elite 16A Sensorgesteuerter WiFi Smart Switch Tasmota

SONOFF THR320D TH Elite 20A Sensorgesteuerter WiFi Smart Switch Tasmota

More information:

The Sensor THS01 and DS18B20 (RJ11) already have the RJ11 socket. Simply plug in and use in Th Origin. MS01 is delivered to a free RJ11 adapter.

If you already have the 2.5 mm audio jack sensor (Si7021/AM2301/DS18B20) and want to use it with the new Th Origin, an RJ1 adapter is required. This is also available in the shop.

to match:

Splash -proof housing

The waterproof box R2 from Sonoff consists of PC V0 material, which is dustproof and prevents objects from entering. Which makes it ideal for protecting your sonoff switch in moist environments.

SONOFF Waterproof Box R2 IP64 TH-Elite TH-Origin POW-Elite POW-Origin NSPanel TX

Technical data TH Origin:

Model: Thr316

MCU: ESP32

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Size: 98 x 54 x 27.5 mm

Weight: 100g

Work temperature: -10 ° C - 40 ° C

Job moisture: 5% - 95%

Input voltage: 100V ~ 240V AC (50/60Hz)

Max. Input current: 16A

Material: PC V0

Technical data sensors:

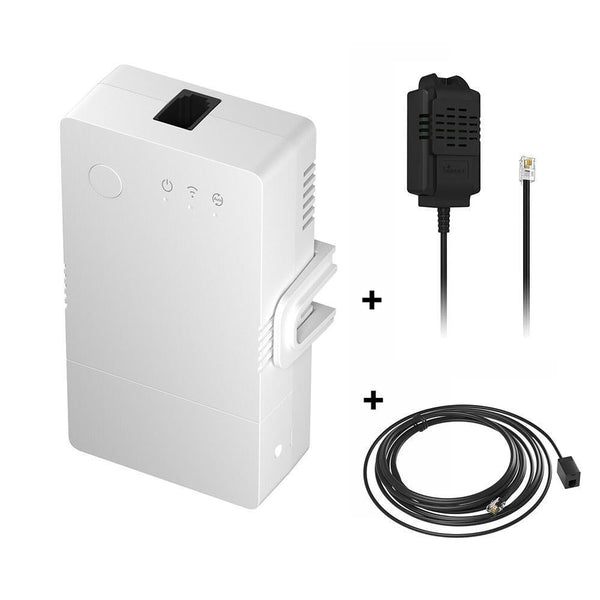

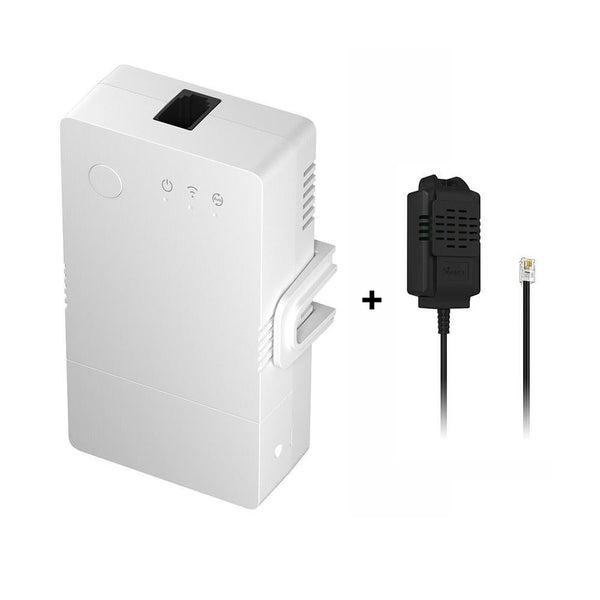

ths01 sensor

Sensor type: temperature and humidity sensor

Plug -in type: RJ11 4P4C

Temperature measuring range: -40 ℃ ~+85 ° C

Air humidity measuring range: 0 ~ 100%RH

Cable length: 50cm

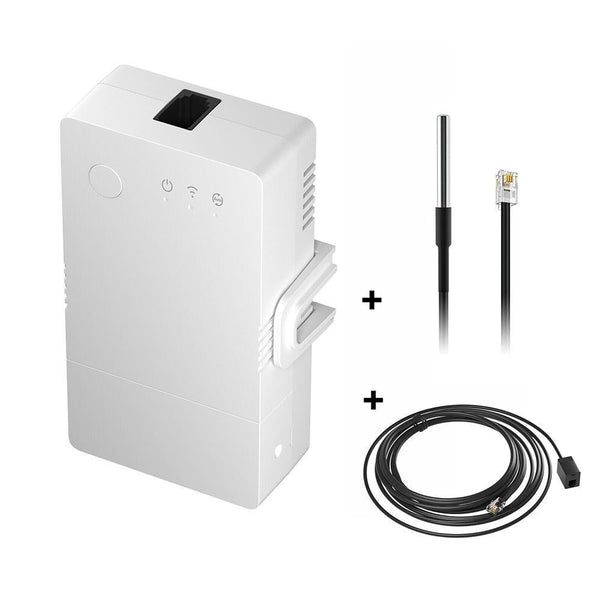

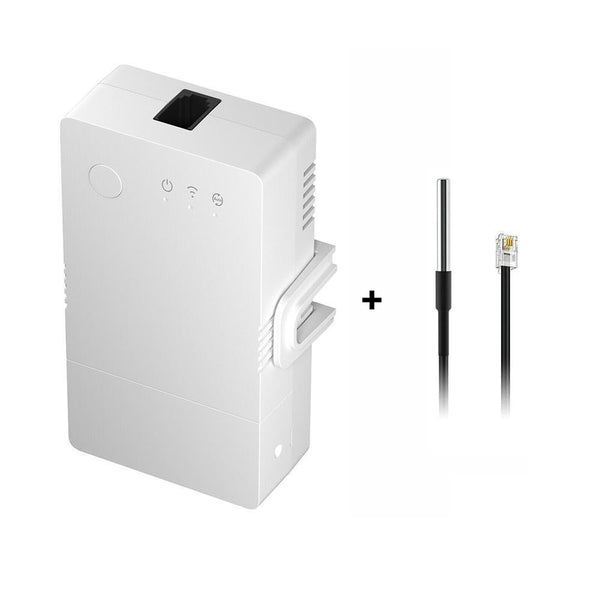

ds18b20 sensor

Sensor type: waterproof temperature sensor

Plug -in type: RJ11 4P4C

Working temperature: -55 ℃ ~+125 ℃

Length: 50cm

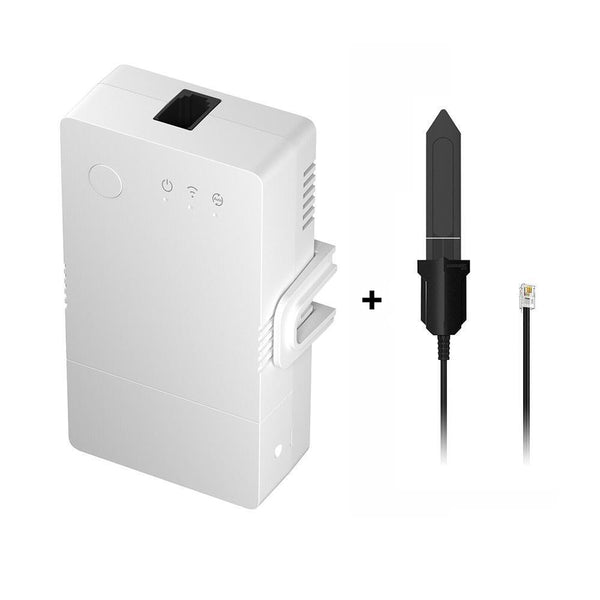

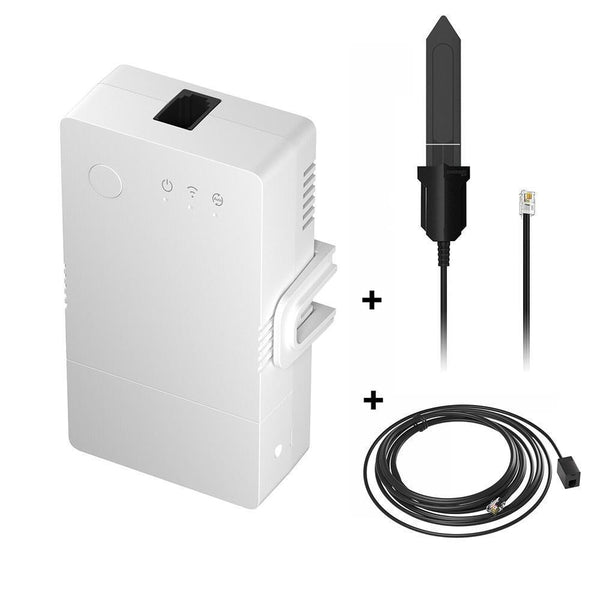

ms01 sensor

Sensor type: soil moisture sensor

Air humidity measuring range: 0 ~ 100%RH

Operating temperature range: 0 ℃ ~ 60 ° C

Cable length: 50cm

rl560 sensor extension cable

Ladder resistance: Max.10Ω

Isolation resistance: min.5mΩ

Length: 5m cable length

Max. Advancable length: THS01 & DS18B20 up to 60m, MS01 up to 10m

Further information:

Additional:

Firmware variants:

Tasmota German

Set variants:
