WD01-ADE WiFi Smart Dual Irrigation Pump Watering System Tasmota

Article description:

WiFi smart dual irrigation pump

Already flashed with the latest Tasmota firmware.

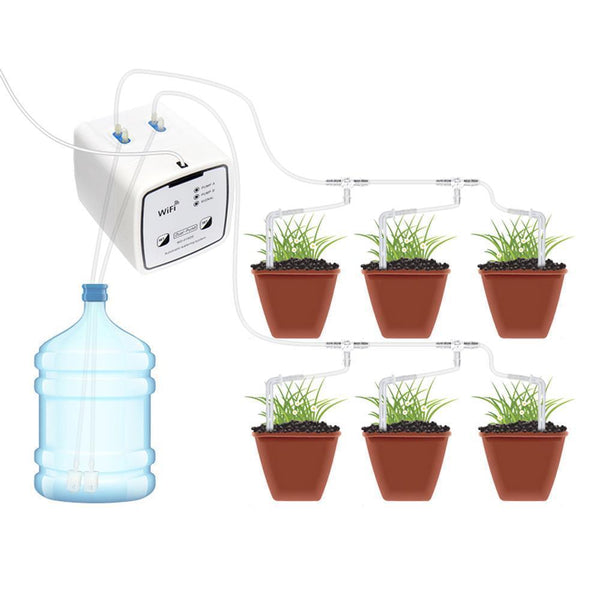

The WD01 is an intelligent double irrigation pump with an integrated WiFi chip. You don't need a tap for the operation, but only a water tank or a bottle to get water. You can set schedules for irrigation of your house and balcony plants, flowers, etc.

You can plan the irrigation for every weekday or set automatic loop (e.g. switch on a 5-minute drip irrigation every 12 hours) to fully automate the irrigation of your house.

It is an integrated solution from a relay and 2 independent irrigation pumps, the watering receipt is connected to one or two water tanks or bottles.

The product includes a complete set of components for your home irrigation:

Before you set up a regular automatic irrigation, you should carry out some tests to determine the irrigation needs of your plants and calculate the size of the required water balloon.

It is an irrigation system for home use and not suitable for irrigation on a large scale or continuous operation.

In the packaging there is a power adapter cable (approx. 100 cm) with a USB connector, which you can connect to your own 5 V equal power or a notebook or power bank.

According to the manufacturer, the device can also be operated with batteries, for this purpose 4 pieces of AA batteries are required under a cover on the underside, but this should only be seen as a bakery solution, since the battery consumption is high.

It is a product for the interior, it should not be used outdoors, it is not weatherproof.

Technical data:

Model: WD01-AD

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Size: 83 x 83 x 95 mm

Weight: 818g

Pump output: 0.3-0.8 liters per minute

Suction: ≥ 2 m

It is recommended to put the water tank relatively low to the plants so that the water in the bucket does not flow directly into the flowerpot without starting the pump.

Hub: ≥ 2.5m

Input voltage: 5V DC (2a)

Scope of delivery:

WiFi irrigation pump

1 meter USB cable

Flexible tube: 15m

Drip arrows: 20 pieces

T-pieces: 20 pieces

2x filters for water intake

1x screwdriver

Further information:

Additional:

Firmware languages:

Tasmota German
