Avatto ZWSM16-W1 ZigBee 3.0 1 Channel 1CH Smart Switch Module Light Switch Tuya

Article description:

1 Channel ZigBee 3.0 Smart Switch

Just make yourself check the lighting in your home. The practical AVATTO 1-channel integrated switch enables you to control your lights remotely-either via the Tuya / Smart Life app or the voice assistant Google Assistant or Amazon Alexa. You can also create operating plans, timers and automation. At the same time, the device is compact and very easy to install. It supports the communication protocol ZigBee 3.0

Many options with the app: You no longer have to worry if you forget to switch off the light before leaving the house - now you can do it with your smartphone! The Tuya / Smart Life app enables you to switch on and off the light remotely. You can also group switches and manage several at the same time. You can also share your devices with other household members. In this way you can control the light from a distance! A locking function is also available.

Additional functions: Let the lights in your home adapt to your schedule. With the app you can easily set a timer or schedule so that the lights automatically tackle when you normally get up and go when you go to sleep. You also have the option of linking several devices and automating their function. The switch can also save the last settings and restore them if, for example, a power failure occurs.

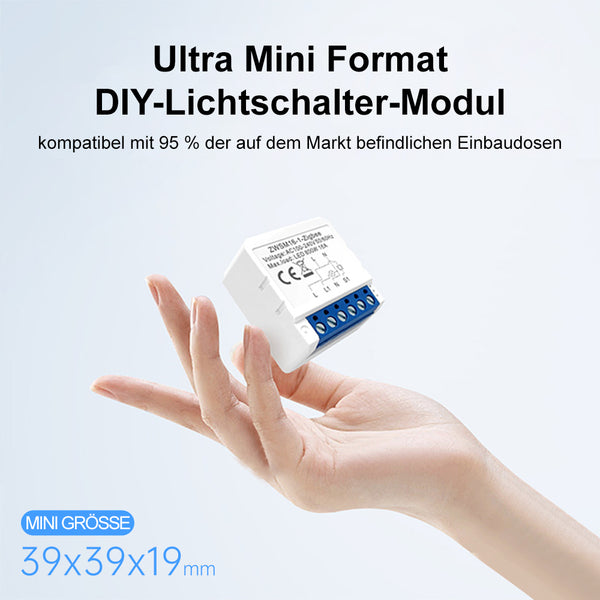

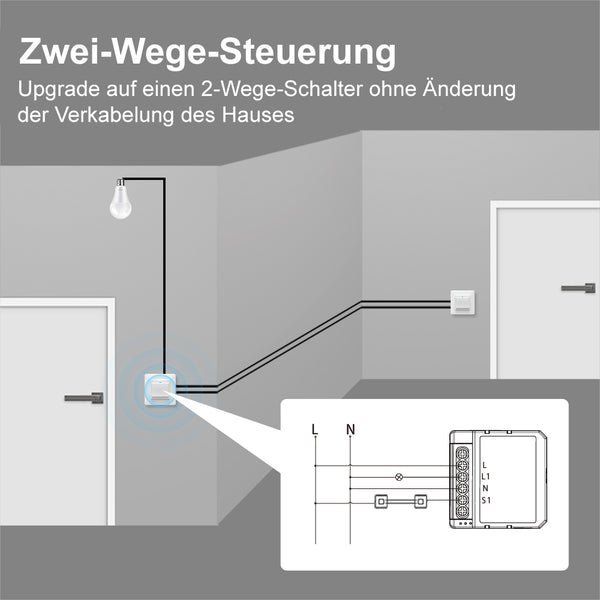

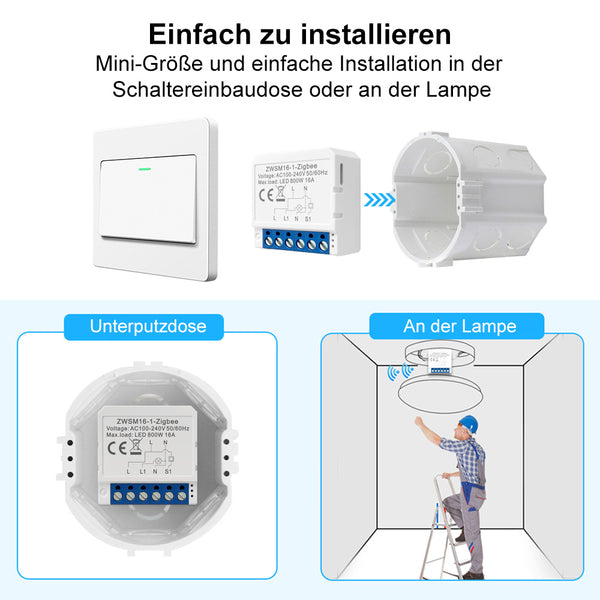

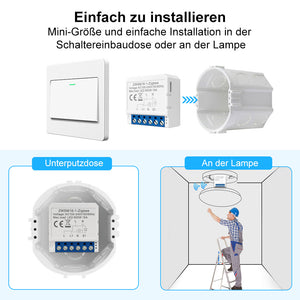

uncomplicated installation: Thanks to its compact design, the ZWSM16-W1 is compatible with different switch types and fits in up to 95 % of the installation cans available on the market. You can also attach it to a lamp. The installation will not cause you any problems and will not take too much time. In addition, you can also use 2 switches to control a single lamp, which is ideal, for example, near a staircase. In this way you can switch on the light comfortably on the ground floor and switch it off when you go up!

voice control: You are kneading a cake, your hands are busy and you need additional light? Or you are already in bed and want to go to sleep, but still have to switch off the light? With Avatto everything is much easier-the ZwSM16-W1 switch is compatible with the voice assistant Amazon Alexa and Google Assistant. This allows you to control your lighting with simple commands! Now a few words are enough to switch off the light- you don't even have to reach for your phone.

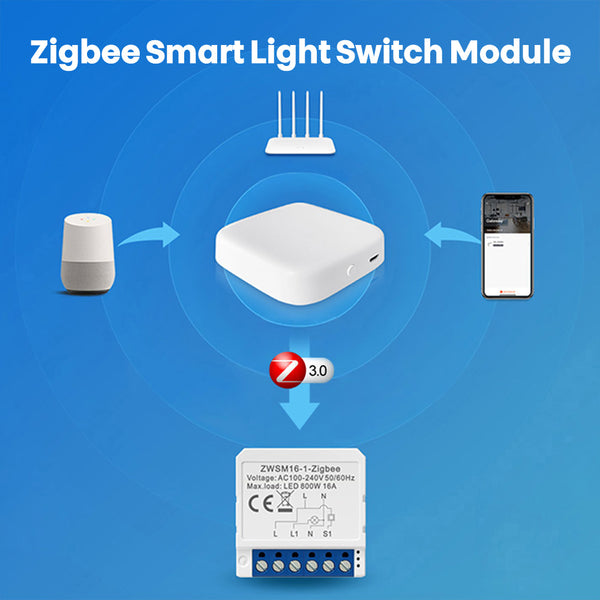

A ZigBee-capable bridge or a hub is required for the operation, for example the Sonoff Zbbridge, the Home Assistant Skyconnect, various ZigBee USB sticks, an Alexa Echo from the 4th generation and other similar devices.

The matching Sonoff ZBBridge is also available in the shop as a variant with the Tasmota version. This ensures that your data is fully protected from external access through the bridge.

Tasmota - cloudfree, fast & secure

Not compatible with Philips Hue Bridge, since Philips uses his own ZigBee protocol that does not allow any foreign devices

Technical data:

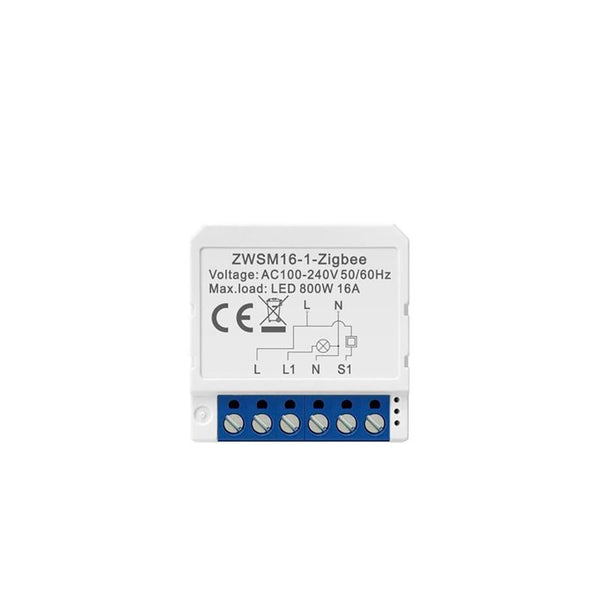

Brand: Avatto

Model: ZwSM16-W1

Color white

Number of channels: 1

Tension: AC 100-240 V 50/60 Hz

Maximum load: LED 800 W 16 a

Operating frequency: 2.405-2.480 GHz IEEE 802.15.4

Operating temperature: -10 ° C to 40 ° C

Communication protocol: ZigBee 3.0

Reach: up to 100 m

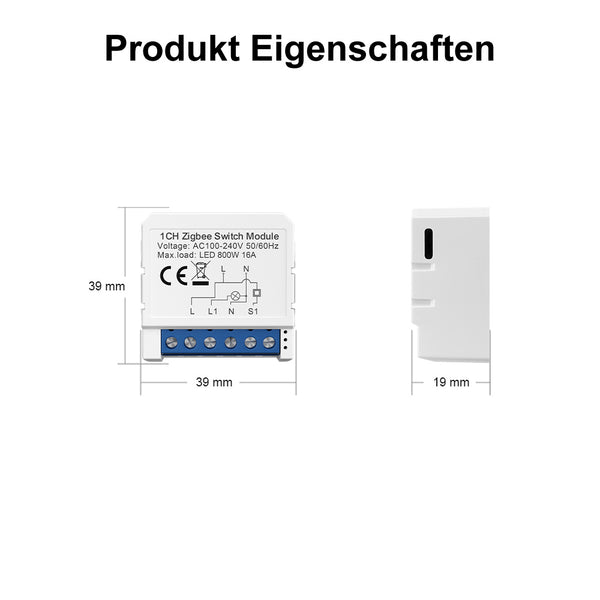

Dimensions: 39 x 39 x 20 mm

Protection level: IP20

App: Tuya / Smart Life

Compatibility: Amazon Alexa, Google Home
