ESP-07 ESP8266 WiFi Serial Module Arduino IDE, IoT, opt. ext. Antenna Tasmota 15

Product Description ESP-07:

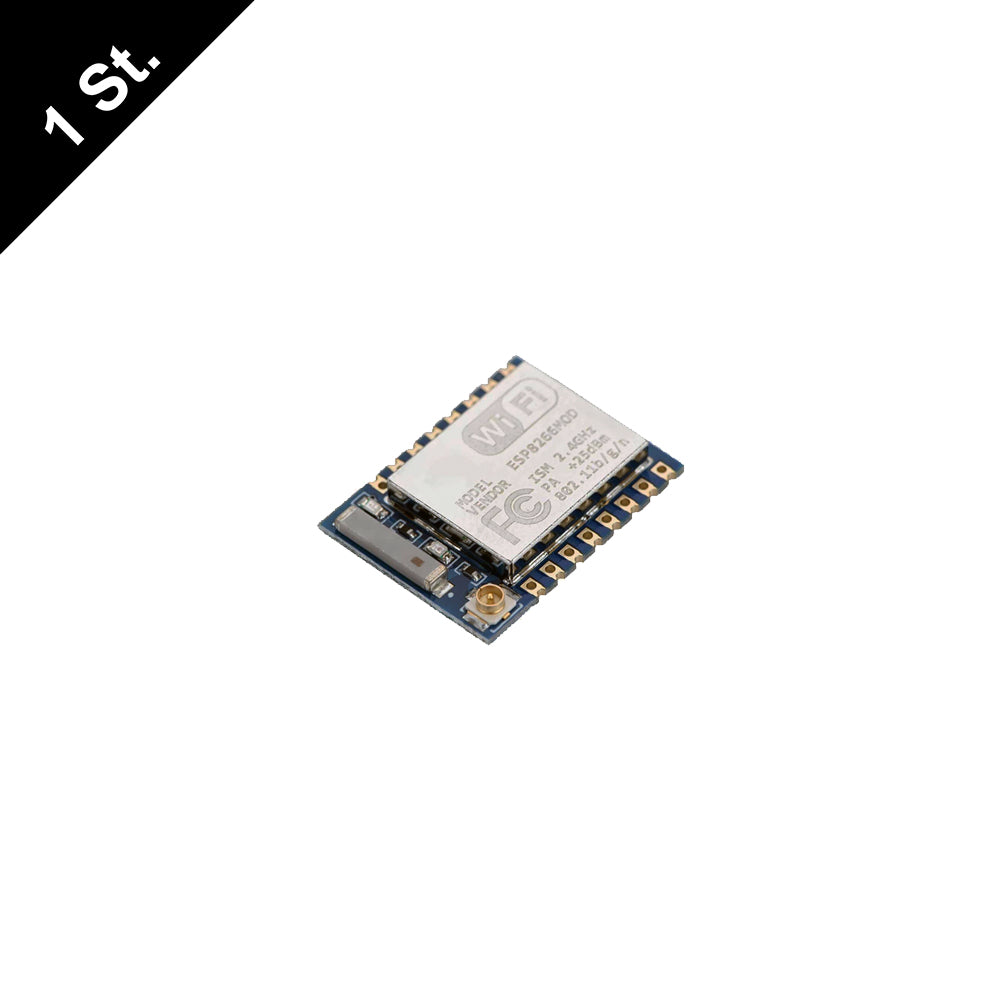

ESP-7 ESP8266 Wireless Transceiver Module

Already flashed with the latest Tasmota firmware.

The ESP-07 is a small and powerful WiFi module that allows you to easily integrate your projects into your Wi-Fi network.

This small chip allows you to program your own IoT projects. Or you can use the numerous example libraries available online.

Bring your projects online. The module works very well with Arduino, Raspberry Pi, Tasmota, or many other projects.

Product Description 6 dBi Antenna:

6 dBi WLAN Antenna

Amplifies the signal of various WLAN routers such as Fritz!Box, Linksys, Belkin, Netgear, D-Link, Buffalo, Asus, and many more.

Other Applications:

• WiFi Module

• Network Card

• Computer

• Model airplane remote control

• Bluetooth

• Network monitoring

• Wireless camera

• Intelligent household

• Network set-top box

• WLAN router

• Exchange

• Laptop

Technical data ESP-07:

Model.: ESP-07

Microchip: ESP8266

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

+20dBm output power in 802.11b mode

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 21.1 x 16 x 3 mm

Weight: approx. 1.5g

SPI flash size: 1MB

Working temperature: -40°C - 125°C

Input voltage: 3.0 - 3.6V (Recommended 3.3V)

Interfaces: UART/HSPI/I2C/I2S/IR Remote Control/GPIO/PWM

average working current: 80mA

WakeUp and Pact Shipping: < 2ms

Power consumption in deep sleep: <10uA

Standby power consumption < 1.0mA

Leakage current when switching off: < 5uA

Technical data 6dbi antenna:

 Frequency: 2.4Ghz + 5Ghz

 Gain: 5-6dBi / Impedance: 50 Ohm

 Total length: 195mm (foldable antenna)

 Frequency range: Omnidirectional

 Common port: SMA

 Range: 1-70m

 Technical specification: Signal coaxial SMA cable

 SMA cable material: RG1.13 cable

Device connection: IPEX/U.FL/MHF1

Cable length: 35cm

New goods available immediately with Tasmota firmware

Set variants

1x ESP-07 + antenna 3x ESP-07 + antenna 1x ESP-07 without antenna 5x ESP-07 without Antenna

Firmware variants

Tasmota german Tasmota english Original (without firmware)
