Article description:

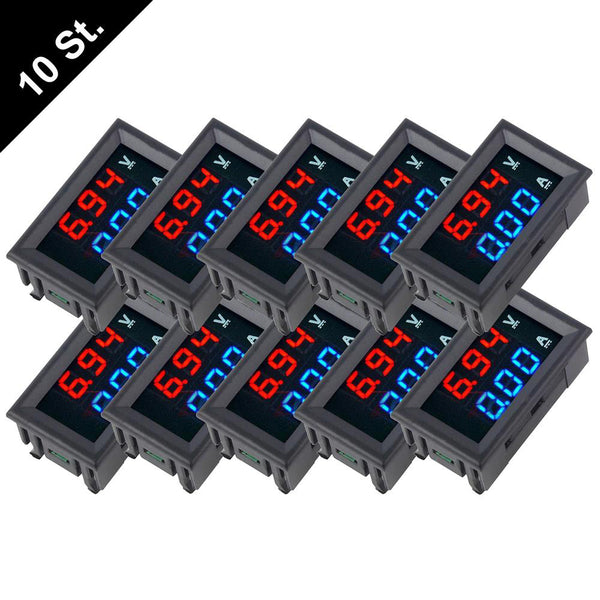

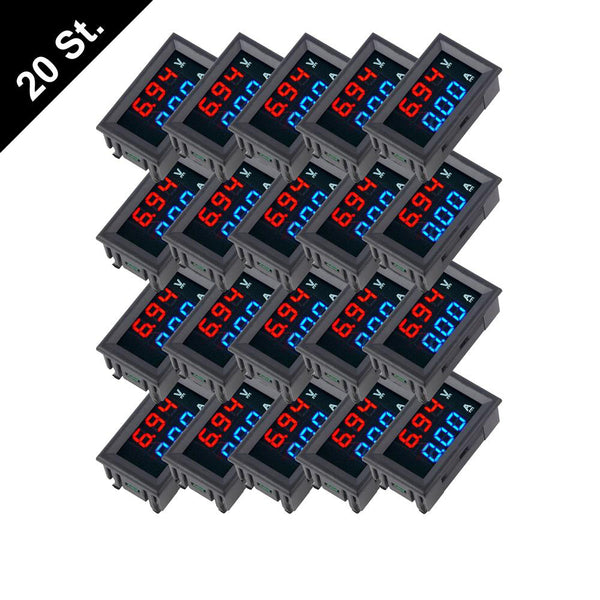

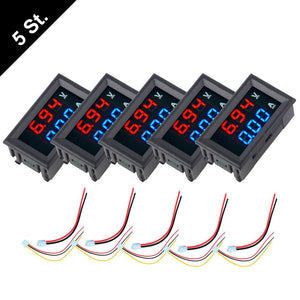

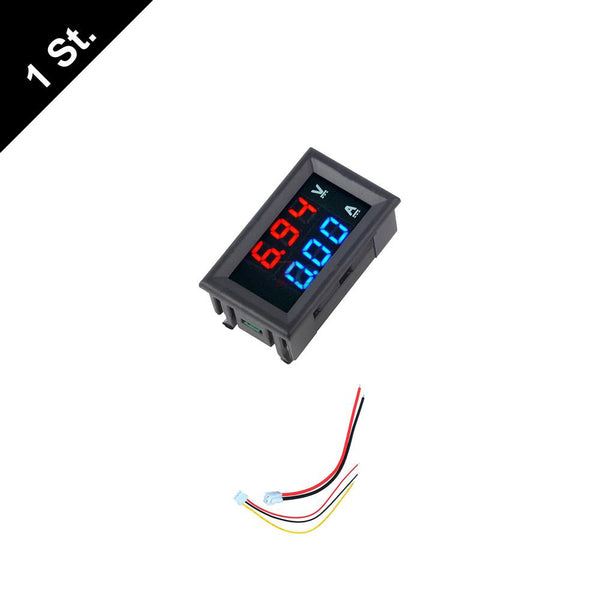

Mini Digital Voltmeter & Ammeter
Equipped with a dual LED display in blue and red
This voltmeter is designed for input voltages of up to 100V DC and 10A nominal voltage.
Suitable for battery monitoring of automobiles/electric cars/motorcycles or measuring the voltage of many other products.
Note:
For correct installation, please note the connection diagram in the offer images.
Technical data:
Measuring range: DC 0.0V ~ 100V
Current test range: 0 ~ 999mA, 0 ~ 10A
Supply range: DC 4 ~ 30.0V
Voltage measurement error: ± 0.1%
Power measurement error: ± 1%
Working current: <20mA
Update rate: approx. 300 ms once
Working temperature: -10 °C - 65 °C
Working humidity: 10% to 80% (non-condensing)
Display mode: double three-digit 0.28" LED display
Display color: Red + Blue
Cable length: 15cm
Dimensions: 48 x 29 x 22 mm
Mounting hole: 46 x 27 mm
