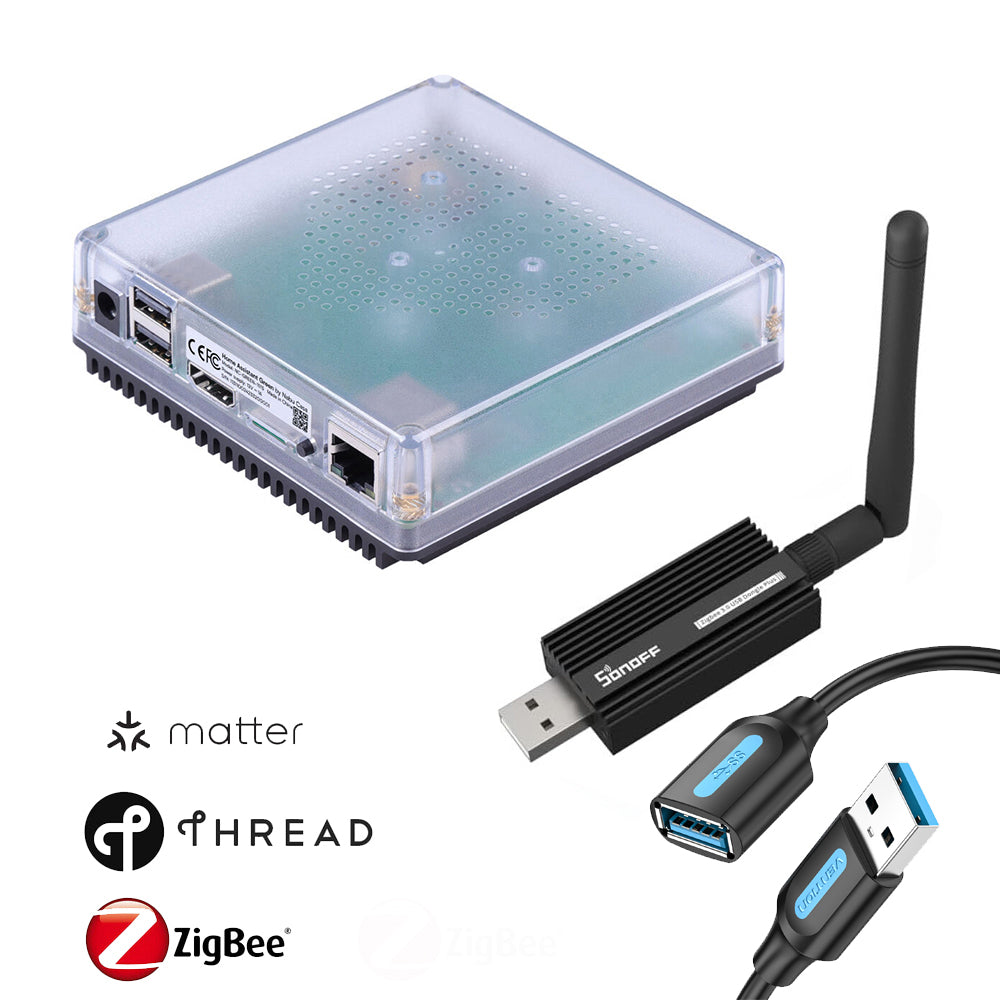

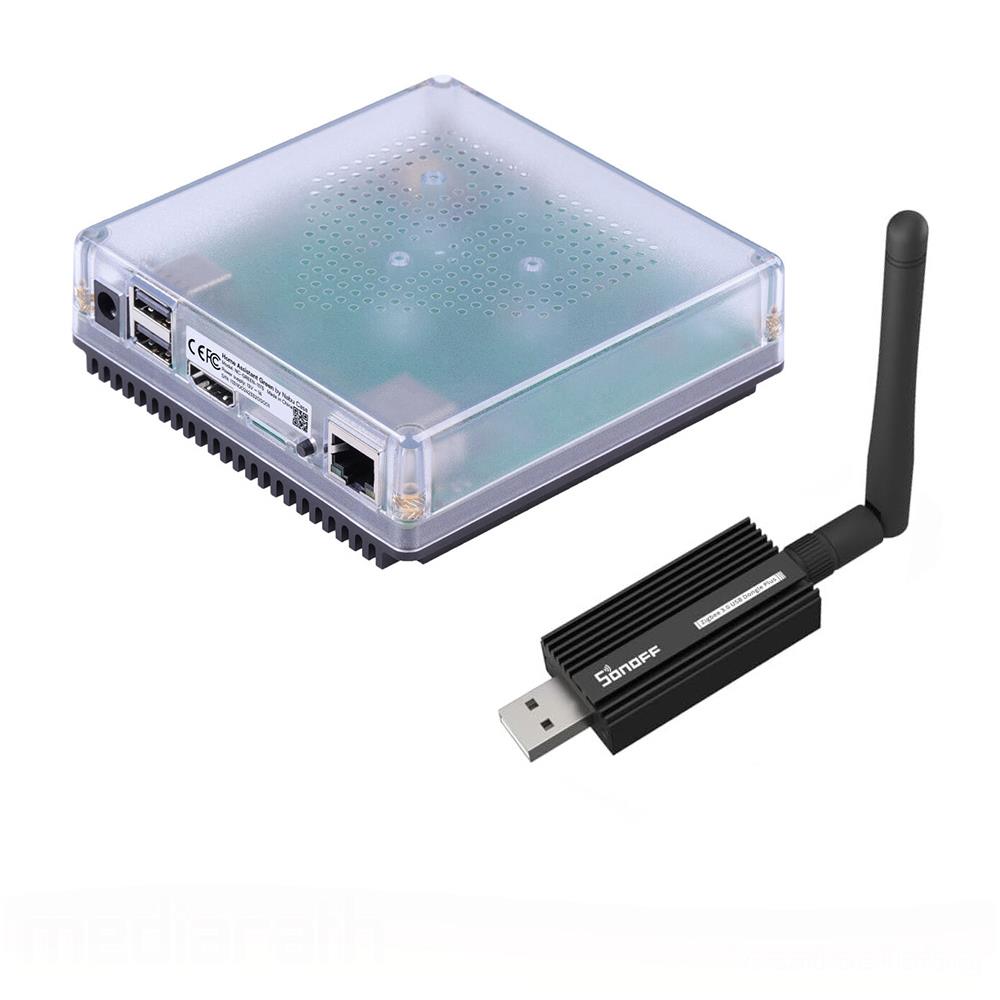

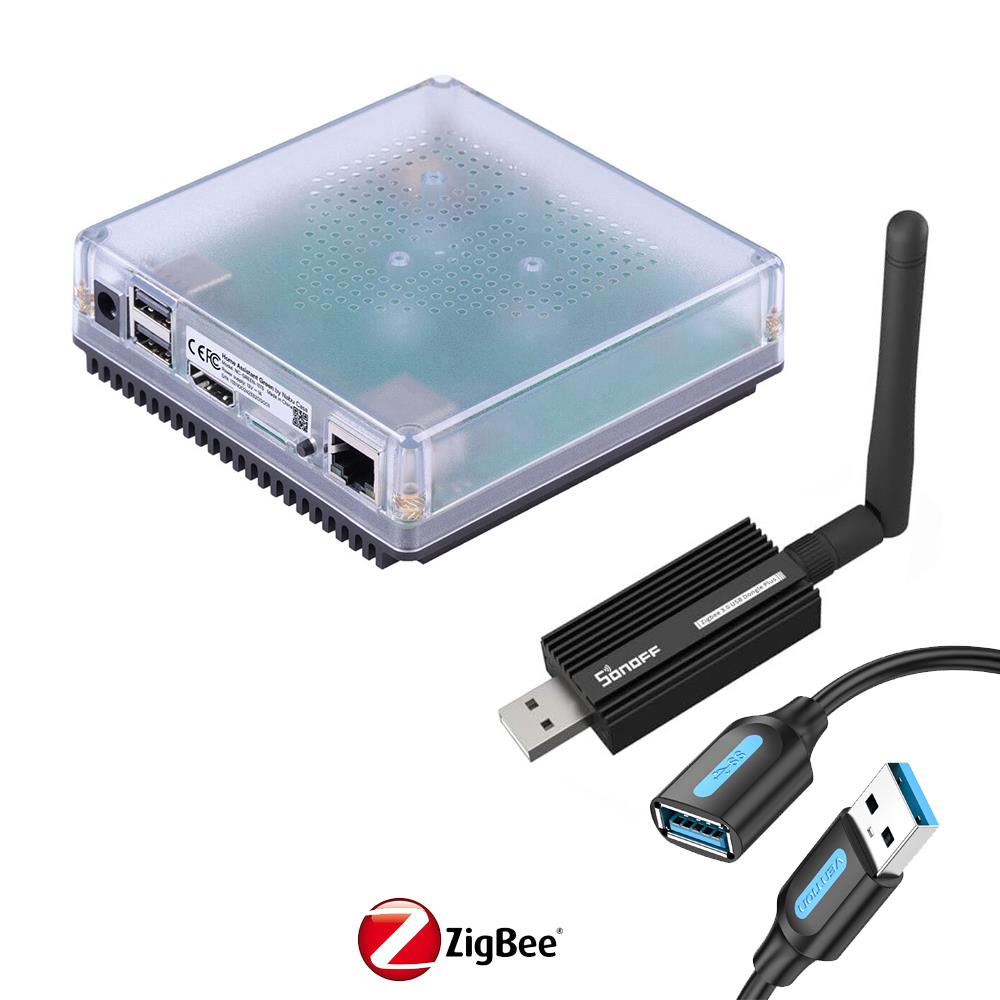

Home Assistant Green Smart Home Hub 2X USB, Gigabit LAN opt. Sonoff ZBDongle-E

Article description Green:

Home Assistant Smart Home Hub

EASY START — The affordable Home Assistant Green is the easiest way to use Home Assistant. It's easy to Set up and comes pre-installed with Home Assistant.

EASY SetUP — Just plug it in and get started. Start immediately.

COMPATIBLE WITH (ALMOST) EVERYTHING — Powerful hardware allows you to control and automate everything in your home from a single app with Home Assistant.

INTEGRATED — Everything in one app. Over 1,000 built-in integrations support hundreds of thousands of smart devices and online services, with more being added all the time by our community.

EASY MIGRATION — Switch from other smart home systems at your own pace. Home Assistant works with your existing Apple HomeKit, Google Home*, Samsung SmartThings** and Amazon Alexa* Setup, enabling a seamless and gradual migration for everyone in your home. * For smooth integration with Google Home and Amazon Alexa voice assistants, a Home Assistant Cloud subscription is recommended. **A Home Assistant Cloud subscription is recommended to use webhooks with Samsung SmartThings.

EXPANDABLE — Expand compatibility as your home grows. You can add Home Assistant SkyConnect to connect Zigbee and Thread* devices, Set up Home Assistant Cloud for voice assistants, and integrate third-party USB accessories to support other smart standards such as Z-Wave or Bluetooth. * Thread support is currently under development.

TRUSTWORTHY — Your home is built to last, and your smart home should be too. With Home Assistant, your smart home is private, truly owned and controlled.

IMPROVES EVERY MONTH — Home Assistant is developed by one of the largest communities of open source contributors. New features and improvements are added every month to ensure your smart home never lets you down.

YOUR DATA IS PRIVATE AND LOCAL — Home Assistant stores your data locally, meaning you're protected from privacy practices and can access your smart home even when the internet isn't working.

---

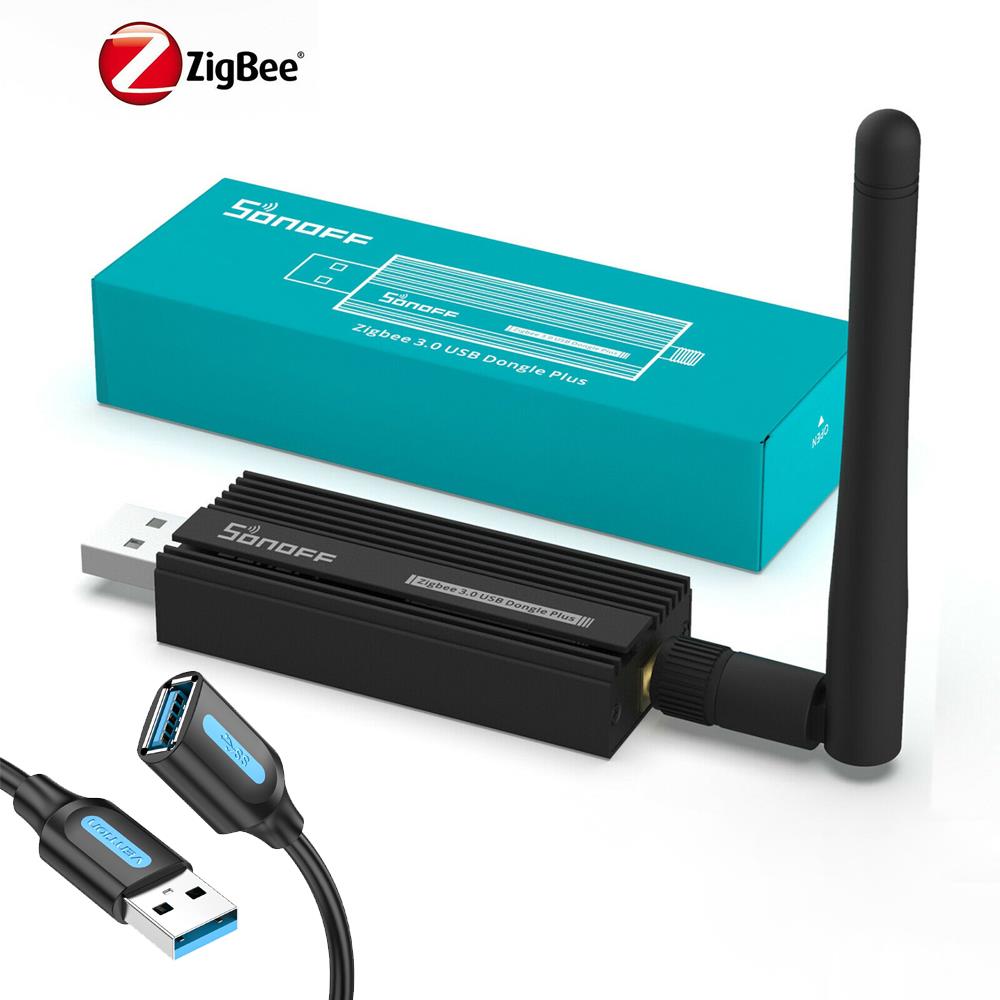

Article description Sonoff Plus ZBDongle-E:

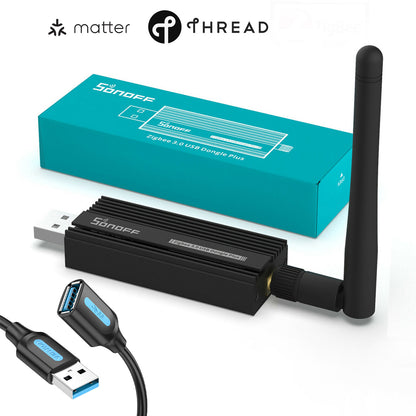

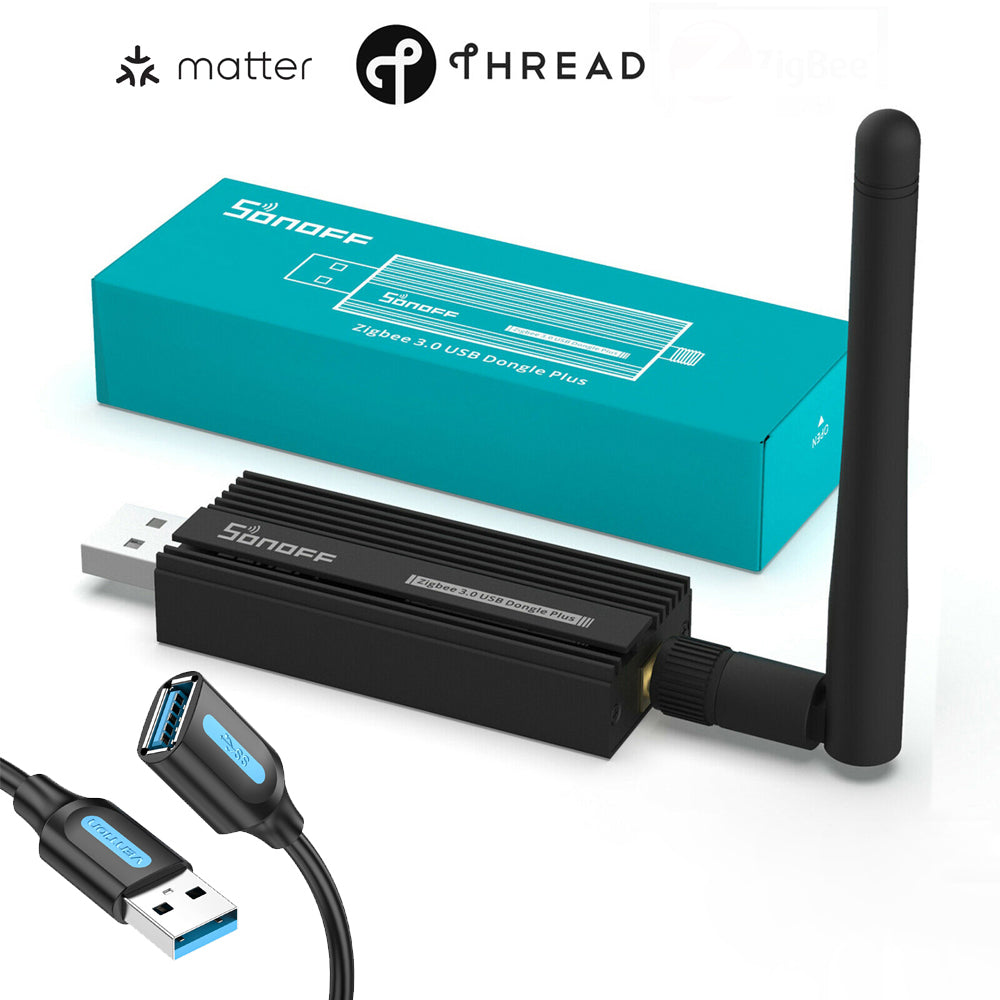

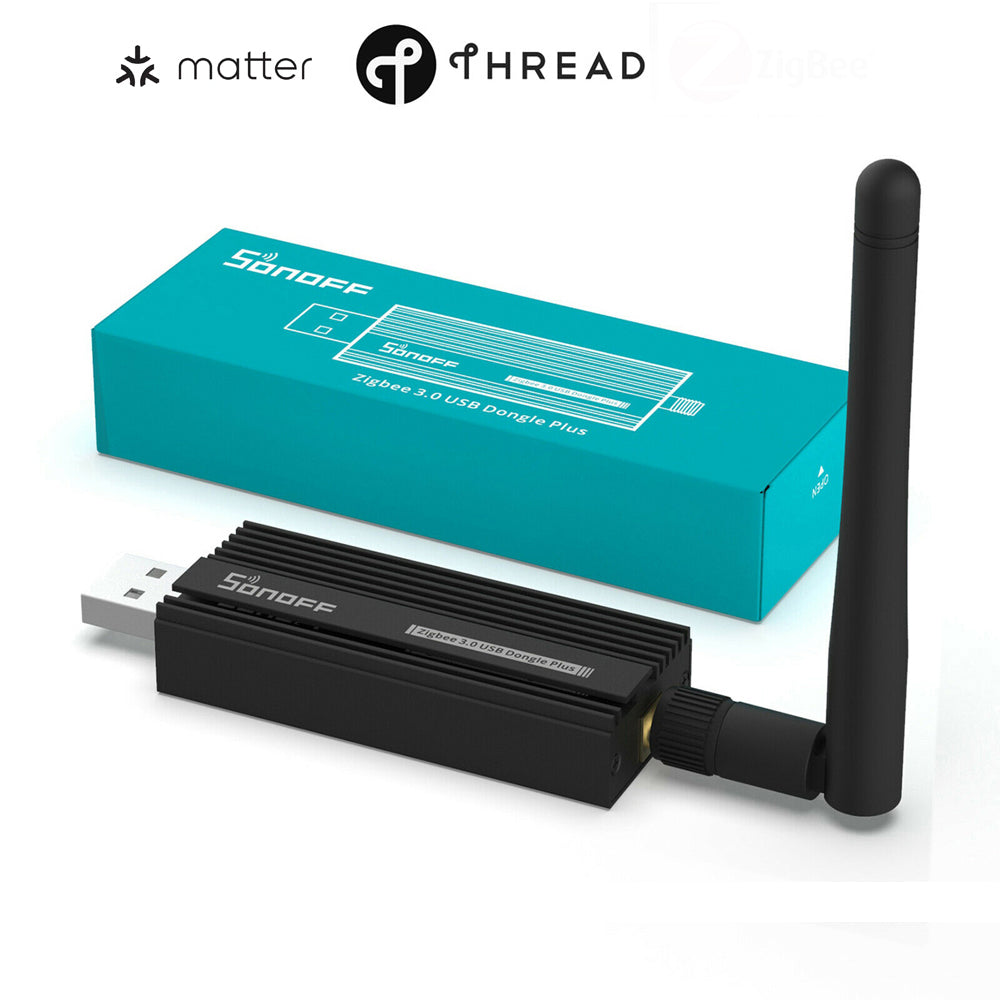

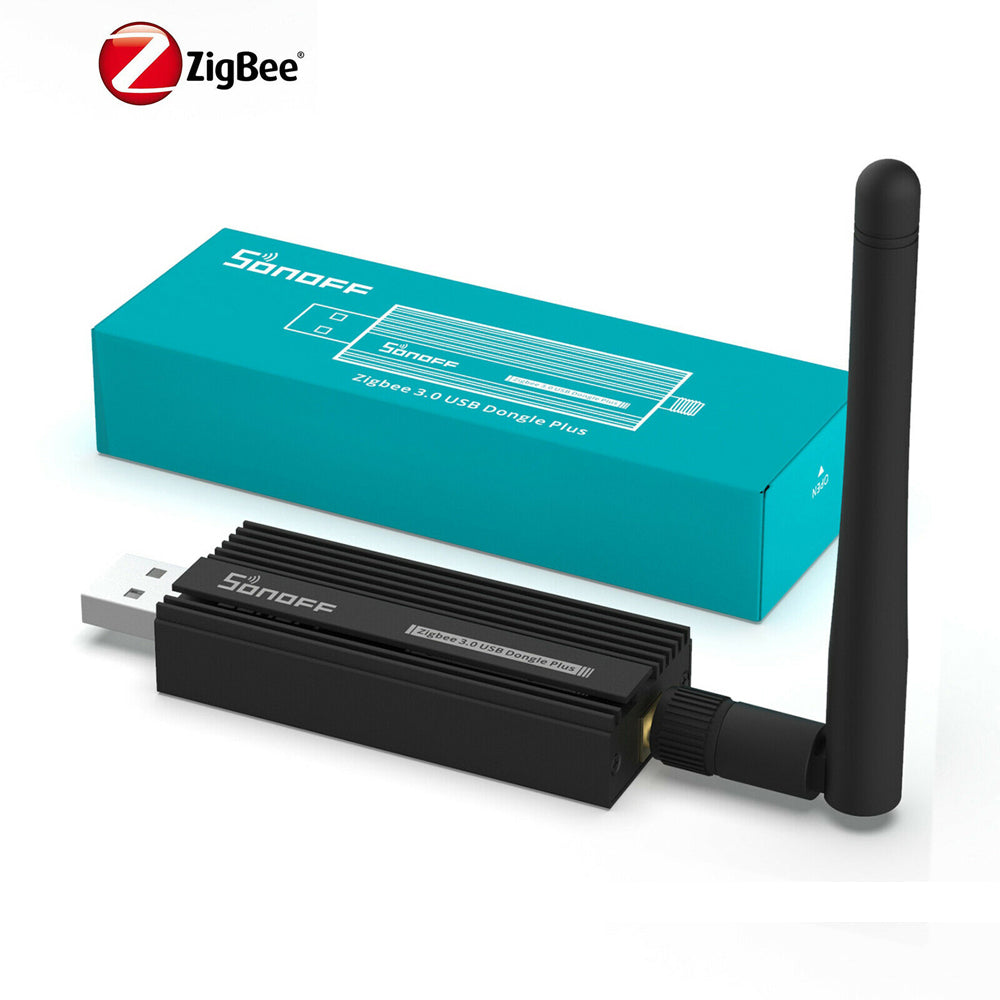

USB Zigbee 3.0 gateway with the original Zigbee firmware

Pre-flashed with Zigbee coordinator firmware based on EZNet 6.10.3 out of the box

Sonoff Dongle-E can be used as a Zigbee gateway in Home Assistant, openHAB, Zigbee2MQTT or other open source platforms to locally control all Zigbee devices. It allows you to connect up to 32 devices at the same time and works more efficiently than CC2531 or ConBee 2. You no longer need to invest in Zigbee hubs of different brands, all you need is a universal gateway - Dongle Plus!

You will use the Dongle Plus as a Zigbee 3.0 gateway in open source platforms to manage various devices of different brands or to flash your router's firmware to increase the range of the network. You can also purchase an additional 1.5 meter long USB cable for a longer signal range. The product works with platforms such as Home Assistant, openHAB, Zigbee2MQTT, etc. It also supports Linux, Ubuntu, Raspbian, Windows and macOS.

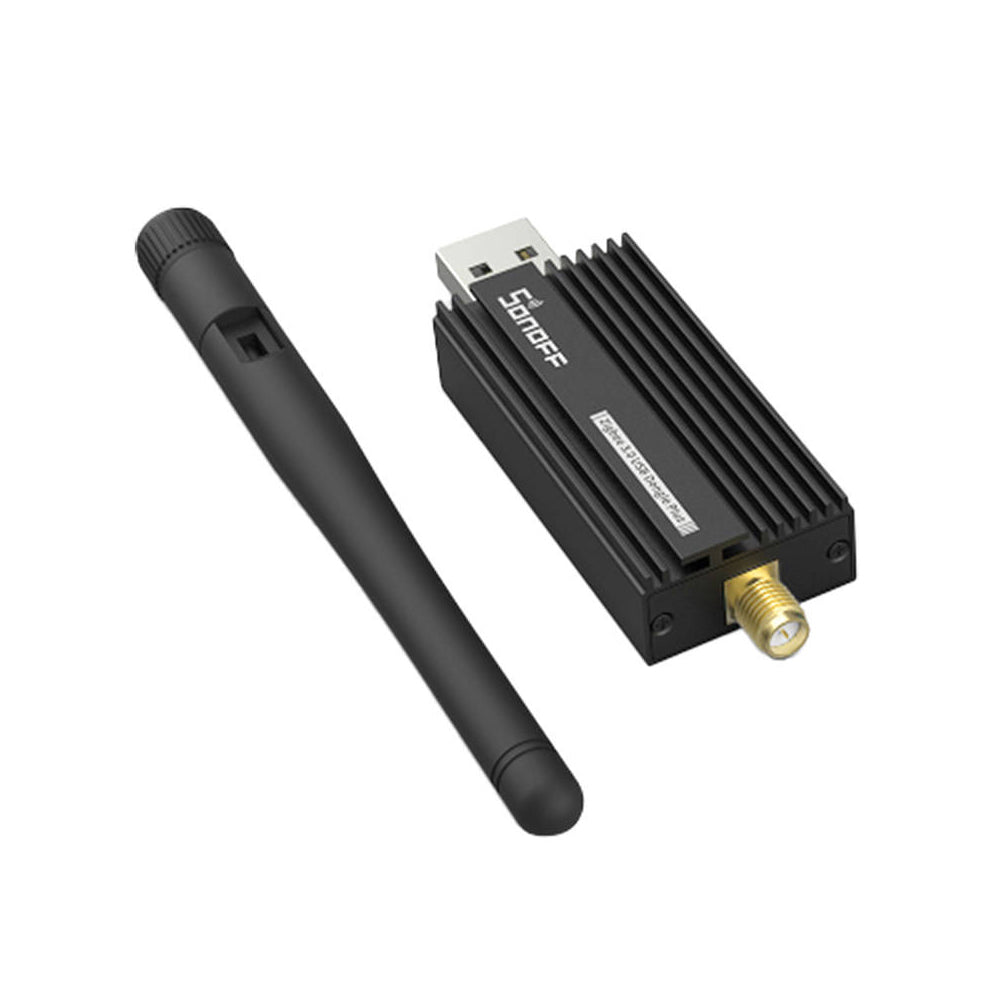

The product is made of aluminum alloy, which improves signal transmission. In addition, it eliminates interference from peripheral devices. It has an external SMA antenna whose position you can also adjust. What's more, the output gain of +20dBm affects 3x the signal range.

---

Important note:

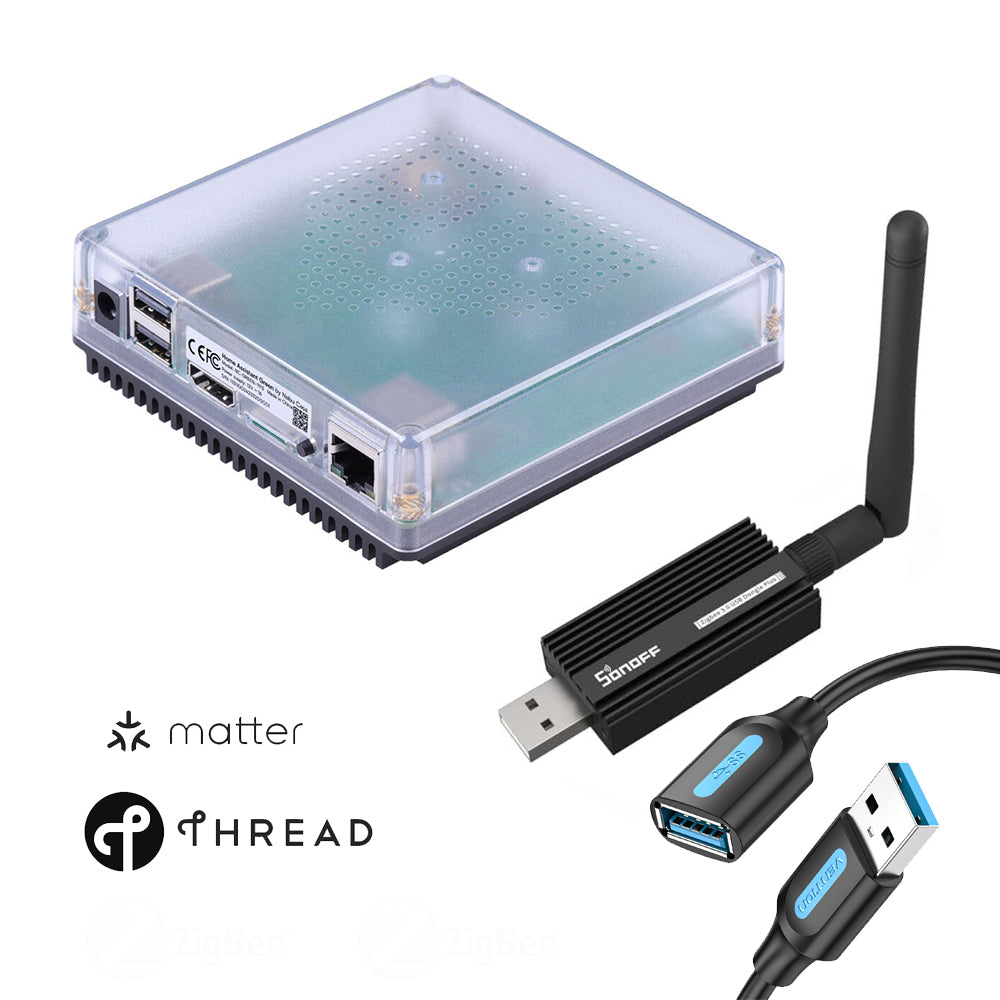

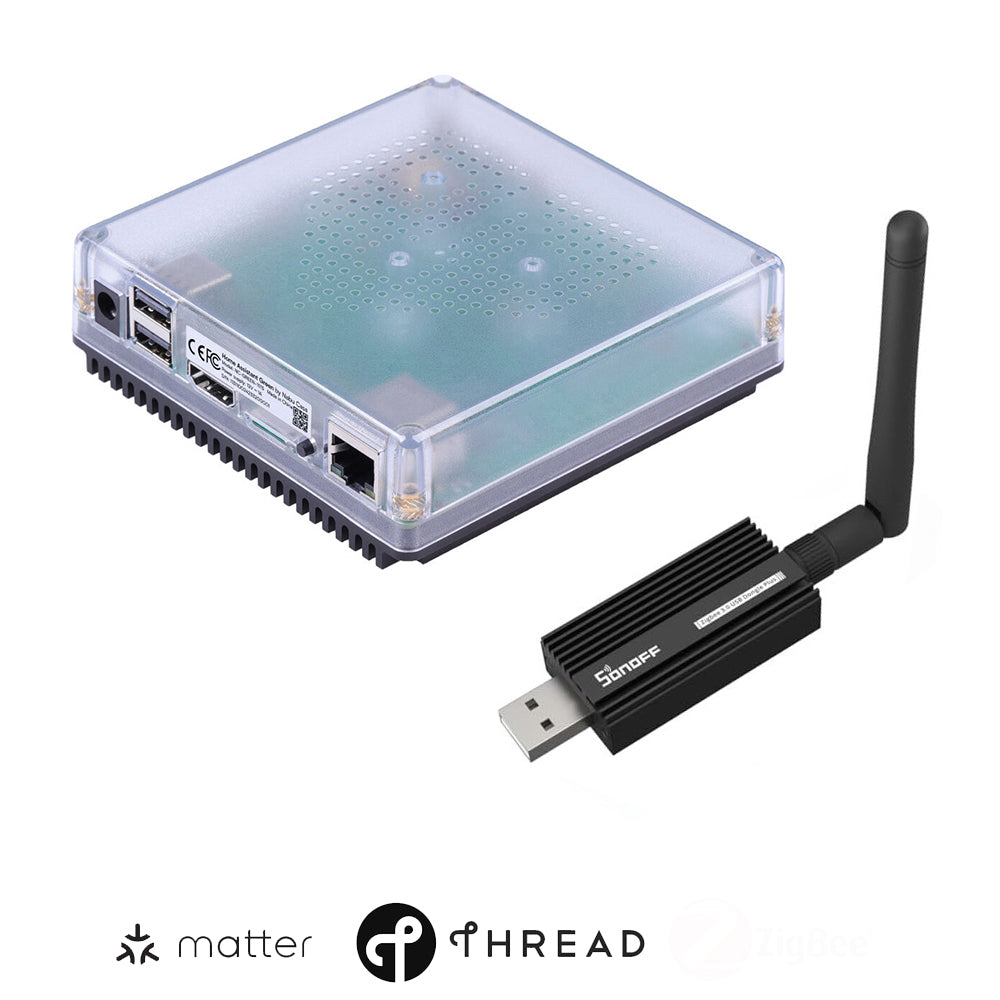

Due to the width of the ZB dongle's housing and its proximity to the power adapter plug, it does not fit directly into the Green's USB port. It can only be used with a USB extension cable. If such a cable is not already available, we recommend ordering it at the same time.

---

Article description Sonoff Plus ZBDongle-E Multi-PAN:

USB Zigbee 3.0 Gateway with Multiprotocol Firmware - Multi-PAN (RCP)

Already flashed with the MultiPAN RCP firmware. Simultaneous support for Zigbee & Thread (Matter)

What is the current status of support for multiprotocol?

Multiprotocol remains an experimental feature and is not recommended for use.

When Nabu Casa introduced the SkyConnect, they announced that they would release firmware that supports multi-protocol functionality. This firmware allows the device's Silicon Labs chip to communicate with both Zigbee and Thread networks via a single radio module. This experimental firmware has been available since December 2022. However, through extensive testing, Nabu Casa has found that while it works in certain circumstances, it has technical limitations that may result in a compromised user experience. Therefore, Nabu Casa does not currently recommend the use of this firmware, and it will remain experimental for the foreseeable future. Instead, the focus is on ensuring that the dedicated Zigbee and Thread firmwares provide the best possible user experience.

If you currently have the multiprotocol firmware installed but are not actively using it to connect to Thread devices, Nabu Casa recommends disabling multiprotocol.

Nothing changes for current users of the multiprotocol firmware who are satisfied with their experience. The experimental multi-protocol firmware remains available but is not recommended for new users.

---

Important note:

Due to the width of the ZB dongle's housing and its proximity to the power adapter plug, it does not fit directly into the Green's USB port. It can only be used with a USB extension cable. If such a cable is not already available, we recommend ordering it at the same time.

---

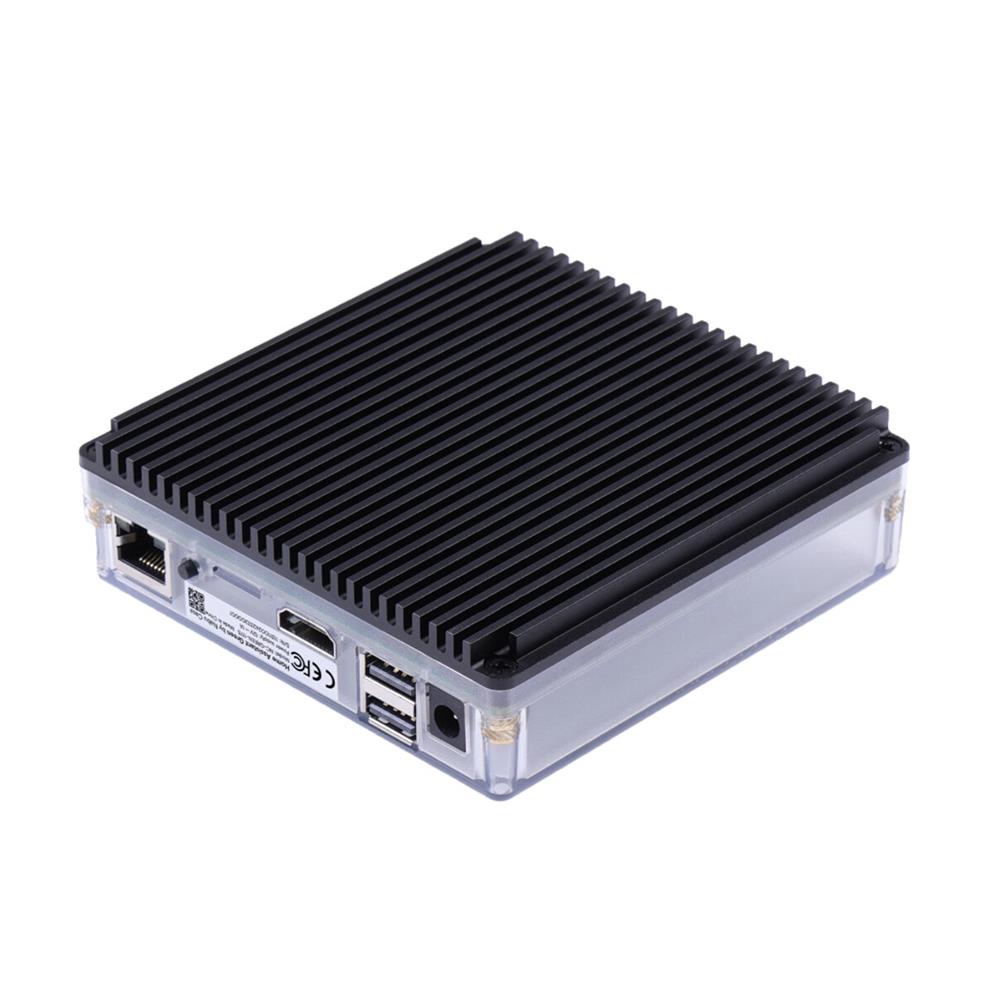

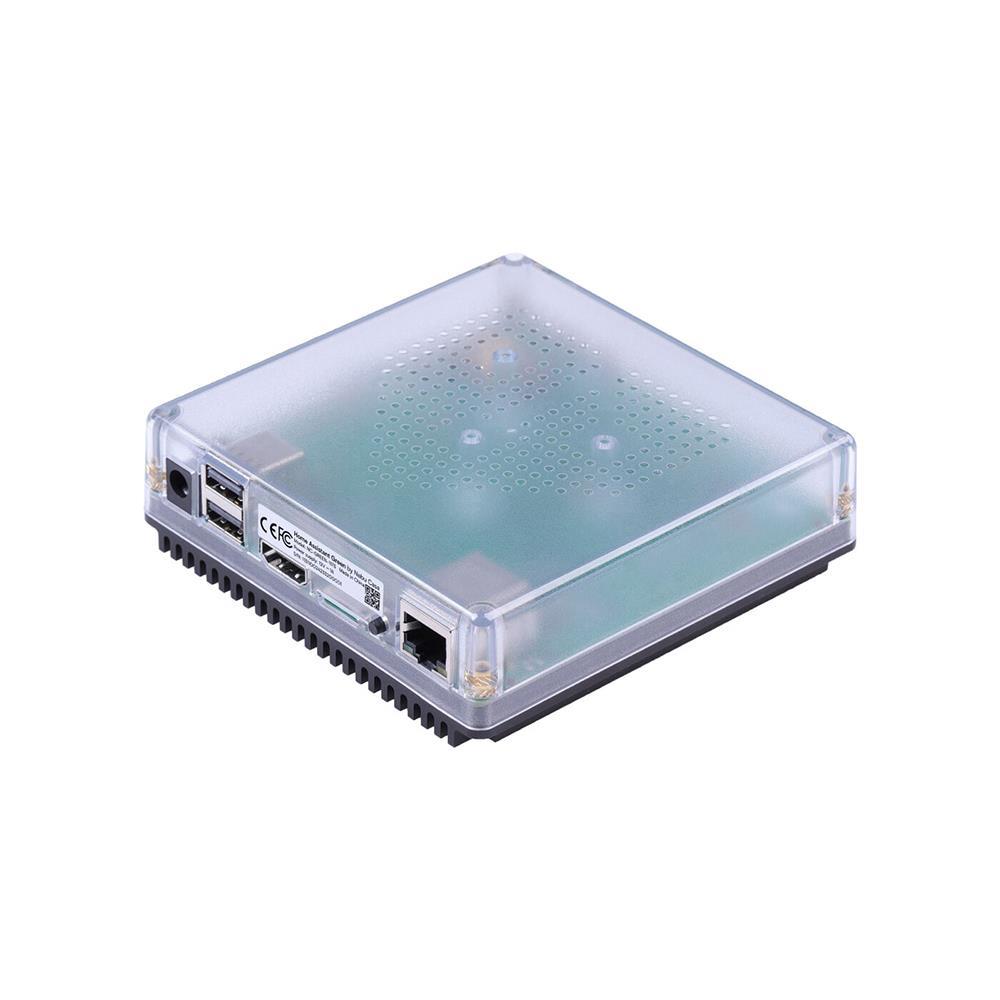

Specifications Green:

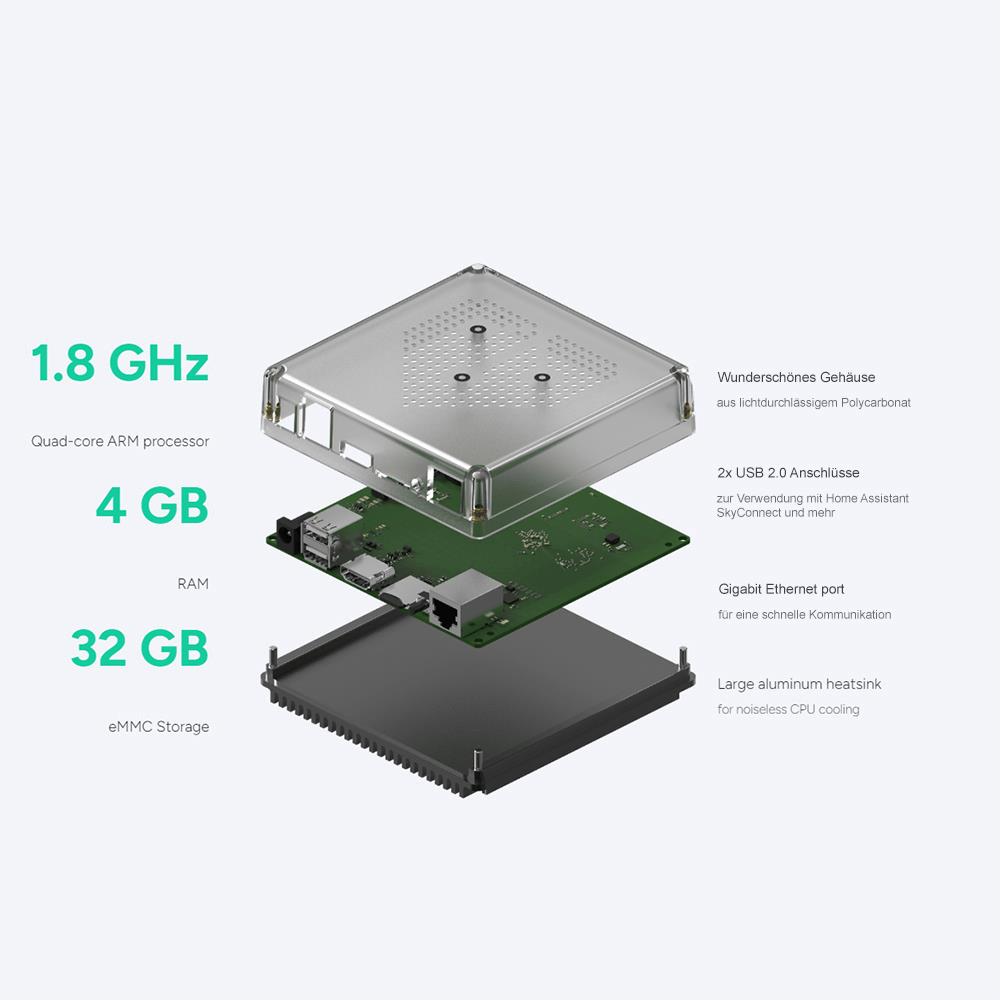

Hardware Specifications

SoC: Rockchip RK3566 SoC with quad-core Arm Cortex-A55 CPU

CPU frequency: 1.8 GHz

Storage: 32GB eMMC flash drive

Memory: 4 GB LPDDR4X

Interfaces

Status LEDs: White (power indicator), Green (activity indicator), Yellow (system status indicator)

Power supply: DC barrel connector, 5.5mm * 2.1mm / 12V DC, 1A

Battery: CR2032. Not included. Optional.

Consumption idle: ~1.7 W at 12 V

Power consumption load: ~3 W at 12 V

USB: 2x USB 2.0 Type-A host ports, 5V up to 2A (combined)

Display: HDMI port, for diagnostic purposes only

External storage: MicroSD slot, for recovery purposes only

Network: Gigabit Ethernet port

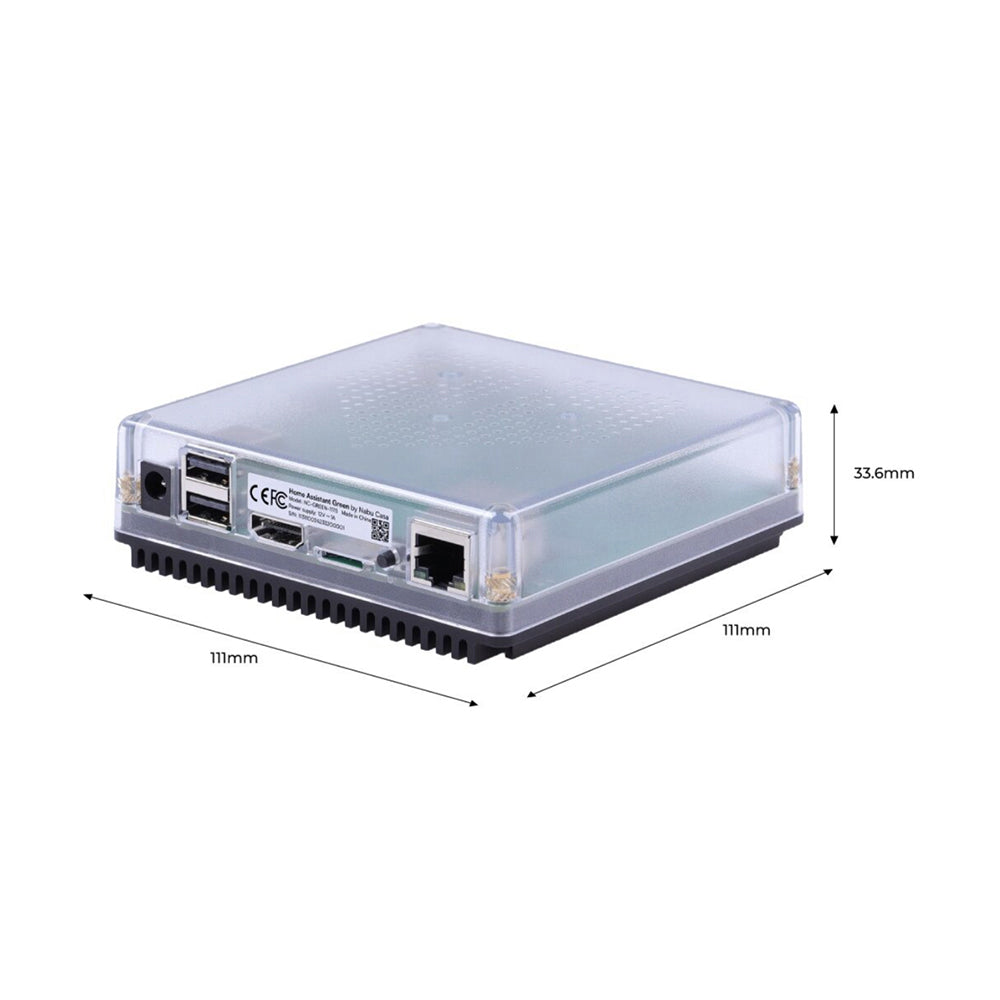

Dimensions and weight

Length: 112 mm / 4.41 inches

Width: 112 mm / 4.41 inches

Height: 32 mm / 1.26 inches

Weight: 340 g / 12 ounces

Materials

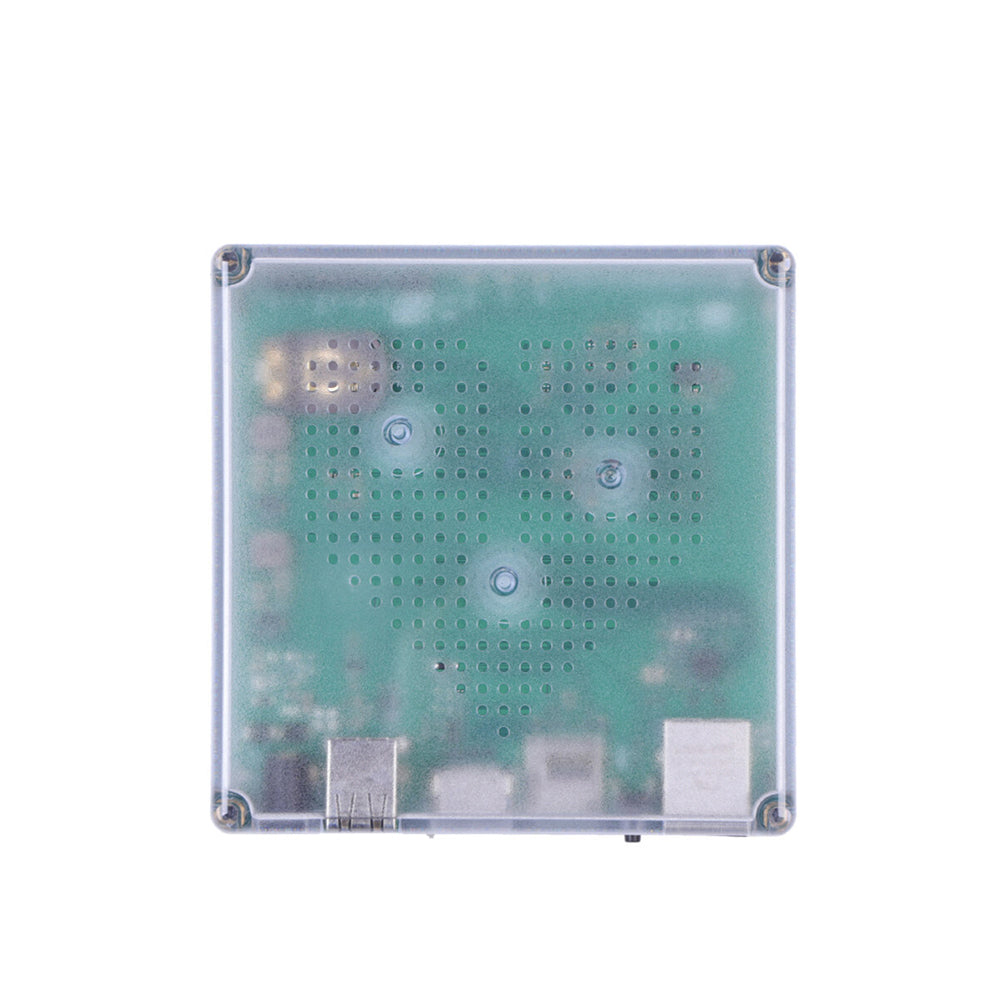

Casing: Semi-transparent polycarbonate plastic

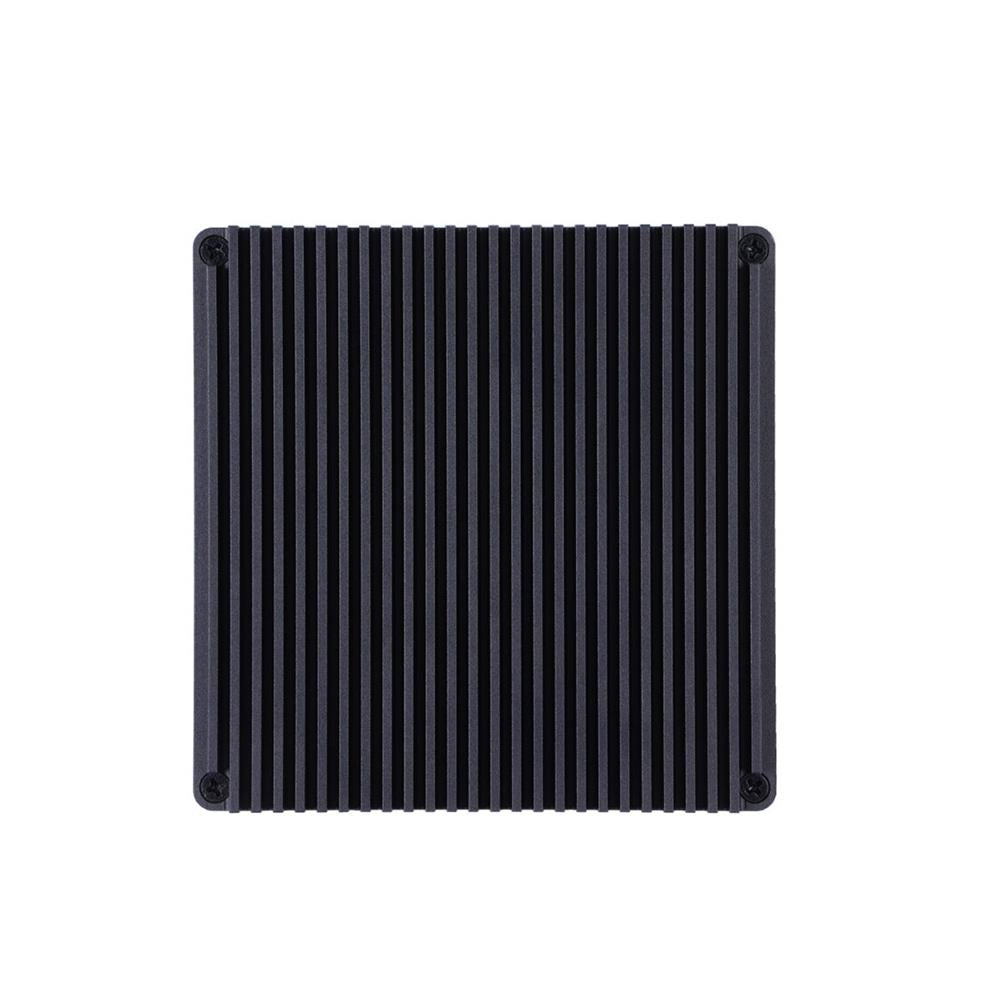

Heatsink: Anodized Aluminum

Packaging: hard cardboard

Environmental conditions for operation

Environmental conditions for operation

Temperature: 0 °C to 40 °C / 32 °F to 104 °F

Humidity: Non-condensing

Room conditions: Indoor use only, in a dry environment without excessive dust as this may damage the device.

Product Information

Model No.: NC-GREEN-1175

Origin: Made in China

---

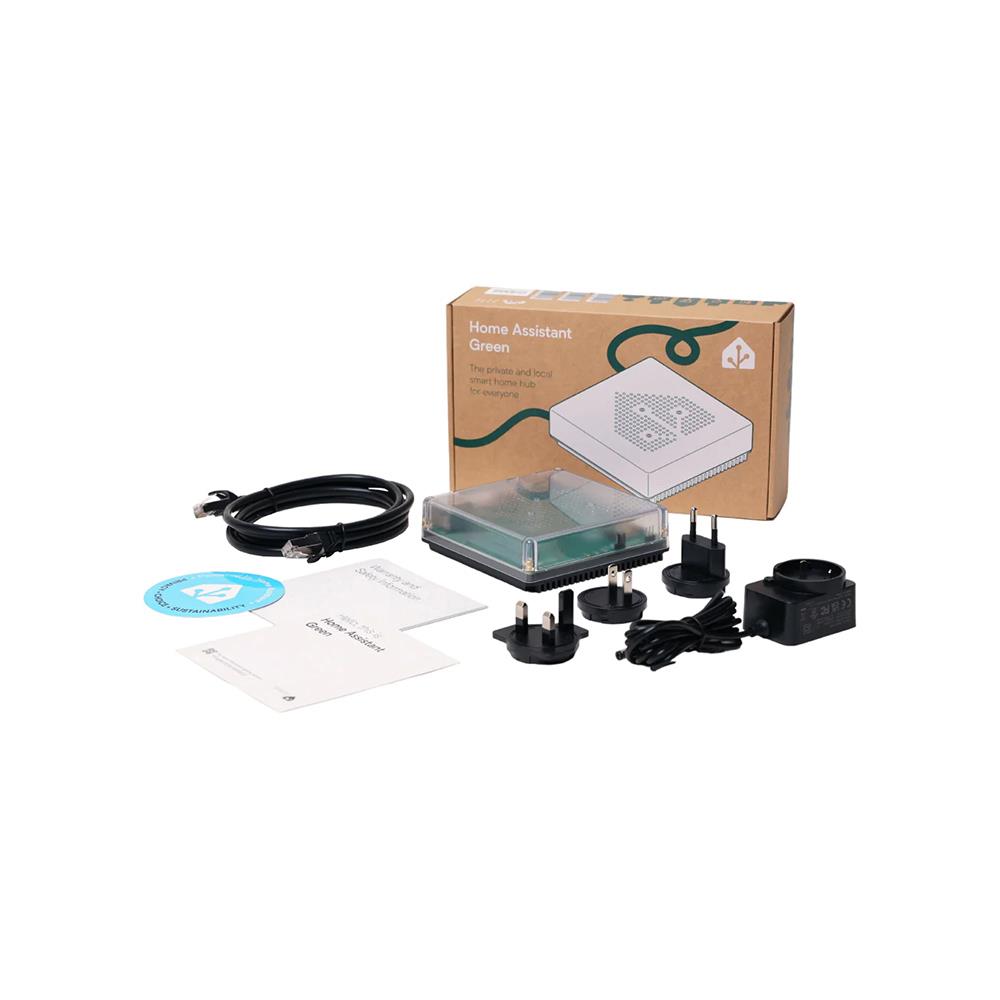

Included:

Home Assistant Green Smart Home Hub

1x Gigabit Ethernet cable

Universal power supply, 12 V DC, 1 A, with plug adapters for EU, USA and UK

Quick Start Guide

Warranty and safety information

Sonoff Plus ZBDongle-E specifications:

Model: ZBDongle-E

Zigbee Type: IEEE 802.15.4 2.4GHz Zigbee 3.0

Security protocols: WPA/WPA2

Type of encryption: AES-128

Size: 75 x 25.5 x 13.5 mm

Input voltage: DC 5V (100mA Max)

Weight: 30g

Working temperature: -10°C - 40°C

Working humidity: 5% - 95%

Casing material: aluminum alloy

Based on EFR32MG21

+20dBm output gain

Aluminum housing effectively reduces signal interference

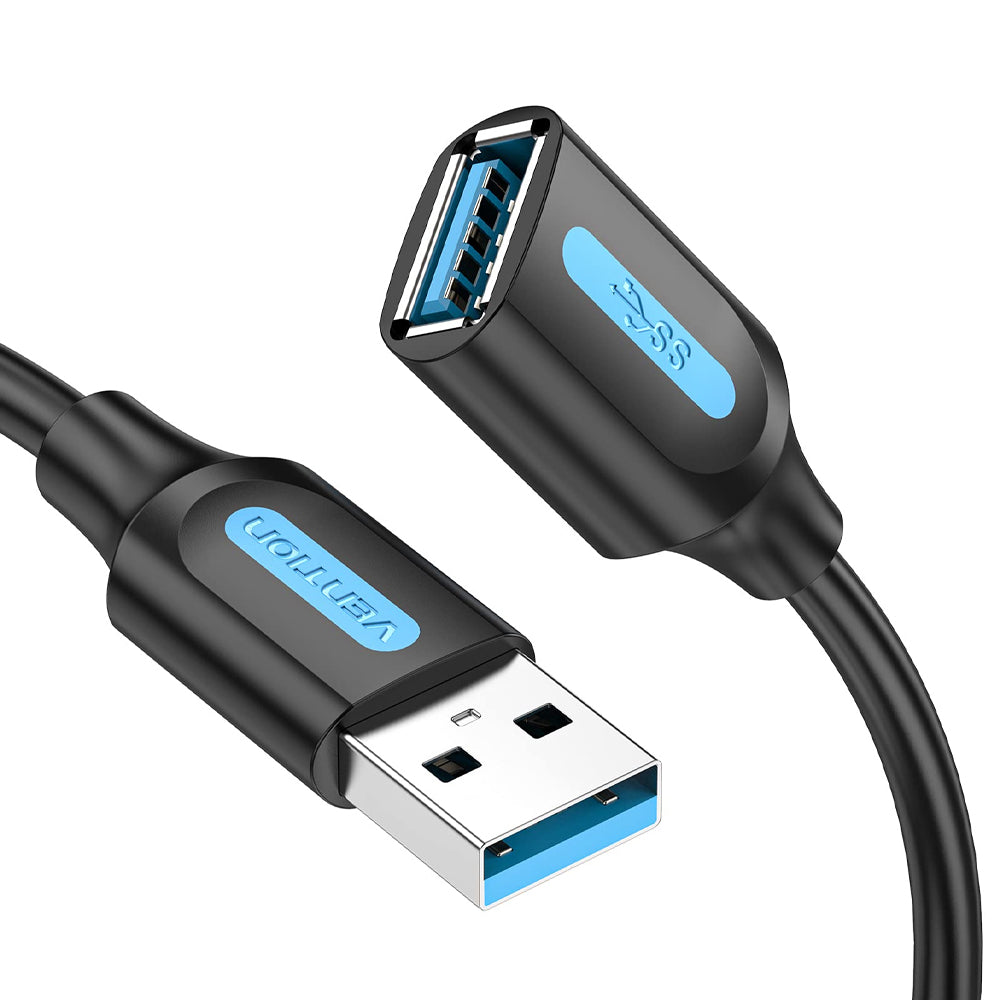

Specifications USB extension cable:

Brand: Vention

Model: CBIBD

Color: Black

Interface: USB-A port, USB-A plug

Nickel plated interface: Yes

Length: 0.5 m

Data sheets:

Data sheets:

Quickstart Guide DE/EN

Warranty & Safety Information

Datasheet

Declaration of Confirmity
