LC Technology 12V 4 Channel Relay 4 Channel Relay ESP8266 WIFI - Tasmota 14 NEW

Article description:

WiFi 4 channel smart relay

Already flashed with the latest Tasmota firmware.

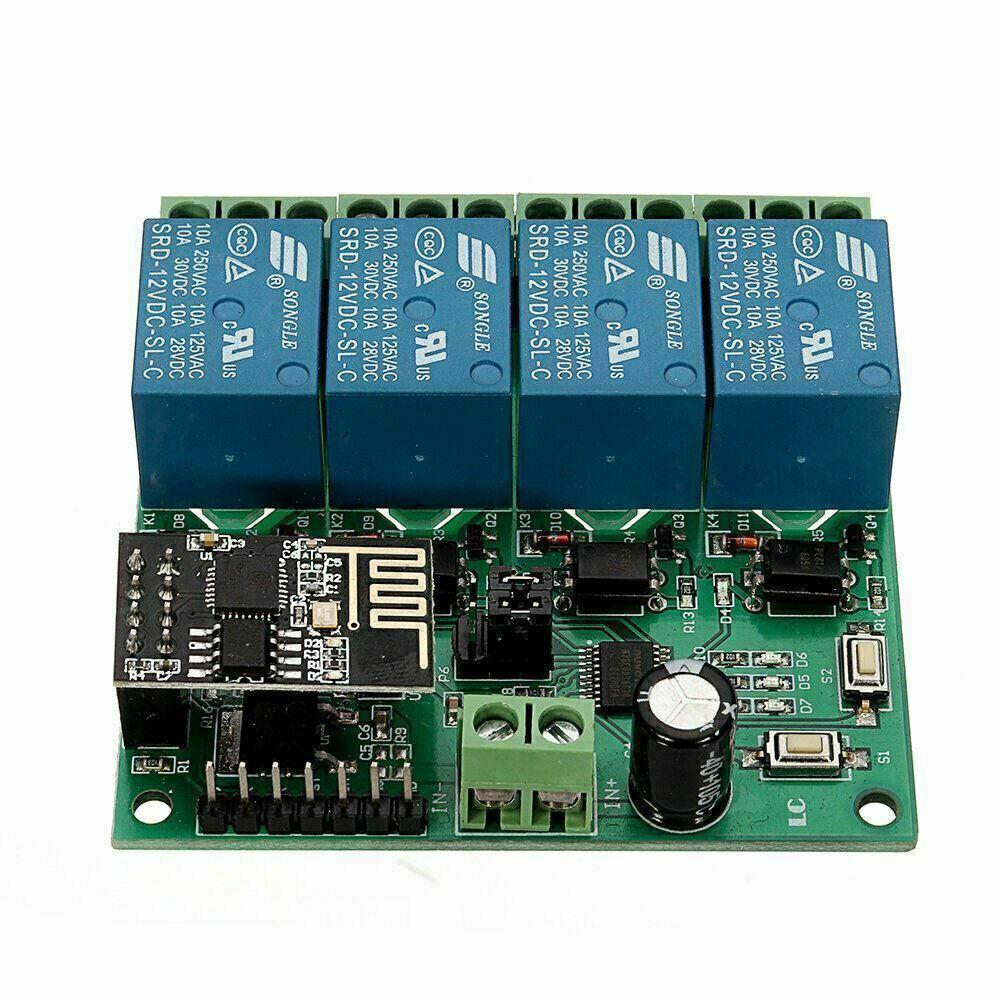

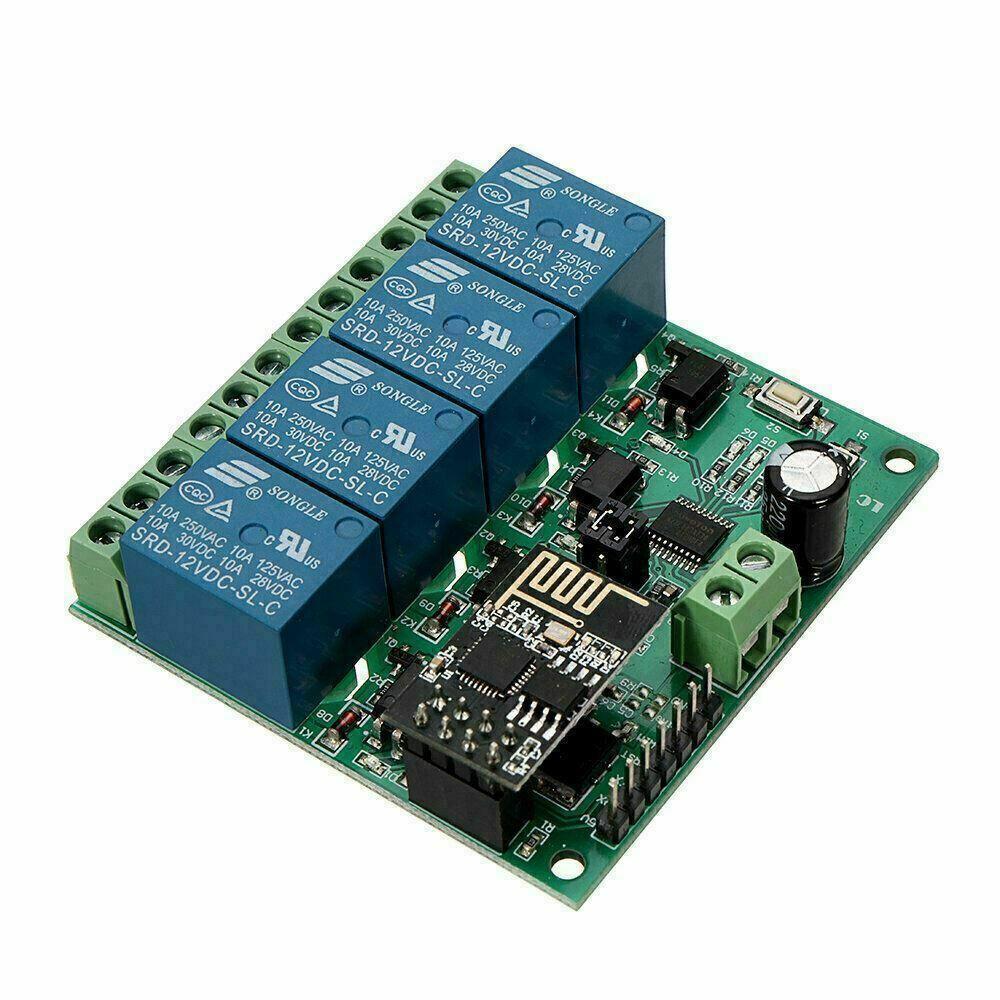

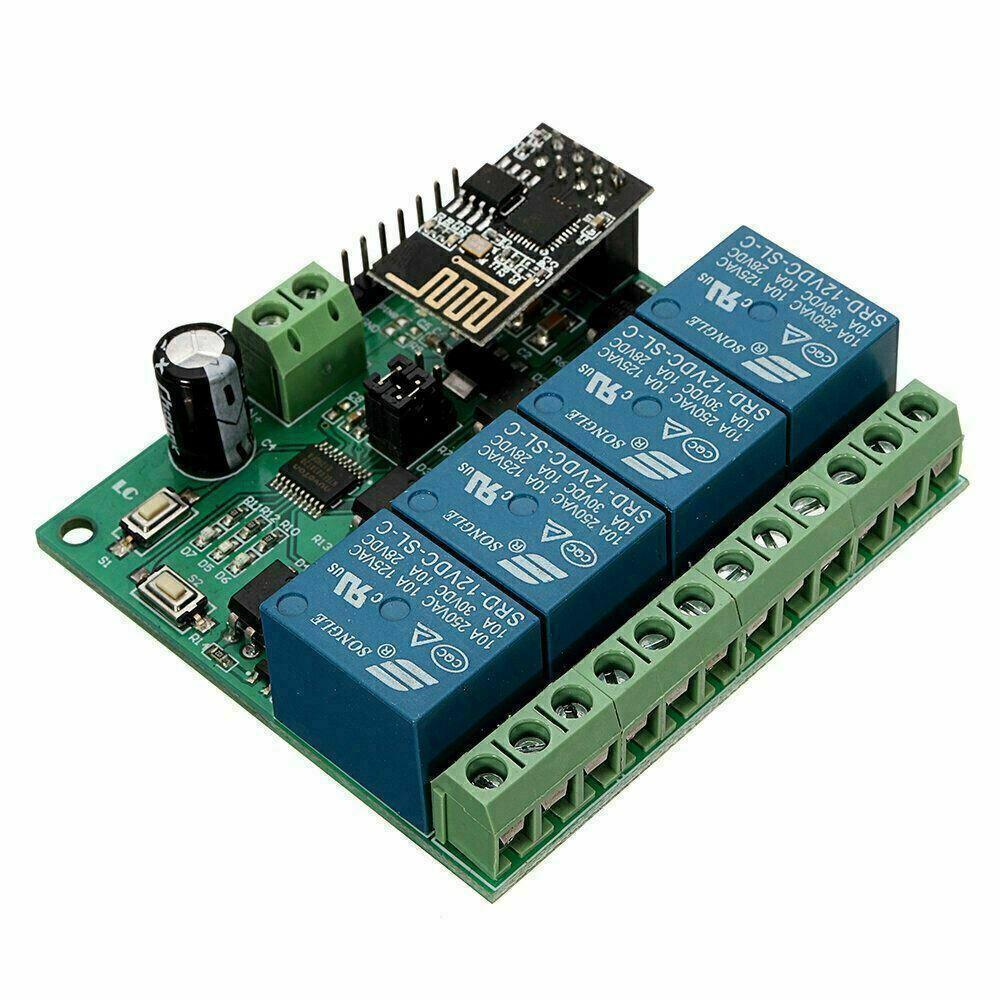

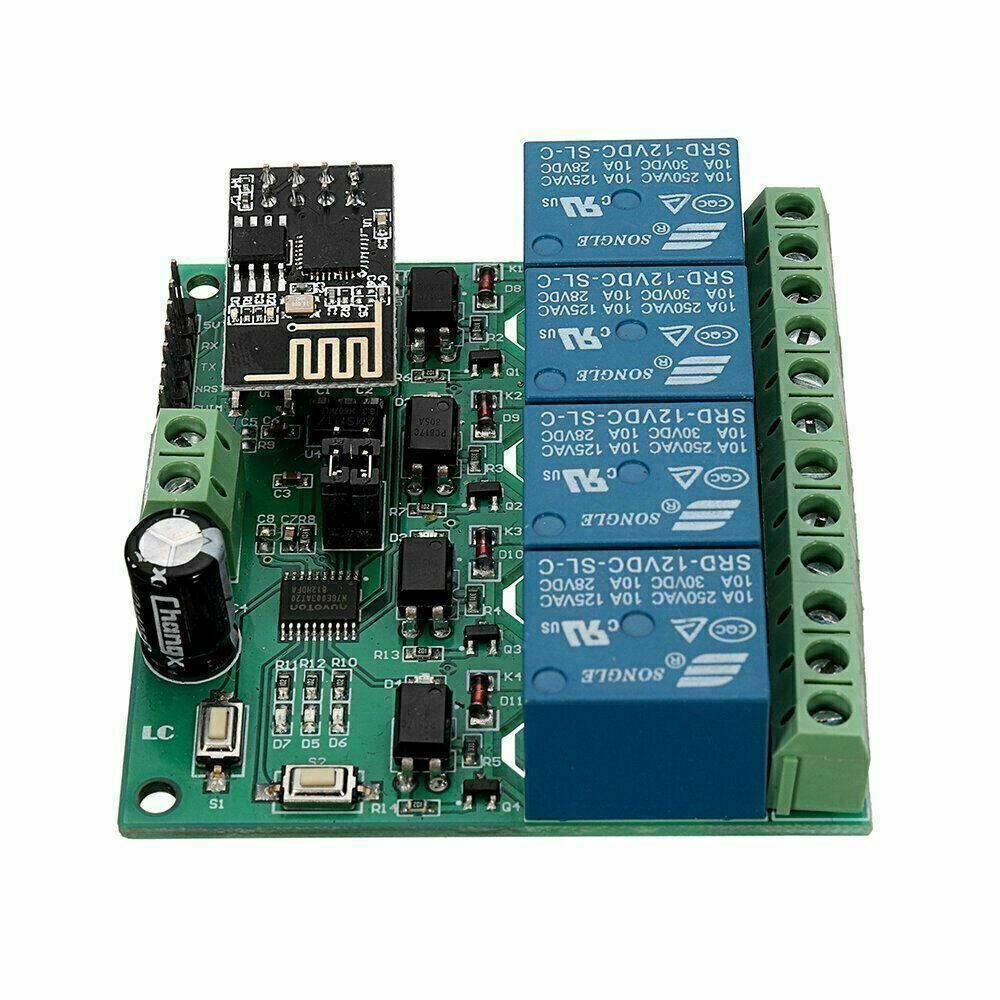

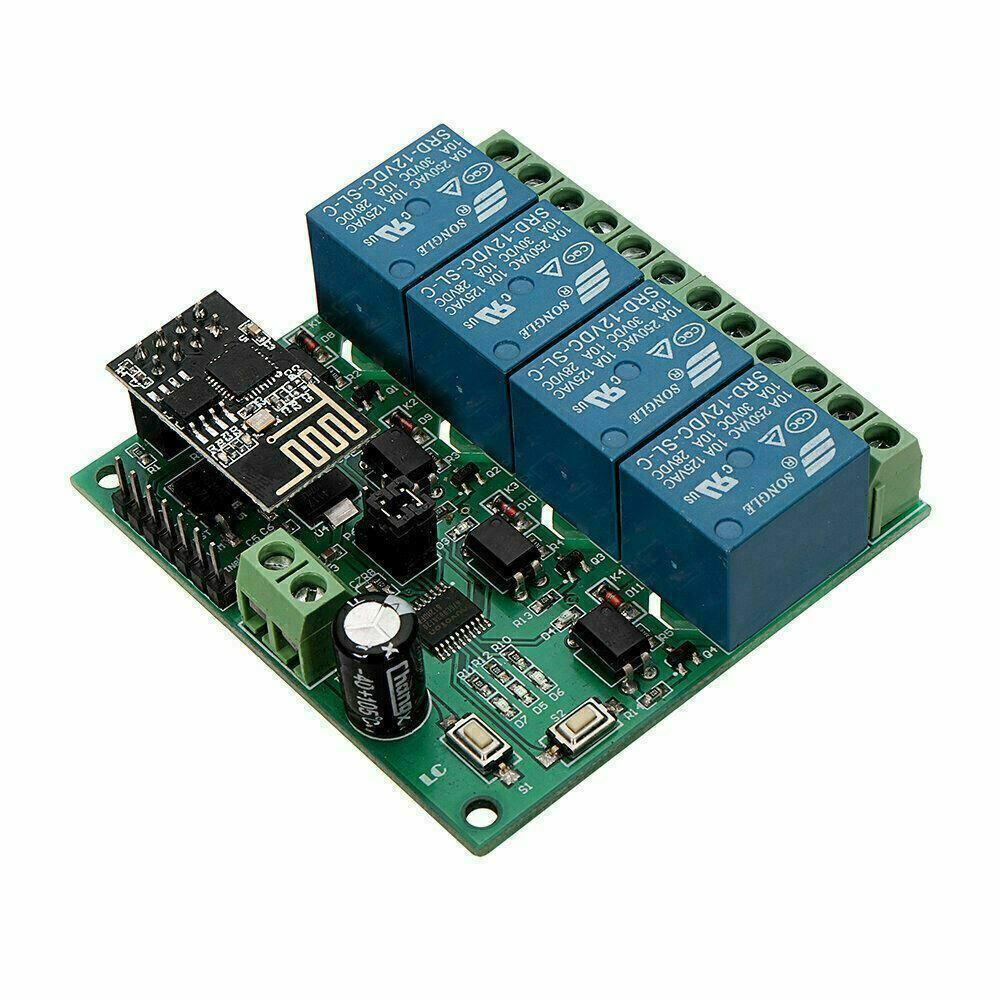

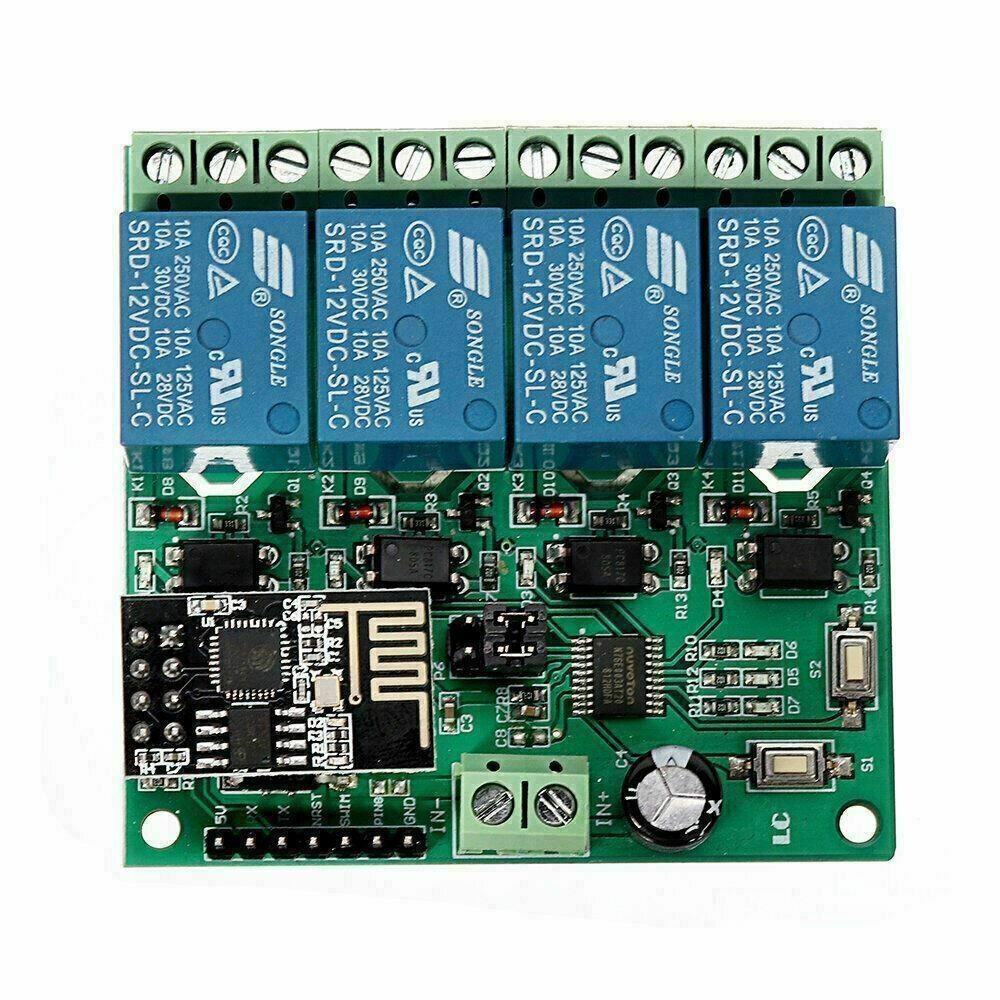

The 12V ESP8266 4-channel WiFi relay module is the ultimate solution for your wireless control and automation. This module contains an ESP-01 WiFi module and a sophisticated 8-bit MCU, which guarantee reliable performance.

With this module, 4 independent channels can be operated. This means you can switch up to 4 different devices on and off with just this one module. Whether you want to control lights, fans, or other electrical devices, this WiFi relay module offers the flexibility and reliability you need.

The 4 Channel WiFi Relay Module is a powerful tool for home automation, DIY projects and more. It offers seamless wireless control and is easy to Set up. Realize your ideas and make your life easier with this reliable and versatile module.

Already flashed Tasmota firmware: The module is already pre-installed with the latest Tasmota firmware, which makes it easier to Set up and integrate into your smart home system.

Versatile connectivity: The module combines an ESP-01 WiFi module and a powerful 8-bit MCU to offer you a wide range of application possibilities.

Four independent channels: With this module you can control up to 4 different devices at the same time, making it extremely flexible and versatile.

Robust relays: The module is equipped with a 12V, 10A // 250V AC 10A // 30V DC relay, which can be switched continuously up to 100,000 times. It has diode protection and reacts extremely quickly.

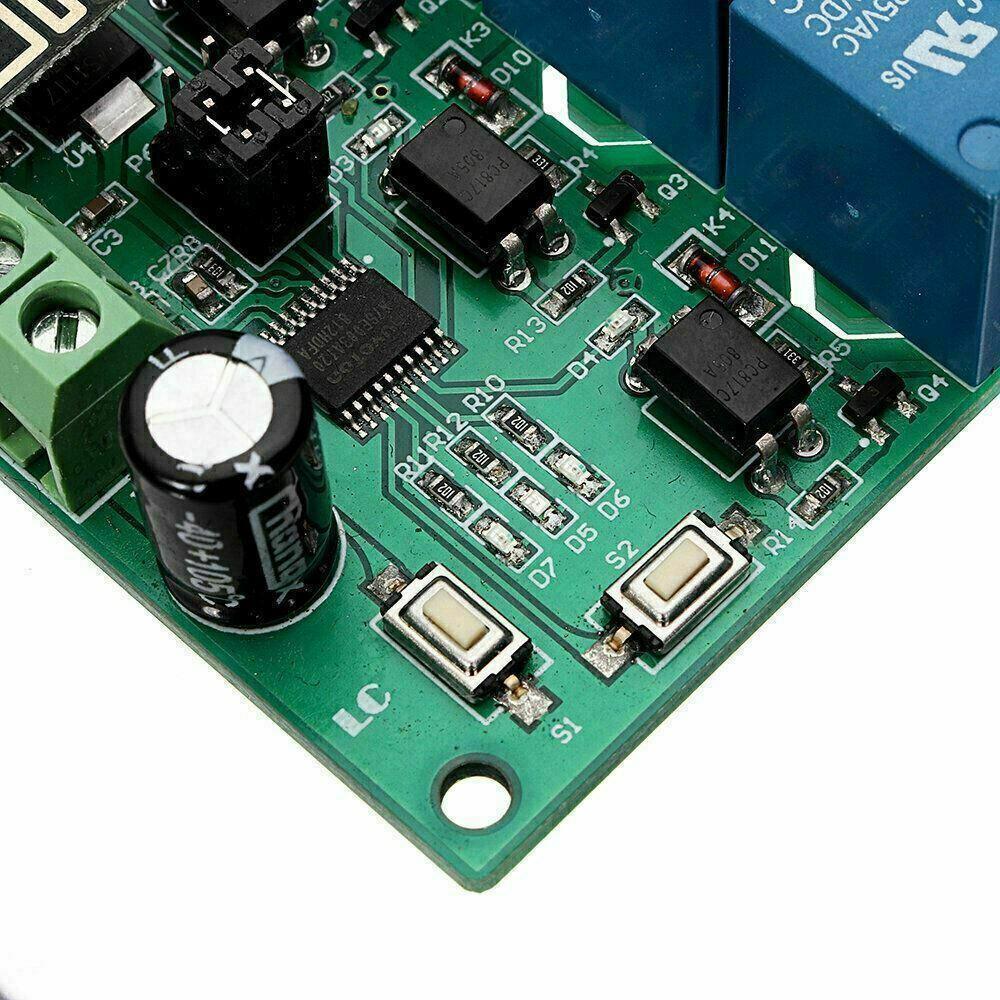

Easy mode selection: Select the desired mode on the board and monitor the real-time working status.

Advanced Interfaces: A reserved UART debug interface and an STM8 program download interface provide additional flexibility and customization options.

Technical data:

Model: DC12V ESP8266 4 Channel WiFi Relay

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 63 x 60 x 20mm

Input voltage: DC 12V / power supply is not included

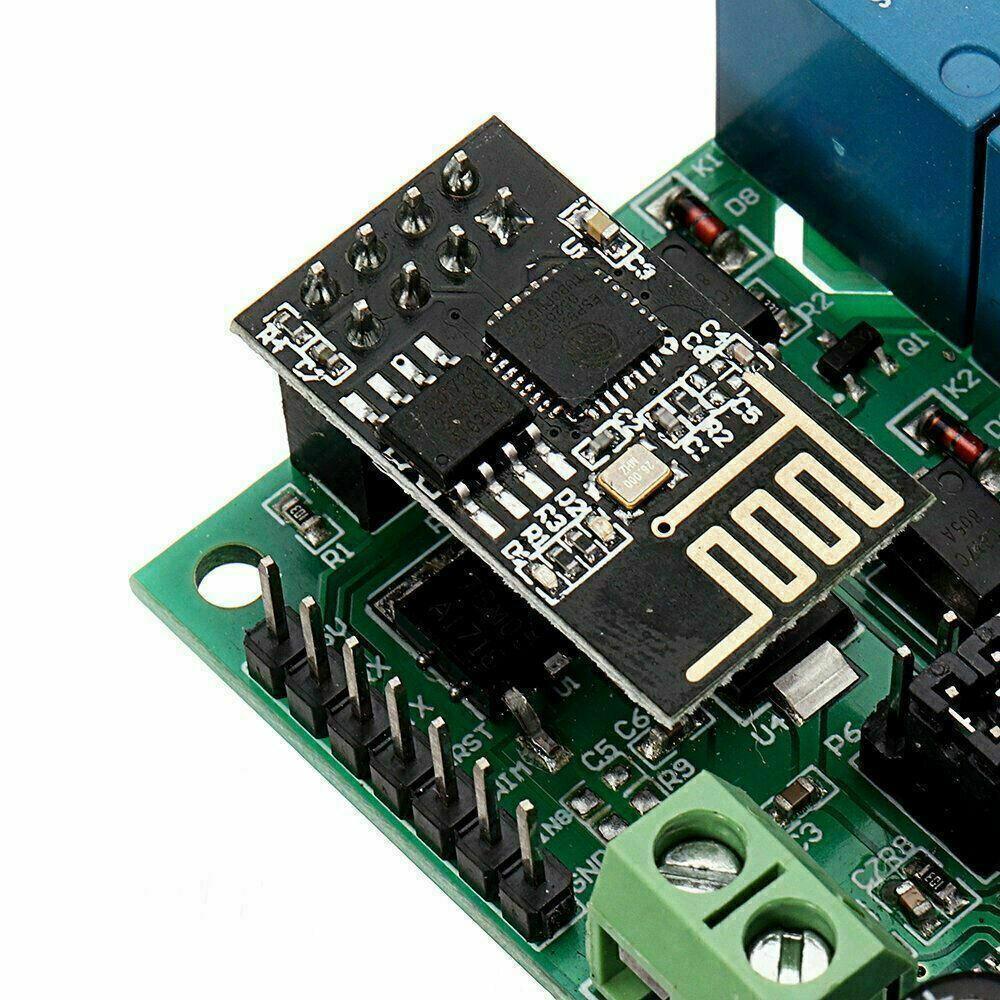

High quality MCU and ESP-01 WIFI module on board

The board contains 12V, 10A/250V AC 10A/30V DC relay

With 4 isolators and strong anti-interference ability

Reserved UART debug interface and MCU download port for programming

More information:

More:

New goodswith Tasmota firmware

Model variants:

Tasmota German

Tasmota englishTasmota individual language (send us a message) Split
