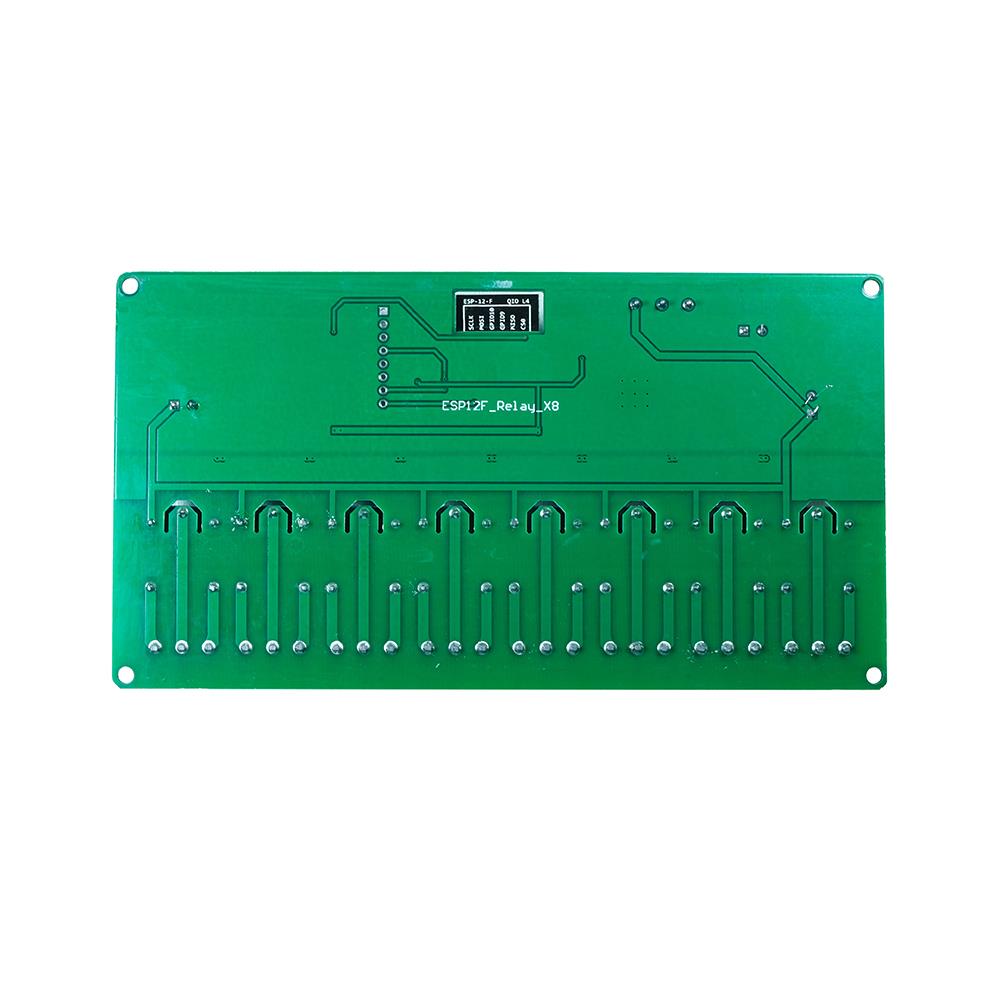

LC Technology ESP8266 ESP-12F WiFi 8 Channel Relay DC5V - DC7-28V Tasmota

Article description:

WiFi 8 channel Smart Relay / Developer Board

Already flashed with the latest Tasmota firmware.

The ESP8266 8-Channel WiFi Relay Module is the ultimate solution for your wireless control and automation needs. This module contains an ESP-12F WiFi module that guarantees reliable performance.

With this module, you can control 8 independent channels. This means you can control up to 8 different devices with just this one module, whether it's lights, fans, or other electrical appliances you want to manage. This WiFi relay module offers the flexibility and reliability you need.

The 8 Channel WiFi Relay Module is a powerful tool for home automation, DIY projects, and more. It provides seamless wireless control and is easy to set up. Bring your ideas to life and simplify your life with this reliable and versatile module.

Pre-Flashed Tasmota Firmware: The module comes pre-installed with the latest Tasmota firmware, making setup and integration into your smart home system a breeze.

Eight Independent Channels: With this module, you can simultaneously control up to 8 different devices, making it extremely flexible and versatile.

Robust Relays: The module is equipped with a 5V, 10A // 250V AC // 125V AC // 28V DC // 30V DC relay that can be switched continuously up to 100,000 times. It has diode protection and responds with lightning speed.

Advanced interfaces: All I / O connectors are easily accessible, so the board is very suitable for an Arduino development environment. You can use it for smart home control, or for many other application possibilities. There are no limits to your ideas.

Flexible power supply: The relay board supports many power supply methods, such as DC 5V or DC 7-28V.

A notice:

Relay 1+6 is always switched when the circuit board is supplied with electricity, which causes a short on/off impulse on the relay when Tasota loads it and switches off again. If the last condition was a, of course it stays.

Technical data:

Model: ESP8266 ESP-12F Four Channel WiFi Development board

ESP-12F WiFi module with 4MB memory

ESP-12F supports development tools such as Eclipse / Arduino IDE

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Size approx: 148 x 80 mm

Input voltage DC: 5V + 7-28V

8x 5V relay to control loads from up to AC 250 V / DC 30 V

All E /A and UART ports easily accessible

Integrated RST reset button of the WiFi module

On board operating display and relay ads

Further information:

Additional:

Model variants:

Tasmota German
