Article description:

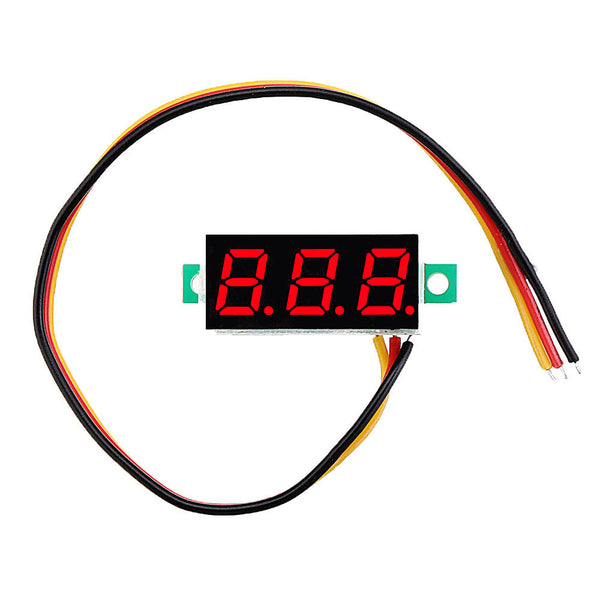

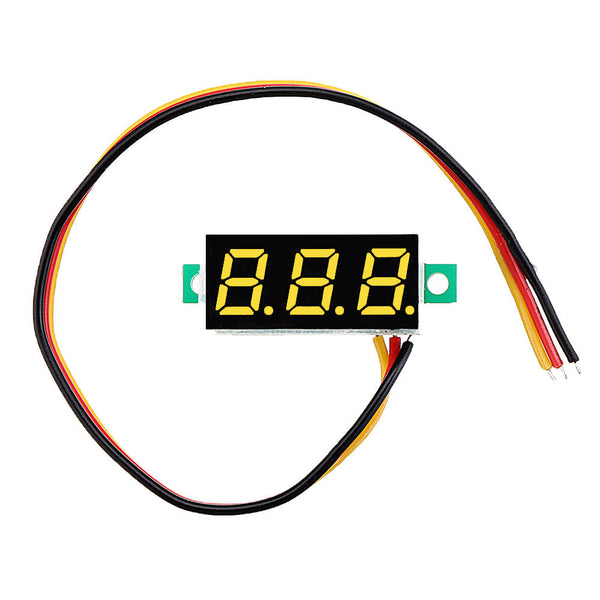

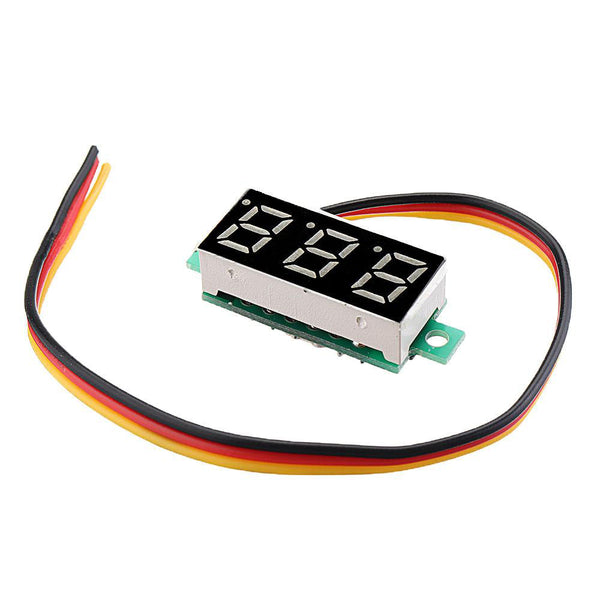

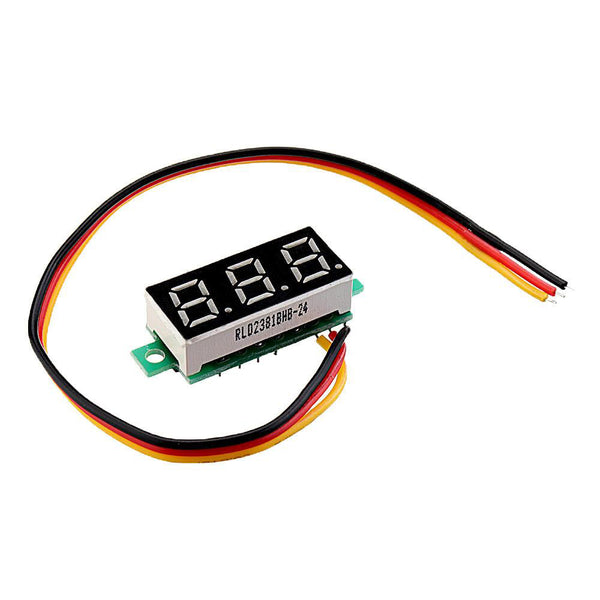

Mini digital LED voltmeter
This voltmeter is small and compact. It can be easily installed almost everywhere. Disconnected for input voltages of up to 100V DC.
The product has good stability and high measurement accuracy. The accuracy can still be fine -tuned via a potentiometer on the back.
Suitable for the battery monitoring of motor vehicles / electric cars / motorcycles or for measuring the voltage of many other products.
Technical data:

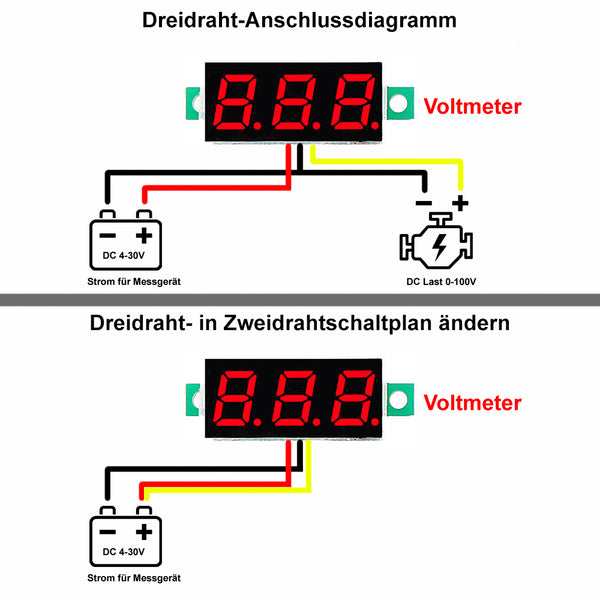

Measuring area with 3 -wire connection: DC 0 - 100V
Power supply for 3-wire connection: DC 4-30V / from approx. 40V can damage.
Measuring area with 2 -wire connection: DC 4 - 30V
Power supply for 2-wire connection: no power supply required.
Update rate: approx. 100 ms once
Measurement accuracy: ± 1%> 10 V error ± 0.1 V <10 V ± 0.03 V

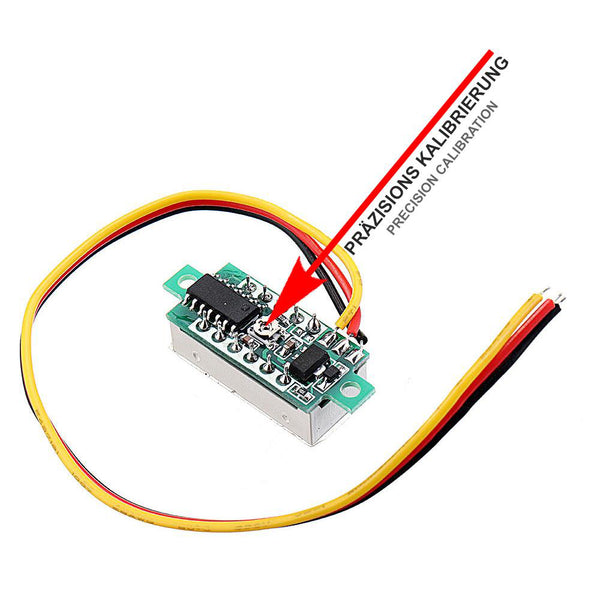

Fine adjustment: potentiometer screw
Input resistance:> 50 k Ω
Working current: <30MA

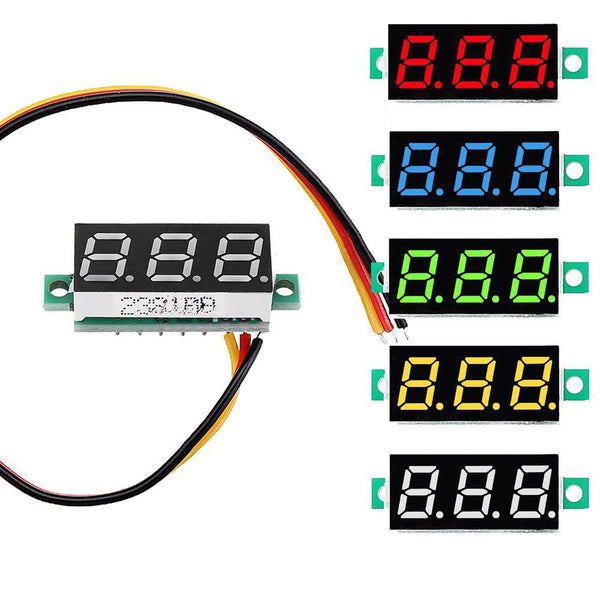

Specification: three -digit digital tubes with 0.28 inch LED
Line length: Standard 20cm
Dimensions: 30 x 11.5 x 9 mm
Hole size: distance: 26 mm aperture: 2.4 mm
Net weight: 4G
Operating temperature: -10 ° C - 80 ° C
Job moisture: 10 - 80%
Working pressure: 80 - 106 kpa
