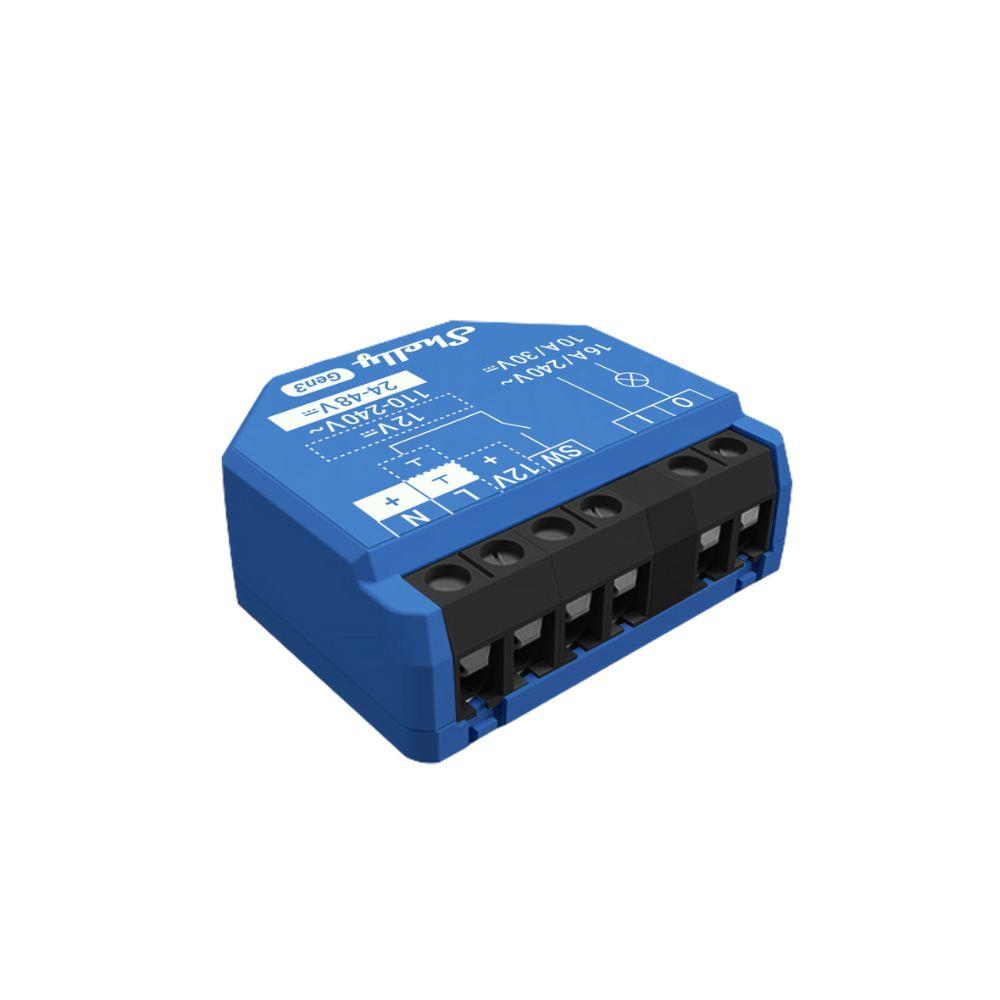

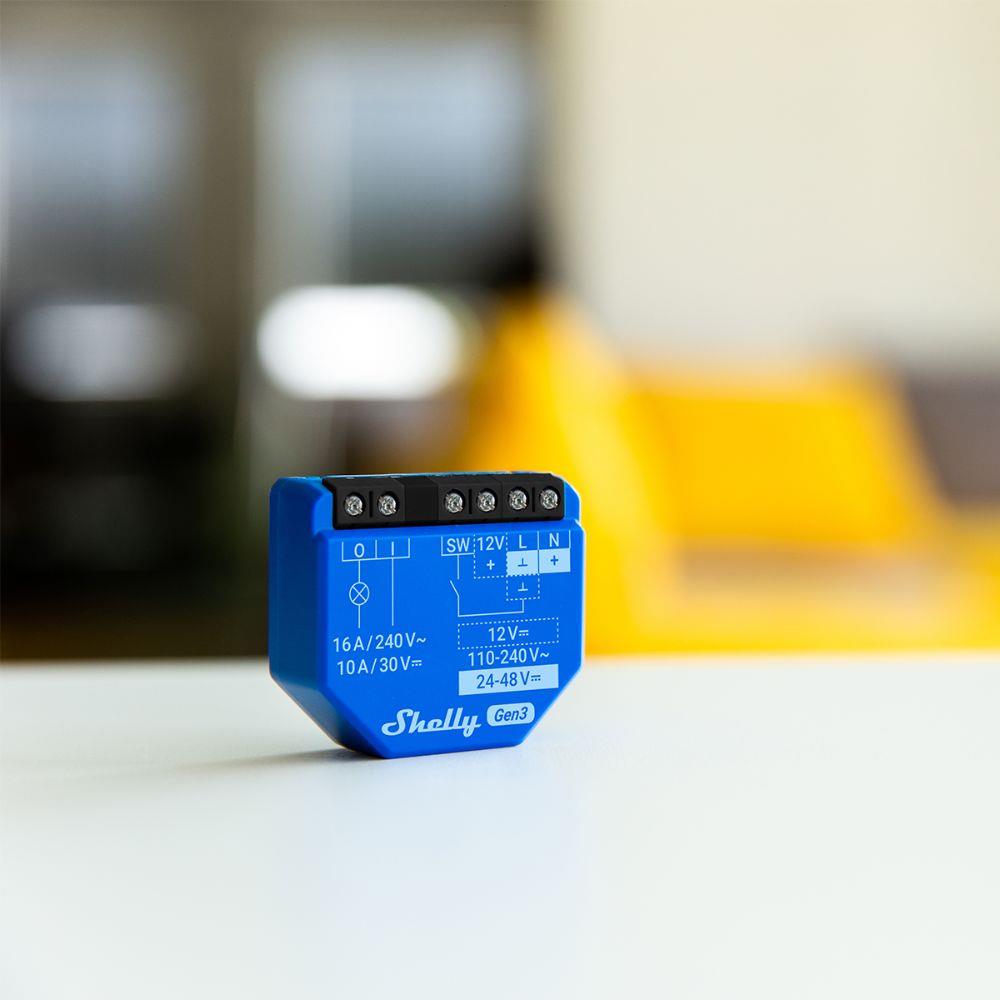

Shelly 1 One Gen3 WiFi 16A AC 110-240V DC 24-48V 12V Switch Relay

Article description:

Flush WiFi Smart Switch

The Shelly 1 Gen3 is a compact, smart Wi-Fi switch with potential-free contacts for controlling electrical devices such as lights, sockets, or gates via smartphone, tablet, PC, or a home automation system. It can operate independently in a local Wi-Fi network or be controlled via cloud services.

Compared to its predecessor, the Shelly 1 Gen3 features an improved processor and 8 MB of memory, providing higher performance and more reliable operation.

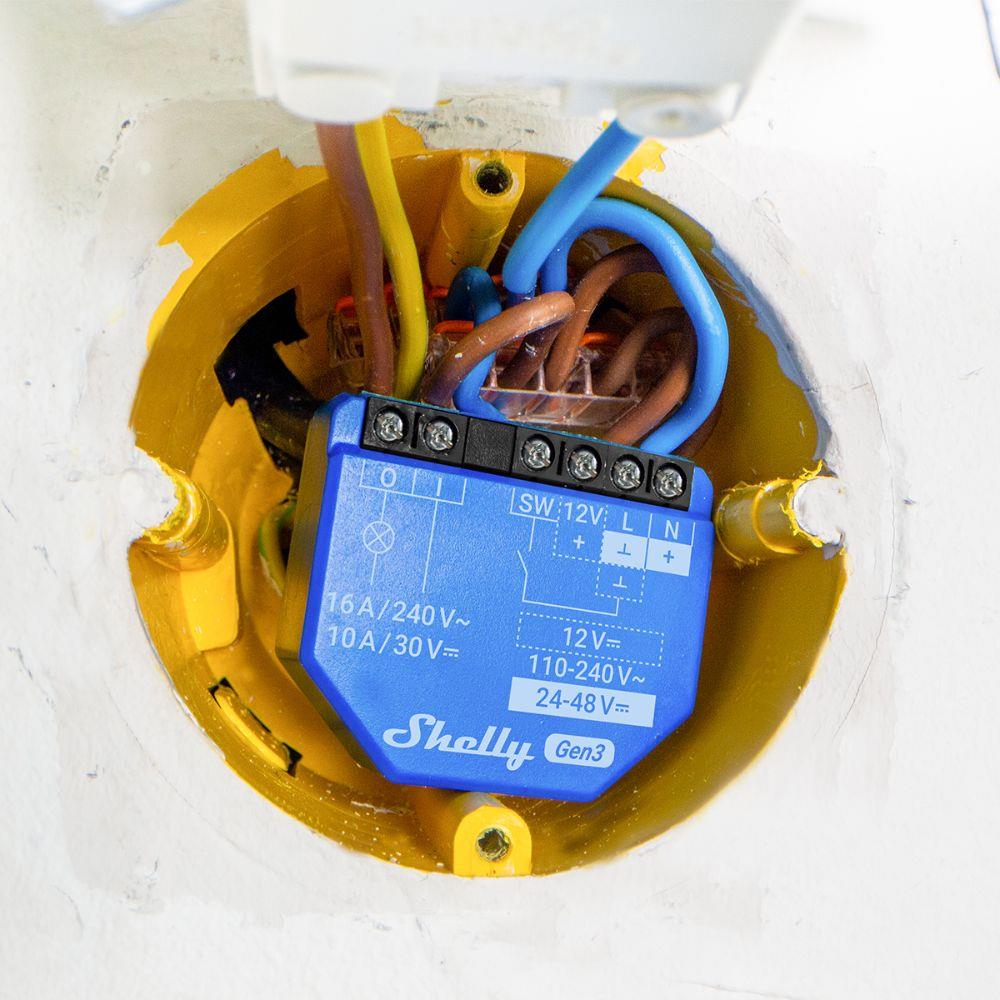

The Shelly 1 Gen3 is particularly suitable for retrofitting: in wall boxes, behind light switches, sockets, or in places with limited space. It comes with a built-in web interface, allowing the user to check device status, adjust settings, and manage control functions.

Use Cases:

Device Control: Switch lights, heating, doors, or other appliances at home or remotely.

Home Automation: Use schedules and scenes to automate processes (e.g., lights at sunset).

Integration: Supports many smart home protocols (MQTT, Webhooks, etc.) without the need for an additional hub.

Voltage Flexibility: Works with 110-240 V AC as well as various DC voltages.

Versatility & Expandability: Ideal for home and office, new automation projects, smart lighting, garage doors, and more.

Technical data:

Device name: Shelly 1 Gen3

Wi-Fi standard: IEEE 802.11 b/g/n (2.4 GHz)

Bluetooth: Version 4.2 with BLE support

Range: Up to 30 m indoors, up to 50 m outdoors (depending on conditions)

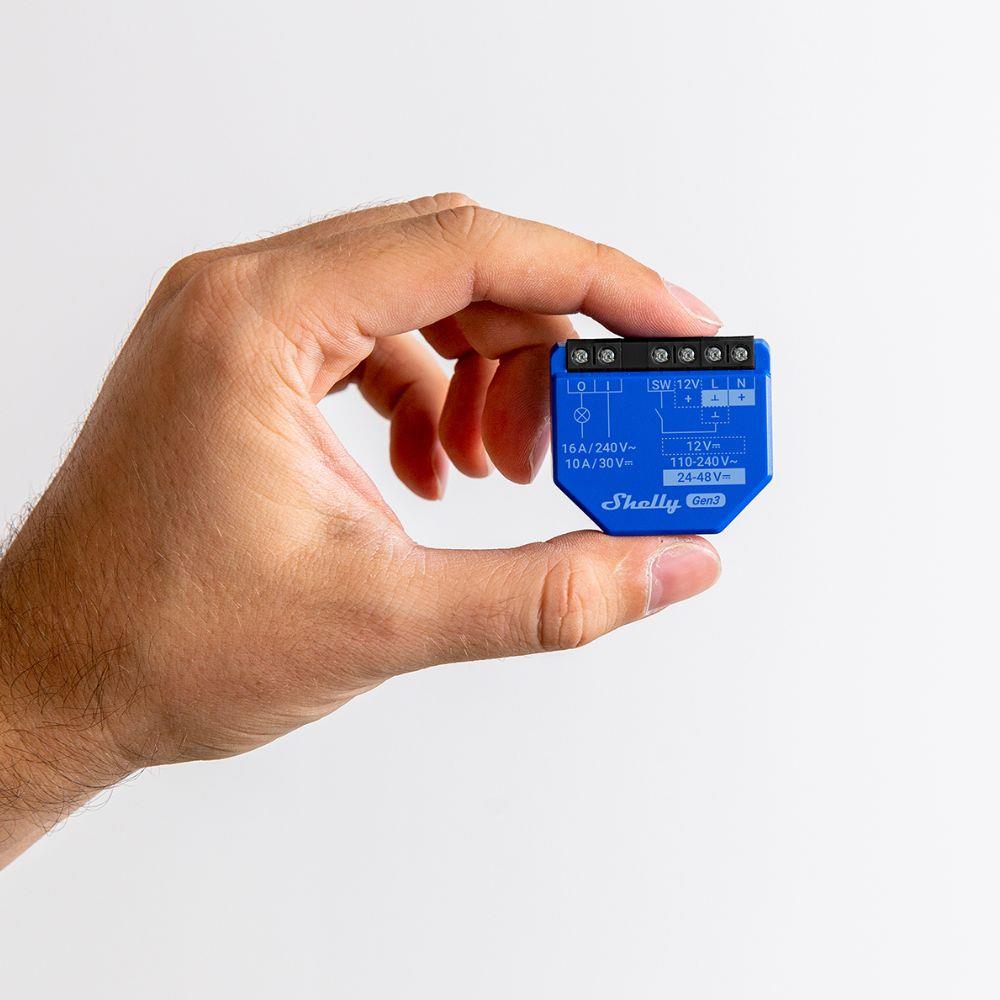

Dimensions: 37 x 42 x 16 mm

Weight: 26 g

Max. screw terminal torque: 0.4 Nm / 3.5 lbin

Conductor cross section: 0.2 to 2.5 mm² / 24–14 AWG

Mounting: Wall console or wall box

Housing material: Plastic

Housing color: Blue

Operating temperature: -20 °C to 40 °C

Humidity: 30 % to 70 % RH

Power supply: 110–240 V AC, 24–48 V DC, 12 V DC

Standby power consumption: < 1.2 W

Max. switching current: 16 A (at 240 V AC), 10 A (at 30 V DC)

Max. switching voltage: 240 V AC / 30 V DC

Protection functions: Overheating, overvoltage, overcurrent, overload

Internal temperature sensor: Yes

MQTT support: Yes
