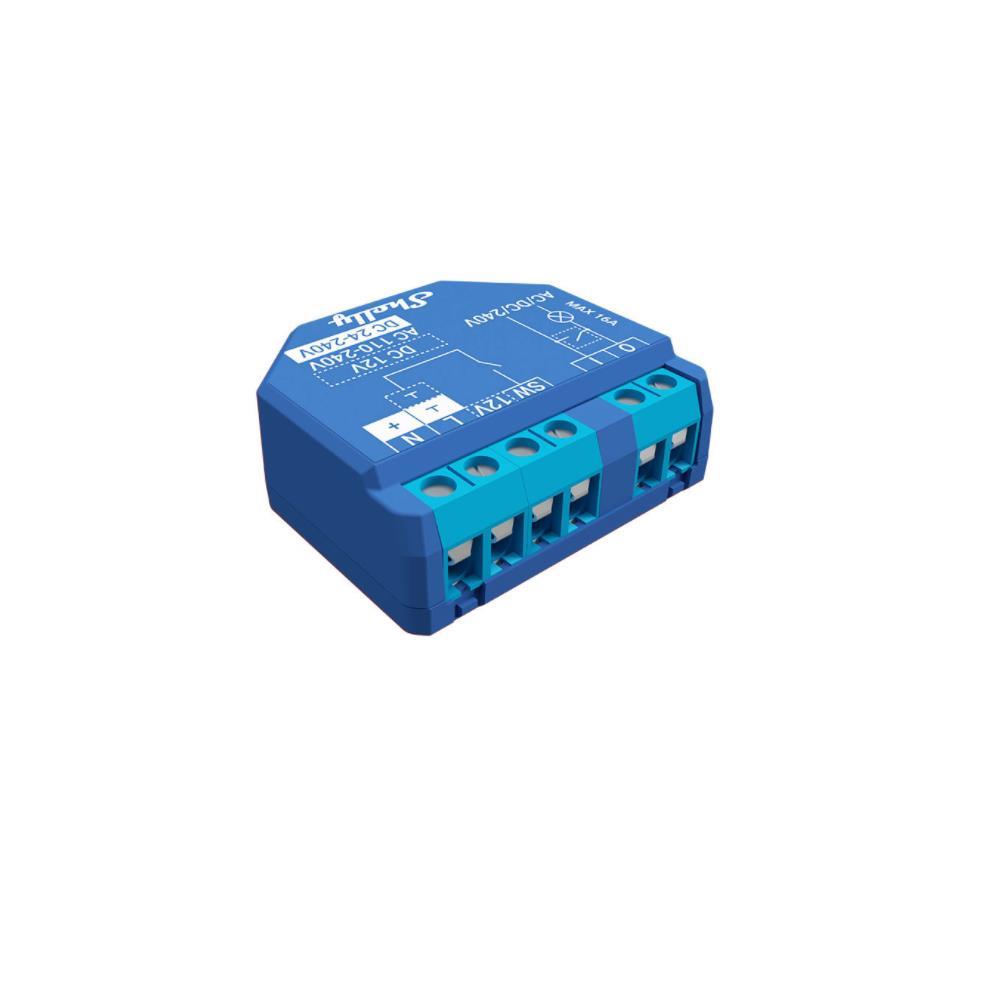

Article description Shelly Plus 1:
Flush-mounted WiFi Smart Switch
The new Shelly Plus 1 has been improved in many areas compared to its popular predecessor. With the ESP32 chipSet and doubled RAM memory (4MB), the speed has increased significantly. The Shelly Plus 1 can be operated with 110-230 VAC, 24-240 VDC or 12VDC. Many other features have been added, such as Bluetooth, MQTT, HTTPS webhooks, scripts, larger number of simultaneous connections, and much more.
The Shelly Plus 1 fits into flush-mounted boxes and allows the switching of numerous devices such as lamps and other electrical consumers.
If you use deep flush-mounted boxes, the Shelly Plus 1 even fits behind light switches and transforms them into smart switches in no time.
The Shelly Plus 1 is conveniently controlled with the unchanged firmware via the free, mobile Shelly app or via Google Home or Amazon Alexa.
Wireless! No HUB required - Connect the Shelly Plus 1 directly to your home Wi-Fi.
Control remotely! Control your home lighting no matter where you are. No more leaving the lights on and coming home in the dark.
Wide range of voltage support. Shelly Plus 1 can be used to control a wide range of devices and devices.
Sunrise/SunSet Schedules! Shelly Plus 1 can automatically follow sunrise and sunSet and control your lighting accordingly.

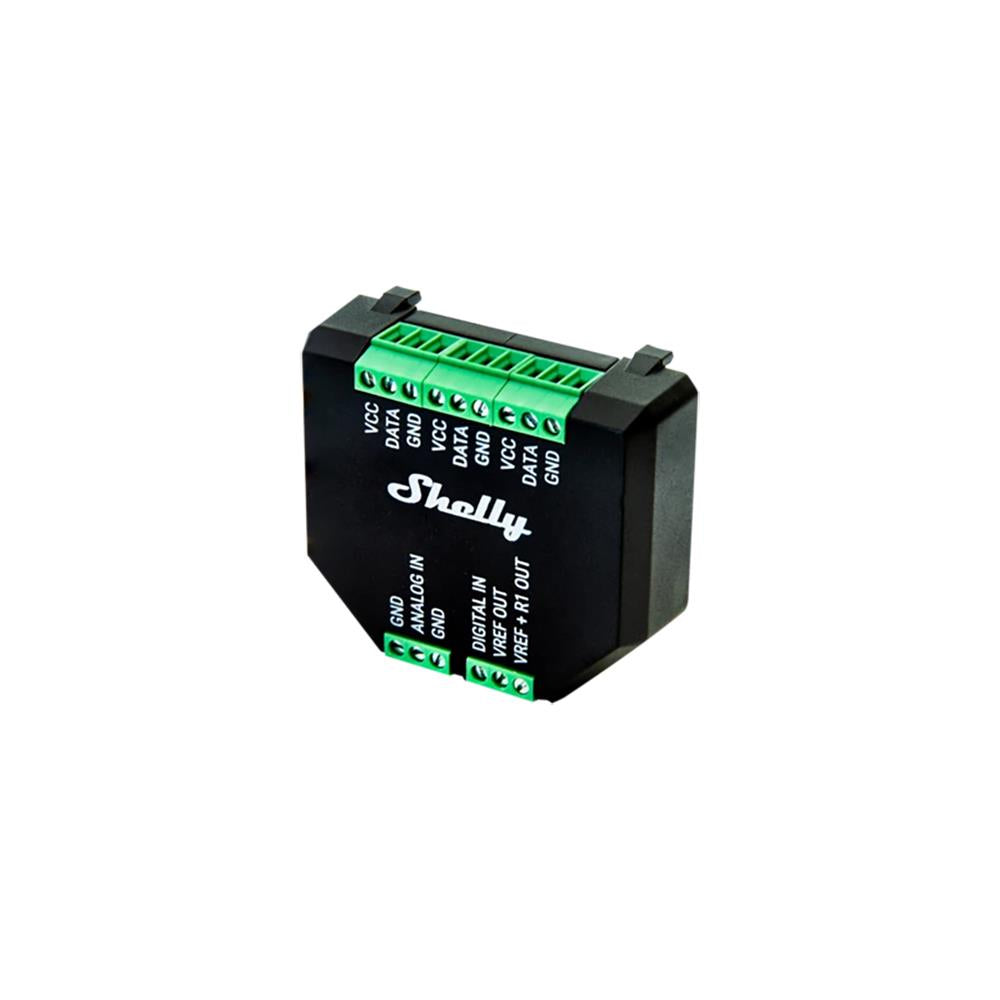

Article description Shelly Plus Addon:
Addon for Shelly Plus series
This addon is compatible with Shelly Plus 1, Shelly Plus 1PM, Shelly Plus 2PM, Shelly Plus i4, Shelly Plus i4DC
Can be used with up to five DS18B20 sensors or one DHT22 sensor
Has an analogue and a digital input
Depending on the measured temperatures, the previously created scenes can carry out certain actions.

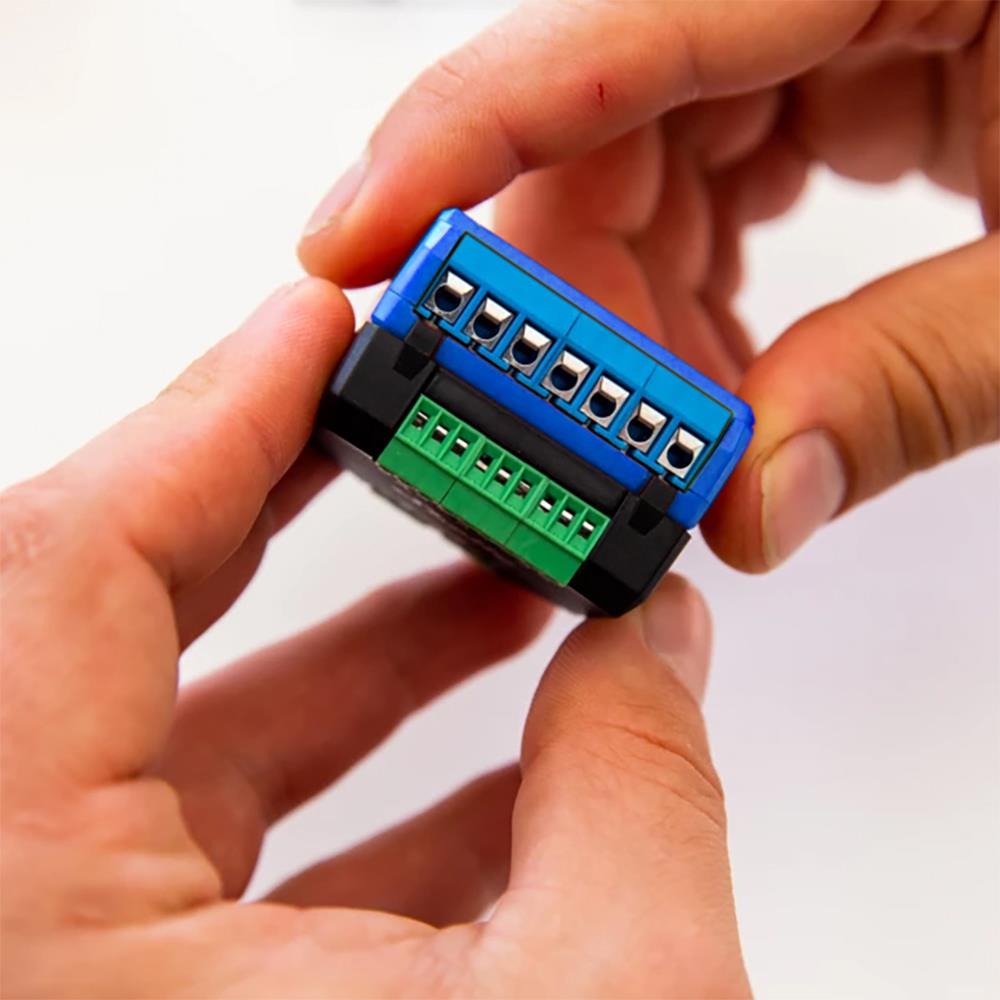

Precise measurement and control - Shelly Plus Add-on is a galvanically isolated sensor interface for all Shelly Plus relays. Use the add-on to measure temperature and humidity via its 1-wire connections or connect various analog and digital sensors for complex automation and greater efficiency.
Highly Compatible - The Shelly Plus add-on is compatible with most Arduino sensors! Use the digital or analog inputs to measure the desired parameters and create complex automation scenes based on the sensor data.
Garage Door Control - You can connect a reed switch sensor to the Shelly Plus Add-on's digital sensor and track the status of your garage door. This way you always know whether it is open or closed and can react accordingly.
Article description DS18B20 Sensor:

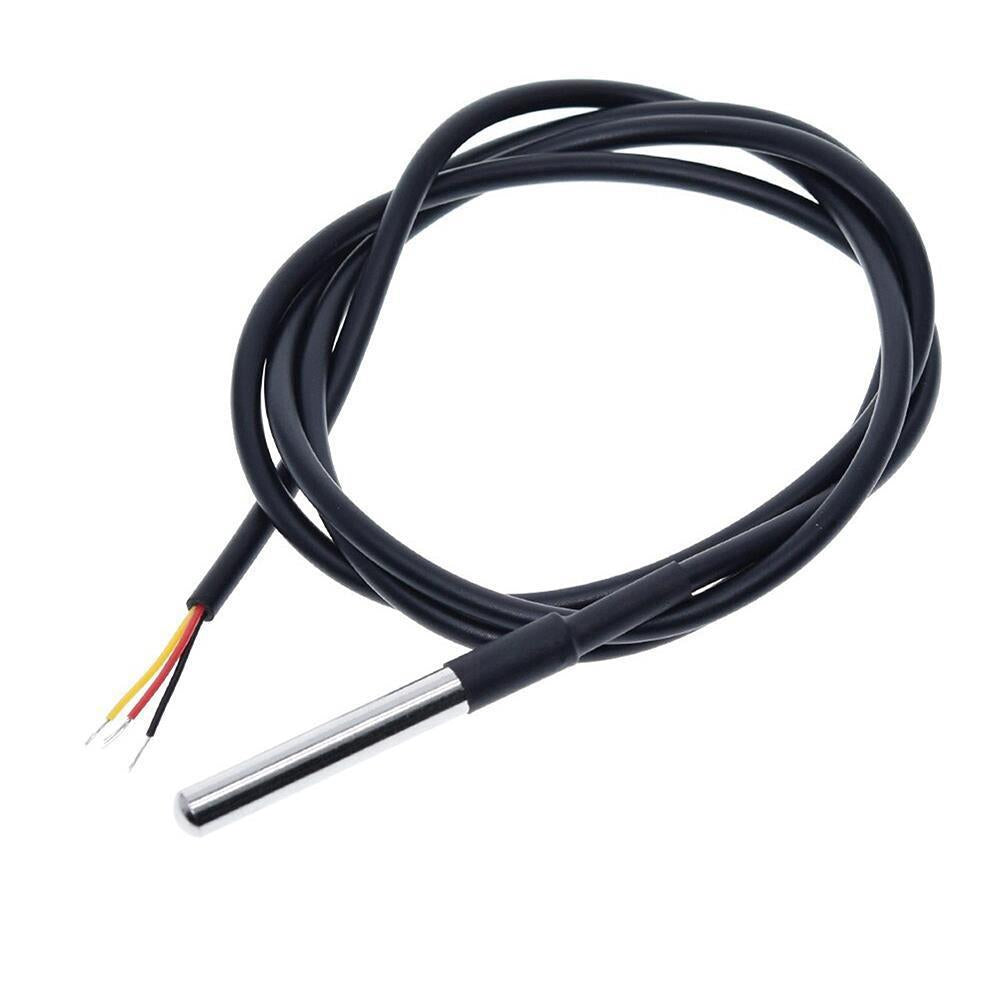

DS18B20 temperature sensor
The probe uses a new DS18B20 temperature sensor chip. Each pin of the chip is separated by a shrink tube to prevent short circuits. This version is waterproof and suitable for any indoor or outdoor use.
Suitable for your Shelly temperature sensor or Arduino, Raspberry Pi projects.
The sensor supports a wide temperature range from -55 °C to 125 °C
There are 5 cable lengths to choose from: 1m - 3m - 5m - 10m
Technical data Shelly Plus 1:
Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz
Security protocols: WEP/WPA-PSK/WPA2-PSK
Size: 41 x 36 x 15 mm
Minimum mounting opening: Ø 50mm
Working temperature: 0°C - 40°C
Input voltage AC: 110-230 V ±10%, 50/60Hz
Input voltage DC: 24V -240 / 12V stabilized
Max. Input current: 16A
Radio range: up to 50 m free field and up to 30 m indoors (depending on the nature of the building)
Power consumption in standby mode: <1 W
Channels: 1 switching channel
Dry contacts: Yes
Device temperature protection: Yes
Bluetooth: Yes
Technical data Shelly Plus AddOn:
Size: 37 x 42 x 15 mm
Weight: 105g
Supply voltage DC: 3.3 V (from Shelly plus device)
Power consumption: < 0.5 W (without sensors)
VCC max. current: 10 mA
VREF OUT max. current: 1 mA
supports the following devices: Shelly Plus 1/1PM, Shelly Plus 2PM, Shelly Plus i4/i4DC
Temperature display: Depends on the sensors DS18B20 or DHT22
Display of humidity: Depends on DHT22 sensor
Digital input: -15V to 0.5V (True) / 2.5V to 15V (False)*
Analog input range: 0 to 100%
Analog input signaling threshold: 1%**
Voltmeter range: 0 to 10 V
Voltmeter reporting threshold: 0.1 V**
Analog input/voltmeter accuracy Better than 5%
Technical data DS18B20 sensor:
Model: DS18B20
Type: Waterproof Temperature Sensor
Sensor: Stainless steel temperature sensor
Stainless steel jacket size: 6 x 30mm
Temperature measuring range: -55°C - 125°C
Accuracy over the range of -10°C - 85°C : ± 0.5°C
Adjustable resolution: 9 - 12 bit
Voltage supply: 3.0 - 5.5V
Cable assignment: Yellow (Signal/DATA) - Red (Power supply/VCC) - Black (Ground/GND)
Cable length: depending on your choice 1m - 10m
More information:
More:
New goods
available immediately

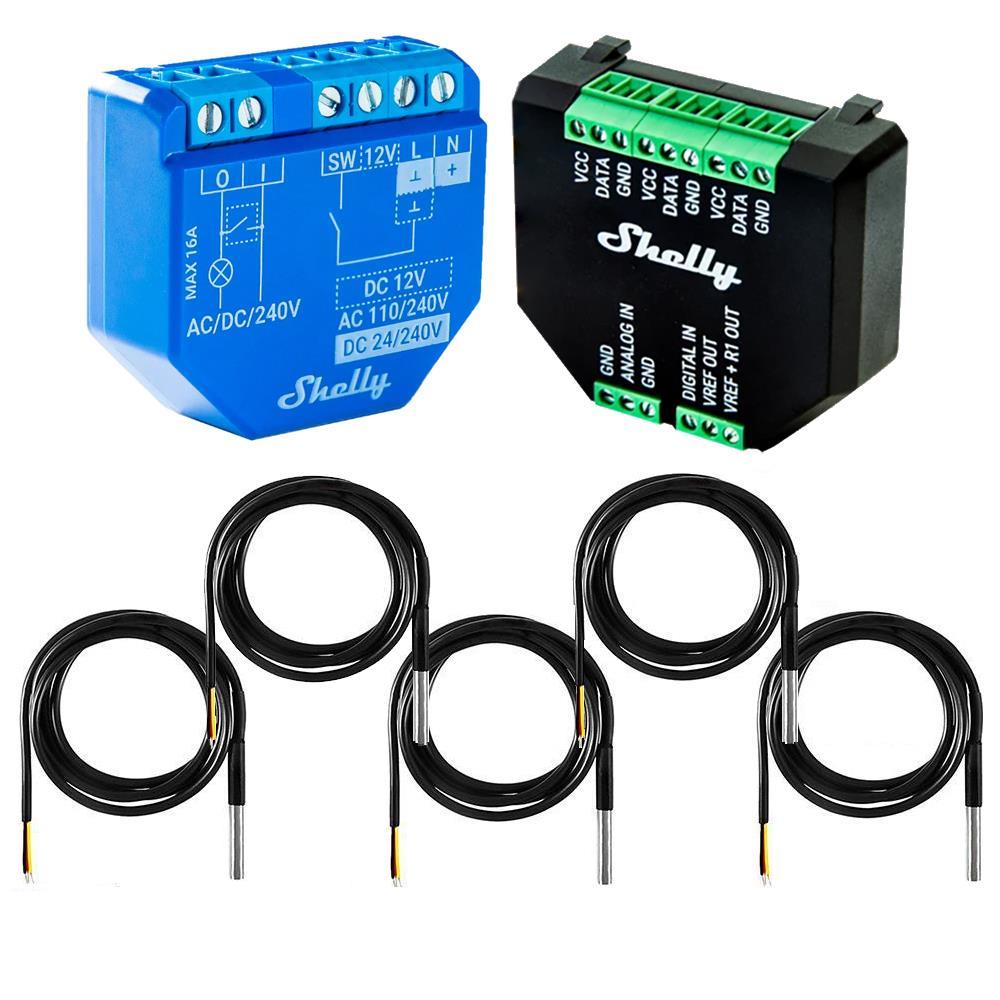

Set variants:
Shelly Plus 1 - without addon

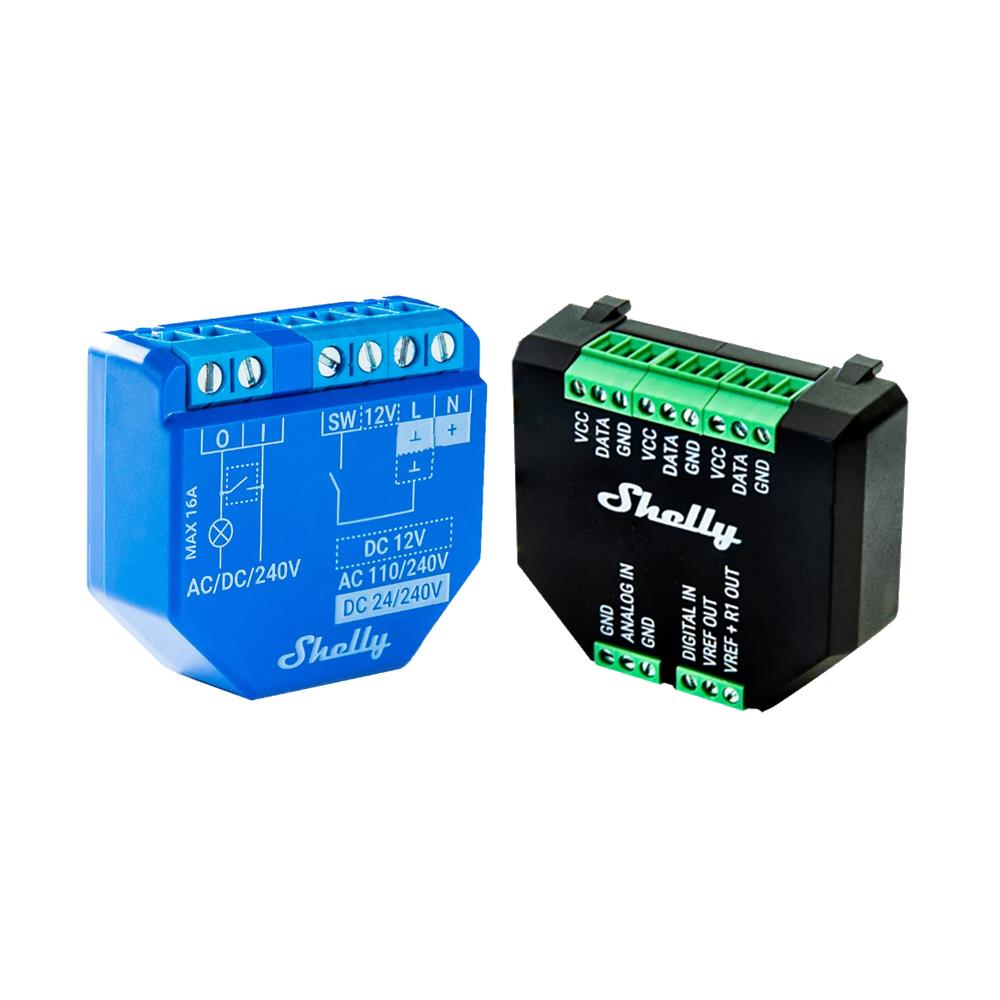

Shelly Plus 1 + Addon without DS18B20

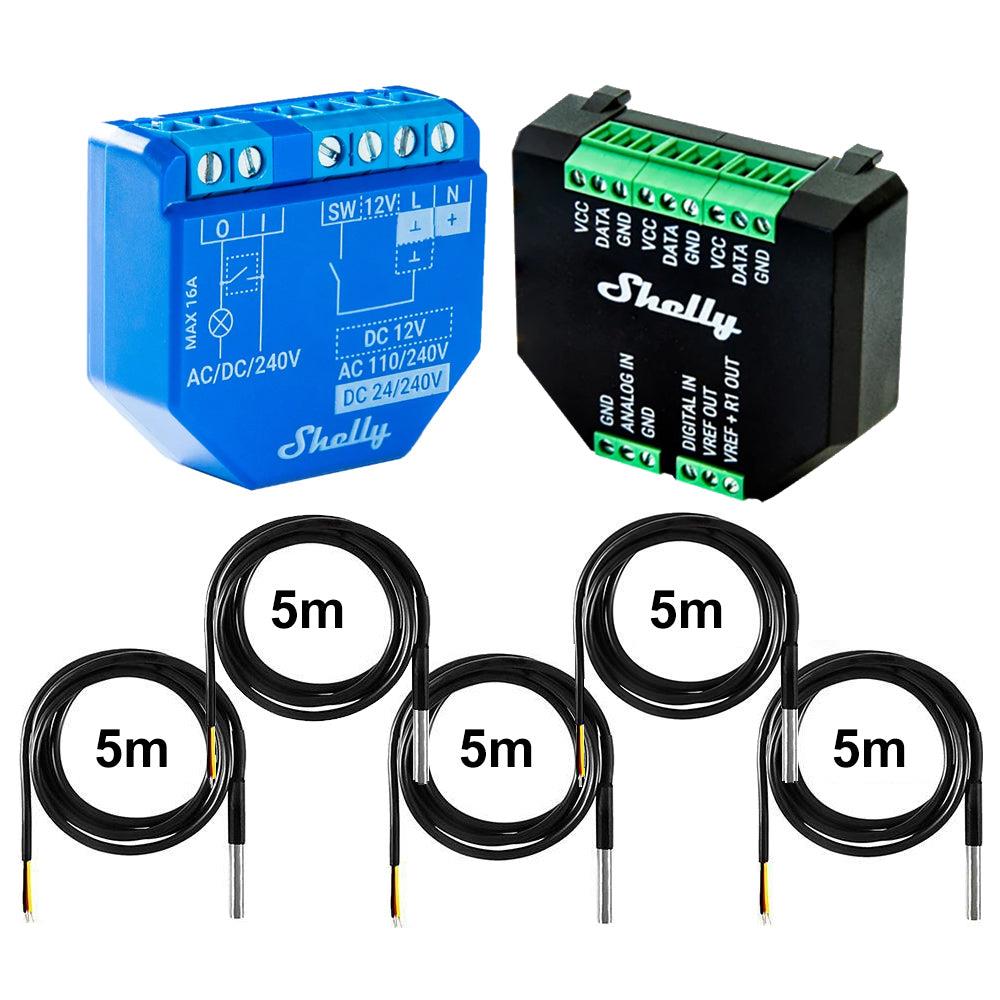

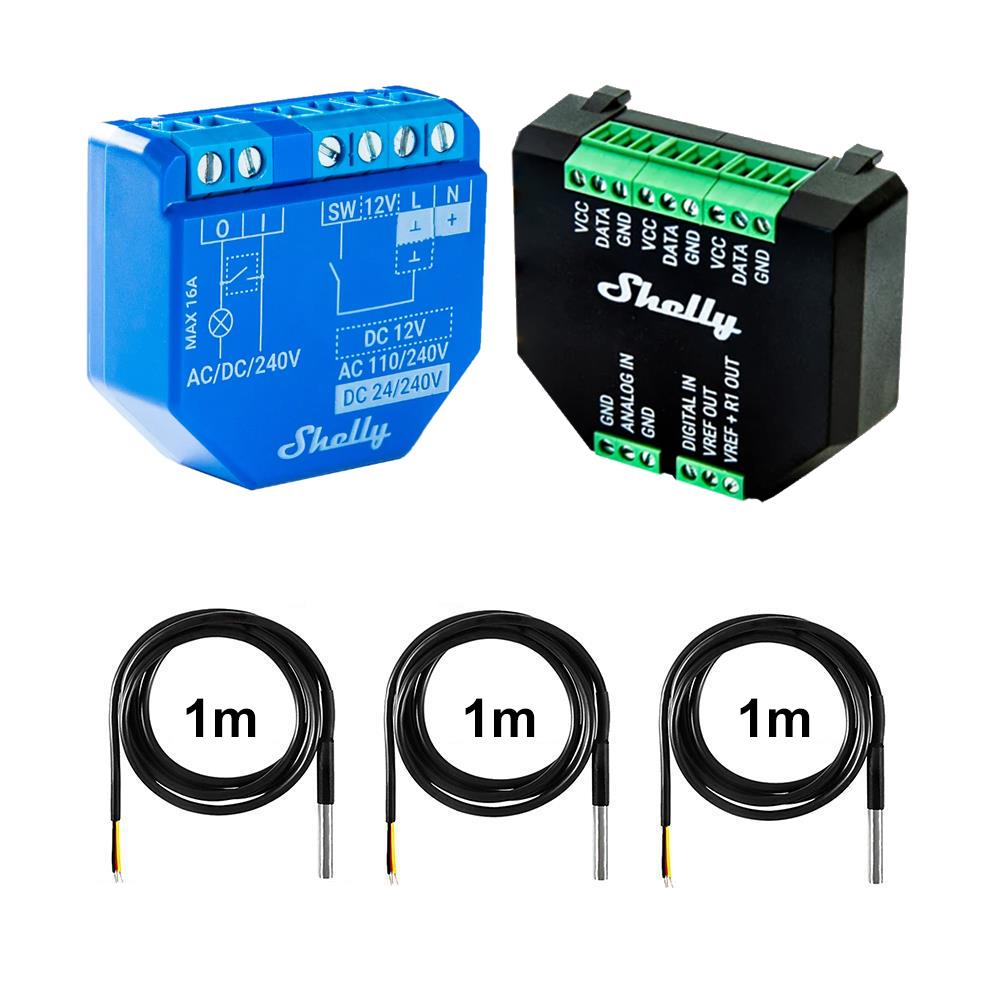

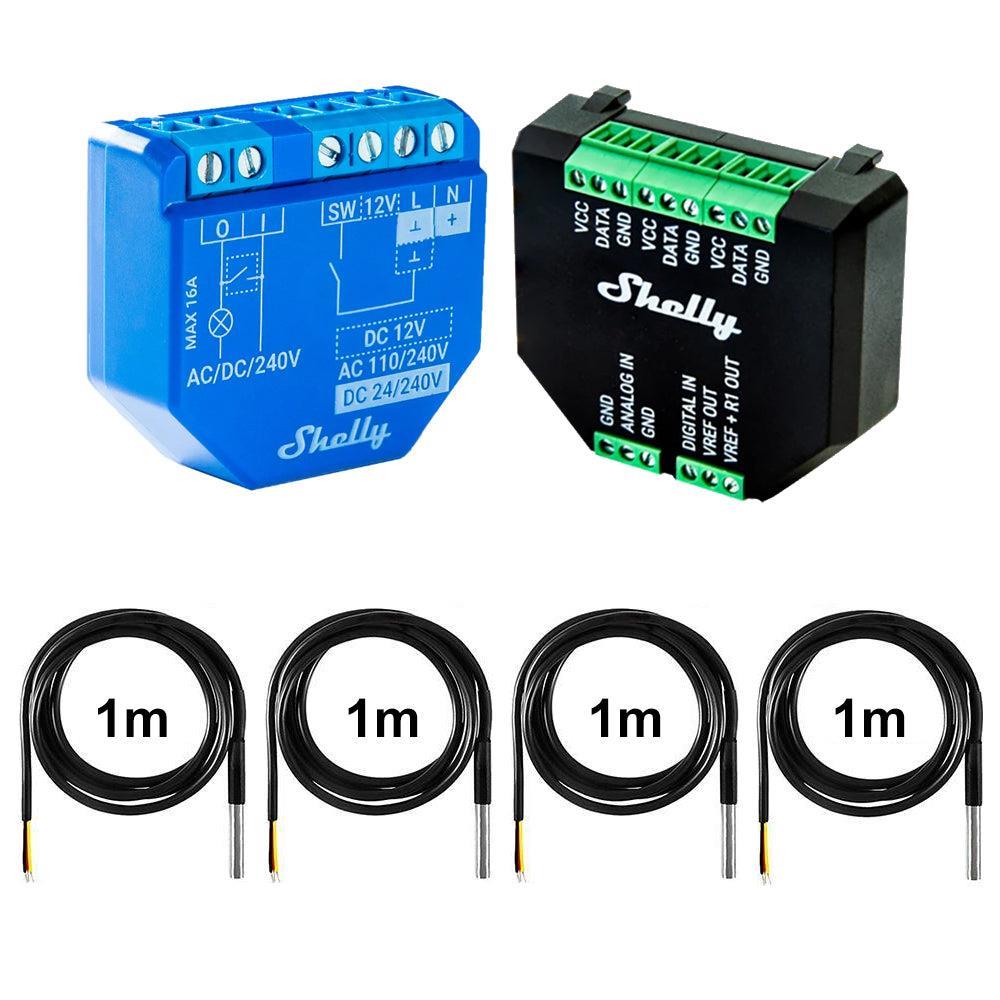

Shelly Plus 1 + Addon + 1x-5x DS18B20 1m

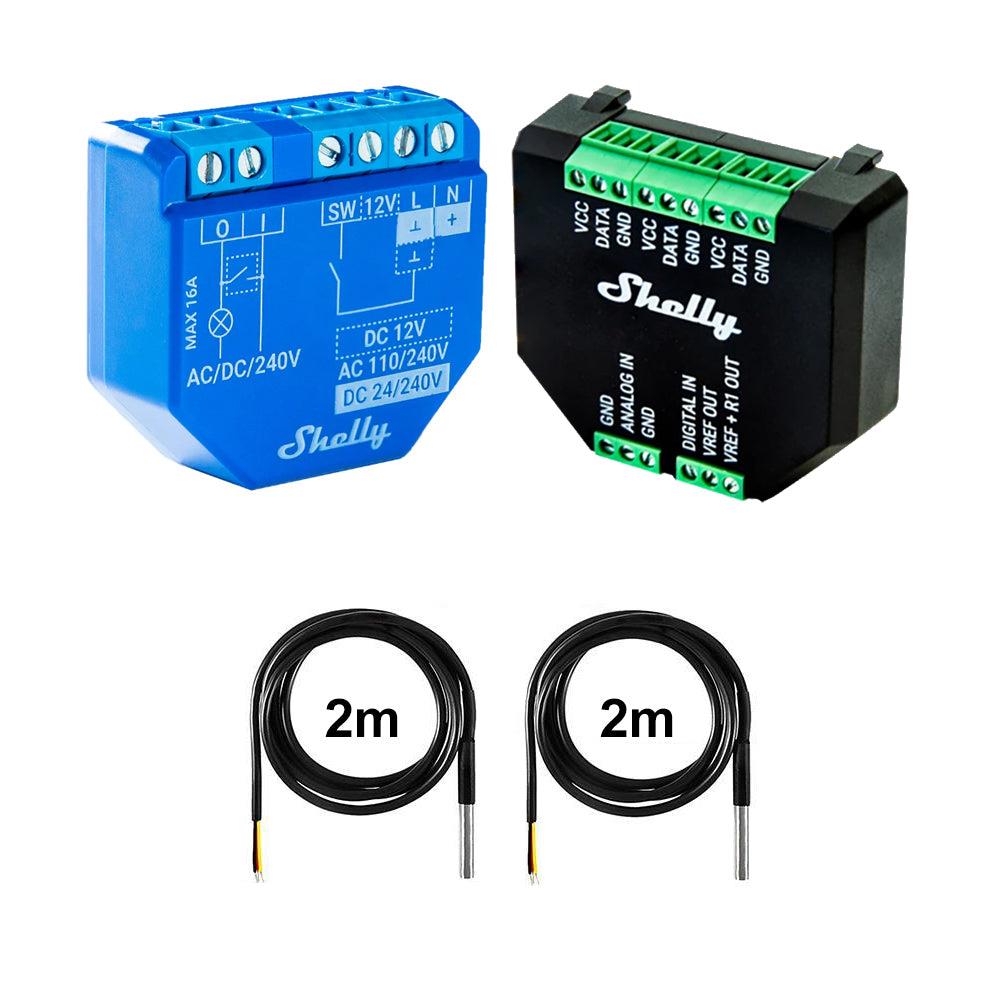

Shelly Plus 1 + Addon + 1x-5x DS18B20 2m
Shelly Plus 1 + Addon + 1x-5x DS18B20 3m
Shelly Plus 1 + Addon + 1x-5x DS18B20 5m

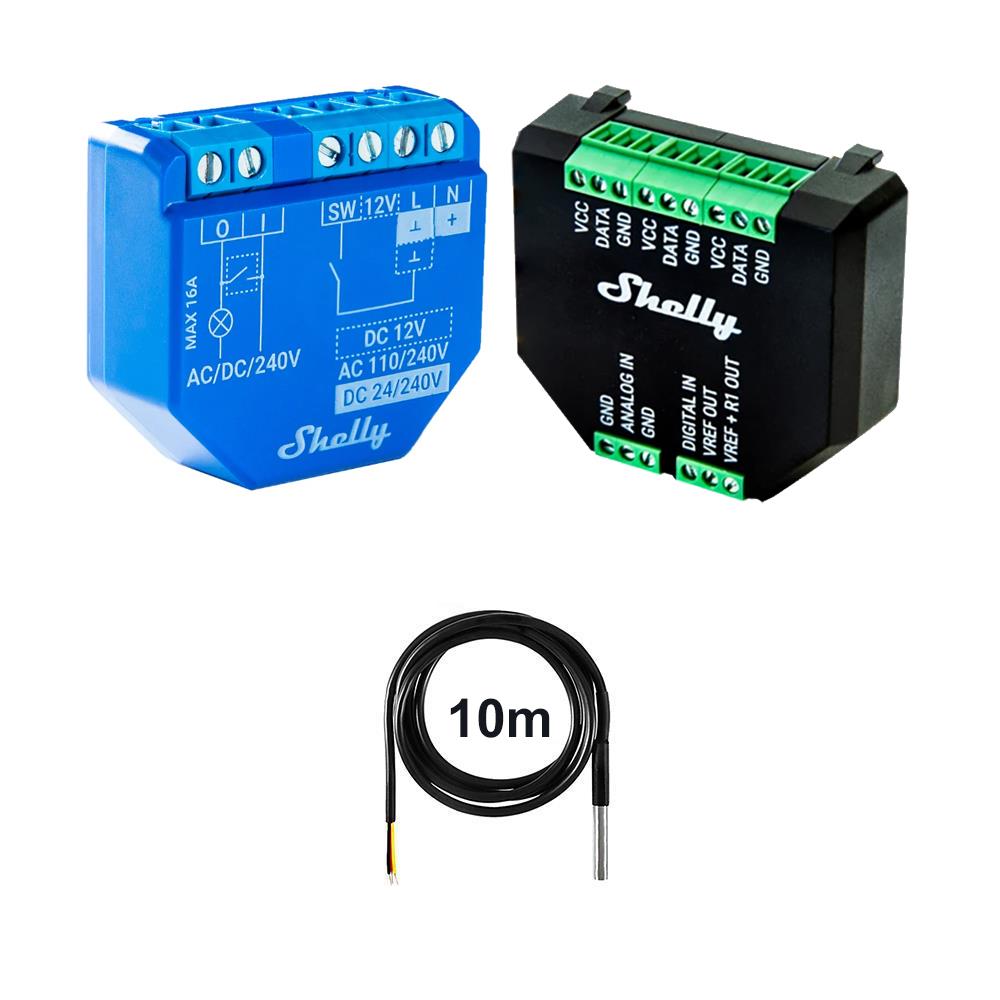

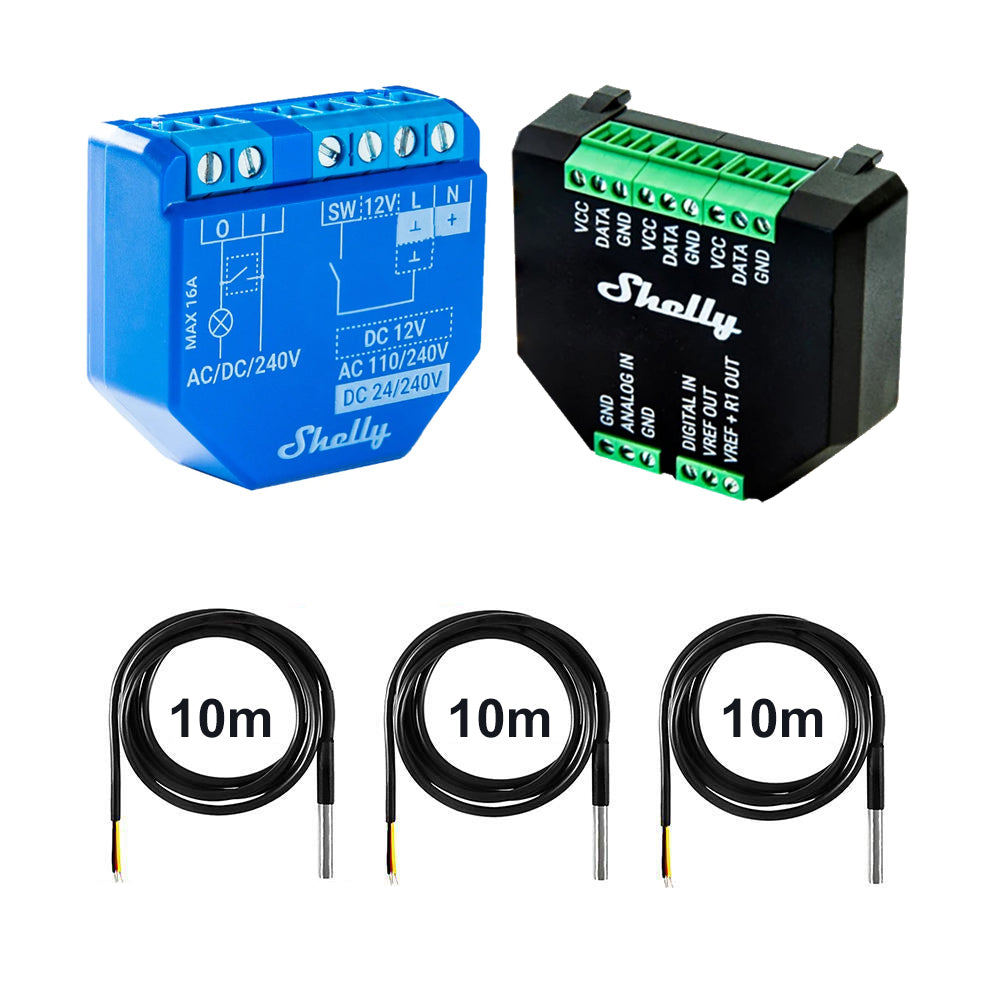

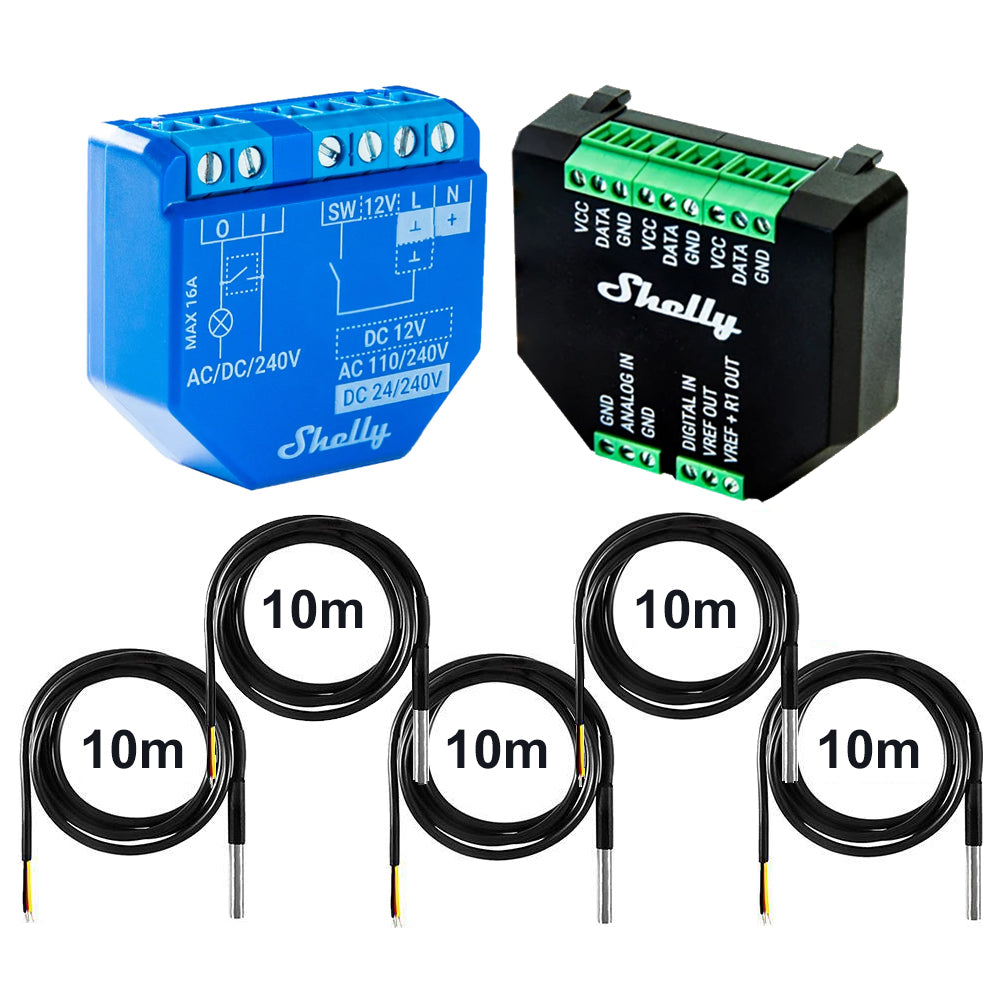

Shelly Plus 1 + Addon + 1x-5x DS18B20 10m
