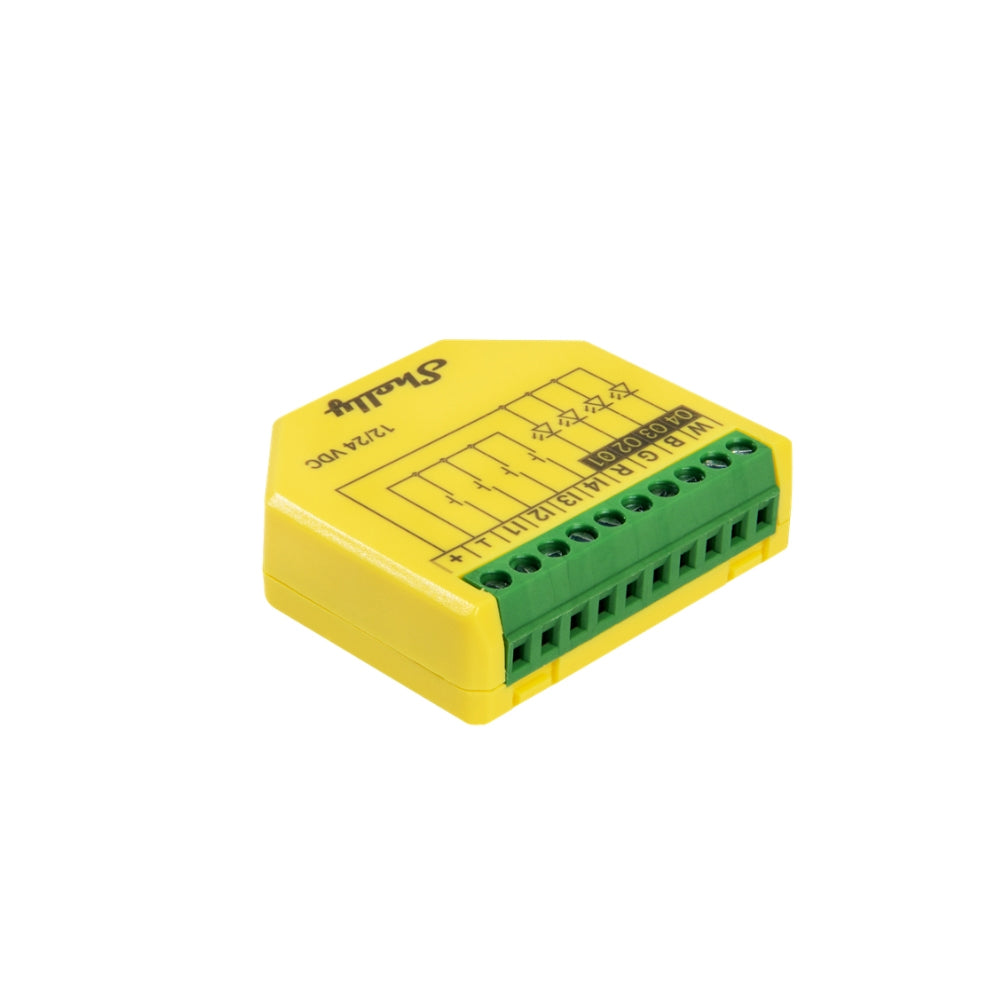

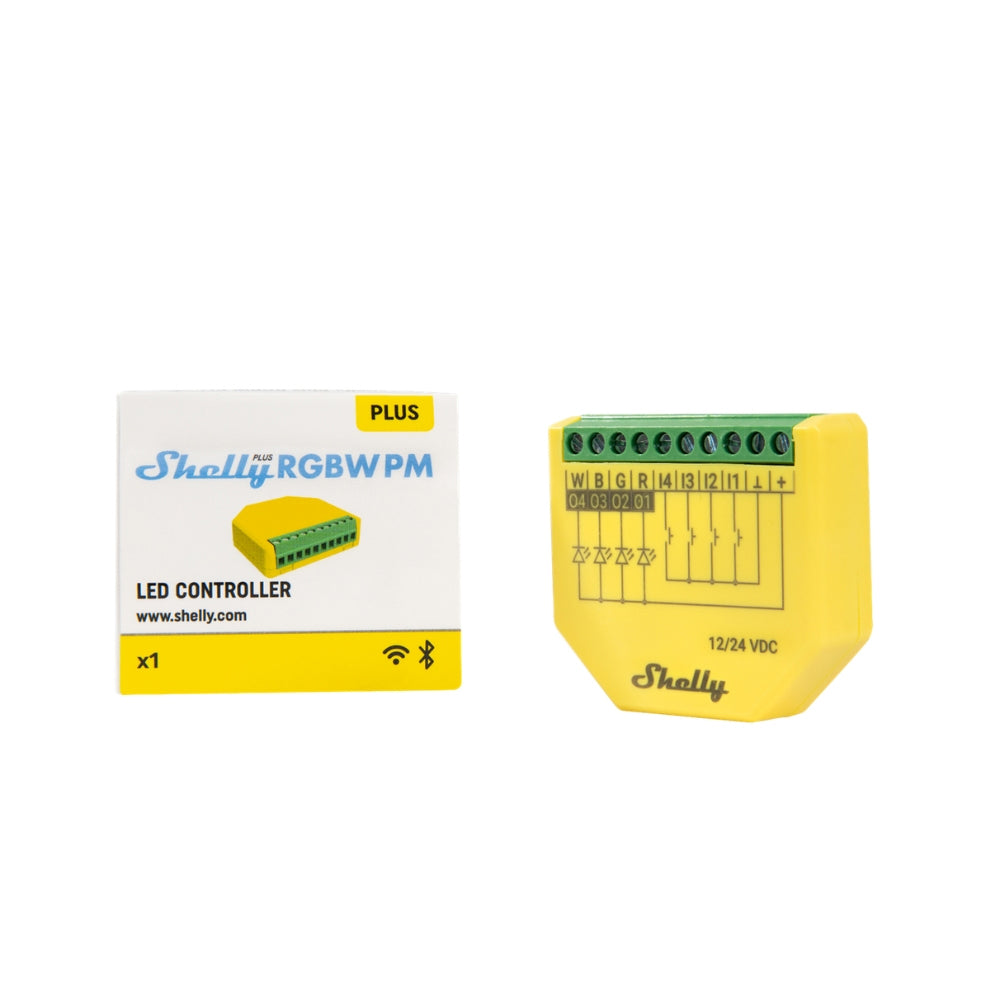

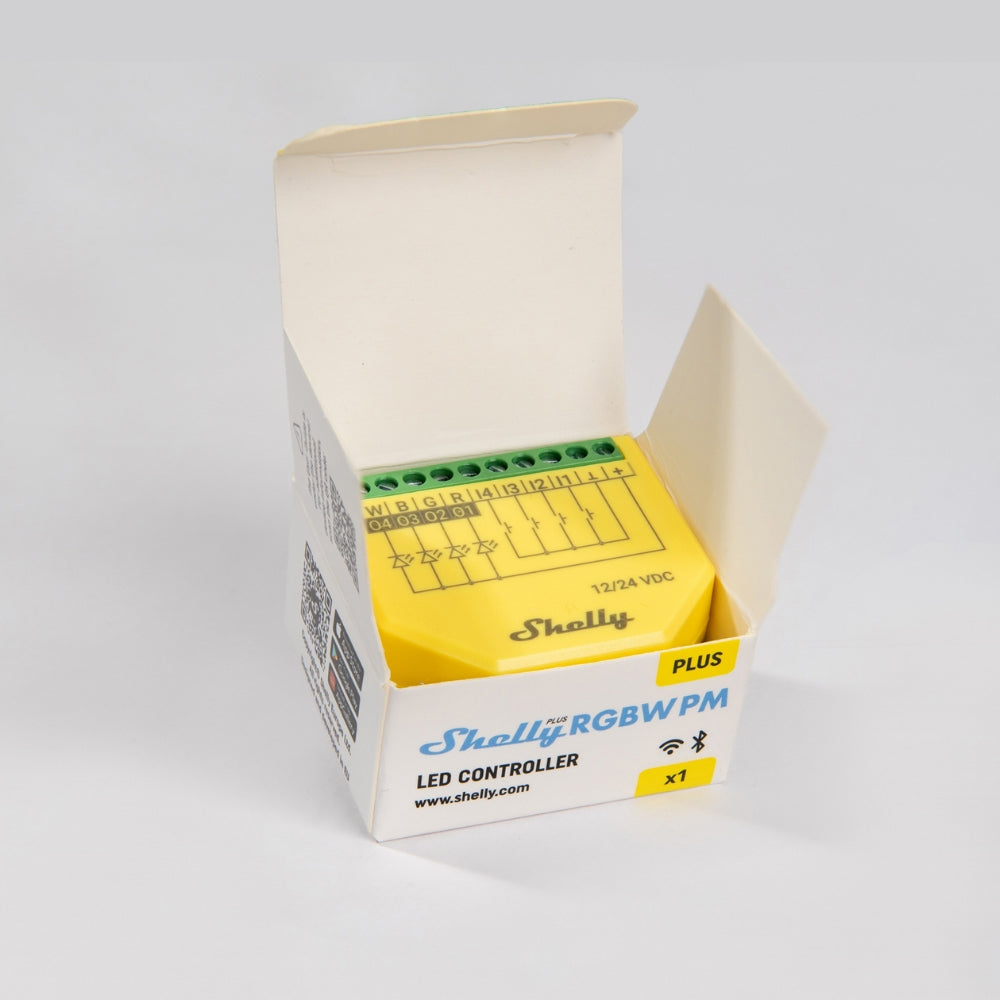

Shelly Plus RGBW PM ESP32 12-24 VDC WiFi Controller Dimmer RGB RGBW Tasmota 14

Article description:

WLAN LED controller with power measurement

Already flashed with the latest Tasmota firmware.

The Shelly Plus RGBW PM is a compact, smart controller for controlling LED strips with 12 or 24 volts DC. Thanks to Wi-Fi and Bluetooth, the device can be easily integrated into your smart home – no additional hub needed. Ideal for colorful accents or white task lighting, with additional power measurement for full transparency in energy consumption.

Possible applications

Ambient Lighting: Easily control RGB LED strips in the living room, children's room, or bedroom.

Task Lighting: Automate and dim white LED strips, e.g., above the kitchen counter.

Automation: Use schedules, sensors, or voice assistants for smart routines.

Energy Monitoring: Keep track of your lighting's energy consumption at any time.

Functions at a Glance

Flexible Light Control: Supports RGBW, RGB, or four individual white channels (4×W).

Real-Time Power Measurement: Power, voltage, and current are displayed directly.

Wi-Fi & Bluetooth: Connects directly to your home network – no hub needed.

Smart Home Compatible: Works with Home Assistant, Alexa, Google Home, and more.

Safety Features: Includes protection against overheating and excessive current draw.

Flexible API Integration: Supports MQTT, HTTP-API, TLS, and Webhooks.

Scripting Function: Implement your own automations directly on the device.

Night Mode: Automatic dimming in the evening and night hours is possible.

Tasmota Pre-Installed: Flashed with the latest Tasmota firmware – ideal for local control, MQTT integration, and maximum flexibility without cloud dependency.

Technical data:

Device Name: Shelly Plus RGBW PM

Model: SNDC-0D4P10WW

Device SSID: ShellyPlusRGBWPM-XXXXXXXXXXXX

Bluetooth Model ID: 0x1009

Wi-Fi Standard: IEEE 802.11 b/g/n (2.4 GHz)

Bluetooth: Version 4.2 with BLE support

Wi-Fi Range: Up to 30 m indoors, up to 50 m outdoors (depending on conditions)

Bluetooth Range: Up to 10 m indoors, up to 30 m outdoors (depending on conditions)

Dimensions: 42 x 37 x 12 mm

Weight: 17 g

Maximum Terminal Torque: 0.2 Nm / 1.8 lbin

Supported Wire Cross-Section: 0.1 to 1 mm² (solid, stranded, ferrules)

Stripping Length: 6 mm

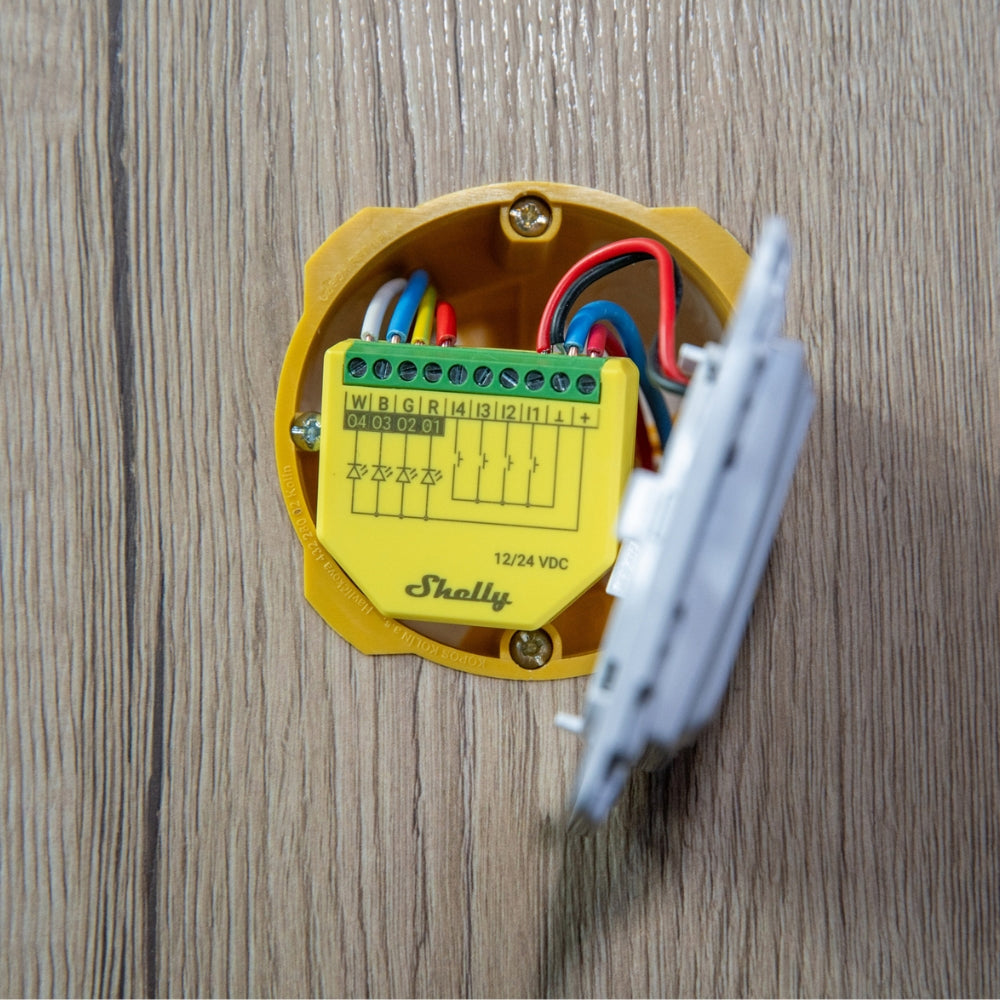

Mounting: Flush-mounted

Enclosure Material: Plastic

Color: Yellow

Power Supply: 12–24 V DC

Standby Power Consumption: < 1.2 W

Maximum Output Voltage: 24 V DC

Maximum Output Current: 4 A per channel, total max 10 A

PWM Frequency: 22 kHz

Voltmeter: 0–24 V (Accuracy ±5%)

Ammeter: 0–10 A (Accuracy ±10%)

Power Metering: Yes

Protection Features: Overtemperature protection, overcurrent protection

Operating Temperature: -20 °C to 40 °C

Humidity: 30% to 70% RH

Maximum Altitude: 2000 m

Processor: ESP-Shelly C38F (ESP32)

Clock Frequency: 160 MHz

RAM: 400 KB

Flash Memory: 4 MB

Firmware Features: 20 schedules, 20 webhooks (up to 5 URLs each), up to 10 scripts

Web Interface: Yes

MQTT Support: Yes

Scripting Capability: Yes

Webhooks: Supports HTTP & HTTPS webhooks

Scheduling: Up to 20 individually configurable timers

KNX Support: KNXnet/IP communication
