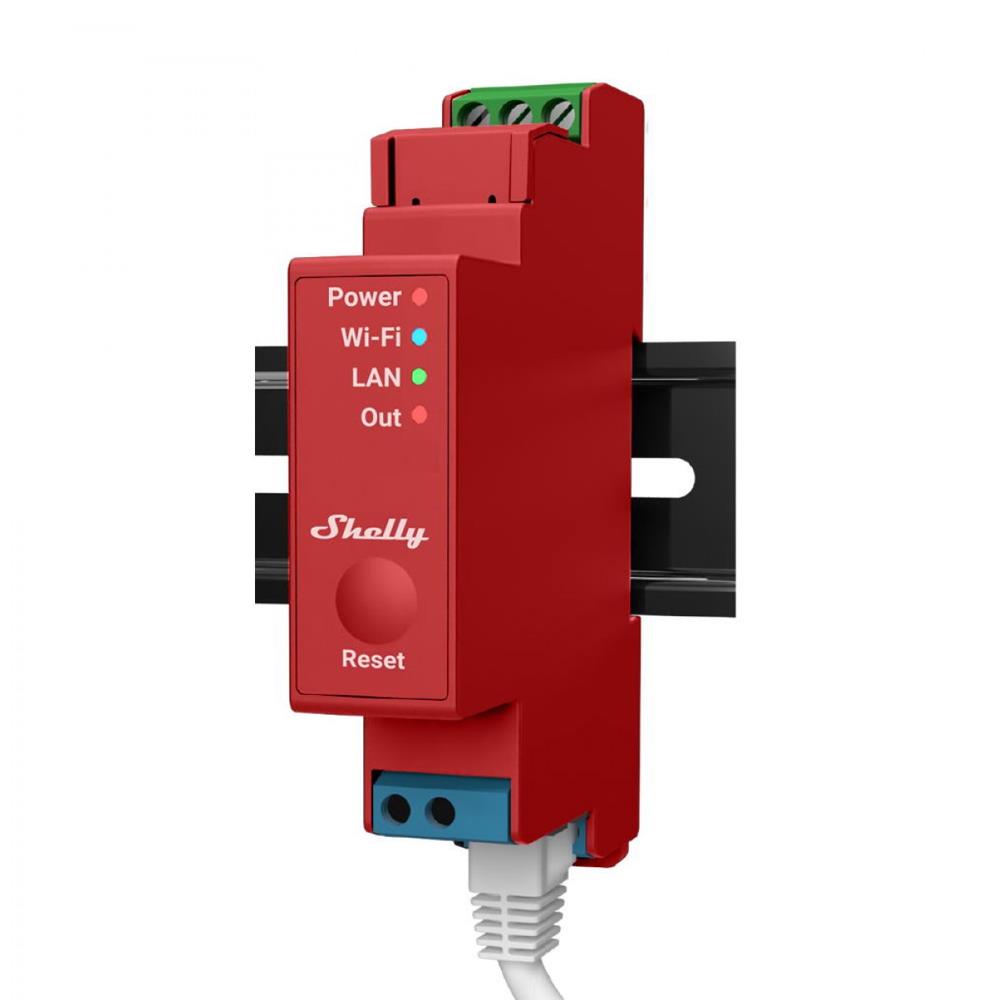

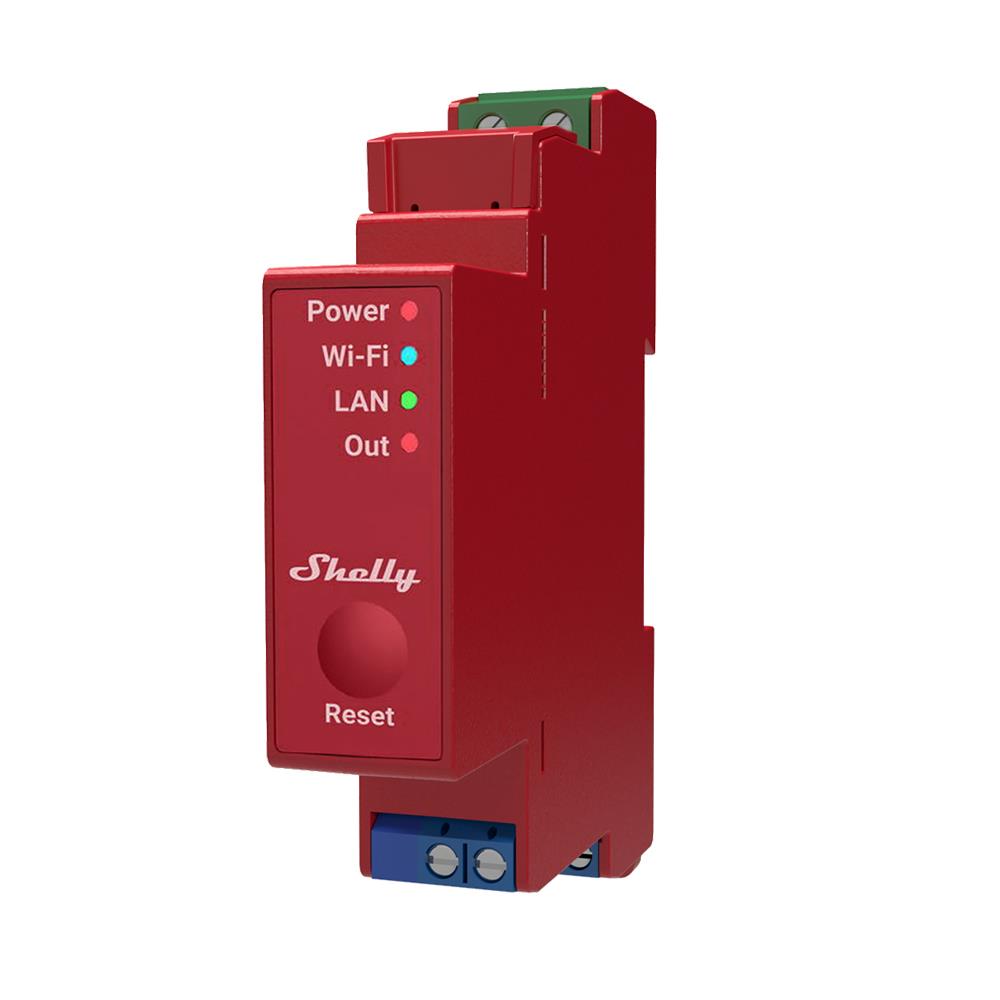

Shelly Pro 1PM WiFi LAN 1 channel DIN rail switching actuator with measuring function Tasmota 14

Article description:

1-channel DIN rail relay switch with power measurement, Wi-Fi, LAN and Bluetooth connection

Already flashed with the latest Tasmota firmware.

First-class home or building automation with the new, professional line of Shelly Wi-Fi and Bluetooth relays with LAN connection and precise energy management and control. Enhanced with temperature, over-current and over-voltage protection, the Shelly Pro series is designed for fuse box installation. The product range enables complete intelligent automation from the fuse box without additional cables or wiring. The Shelly Pro series is perfect for homes, offices, shops, companies and manufacturing facilities.

THE BEST SOLUTION FOR NEW BUILDINGS

The Shelly Pro-Line enables complete intelligent automation from the control cabinet. This makes them the perfect solution for new buildings and production facilities, which you can plan and adapt individually to your needs. Meanwhile, the precise consumption measurement of the PM devices informs you about the power consumption of each connected device. This allows you to reliably analyze the data and reduce consumption costs.

LAN, Wi-Fi and Bluetooth Simultaneous Wi-Fi and LAN use. Quickly and easily add devices via Bluetooth connection.

Can be mounted on DIN rail. Allows intelligent automation to manage and control your system directly from the fuse box, no matter where you are.

Protection, overload and overvoltage protection - protection of the load.

Shelly Pro Line devices can be operated directly and without a hub via your smartphone using the Shelly Cloud app.

Improved security features

Overheat protection - In the event of too high a temperature or a rapid rise in temperature, the device will turn off the outputs and send a notification. The internal temperature sensor measures heat every 100 ms.

Overload protection - If overload is detected, the device switches off the outputs and sends an immediate notification. The surge protection function protects the device and other electrical devices from possible damage.

Surge protection - Voltage surges can be dangerous for electrical devices and machines. To prevent damage to the electrical devices, the device switches off the outputs when surge voltages are detected and sends a notification immediately.

Flame retardant - all Shelly Pro components are made from flame retardant materials and maintain their construction even when exposed to high heat.

Other properties

HTTP/HTTPS WEBHOOKS for fast connection - Enhanced with HTTP/HTTPs webhooks, the Shelly Pro line can easily connect, notify or control other compatible devices or third-party automation system.

Smart sequences (scenes) according to sunrise/sunSet - Shelly Pro Line can switch the power on and off depending on sunSet or sunrise, making it perfect for dynamic control of electrical devices.

Custom automation with weekly scheduling - Shelly Pro Line allows you to Set up to 50 actions based on your daily or weekly schedule without the need for an external hub or server

Scripting for Custom Automation - The Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionality! Multiple scripts can be executed together.

Technical data:

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 68.5 x 18.5 x 89.5 mm

Mounting Type: DIN rail

Working temperature: -20°C - 40°C

Input voltage AC: 110-240 V ±10%, 50/60Hz

1 output

Max. Input current: 16A

Power consumption measurement: Yes

Power of the radio signal: 1mW

Outdoor operating range: up to 50m

Indoor operating range: up to 30m

Overheating protection: yes

Overload protection: yes

Surge protection: yes

Flame retardant: yes

Model variants:
