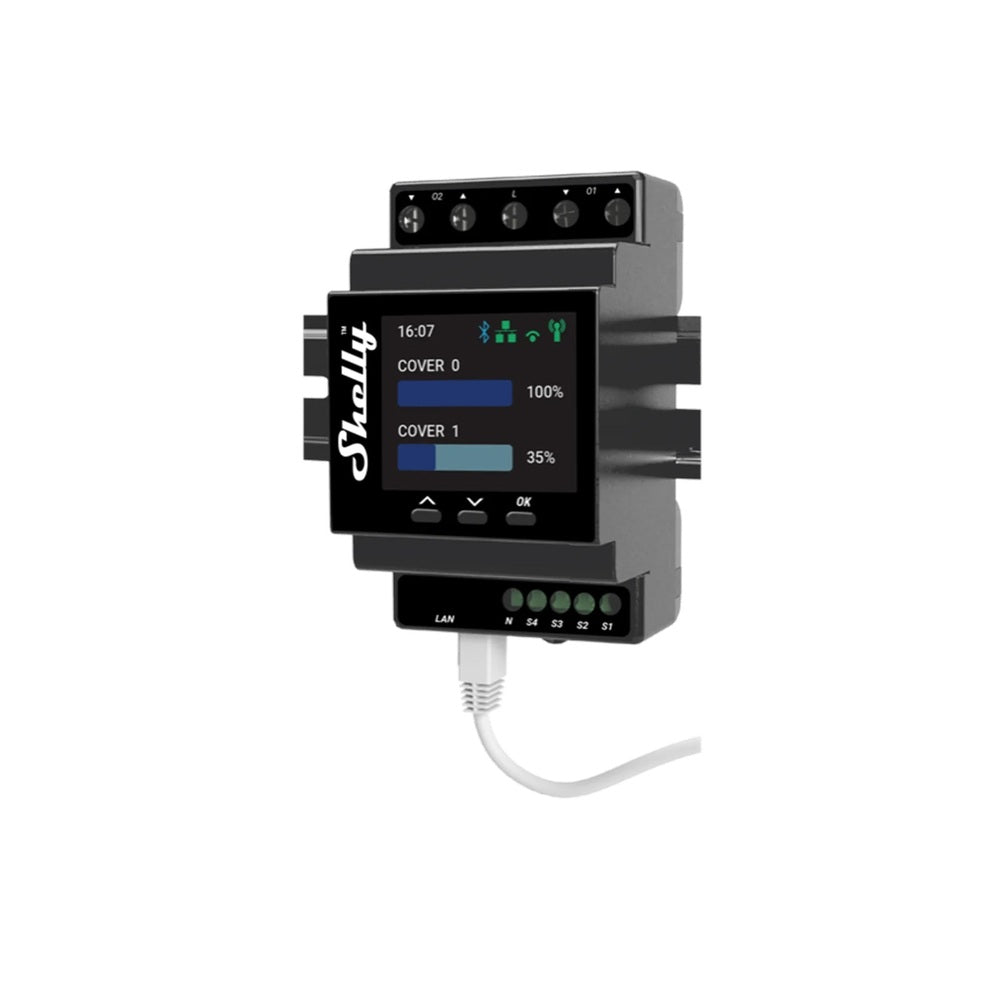

Shelly Pro Dual Cover Shutter PM DIN Wi-Fi LAN Bluetooth Two Covers Controller

Product Description

The Shelly Pro Dual Cover Shutter PM is a versatile and powerful controller specifically designed for controlling two roller shutters or blinds. It allows for easy integration into a smart home system and offers numerous features for automation and monitoring. With support for Wi-Fi, LAN, and Bluetooth, the controller is flexible and can be easily integrated into existing systems.

Thanks to the DIN rail mounting, the Shelly Pro Dual Cover Shutter PM is ideal for use in distribution cabinets. It offers easy installation and can be used in both private and commercial applications. The energy monitoring function allows for monitoring and analyzing the power consumption of connected devices, contributing to optimizing energy usage.

The controller supports various protocols such as MQTT, enabling easy integration into existing smart home systems. Operation is via the Shelly app, available for iOS and Android. Through this app, users can not only control the roller shutters but also create schedules and define scenarios to enhance comfort and security at home.

Another highlight is the ability to control the Shelly Pro Dual Cover Shutter PM via voice assistants, providing even more convenient operation. The splash-proof design (IP44) ensures that the controller can be used in more humid environments without compromising functionality.

Features and Application Possibilities

Energy Monitoring: The Shelly Pro Dual Cover Shutter PM enables monitoring of the power consumption of connected devices, contributing to increased efficiency.

Smart Home Integration: With support for MQTT and other protocols, the controller can be seamlessly integrated into existing smart home systems.

Voice Control: The controller can be controlled via common voice assistants, making operation even more convenient.

Schedules and Scenarios: In the Shelly app, schedules and scenarios can be created to automatically control the roller shutters.

Installation and Compatibility

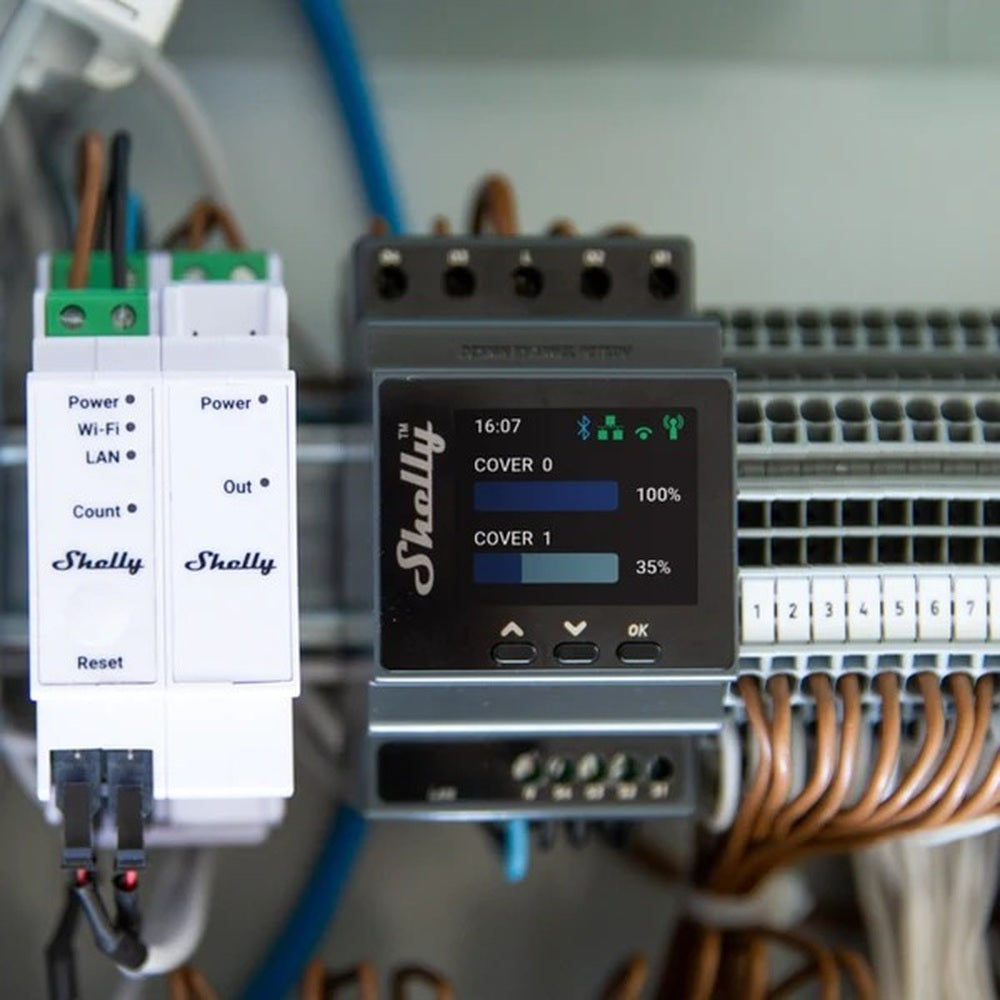

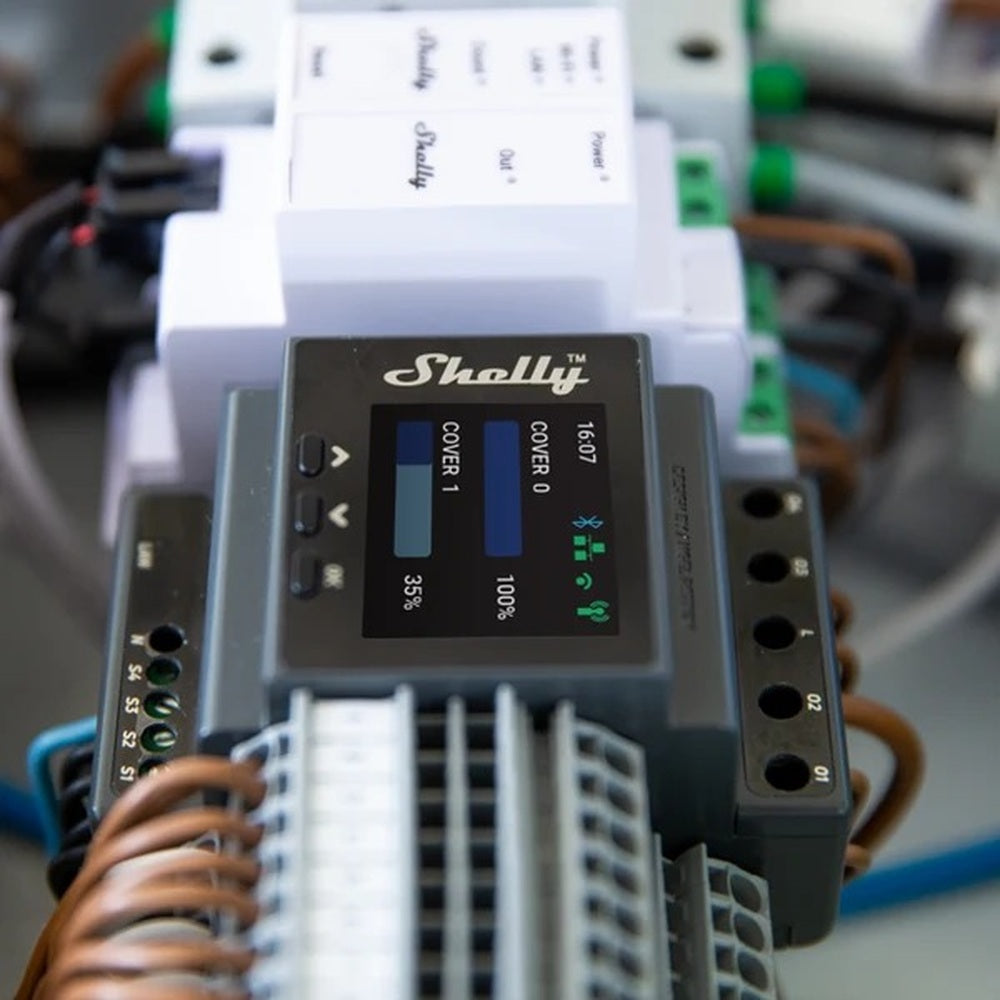

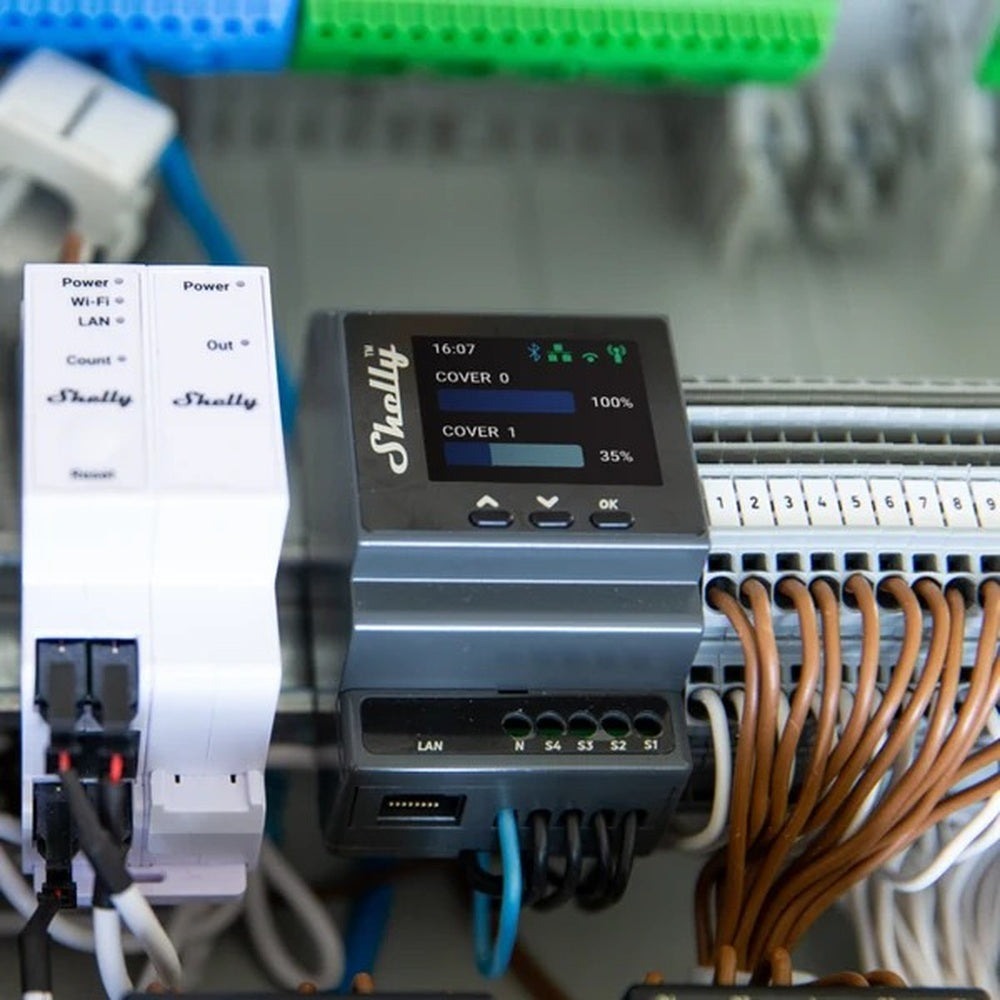

Easy Installation: The Shelly Pro Dual Cover Shutter PM is mounted on a DIN rail, making installation in distribution cabinets easier.

Compatibility: The controller is compatible with a variety of smart home systems that support MQTT.

Scope of Delivery

Shelly Pro Dual Cover Shutter PM

Mounting Material

User Manual

Technical Data

Size (HxWxD): 96x53x59 ±0.02 mm

Weight: 150 g

Mounting: DIN Rail

Max. Torque of Terminal Blocks: 0.4 Nm

Conductor Cross-Section: 0.5 to 2.5 mm²

Stripping Length of Conductor: 6 to 7 mm

Housing Material: Plastic

Color: Dark Gray

Ambient Temperature: -20 °C to 40 °C

AC Voltage: 110 - 240 V

Power Consumption: < 3 W

Max. Switching Voltage AC: 240 V

Max. Switching Current AC: 16 A per output

Internal Temperature Sensor: Yes

RF Band: 2400 - 2495 MHz

Max. RF Power: <20 dBm

Wi-Fi Protocol: 802.11 b/g/n

Wi-Fi Range: Up to 30 m indoors and 50 m outdoors

Bluetooth Protocol: 4.2

Bluetooth Range: Up to 10 m indoors and 30 m outdoors

CPU: ESP32-D0WDQ6

Flash Memory: 8 MB

Schedules: 20

Webhooks (URL Actions): 20 with 5 URLs per hook

Scripting: Yes

MQTT: Yes

Max Torque of Terminal Blocks: 0.4 Nm / 3.5 lbin (green terminals)

Humidity: 30 % to 70 % RH

Max Height: 2000 m / 6562 ft

Max Switching Current AC: 16 A per output

Voltage Measurement (AC): Yes

Current Measurement (AC): Yes

Radio Frequency Band: 2400 - 2495 MHz

Max Radio Power: <20 dBm

Wi-Fi Protocol: 802.11 b/g/n

Wi-Fi Range: Up to 30 m indoors and 50 m outdoors
