Sonoff Mini Extreme MiniR4 WiFi Smart Switch ESP32 Alexa ioBroker Tasmota

Article description:

Extremely small flush WiFi Smart Switch

Already flashed with the latest Tasmota firmware.

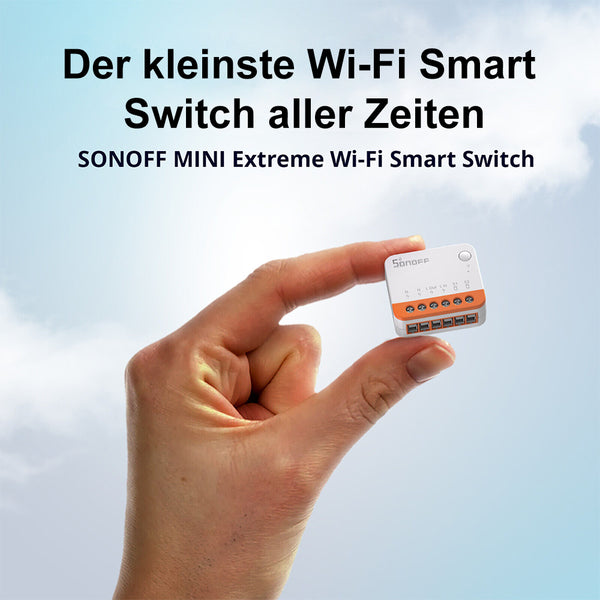

super small size - thanks to its compact size, it can be installed in various installation cans, including the smallest European standard.

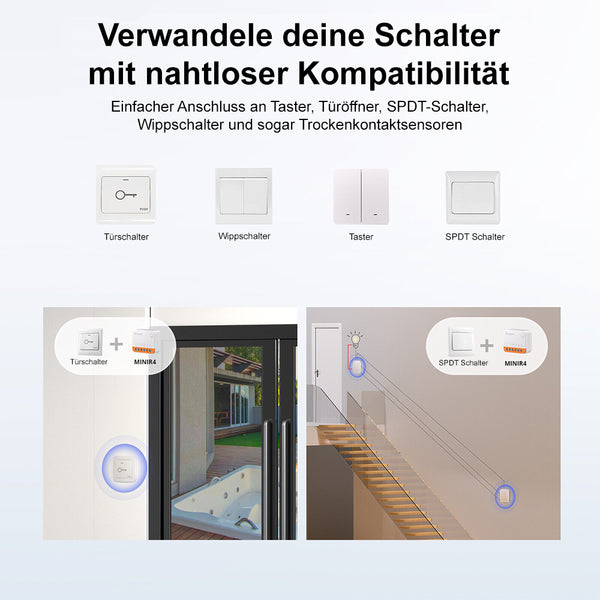

External switch control - simple connection to button, door output switch, SPDT switch, locking switch and even drying contact sensor.

relay separation mode -Minir4 has a "relay separation mode", i.e. the conditions of the external switches and the relay are separated, so that the actuation of the external switch button has no effect on the relay state.

Ewelink remote control -Minir4 is an intelligent switch with the gateway function of "Ewelink-Remote". You can add "Ewelink-Remote" fabrics, R5 and S-Mate after the pairing with minir4. Both R5 and S-Mate can act as remote controls to control minir4 locally via the Ewelink remote signal.

Minir4 is an extreme mini-WiFi smart switch, which is equipped with an ESP32 chip. It transforms conventional switches into smart switches that automate lights and electronic devices and, with its tiny size, fits into different installation cans, including the smallest EU/86/120 type. Minir4 supports the external control of switches and can be easily combined with buttons, door openers, SPDT switches, rasm switches and even dry contact sensors.

Minir4 has a "separating relay" mode, which means that the conditions of the external switches and the relay are separated, so that the actuation of the external switch key does not affect the relay state. For example, if you open the "Detach Relay" mode, if you switch off the light, your smart light will not be offline, and you can still use the app to control smart light.

Minir4 is an intelligent switch with the gateway function of "Ewelink-Remote" after coupling with Minir4, Minir4 can be controlled by S-Mate via the "Ewelink-Remote" signal and trigger other intelligent devices in the intelligent scene. (Not possible with the Tasmota variant)

Technical data:

Model: Minir4

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Size: 39.5 x 33 x 16.8 mm

Weight: 30g

Input voltage: AC100-240V 50/60Hz

Output voltage: AC100-240V 50/60Hz

Max. Power: 2400W

Max. Power strength: 10A

Work temperature: -10 ° C - 40 ° C

Job moisture: 5% - 95%

Material: PC V0

Further information:

Additional:

Model variants:

Tasmota German
