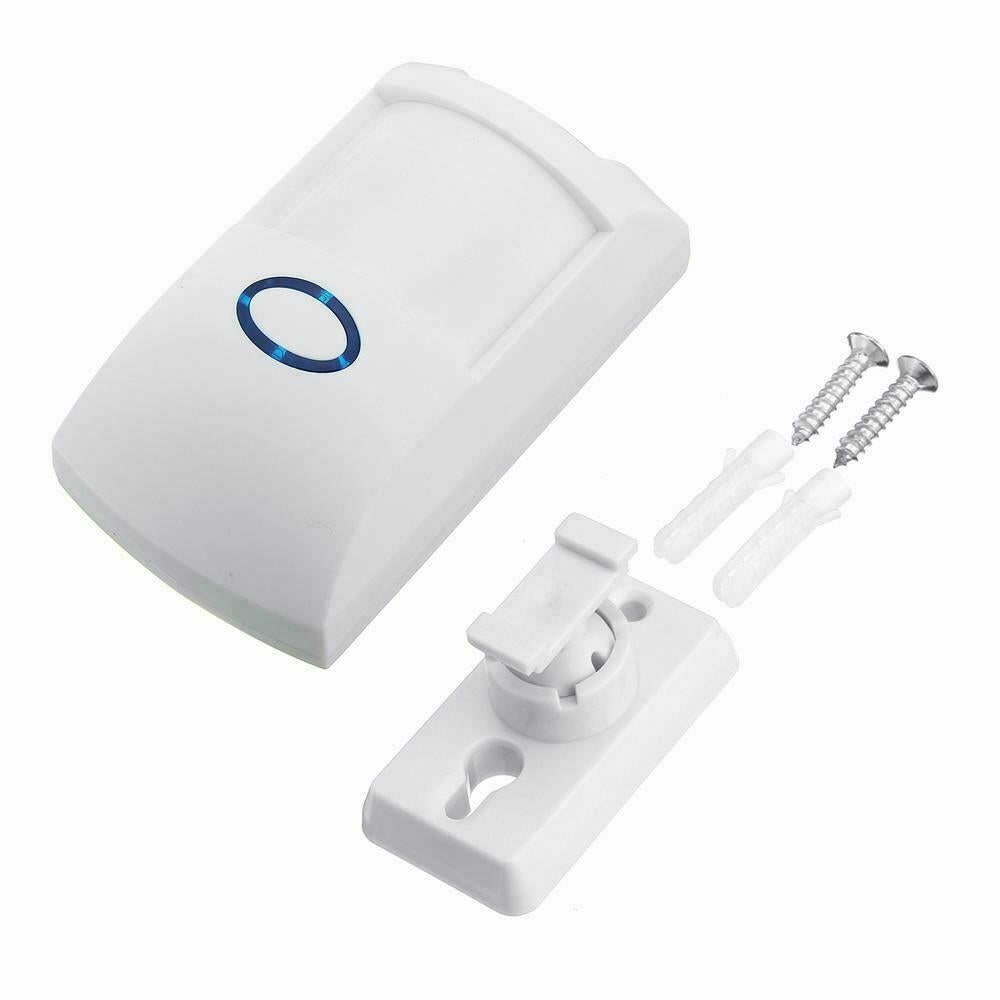

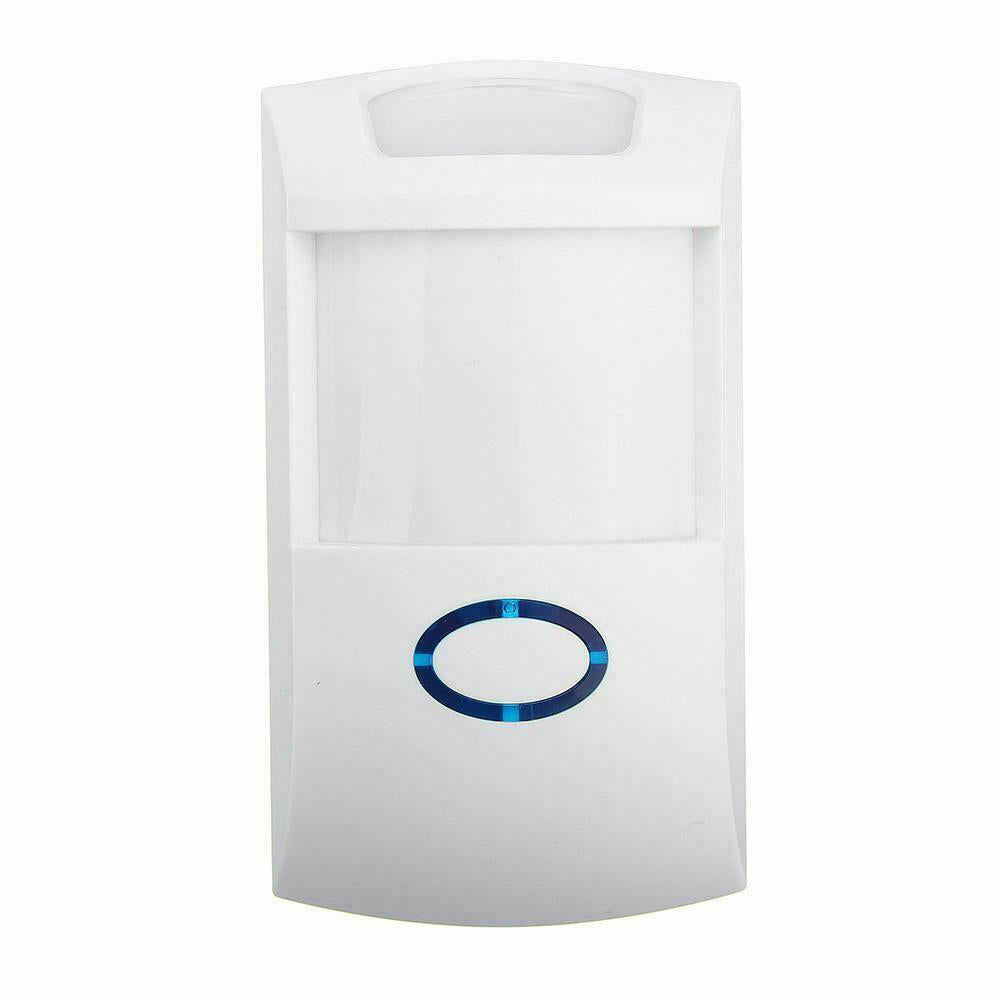

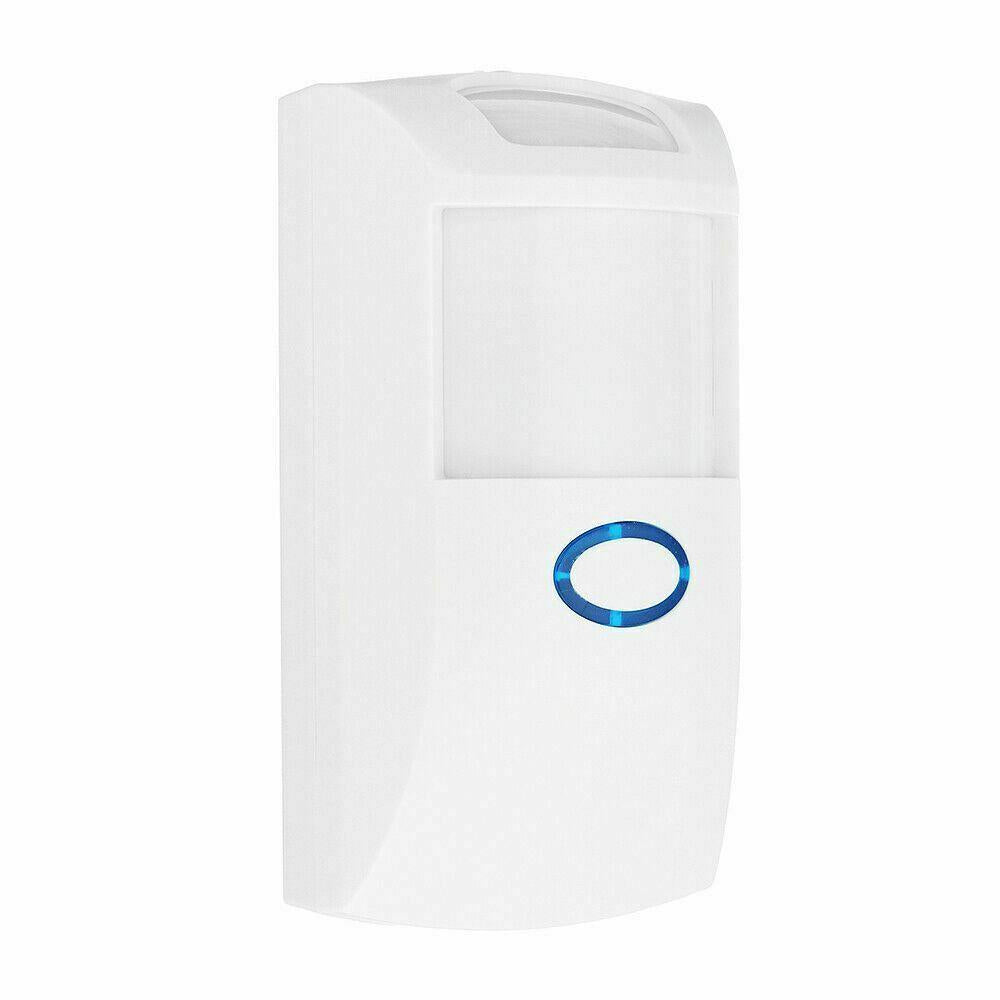

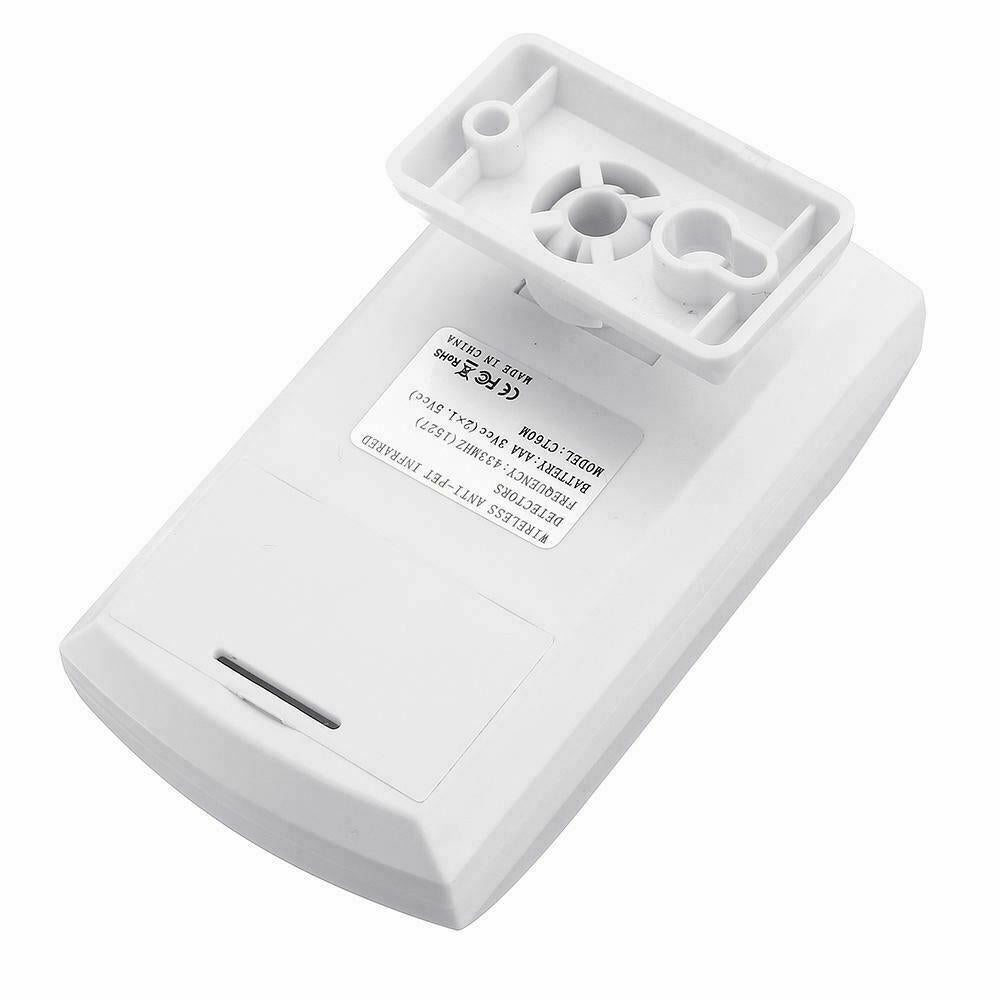

SONOFF PIR2 Motion Detector Wireless Sensor 433MHz RF Motion Infrared

Article description:

433MHz wireless RF motion detector

The PIR2 is a motion detector. This can be coupled with the Sonoff RF Bridge. The motion detector reliably and quickly detects people and animals and immediately sends an alarm notification to the bridge.

The 433MHz sensor has a range of up to 150m (outdoors).

It has dual infrared sensors, ultra-low power microprocessors and dual temperature compensation technology.

Ideal protection for houses, apartments, offices, laboratories, hotel rooms, garages, etc.

Easy installation and Setup.

A 433MHz bridge is required to use the motion detector.

The matching Sonoff RF2 Bridge is available in the shop as a Tasmota version. This means that your data is completely protected by the bridge.

Tasmota - cloud-free, fast & sure

Technical data:

Manufacturer no.: IM170811004

Model: PIR2

Transmission range: 150m (open)

Wireless frequency: 433.92MHz

Protocol: EV1527

Detection distance: 12m @ 25°C

Detection angle: 110 degrees

Maximum range: 12m x 12m

Alarm display: 3 seconds on

Working environment: Indoor

tamper contact: normally closed

Anti-white light intensity: 10000Lux

quiescent current: ≤9µA

Alarm current: ≤10µA

Size: 120 x 62 x 46 mm

Weight: 120g

Battery: 2 x AA battery (Not included)
