SONOFF POW Elite 16A WiFi Smart Switch with Power Consumption Metering Tasmota PV

The following requirements must be met:

• My delivery address is located in Germany.
• The installation is only carried out if the photovoltaic system is installed on or near my private apartment, apartments as well as public and other buildings that are used for the common good. Margin-Left: -1.5EM; "> I confirm that the installed gross performance of the photovoltaic system according to the market master data register (mastr) is no more than 30 kW (peak). -1.5em; "> I am the operator of the photovoltaic system. The ordered goods are not resold.
• I confirm that the components ordered only serve to use the electricity generated with solar modules for energy management. < /Li>

By ordering this VAT, I confirm that the delivery takes place in accordance with Section 12 (3) UStG free of VAT and the requirements for the tax rate of 0% are met. If it turns out afterwards that these requirements do not template contrary to the confirmation (e.g. through an external examination), I agree that the too little sales tax will be invoiced afterwards.

Please note that orders with company address or multiple orders that exceed the maximum order quantity 2 pieces are canceled and the purchase amount is reimbursed.

For the smooth process, we ask you to consult questions or ambiguities before buying. Thank you.

You can view further information in the document from the Federal Ministry of Finance:

steuersatz für Umsätze im Zusammenhang mit bestimmten Photovoltaikanlagen

Article description:

WiFi Smart Switch for energy feeding and display

Already flashed with the latest Tasmota firmware.

Solar feedback - The Sonoff Powr WiFi Switch proves to be extremely useful device to monitor the solar yield. The switch is simply installed between the inverter and the house installation or socket. In order to efficiently control the yield, the Tasota variant is particularly useful, since the data can be processed via MQTT. As a result, many different evaluations can be created. Using suitable graphic representations such as Influx or Grafana, the data can also be visualized in an appealing way.

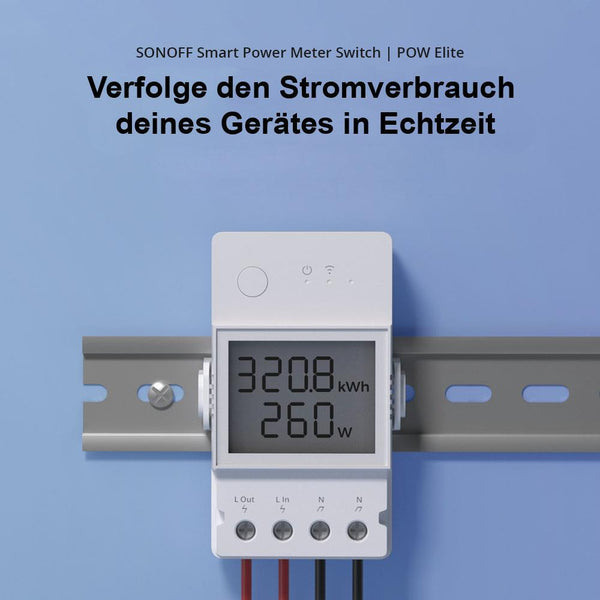

LCD screen -pursue the performance, electricity, voltage and cumulative electricity consumption of your devices in real time on the LCD screen.

16a maximum load - supports a maximum of 16a load, the Pow Elite is therefore compatible with more household appliances.

6-month consumption of consumption data after hour -power consumption data (exactly for hours) can be stored for up to 6 months with the Ewelink variant and exported from the phone to Excel.

overload protection - You can set performance, electricity and voltage threshold values. As soon as a condition is met, the Pow Elite is switched off to protect your devices.

Fully functional - Pow Elite has the most basic functions, such as app control, voice control, schedule, tip setting, switching on, etc.

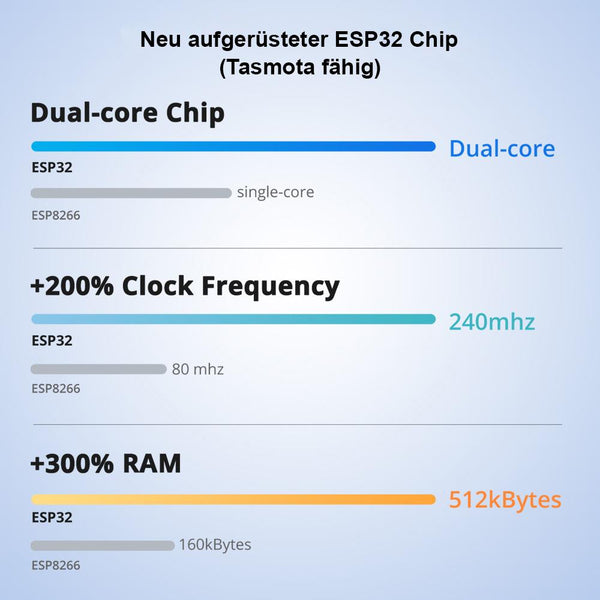

Sonoff Pow Elite is a power meter switch, with a newly upgraded ESP32 chip, which is 200% faster than the previous ESP8622 chip. With an LCD screen, it can track the power, electricity and the voltage of your devices in real time and the cumulative power consumption.

Keep an overview of the acting, electricity and tension of your devices in the app (Ewelink version) or in the webgui (Tasmota)

The POW Elite can switch off the electricity wherever you are to ensure the safety of your devices and save electricity costs.

The Ewelink version is compatible with Amazon Alexa & Google Assistant. The Tasmota version is compatible with Amazon Alexa. Many other voice assistants can be controlled via the Home Automation Connection / MQTT.

also available as a Pow Elite 20a version:

SONOFF POW Elite 20A WiFi Smart Switch Energieeinspeisung Display Tasmota PV

to match:

Splash -proof housing

The waterproof box R2 from Sonoff consists of PC V0 material, which is dustproof and prevents objects from entering. Which makes it ideal for protecting your sonoff switch in moist environments.

SONOFF Waterproof Box R2 IP64 TH-Elite TH-Origin POW-Elite POW-Origin NSPanel TX

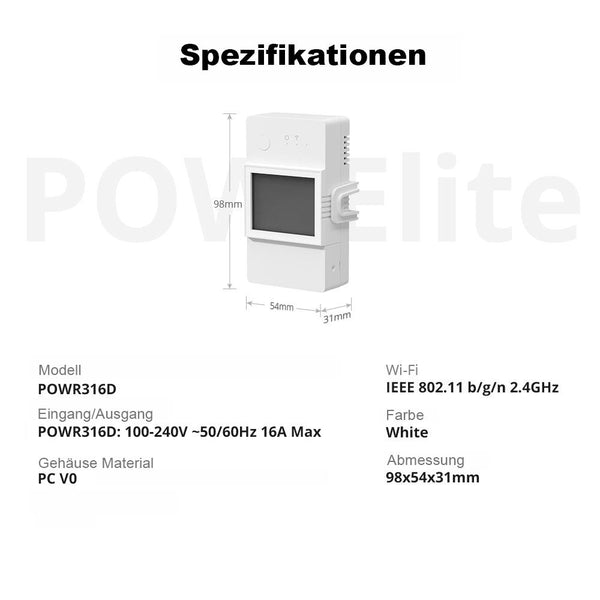

Technical data:

Model: Powr316d

MCU: ESP32

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Size: 98 x 54 x 31 mm

Weight: 120g

Work temperature: -10 ° C - 40 ° C

Job moisture: 5% - 95%

Input voltage: 100V ~ 240V AC (50/60Hz)

Max. Input current: 16A

Material: PC V0

Further information:

Additional:

Model variants:

Tasmota German
