SONOFF SWV-ZFE Zigbee Smart Irrigation System Water Valve ZHA Zigbee2MQTT

Product Description:

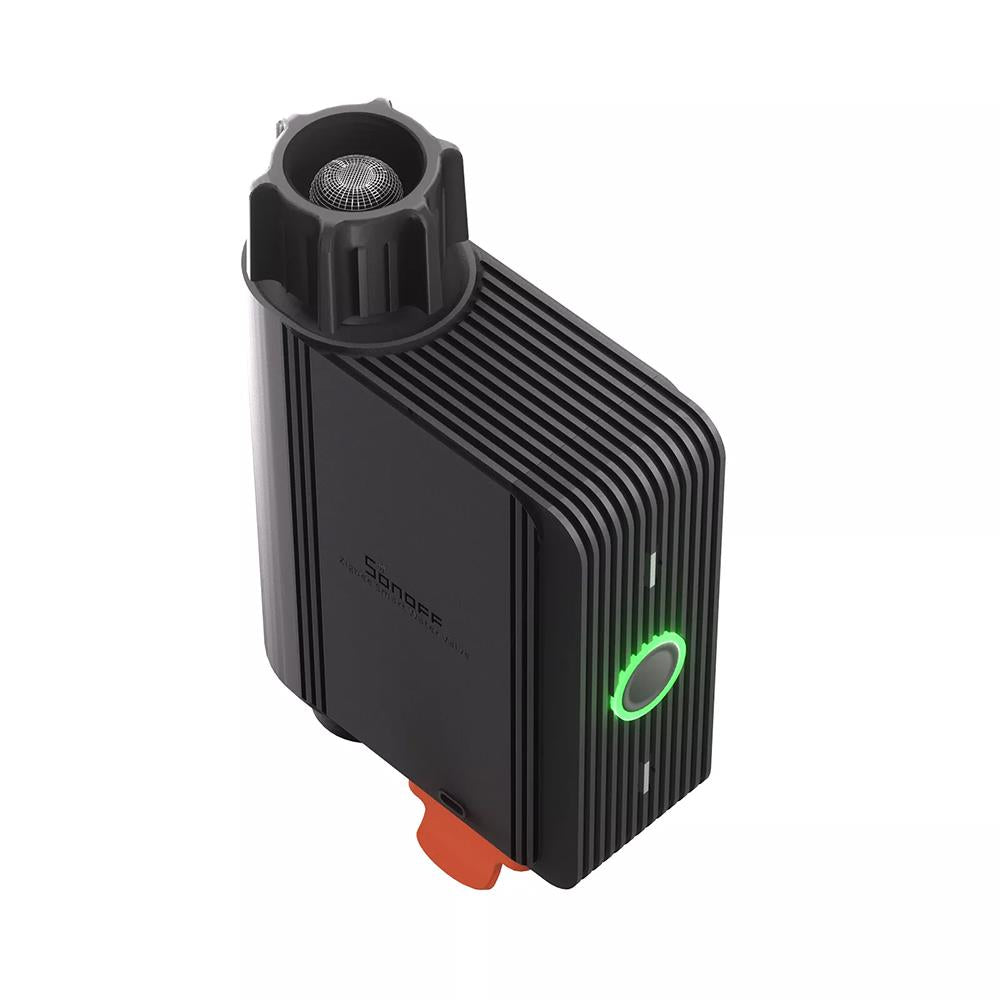

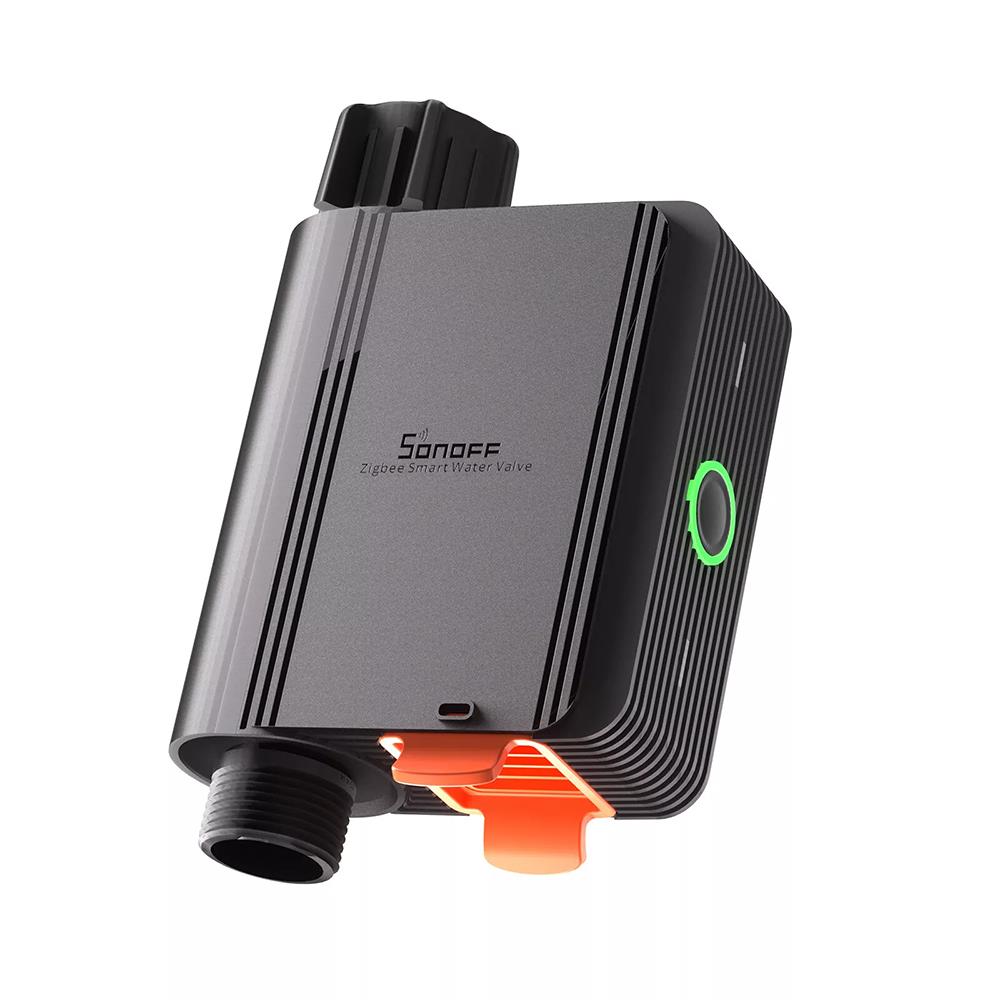

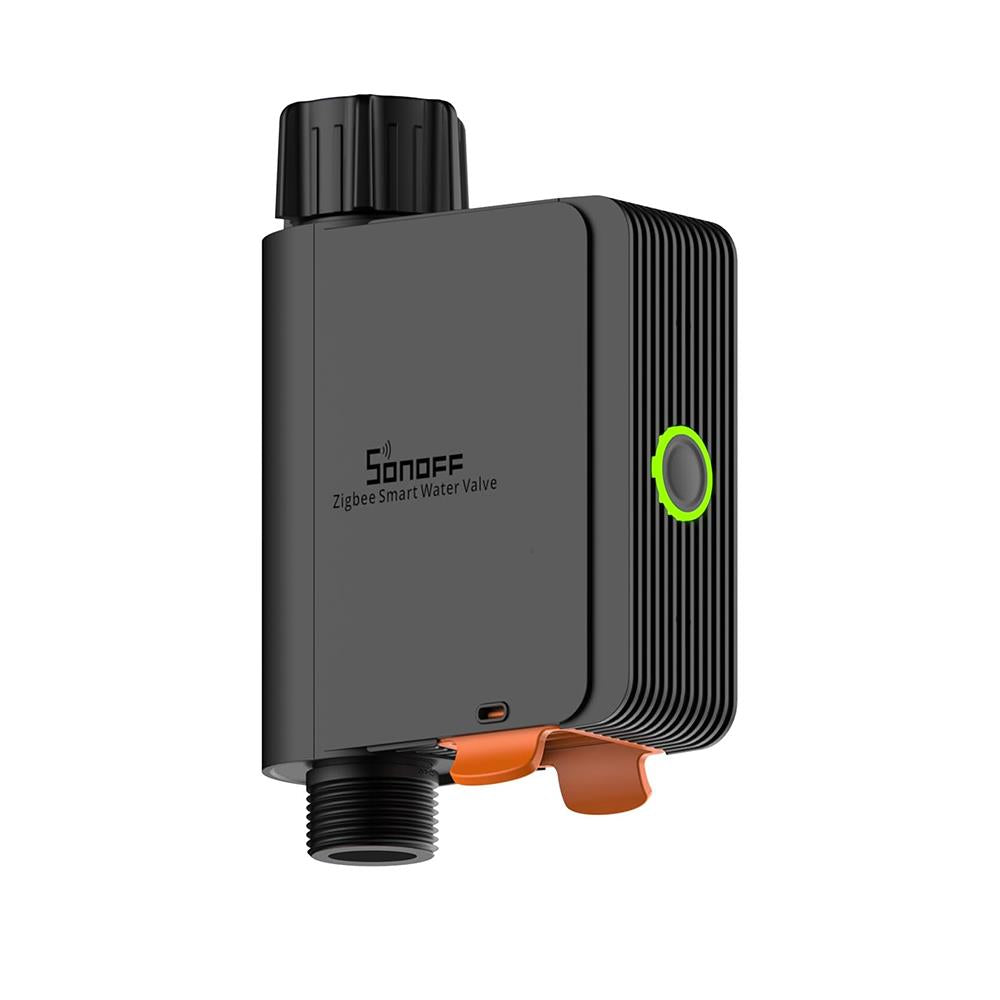

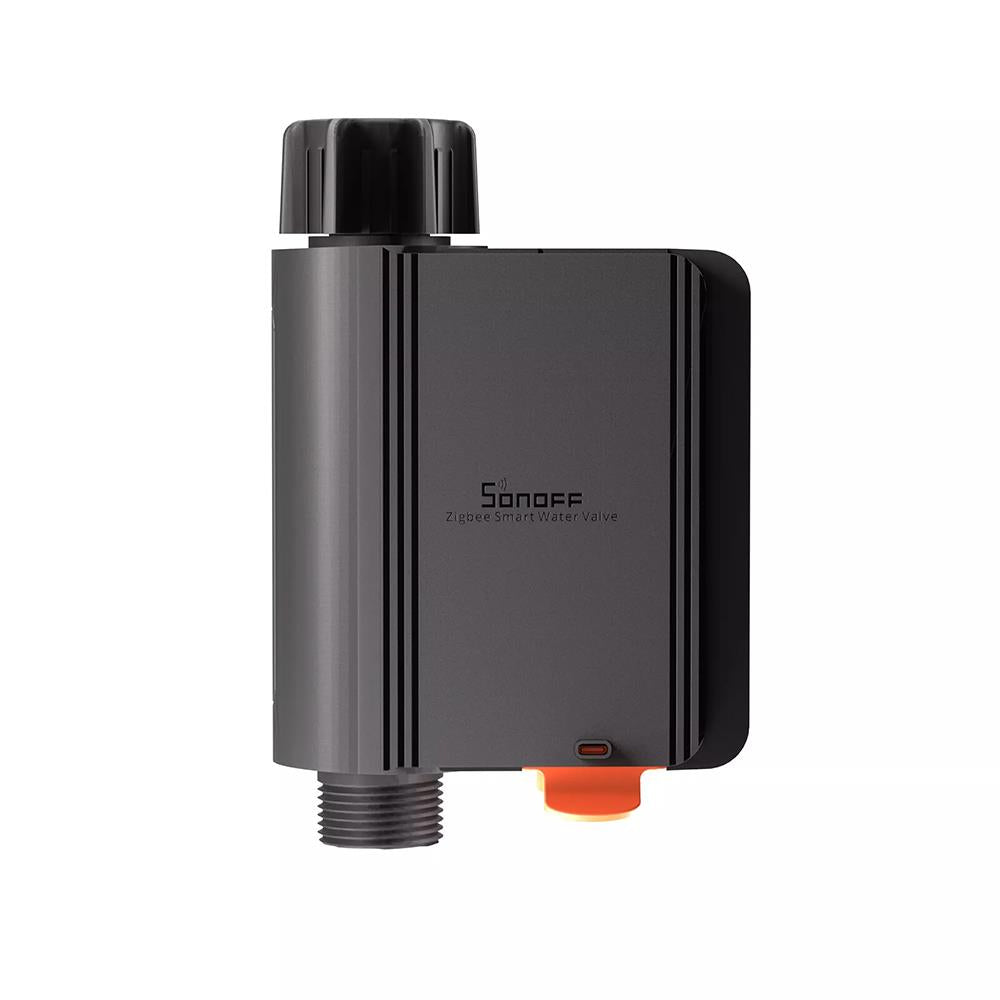

SONOFF Hydro ONE SWV-ZFE Zigbee Smart Water Valve with Flow Meter

With the SONOFF Hydro ONE SWV-ZFE, you can automate your garden irrigation easily, reliably and smartly. The intelligent Zigbee water valve is installed directly between the tap and garden hose and upgrades your existing irrigation system within minutes with app control, schedules, volume-based control and water consumption analysis.

The SWV-ZFE is ideal for lawns, gardens, raised beds, vegetable beds, greenhouses or other irrigation areas around the home. Via the eWeLink app, you can open and close the valve manually, create automatic irrigation schedules or control watering based on duration and water volume.

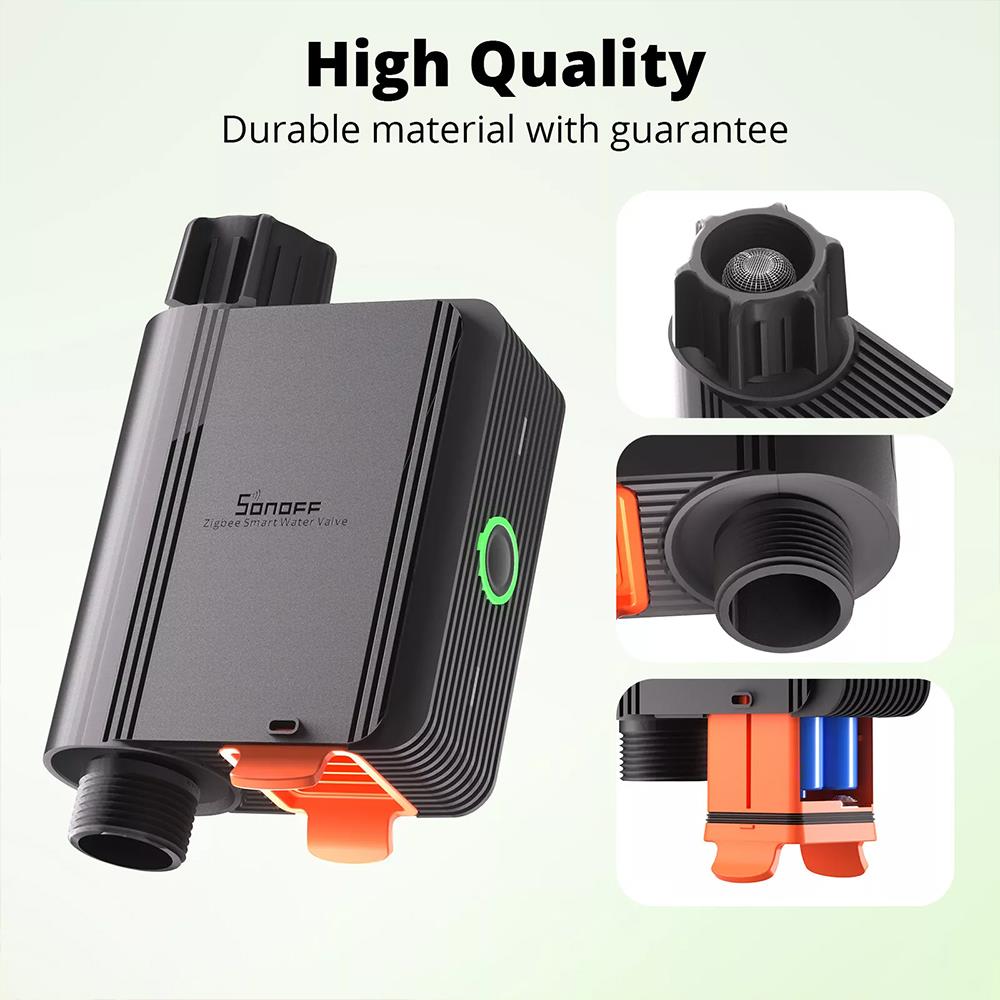

Compared with the classic SONOFF Zigbee Smart Water Valve, the Hydro ONE has been further improved. The water inlet is made from more robust brass, making it more resistant to water pressure, sunlight and long-term outdoor use. In addition, the device features an integrated flow meter, allowing water consumption and irrigation duration to be recorded and monitored.

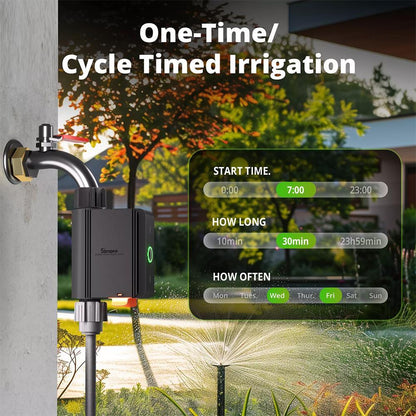

The SONOFF Hydro ONE supports flexible irrigation schedules with time-based or volume-based control. Up to 6 schedules can be created. Supported options include watering on even/odd days, interval schedules from 1 to 30 days and individually customized schedules. This allows irrigation to be adapted much more precisely to plants, season and weather conditions.

The weather-based irrigation logic is particularly practical. In unfavorable weather conditions, scheduled irrigation cycles can be skipped automatically to save water and prevent overwatering. In addition, seasonal adjustment allows irrigation duration and water volume to be corrected depending on the time of year.

The SWV-ZFE supports Zigbee 3.0 as well as Bluetooth Low Energy for nearby control mode. Via Zigbee, the device can be connected to compatible gateways, Zigbee coordinators and smart home systems. Nearby control mode enables basic control and settings directly near the device, even when no gateway is available or the Zigbee signal outdoors is not stable enough.

Several protection and warning functions provide additional safety. The valve can trigger an app notification in case of low battery, water shortage, leakage or frost warning. A child lock prevents unintended local operation via the buttons on the device. In the event of a water shortage, the valve can react automatically and stop irrigation.

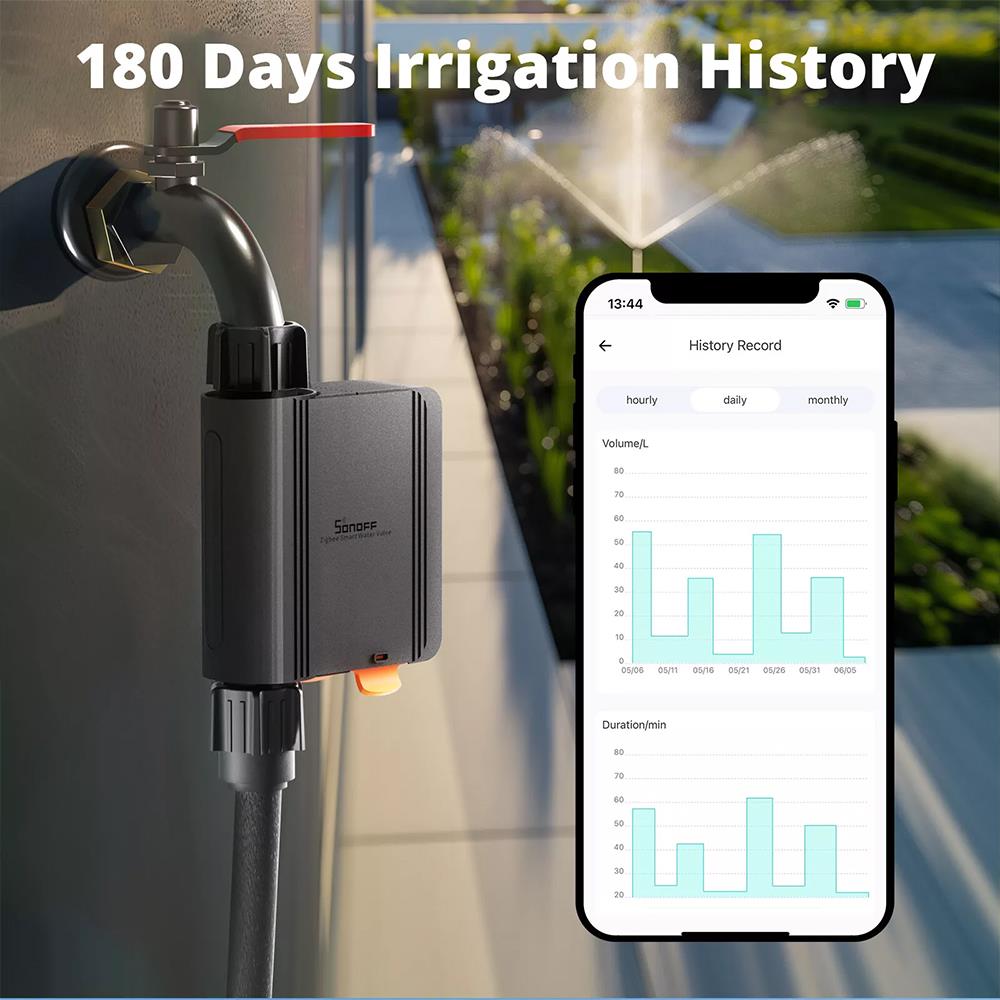

The app allows irrigation history, water volume and duration to be viewed and analyzed by day, month or half-year. This helps you keep better track of water consumption and optimize irrigation more precisely.

The SONOFF Hydro ONE SWV-ZFE is the EU version with BSP thread G 3/4-14 and 3/4" nominal size. This version is intended for Europe, the United Kingdom and many other regions using the BSP standard.

The SONOFF Hydro ONE SWV-ZFE can be used with compatible Zigbee gateways and Zigbee coordinators, such as SONOFF iHost, SONOFF NSPanel Pro, SONOFF ZB Bridge Ultra, SONOFF ZBDongle-E, SONOFF ZBDongle-P and other Zigbee 3.0 systems. Integration into open-source platforms such as Home Assistant is also generally possible. Depending on the integration used, additional settings or adjustments may be required.

Discover a smarter way to irrigate your garden – with precise control, consumption measurement and automatic schedules directly through your smart home.

Note: A compatible Zigbee hub, Zigbee bridge or Zigbee coordinator is required for use via Zigbee.

Actual feature support may vary depending on the Zigbee system, firmware and smart home integration used.

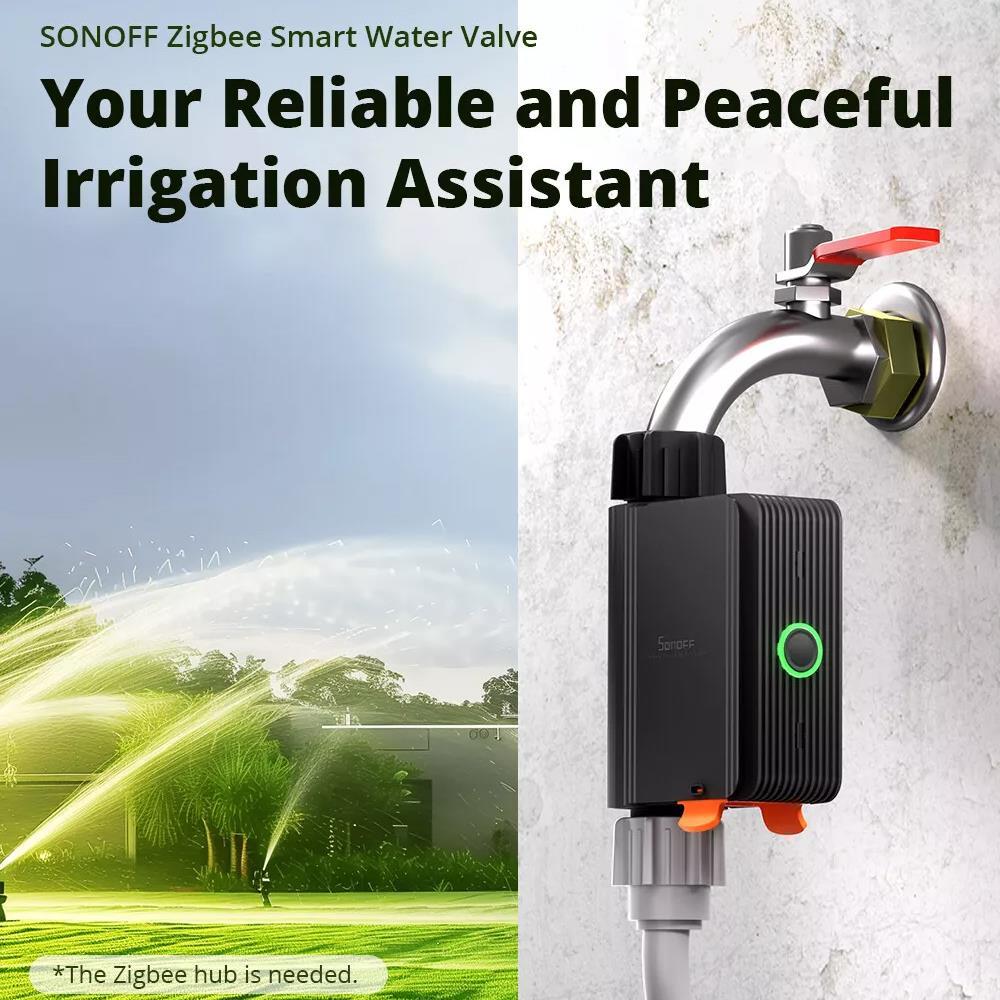

EASY INSTALLATION - The SONOFF Hydro ONE SWV-ZFE is connected directly between the tap and garden hose. This allows an existing irrigation system to be upgraded smartly, quickly and easily.

EU VERSION WITH BSP THREAD - The SWV-ZFE model uses British Standard Pipe thread G 3/4-14 with 3/4" nominal size and is therefore intended for the European BSP standard.

WITH FLOW METER - The integrated flow meter records water volume and irrigation duration. This allows you to better control your irrigation and monitor water consumption.

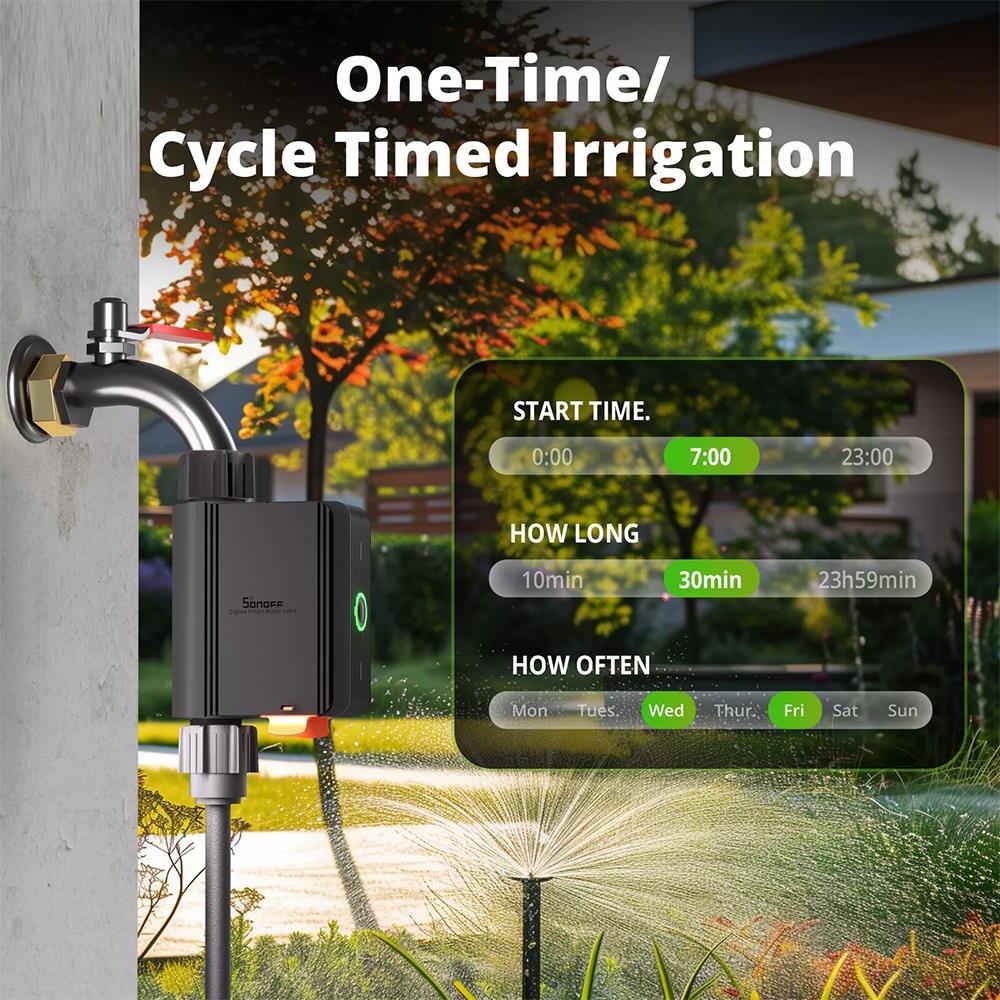

FLEXIBLE IRRIGATION SCHEDULES - Supports time-based and volume-based irrigation, interval schedules, even/odd days and individual schedules. Up to 6 irrigation schedules can be created.

ZIGBEE 3.0 + NEARBY CONTROL MODE - The device supports Zigbee 3.0 as well as Bluetooth Low Energy for local nearby control mode. This allows basic operation near the device even when no gateway is available.

WEATHER AND SEASONAL ADJUSTMENT - Irrigation cycles can be skipped depending on weather conditions. In addition, irrigation can be seasonally adjusted to prevent overwatering and save water.

SAFETY FUNCTIONS - Supports warnings for low battery, water shortage, leakage and frost. The child lock prevents unintended operation directly on the device.

OPEN-SOURCE COMPATIBLE - Thanks to Zigbee 3.0, integration into many smart home systems and open-source platforms is possible, for example via SONOFF ZBDongle-E/-P, compatible Zigbee coordinators or Home Assistant.

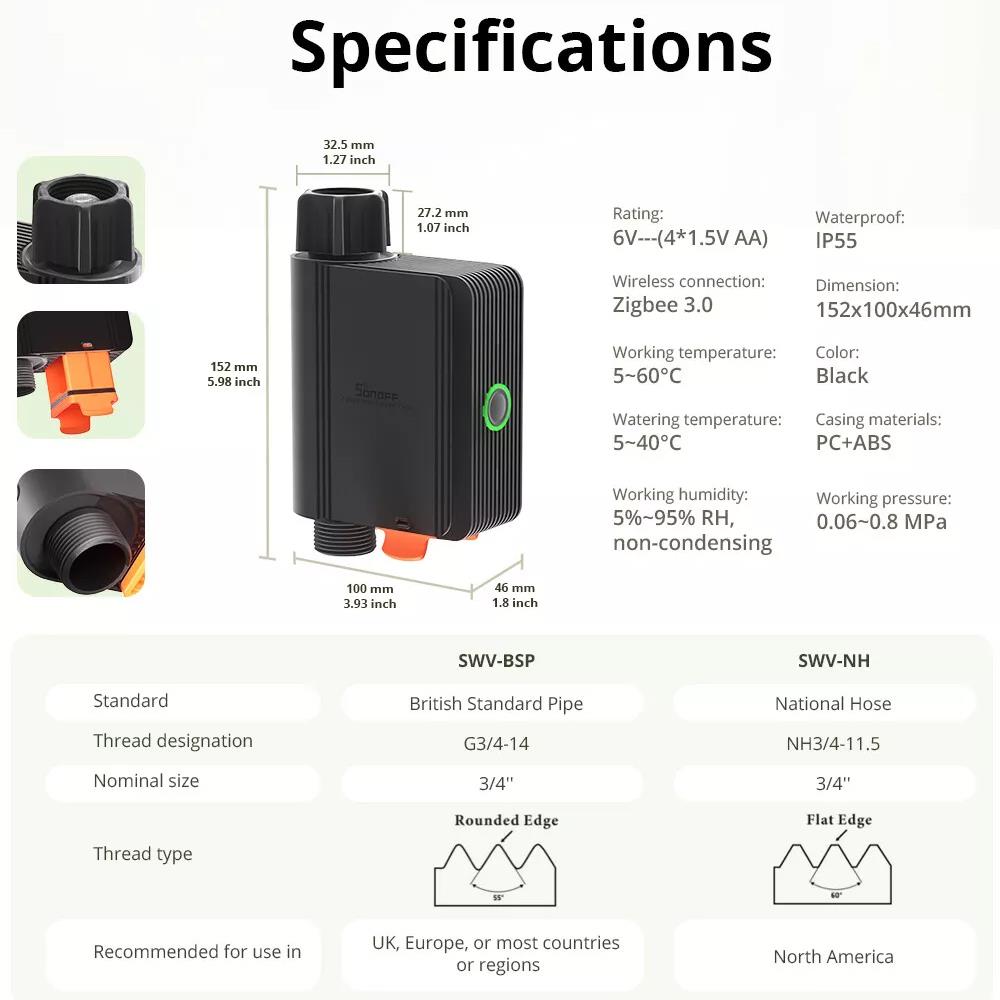

Technical Data:

Product name: SONOFF Hydro ONE

Product series: Hydro Series

Model: SWV-ZFE

Wireless connection: Zigbee 3.0 / BLE (Bluetooth Low Energy)

Thread standard: BSP (G 3/4-14) / 3/4"

MCU: TLSR8656

Voltage: 6V DC (4 x 1.5V AA batteries, not included)

Operating pressure: 0.06–0.8 MPa

Detectable flow range: 2–45 l/min

Water shortage detection: possible at very low flow, depending on water pressure and flow rate

Operating temperature: 5–60°C

Water temperature: 5–40°C

Operating humidity: 5%–95% RH, non-condensing

Protection rating: IP55

Size: 152 x 100 x 46 mm

Housing material: PC+ABS

Color: Black

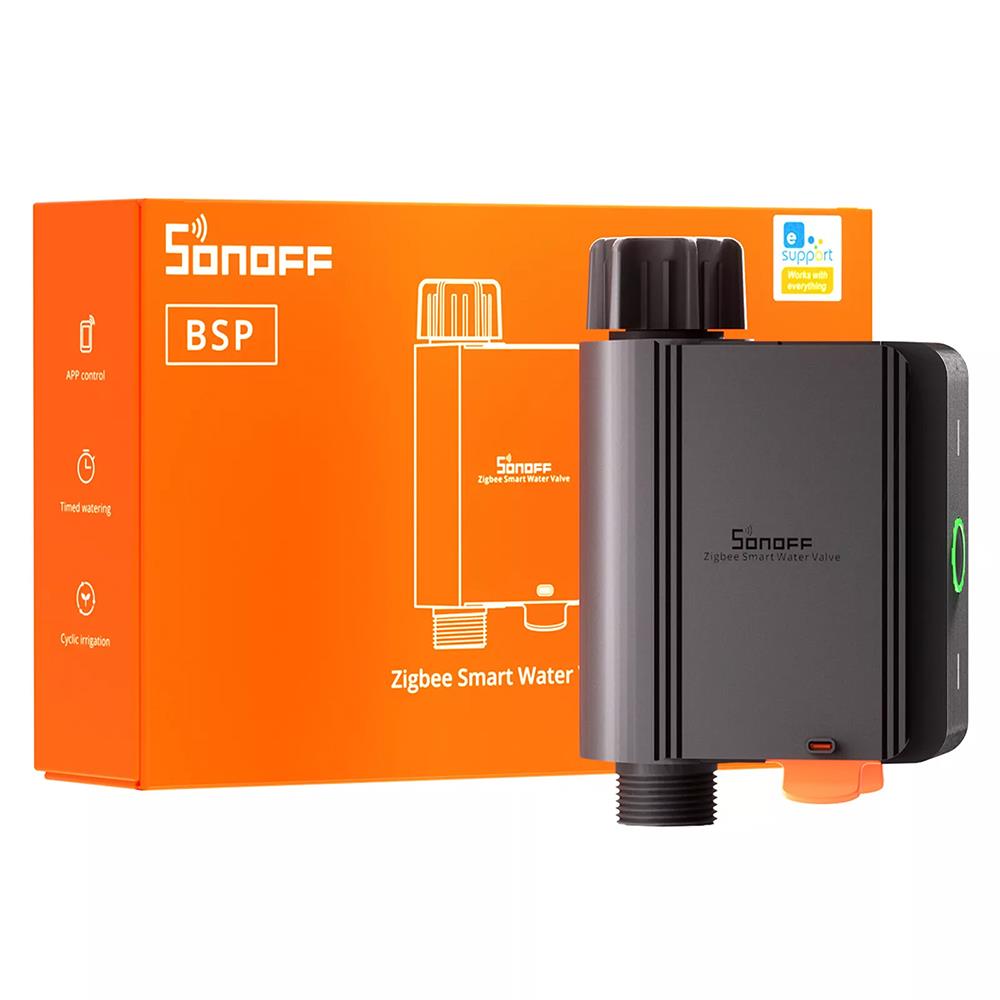

Package contents: SONOFF Hydro ONE SWV-ZFE Smart Water Valve, user manual

Notes:

A compatible water connection with BSP thread G 3/4-14 or 3/4" is required for installation. Please check before purchase whether your tap or hose connection supports this standard.

The device should be installed according to the specified flow direction. Reverse installation is not intended.

For the most accurate flow measurement possible, vertical installation is recommended. Horizontal installation may affect the accuracy of the flow measurement.

The device is intended for garden irrigation with tap water. Use in drinking water installations is not recommended.
