Article description:
WiFi Smart Switch + Opt. Up to 4x DS18B20
Already flashed with the latest Tasmota firmware.
16a maximum load - supports a maximum of 16a load. The TH Origin is therefore compatible with more household appliances.
up to 8x DS18B20 sensors - Tasmota supports up to 8x DS18B20 sensors in the unmodified standard firmware.
Fully functional - The TH Origin with Tasmota has the most basic functions, such as control via MQTT, HTTP, Web Gui, Alexa voice control, schedule, tip setting, switching on, etc.
Sonoff TH Origin is an intelligent temperature and air humidity monitoring switch, with a newly upgraded ESP32 chip that is 200% faster than the previous ESP8622 chip. As soon as the values reach the preset threshold, it can be changed on/off the status of the device.
Supports the connection of devices with a maximum load of 16A, such as a washing machine.
Th Origin turns your conventional thermostat into an intelligent device, automates your irrigation system and offers an easy way to monitor temperature and humidity.
The Tasmota version is compatible with Amazon Alexa. Many other voice assistants can be controlled via the Home Automation Connection / MQTT.
Important NOTE:
Tasmota even supports up to 8x DS18B20 sensors in the unmodified standard firmware. If more 4 pieces are required than these 4 pieces, please contact us.
to match:
Splash -proof housing
The waterproof box R2 from Sonoff consists of PC V0 material, which is dustproof and prevents objects from entering. Which makes it ideal for protecting your sonoff switch in moist environments.
SONOFF Waterproof Box R2 IP64 TH-Elite TH-Origin POW-Elite POW-Origin NSPanel TX
Technical data TH Origin:
Model: Thr316
MCU: ESP32
Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz
Security protocol: WEP/WPA-PSK/WPA2-PSK
Size: 98 x 54 x 27.5 mm
Weight: 100g
Work temperature: -10 ° C - 40 ° C
Job moisture: 5% - 95%
Input voltage: 100V ~ 240V AC (50/60Hz)
Max. Input current: 16A
Material: PC V0
Technical data DS18B20 Sensor:
Model: DS18B20
Type: waterproof temperature sensor
Feeler: stainless steel temperature sensor
Size of the stainless steel jacket: 6 x 30mm
Temperature measuring range: -55 ° C -125 ° C
Accuracy over the range of -10 ° C - 85 ° C: ± 0.5 ° C
Adjustable resolution: 9 - 12 bit
Voltage supply: 3.0 - 5.5V
Cable allocation: yellow (signal/data) - red (voltage supply/VCC) - black (mass/gnd)
Cable length: Yes of your choice 1m - 5m
Further information:
Additional:
Brand newimmediately availableWith Tasmota firmware
Firmware variants:
Tasmota German
Tasmota EnglishTasmota Individual Language (Send US A Message)
Set variants:

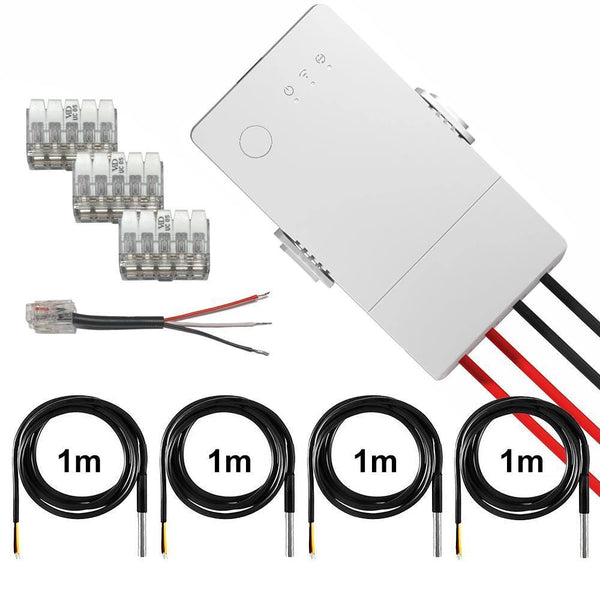

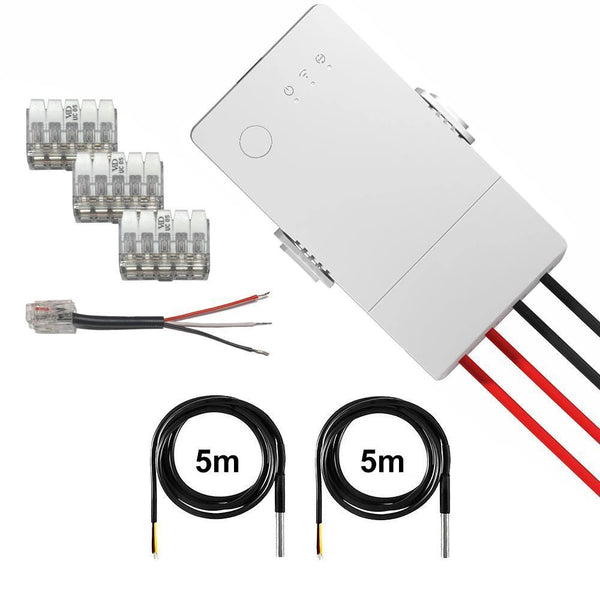

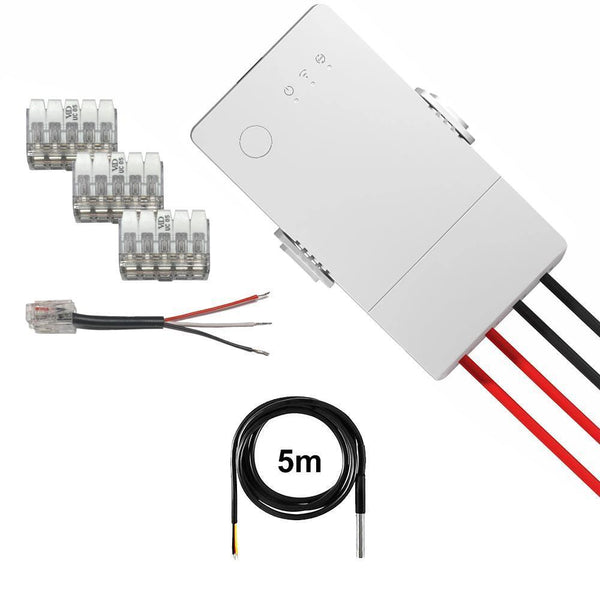

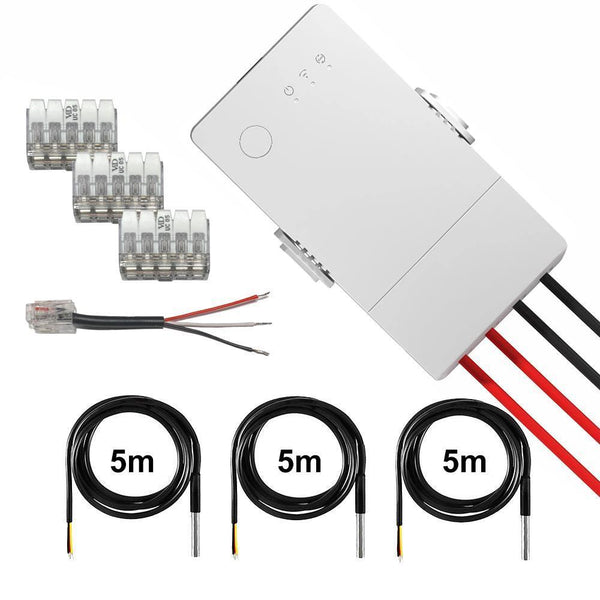

Thr316 without sensorThr316 + 1-4x DS18B20 1MThr316 + 1-4x DS18B20 2MThr316 + 1-4x DS18B20 3MThr316 + 1-4x DS18B20 5M
