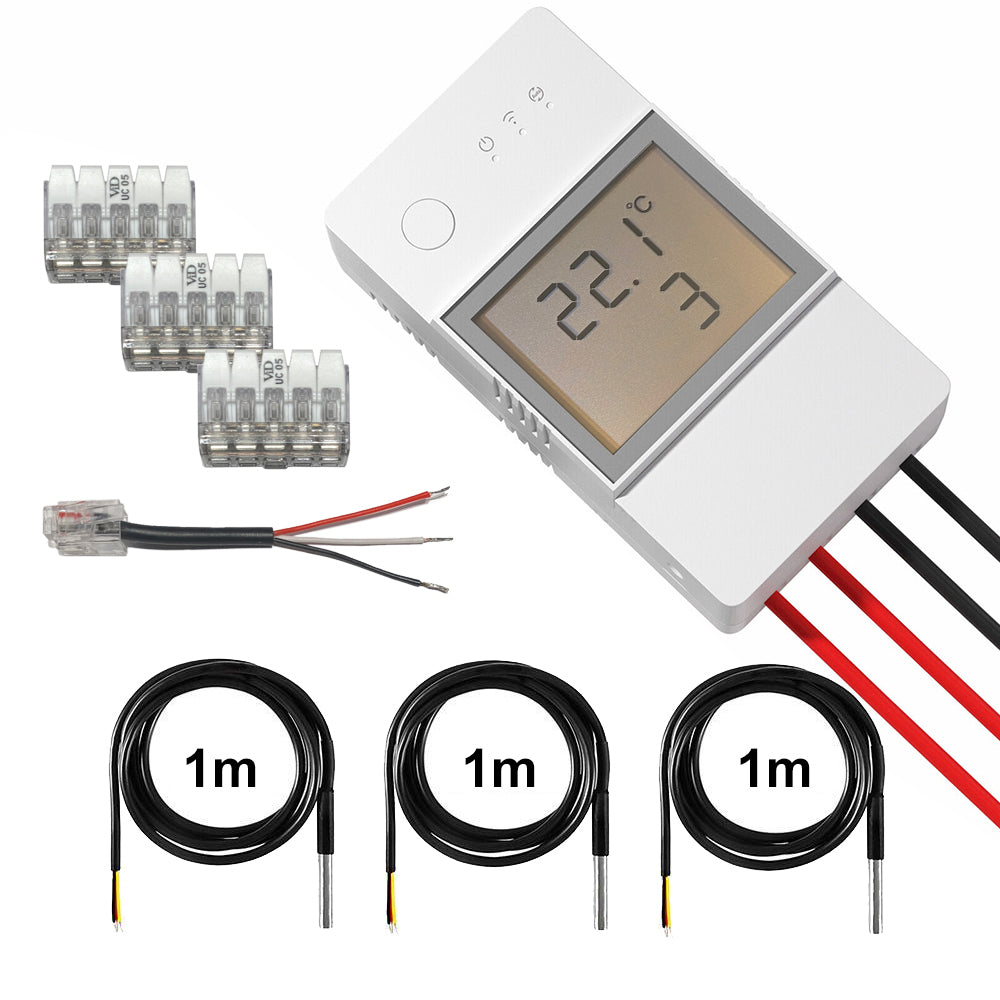

SONOFF THR316D TH Elite 16A WiFi Smart Switch Tasmota 15 opt. 4x DS18B20 1-5m

Article description:

WiFi Smart Switch with display opt. up to 4x DS18B20

Already flashed with the latest Tasmota firmware.

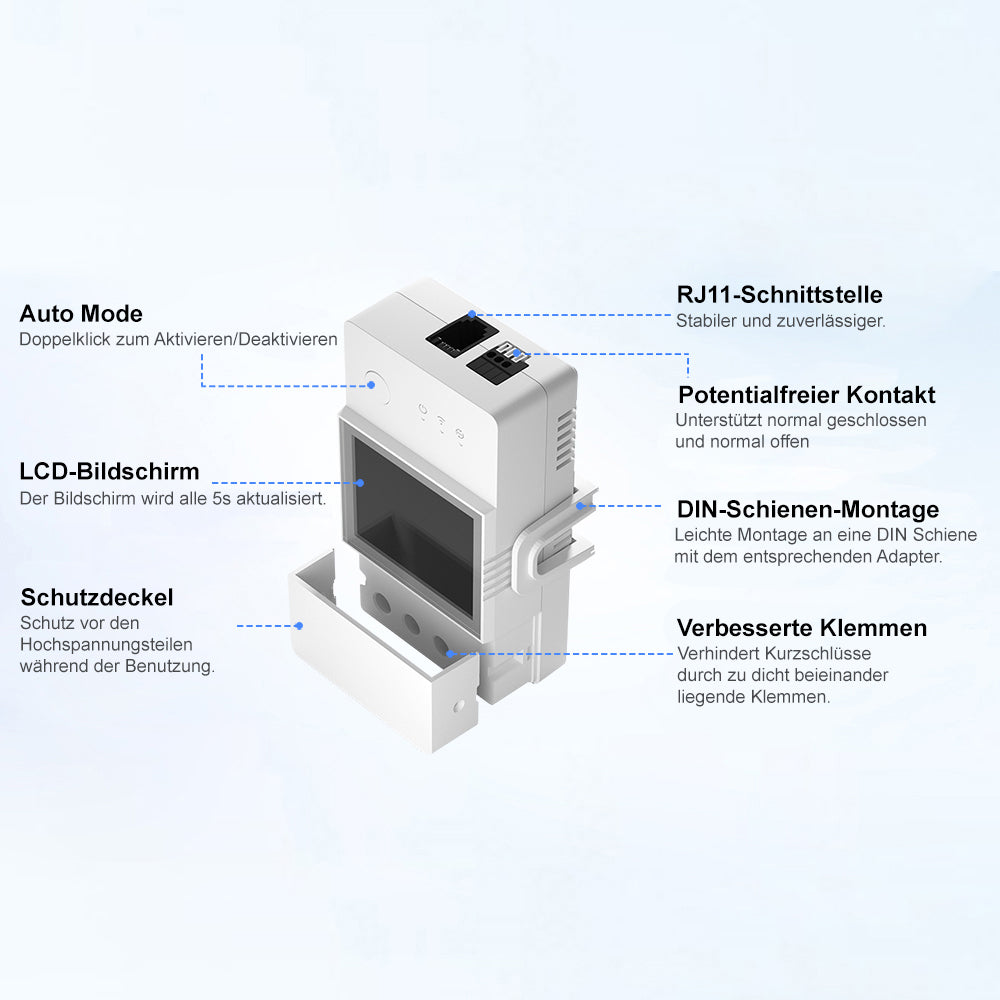

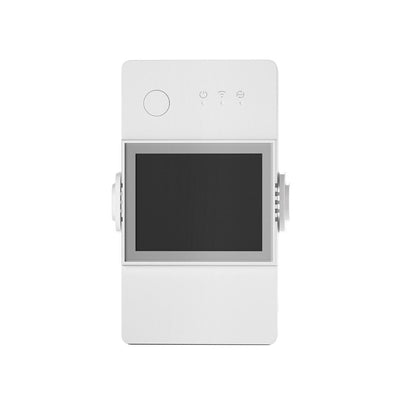

LCD screen - real-time monitoring of temperature and moisture data. The screen updates every 5 seconds. With more than 2 sensors, the data is displayed continuously one after the other.

16a maximum load & dry contact output - supports a maximum of 16a load. The TH ELITE is therefore compatible with more household appliances. Additional drying contact / potential -free.

up to 8x DS18B20 sensors - Tasmota supports up to 8x DS18B20 sensors in the unmodified standard firmware.

Fully functional - The TH ELITE with Tasmota has the most basic functions, such as control via MQTT, HTTP, Web Gui, Alexa voice control, schedule, tip setting, switching on, etc.

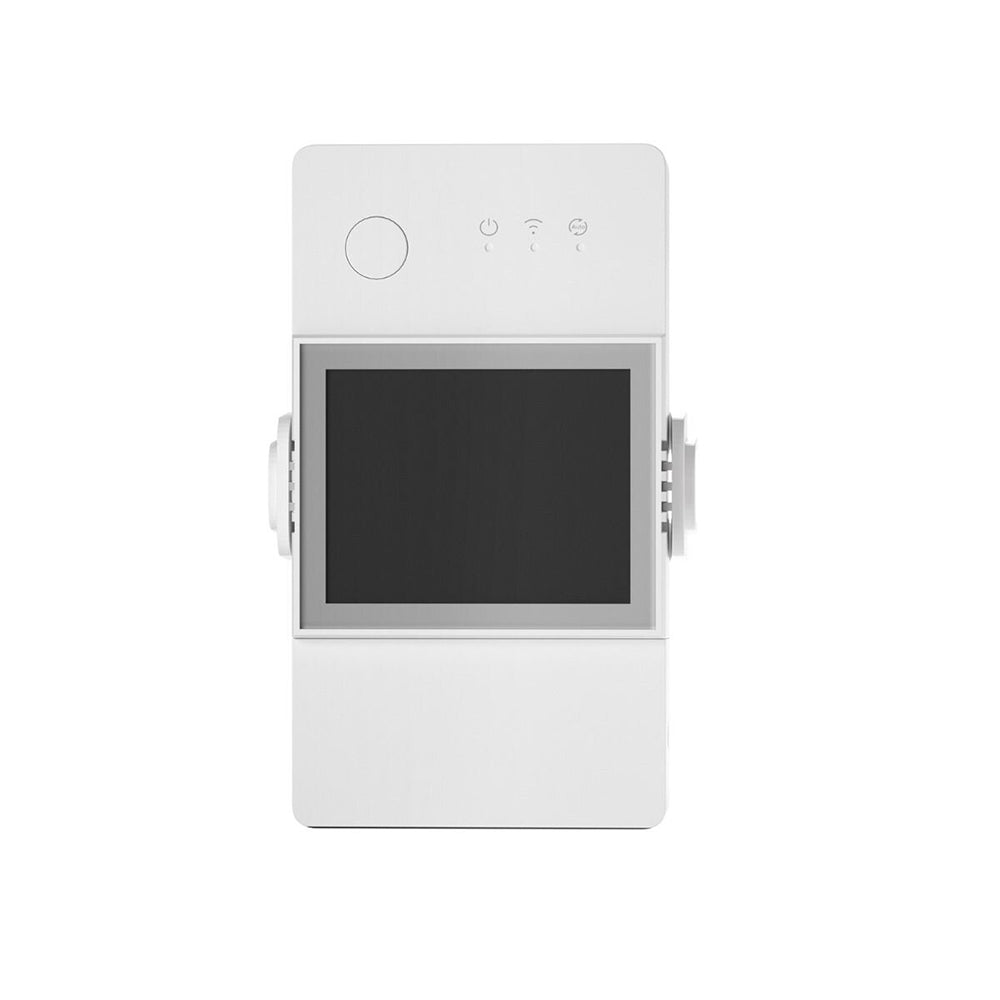

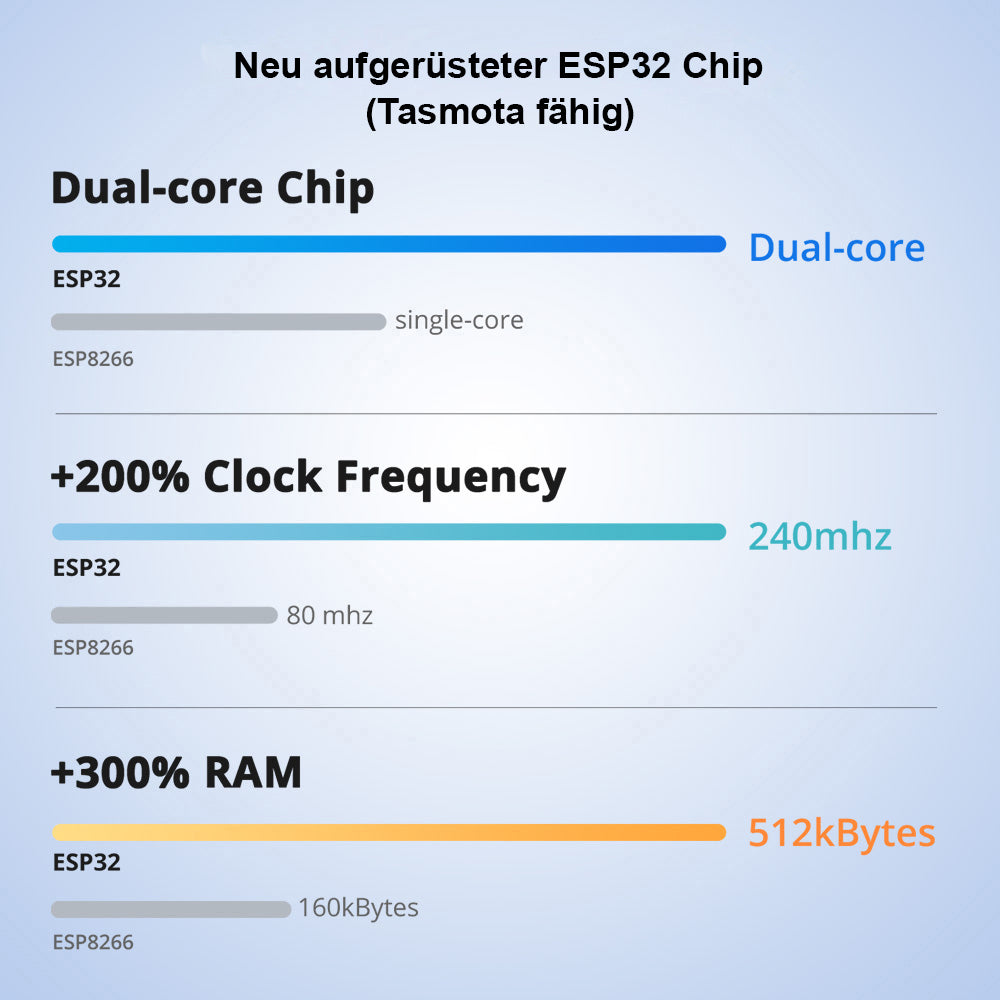

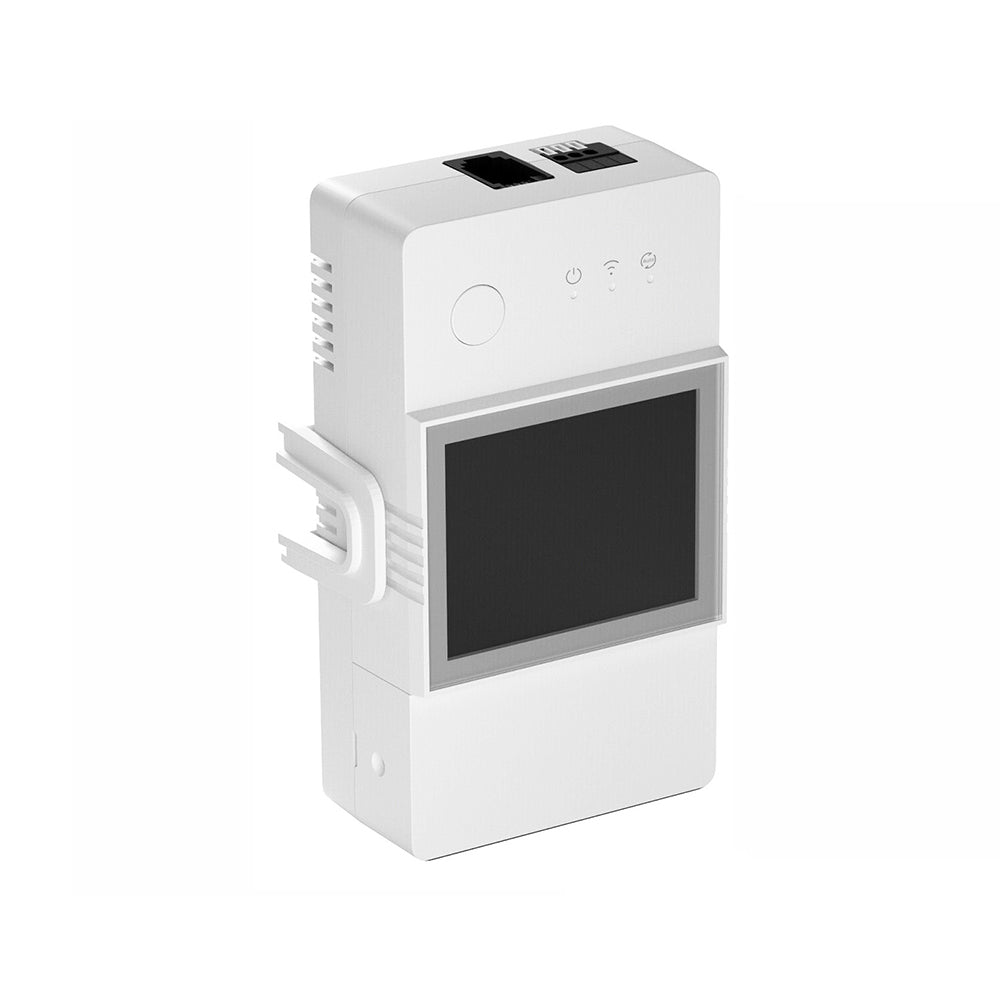

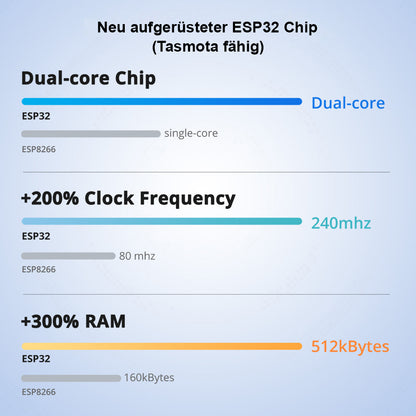

Sonoff TH Elite is an intelligent temperature and air humidity monitoring switch, with a newly upgraded ESP32 chip that is 200% faster than the previous ESP8622 chip. With an LCD screen, the TH Elite monitors the temperature and humidity in real time. As soon as the values reach the preset threshold, it can be changed on/off the status of the device.

Supports the connection of devices with a maximum load of 16A, such as a washing machine.

You can replace your conventional thermostat with potential -free contact with TH ELITE to control the combination sheet or other systems that are controlled by a normal switch.

TH Elite turns your conventional thermostat into an intelligent device, automates your irrigation system and offers an easy way to monitor temperature and humidity.

The Tasmota version is compatible with Amazon Alexa. Many other voice assistants can be controlled via the Home Automation Connection / MQTT.

Important NOTE:

Tasmota even supports up to 8x DS18B20 sensors in the unmodified standard firmware. If more 4 pieces are required than these 4 pieces, please contact us.

to match:

Splash -proof housing

The waterproof box R2 from Sonoff consists of PC V0 material, which is dustproof and prevents objects from entering. Which makes it ideal for protecting your sonoff switch in moist environments.

SONOFF Waterproof Box R2 IP64 TH-Elite TH-Origin POW-Elite POW-Origin NSPanel TX

Technical data TH Elite:

Model: THR316D

MCU: ESP32

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Size: 98 x 54 x 31 mm

Weight: 120g

Work temperature: -10 ° C - 40 ° C

Job moisture: 5% - 95%

Input voltage: 100V ~ 240V AC (50/60Hz)

Max. Input current: 16A

Potential-free output: 5-30V, 1A max.

Material: PC V0

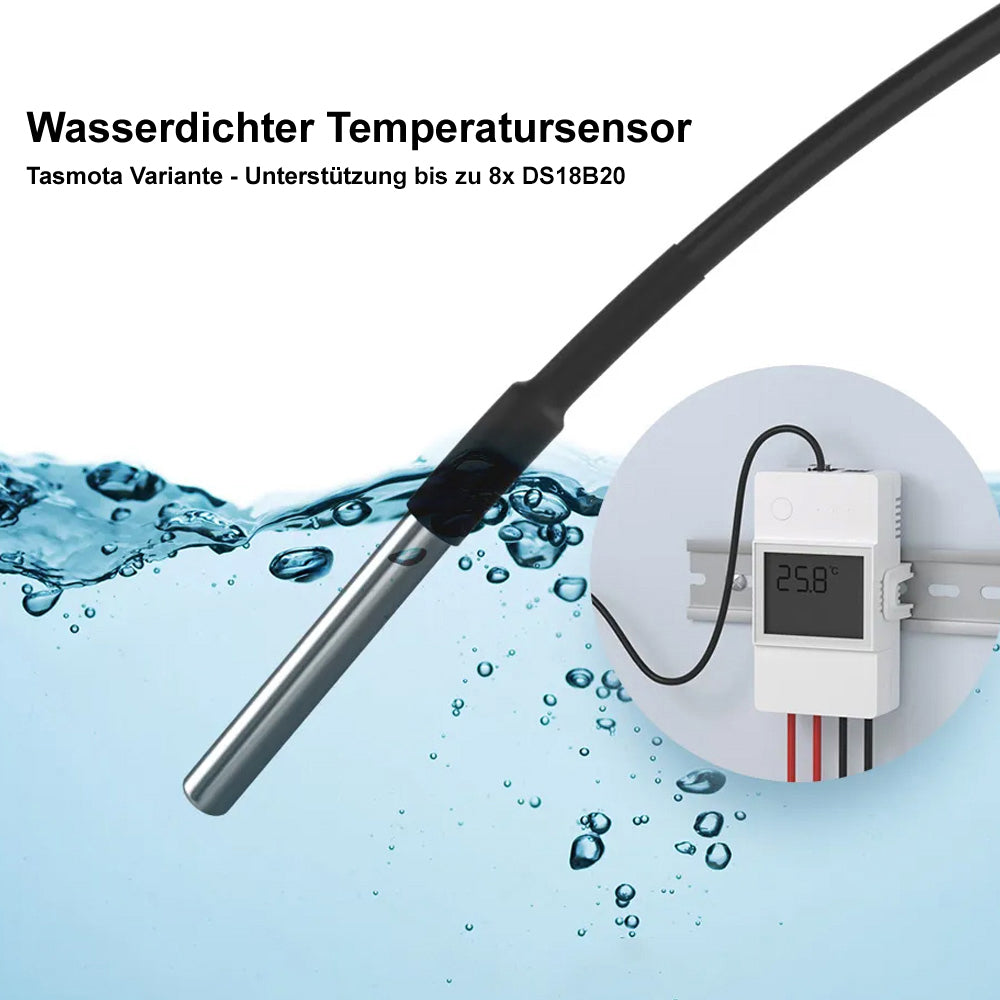

Technical data DS18B20 Sensor:

Model: DS18B20

Type: waterproof temperature sensor

Feeler: stainless steel temperature sensor

Size of the stainless steel jacket: 6 x 30mm

Temperature measuring range: -55 ° C -125 ° C

Accuracy over the range of -10 ° C - 85 ° C: ± 0.5 ° C

Adjustable resolution: 9 - 12 bit

Voltage supply: 3.0 - 5.5V

Cable allocation: yellow (signal/data) - red (voltage supply/VCC) - black (mass/gnd)

Cable length: Yes of your choice 1m - 5m

Further information:

Additional:

Brand new immediately available With Tasmota firmware

Firmware variants:

Tasmota German Tasmota English Tasmota Individual Language (Send US A Message)

Set variants:

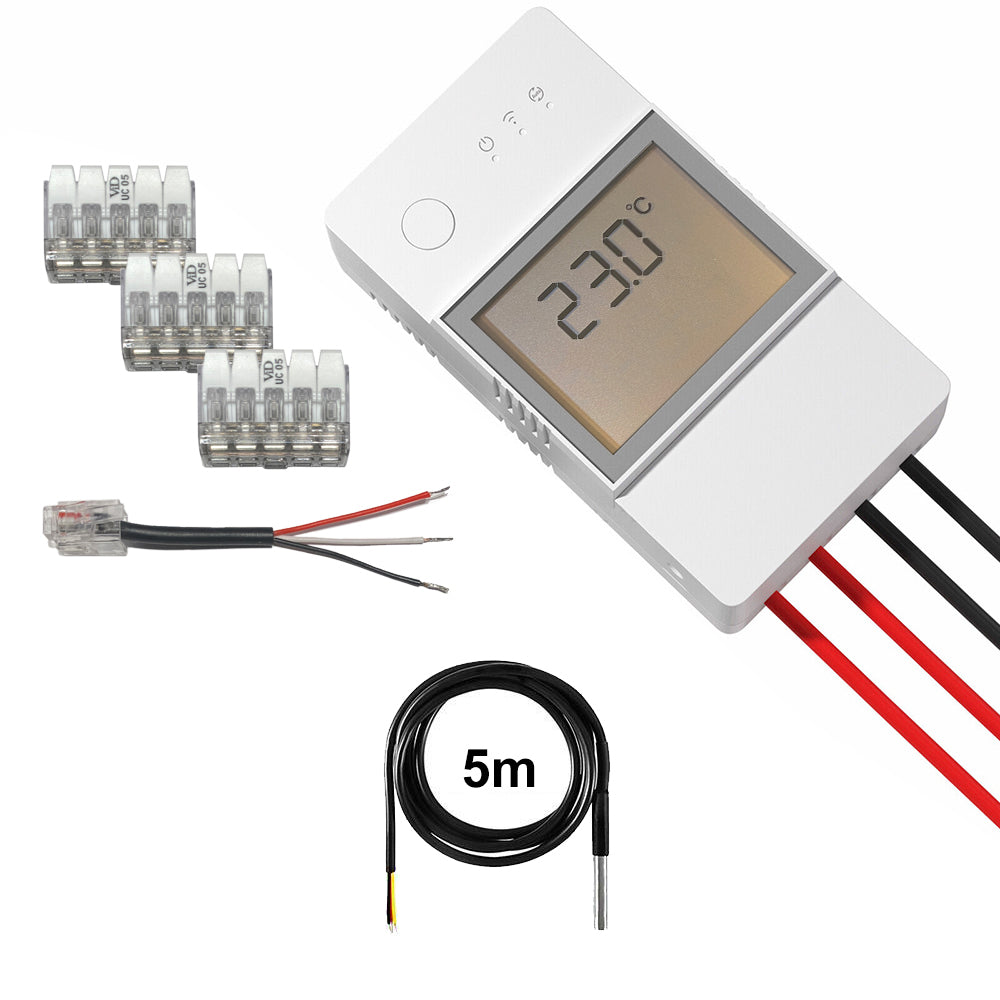

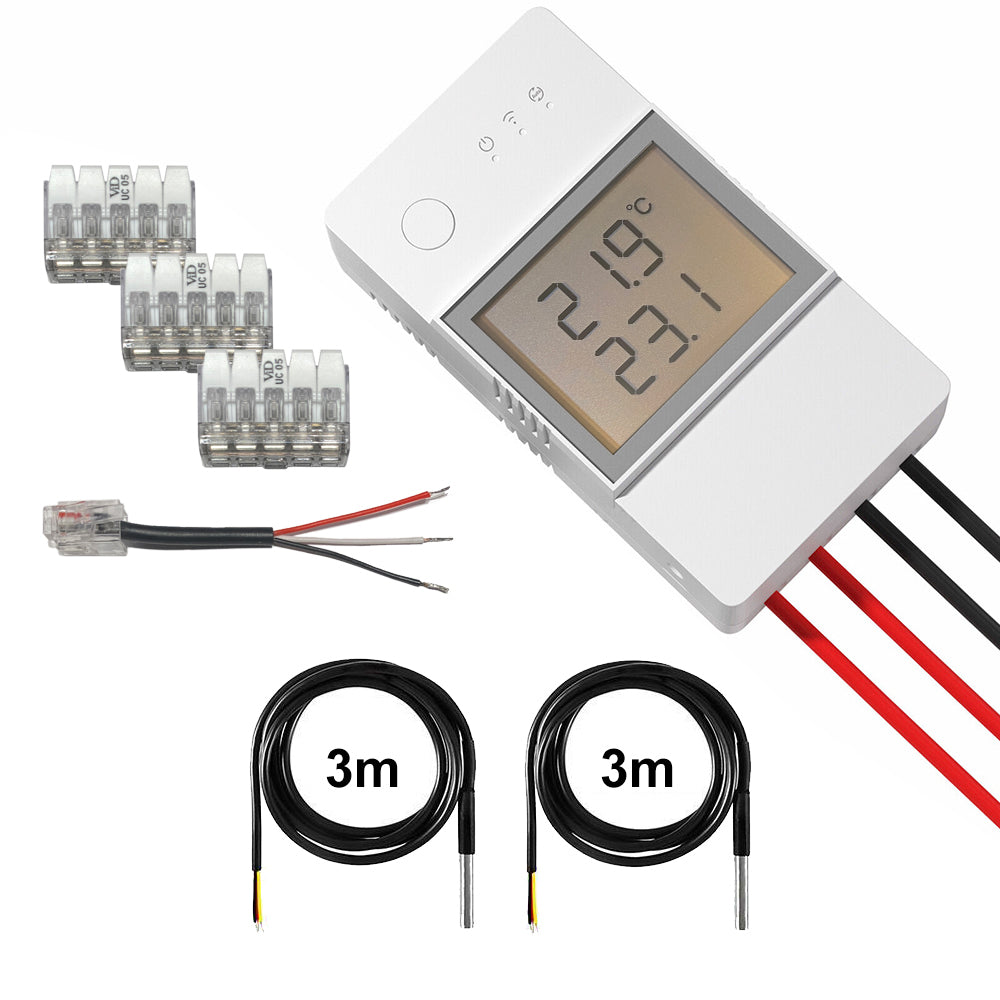

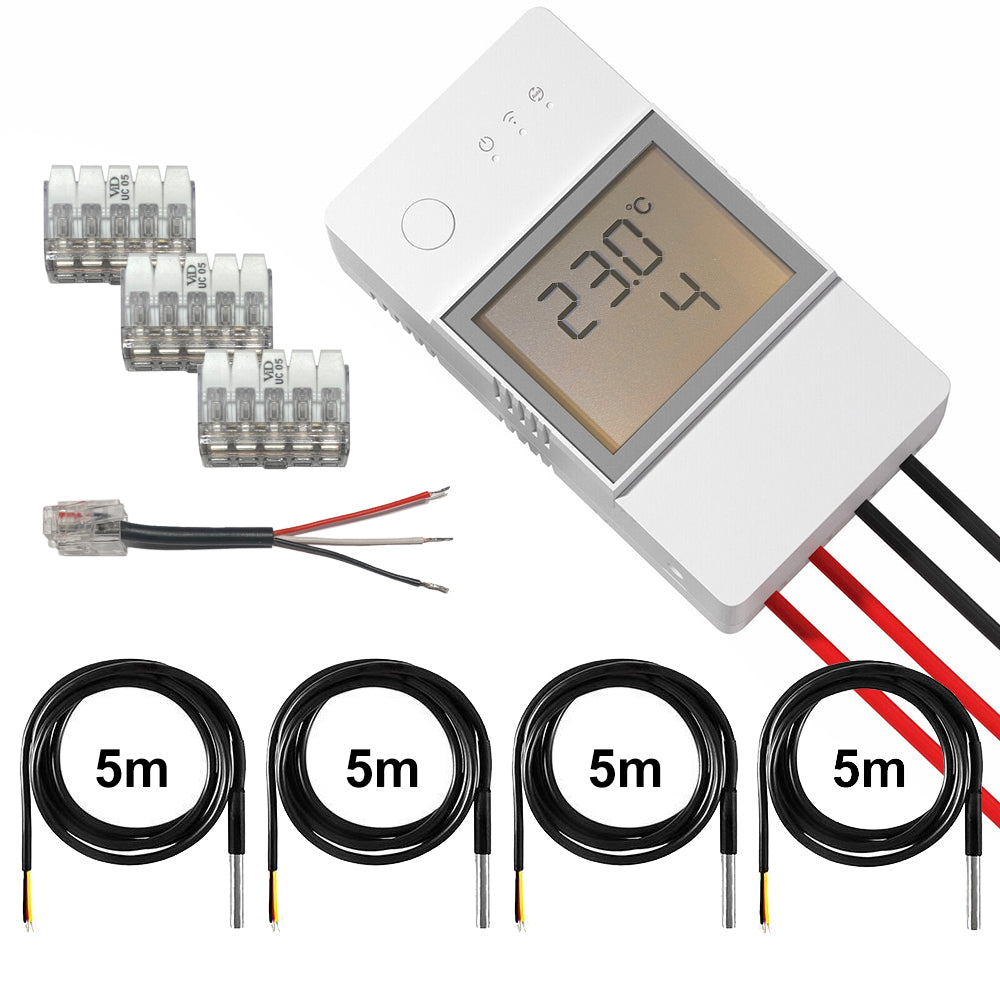

Thr316d without sensor Thr316d + 1-4x DS18B20 1M Thr316d + 1-4x DS18B20 2M Thr316d + 1-4x DS18B20 3M Thr316d + 1-4x DS18B20 5M
