SONOFF TX-T1 - TX-T3 EU1/2/3 - WiFi - 433MHz - TASMOTA - Alexa - ioBroker

Article description:

WiFi + 433MHz smart touch wall switch

Already flashed with the latest Tasmota firmware.

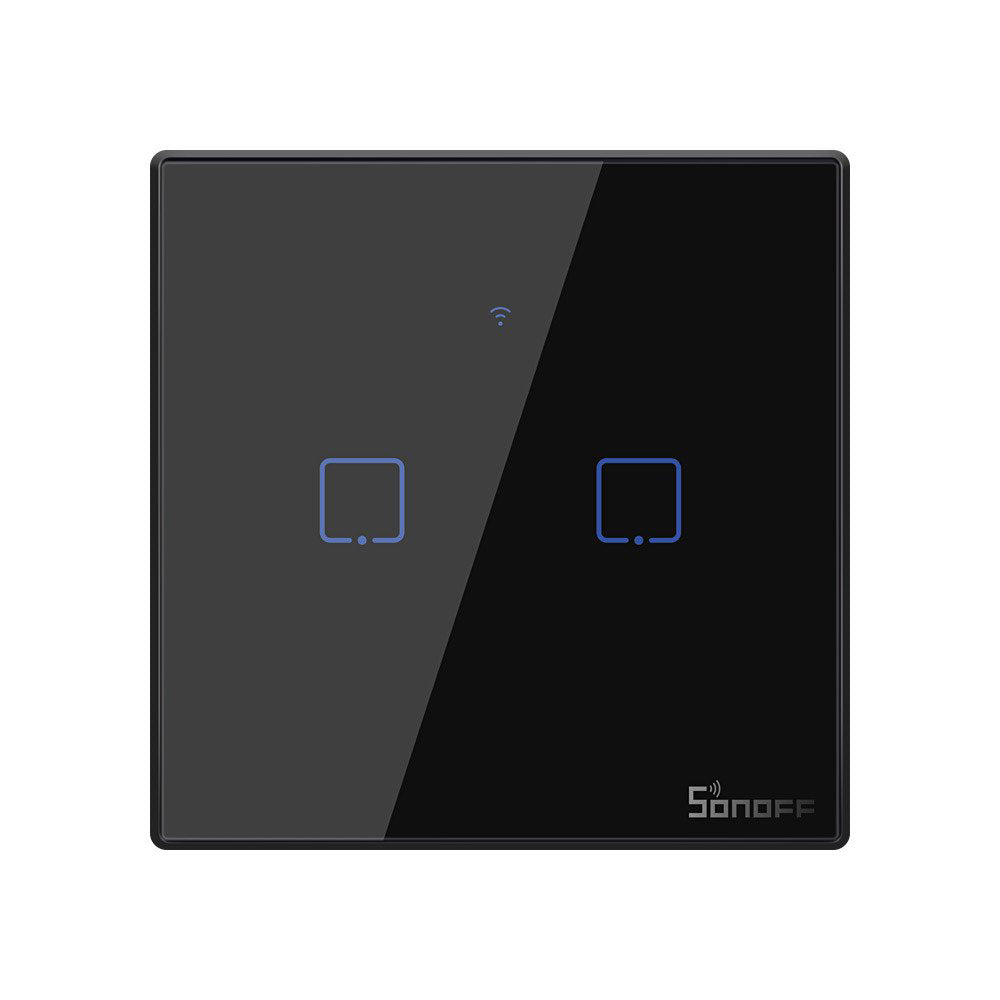

Sonoff TX is a touch -sensitive and intelligent wall switch.

This smart wall switch has a WiFi & 433MHz radio module. These switches can also be controlled with the optionally available RM433 radio remote control.

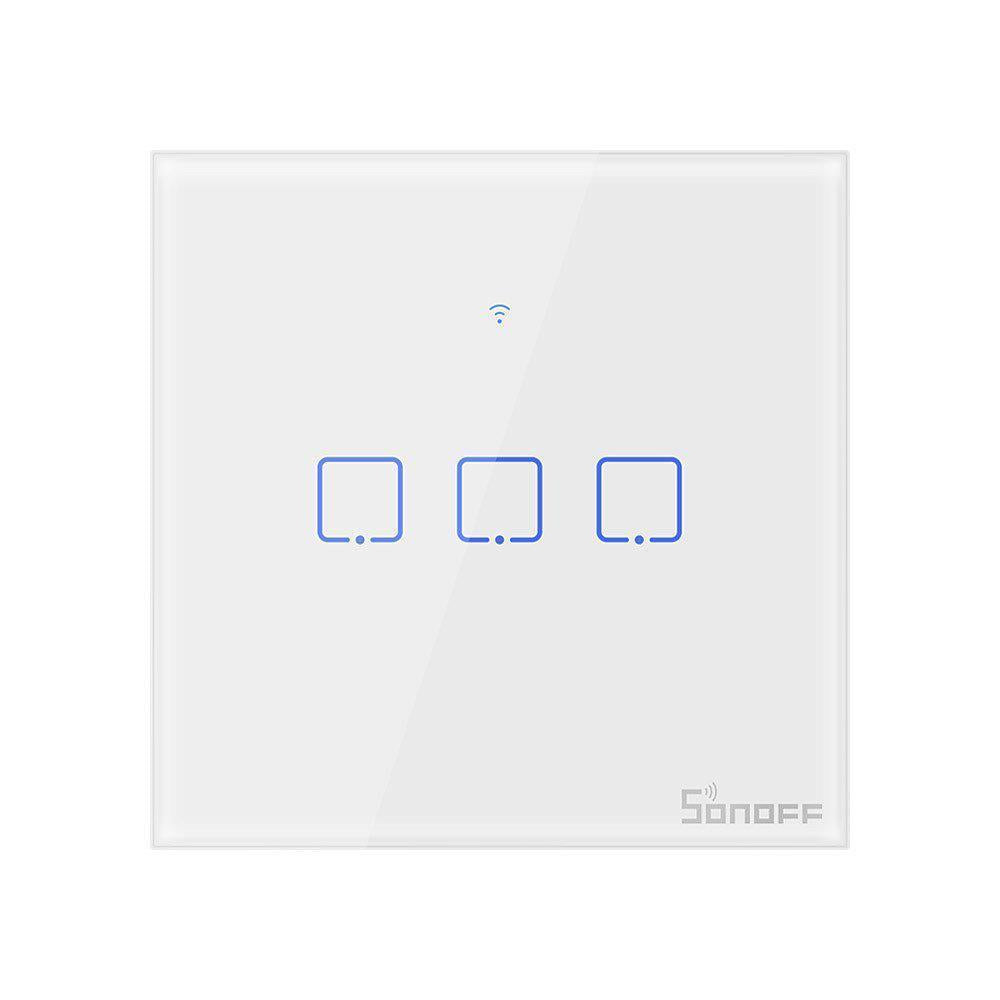

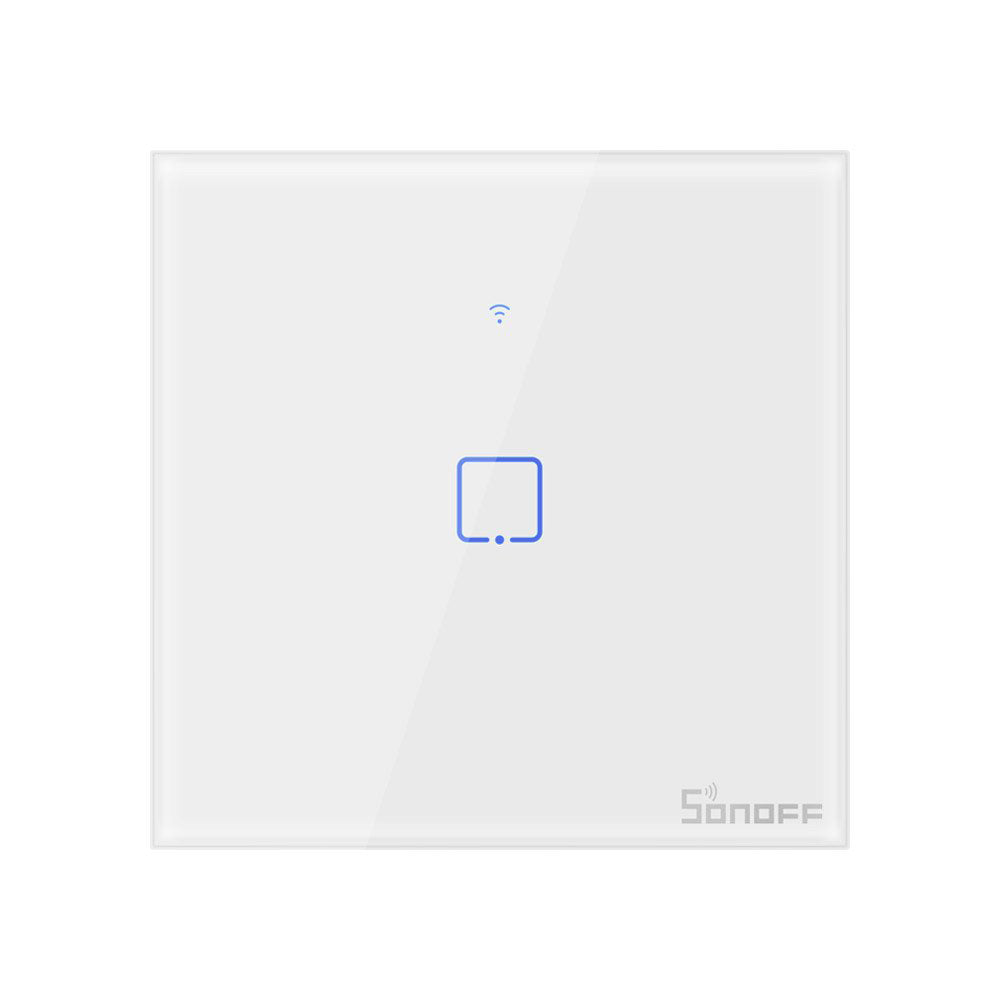

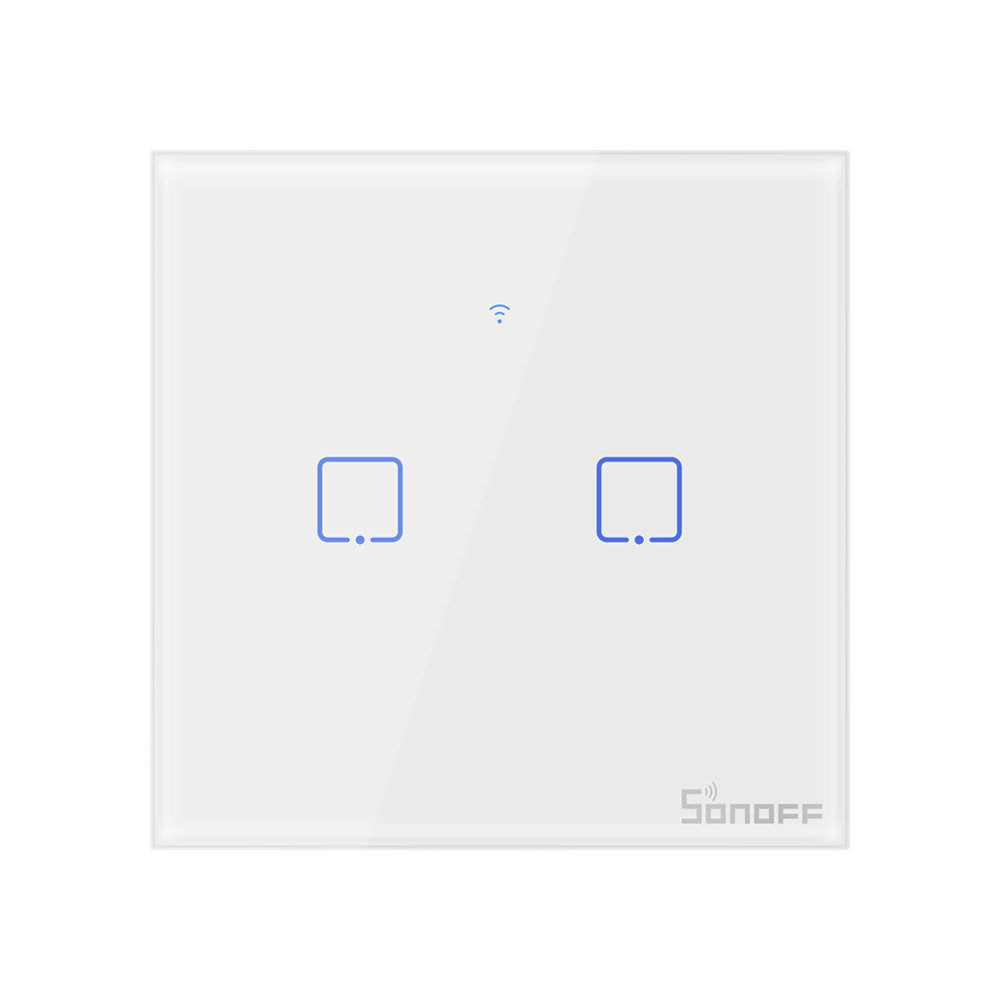

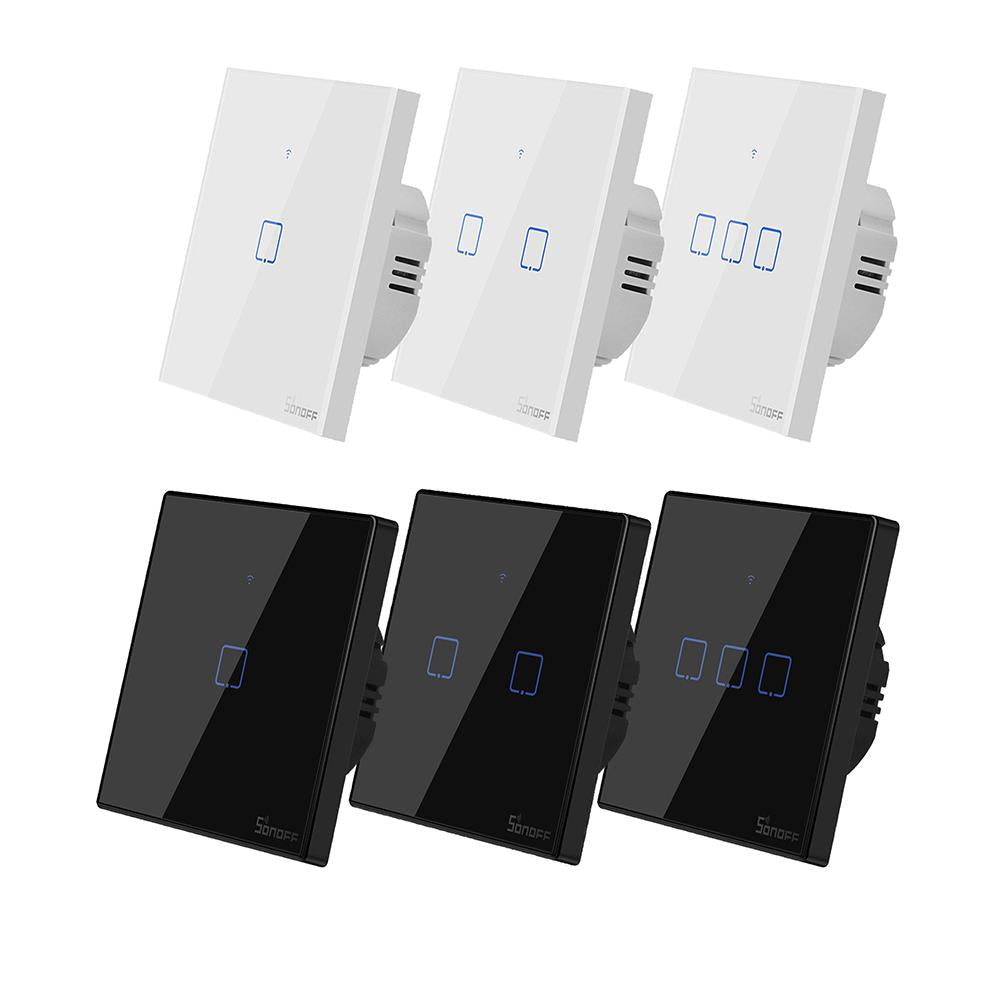

There are also variants with 1-3 channels that can be switched independently of one another.

This allows you, for example, to control your roller shutter with a 2-fold switch via a simple pre-configuration, or also switch the light on and off with the 3-fold switch. (Only Tasota version)

The TX switches have sensitive touch buttons attached to the simple and stylish switches to ensure modern and beautiful decoration on any wall surface.

A slight tapping for easier control is sufficient.

Attention:

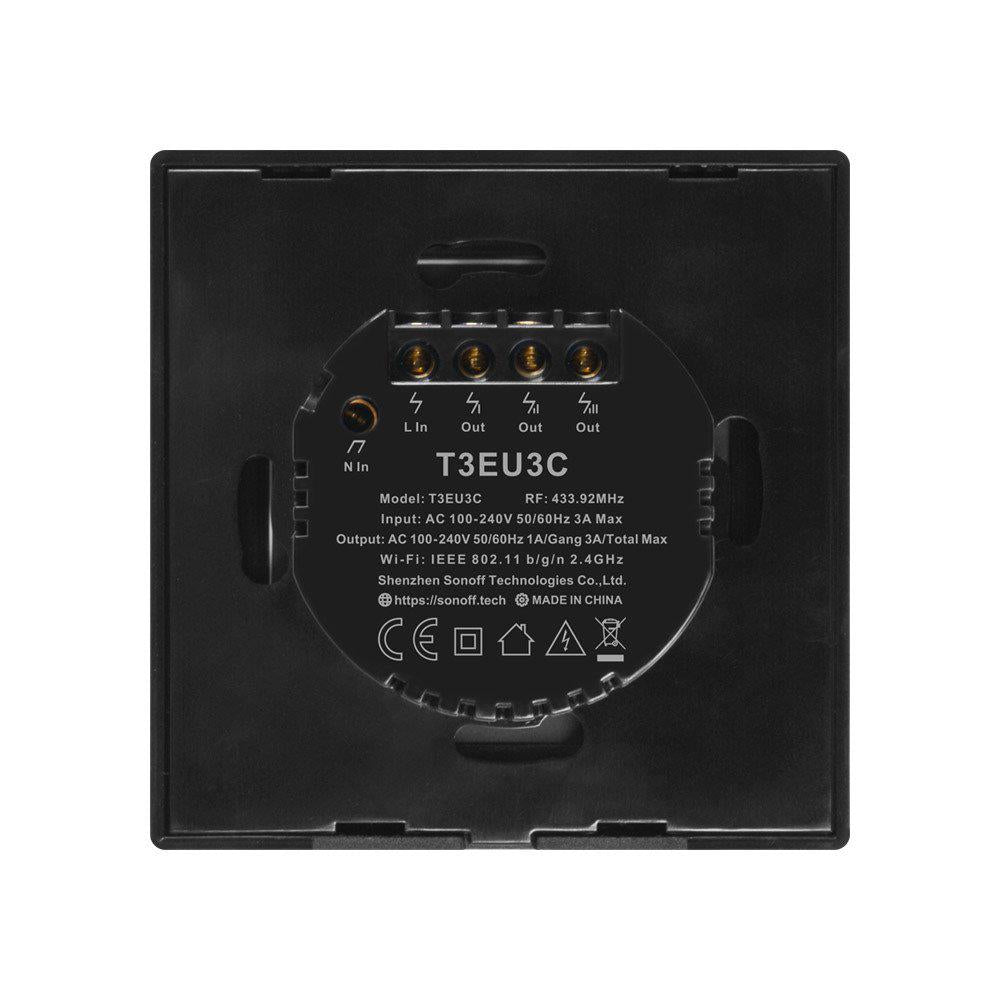

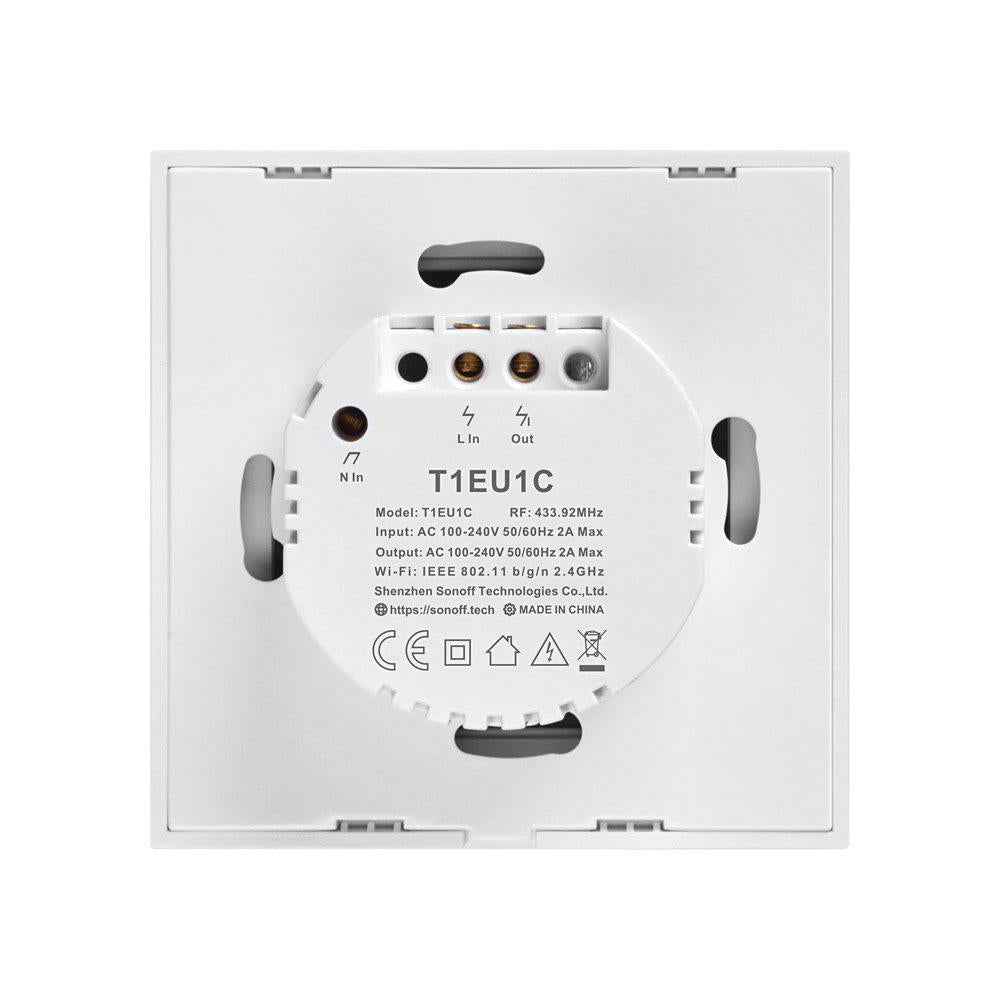

Please note that the TX-1 / TX-3 series is a two-wire wall switch. This switch needs a neutral conductor (zero manager). Check it before buying.

If you need the one-wire wall switch version, then the TX-4 (WiFi) in the shop is available

Technical data:

Manufacturer no.: Im190314012, IM90314013, IM90314014, IM90314018, IM190314019, IM90314020

Color: white or black

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Funk type: 433.92MHz RF

Size: 86 x 86 x 35 mm

Work temperature: -10 ° C - 40 ° C

Job moisture: 5% - 95%

Input voltage: 100V ~ 240V AC (50/60Hz)

Max. Input current: 1c/2c: 2A per channel 3C: 1A per channel

Max. Performance: 1c/2c: 480W per channel 3C: 240W per channel

Max. Power LED: 1C/2C 150W/110V per channel 300W/220V/per channel

Max. Power LED: 3C 60W/110V per channel 100W/220V/per channel

Material: PC V0 + plate made of hardened glass

Further information:

Additional:

Model variants:

Tasmota German

Type variants
