Sonoff TX Ultimate T5 EU 3C 3-Channel Smart WiFi Wall Touch Switch Tasmota 14

Article description:

3 channel WiFi smart switch with touch panel, LED, haptic motor

Already flashed with the latest Tasmota firmware.

Full Touch Access - Compared to a traditional touch switch, TX Ultimate has a much larger touch-sensitive area that takes up almost the entire control panel. With a light touch, it's easy to turn it on or off.

Intelligent LED lighting - A circular RGB color light surrounds the switch. In addition to being used as a switching status indicator, it can also be used as a night light or ambient lighting to brighten your night!

Multi-Sensory Touch Experience - TX Ultimate integrates LED light, speaker and built-in motor. Pressing it can simultaneously trigger light transitions, sound transitions and the control panel's vibration function, providing a futuristic experience.

Replaceable shift cover - The cover of TX Ultimate can be replaced. There is a star and a cartoon style option. Depending on your different decoration style, you may consider purchasing more panels.

EU standard size - 86x86 mm front panel, according to EU standard, 34 mm overall depth, meaning it can be installed in a standard depth wall socket.

Scheduling - Multiple scheduling functions are available: Setting a specific time, recurring times, countdown timer, loop control. Automatically turn off and on - You can also Set the light switch to automatically turn off at a specific time after each turn on.

Instantaneous switching - The switch can also be Set to instantaneous switching mode (with the "Inching" function), i.e. it switches for a short time (e.g. typically 0.5 or 1 second).

Interlock Switching Mode - The two or three circuit versions can be Set to a mode where one circuit is turned off when the other circuits are turned on. This means that the switch can be safely used, for example, for roller shutter control or motor control.

Compatibility - Can be connected to Amazon Alexa, Google Assistant and Google Nest for voice control. (Tasmota variant only works directly with Amazon Alexa)

The Sonoff TX Ultimate, also known as Sonoff T5 EU, is Sonoff's newest smart wall switch product, released in summer 2023. It is a Wi-Fi and eWeLink Remote (Bluetooth) compatible smart home device that can be controlled remotely via the Internet via the eWeLink app. The Tasmota variant can be integrated into home automation systems via MQTT or HTTP.

The smart light switch pairs with the local Wi-Fi router and can be controlled remotely from a mobile phone via the Internet. It also supports time-controlled on/off switching, timer and loop-controlled on/off switching. The main feature of this product version is that the entire surface of the control panel is touch-sensitive, which makes it very comfortable to use: just touch it anywhere and the light switch turns on or off immediately.

In addition, the Sonoff TX Ultimate T5 EU Switch has an LED strip on the edge that you can Set for various functions: you can configure it to indicate the on/off state, provide visual feedback when switching, be used as an ambient or mood light (e.g. activate party light mode), or you can also Set the light as a night light (with a timed on/off function for it). When the switch is turned on and off, it can also emit an acoustic and visual signal (separately adjustable) and vibrate. You can also turn it off when not in use. The status of each circuit (off/on) is also indicated by the LED indicator on the LED strip that serves as a mood light. You can Set the color and brightness separately for off and on.

The switch versions of the Sonoff TX with two or three switch buttons can also be Set to locking mode. When one channel is turned on, the other turns off automatically, making it safe for e.g. B. You can use it to control roller shutters or other 2-way motors.

Matching:

SPLASH-PROOF HOUSING

SONOFF R2 waterproof box is made of PC V0 material, which is dustproof and prevents objects from entering. Making it ideal for protecting your SONOFF switch in wet environments.

SONOFF Waterproof Box R2 IP64 TH-Elite TH-Origin POW-Elite POW-Origin NSPanel TX

Tasmota Features:

LED and Haptic Motor

Control of the haptic feedback motor with the "buzzer" command -> https://tasmota.github.io/docs/Commands/#buzzer

The correct number of LEDs is already Set with "Pixels 28". If you want advanced control over the LEDs, like custom effects and segmentation, you'll need to program them with Berry. -> https://tasmota.github.io/docs/Berry_Addressable-LED/ If you create new effects, please share them on GitHub. -> https://github.com/blakadder/tx-ultimate/

I2S audio support

For best results, use "I2SSay" for text-to-speech in English pronunciation or "I2SRtttl" for playing RTTTL tones. https://picaxe.com/rtttl-ringtones-for-tune-command/ The general audio sounds terrible and is very loud. The speaker connector is disconnected on the Tasmota version to eliminate the constant noise.

Link everything together

No functions of the original firmware are replicated. You have complete freedom to customize the switch according to your needs with rules or additional Berry features or a combination of both.

The TX Ultimate with Tasmota is programmed with 3 rules. Rule 1 activates the Haptic Motor. When switching via the touch panel, it vibrates. Rule 2 assigns the touch panel to the corresponding channels to be switched. Rule 3 activates the LED backlight effects during switching.

You can change or switch off these Settings as you wish.

Further information about the template and the features described:

https://templates.blakadder.com/sonoff_T5-3C-86

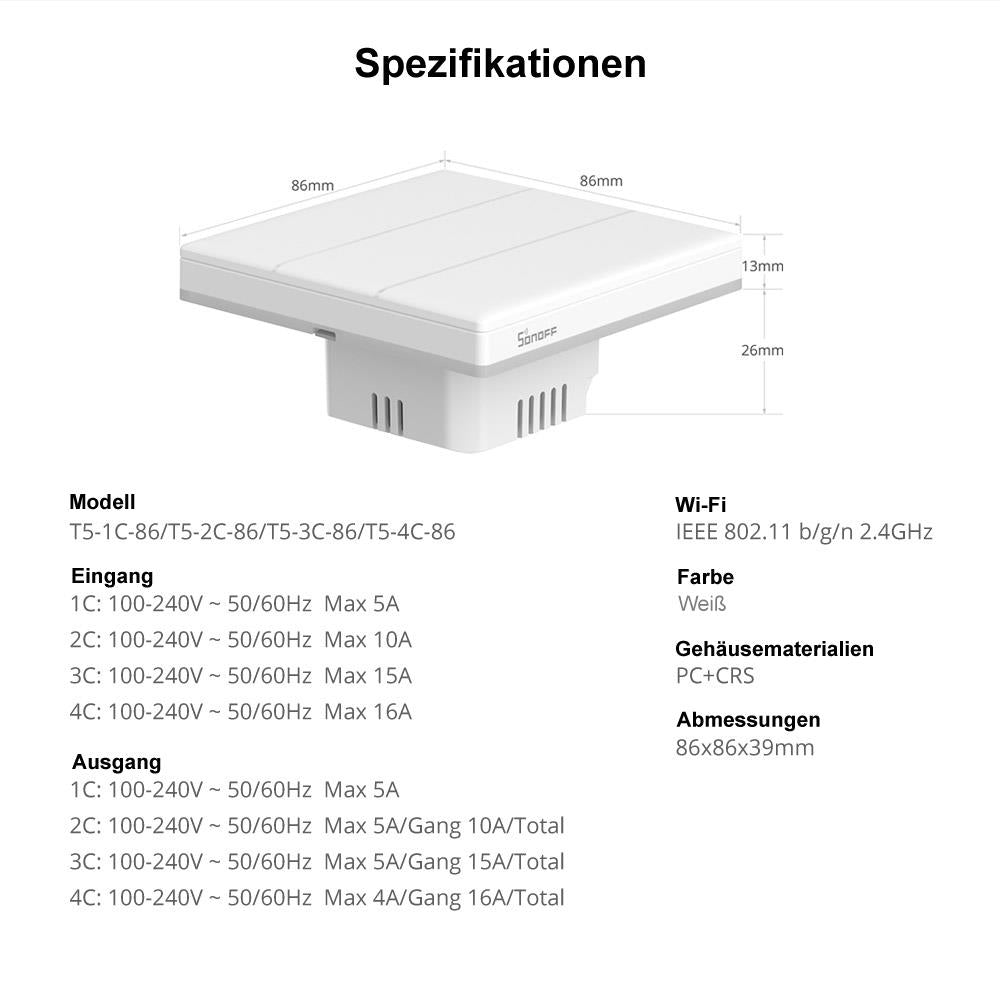

Technical data:

Manufacturer no.: T5-3C-86

Color: white full-touch front panel

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Bluetooth: 4.2 BLE (2400MHz-2483.5MHz)

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 86 x 86 x 39 mm

Working temperature: -10°C - 40°C

Working humidity: 5% - 95%

Input voltage: 100V ~ 240V AC (50/60Hz)

Max. Input current: 15A

Max. Power: 1200W max. at 240V per channel, 3600w total

Max. Power LED: 150W max. at 240V per channel, 75W max. at 100V per channel

MCU: ESP32

Material: PC+CRS

Wire diameter: 1mm²-4mm²

More information:

More:

New goods available immediately with Tasmota firmware

Model variants:

Tasmota german eWeLink (no Tasmota)
