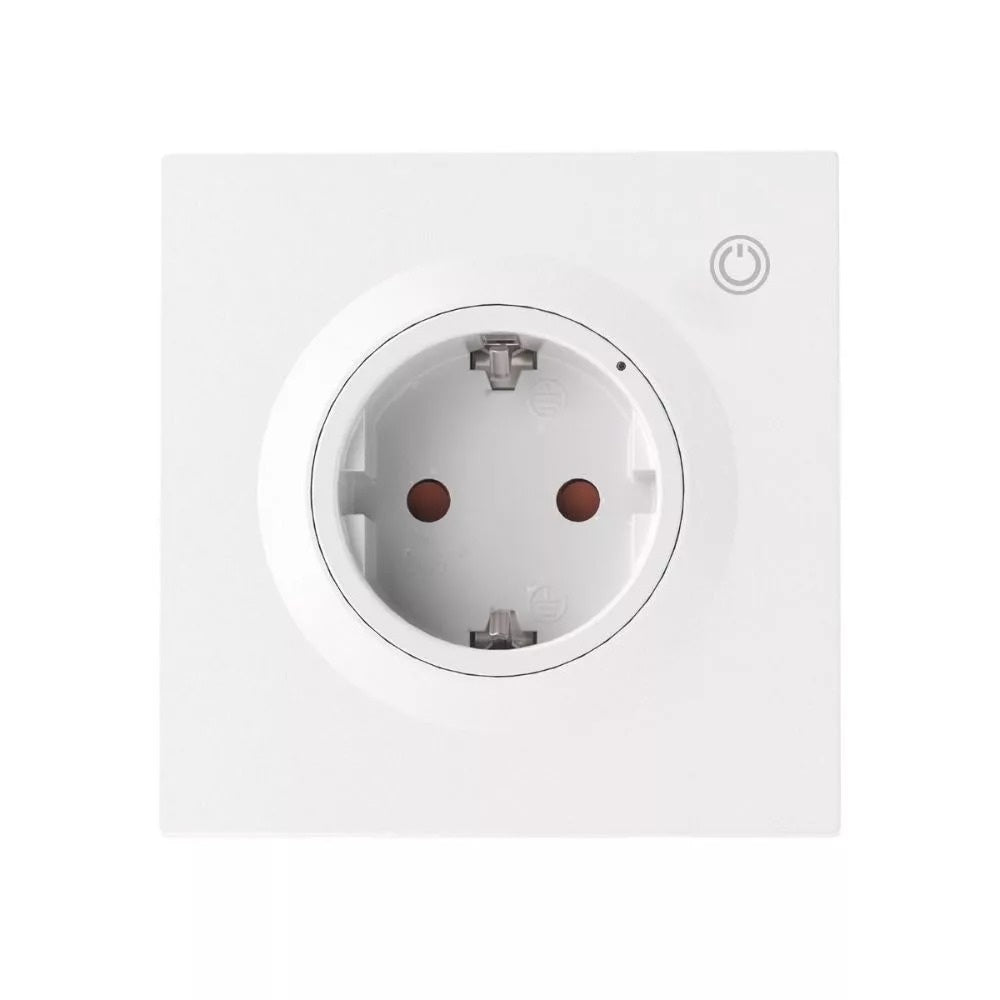

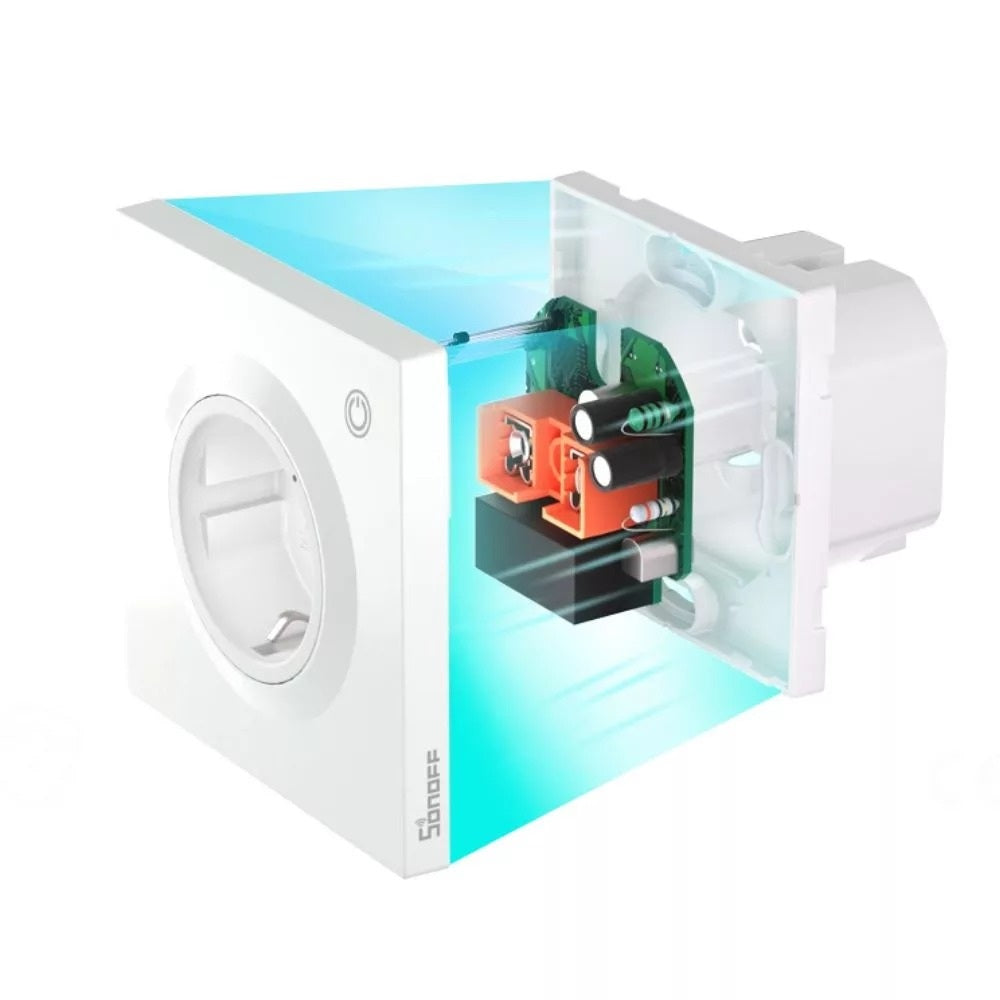

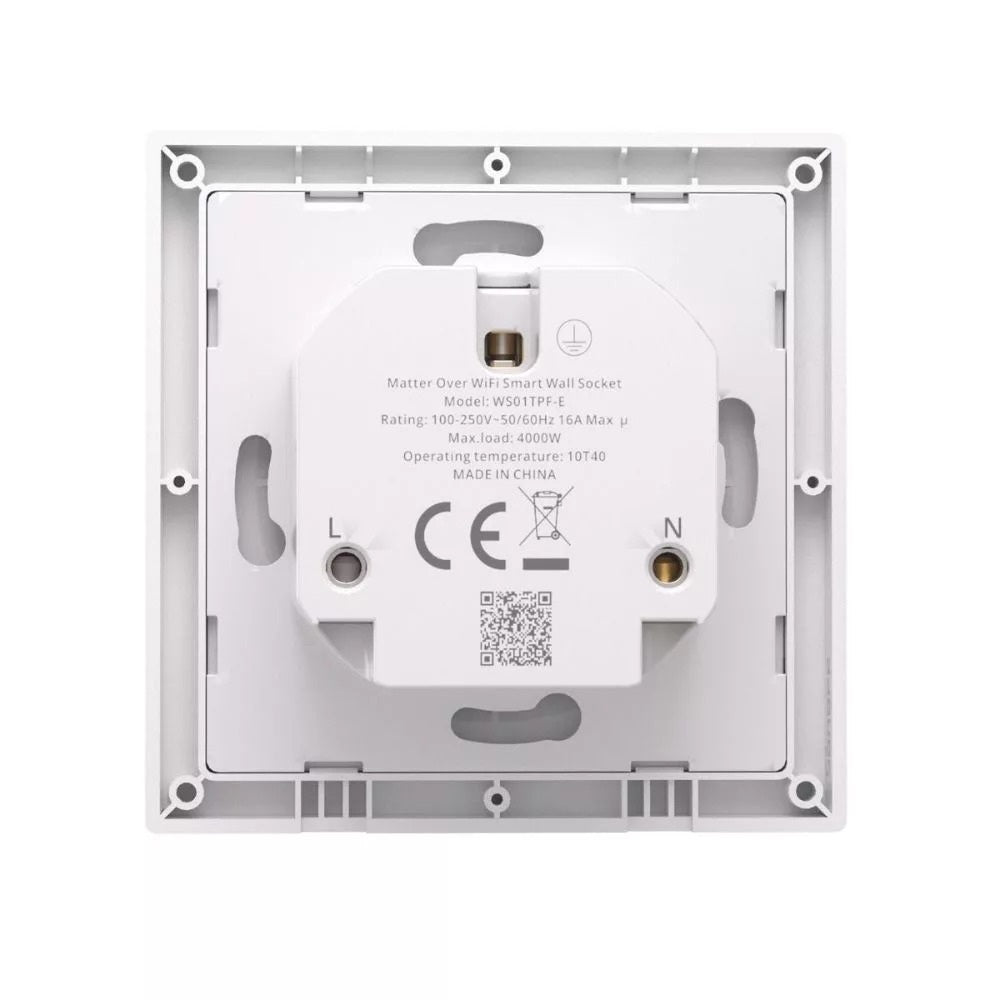

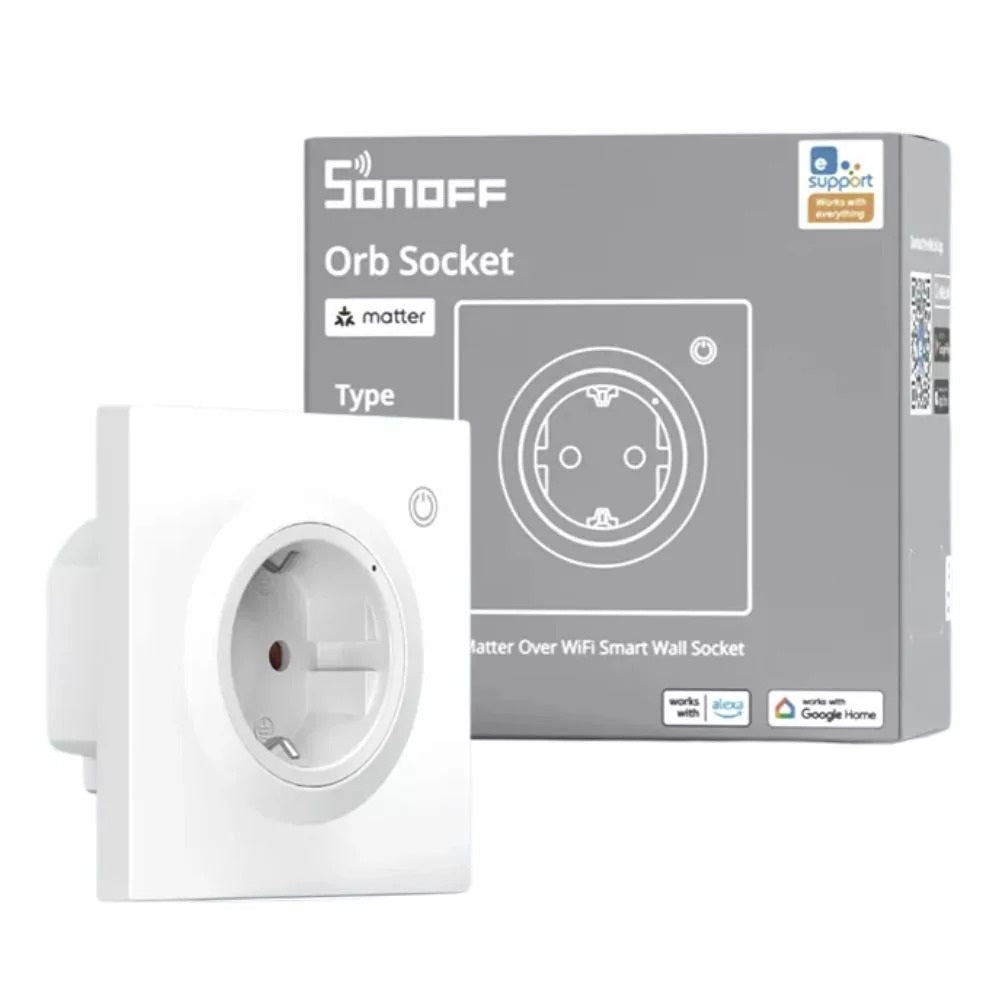

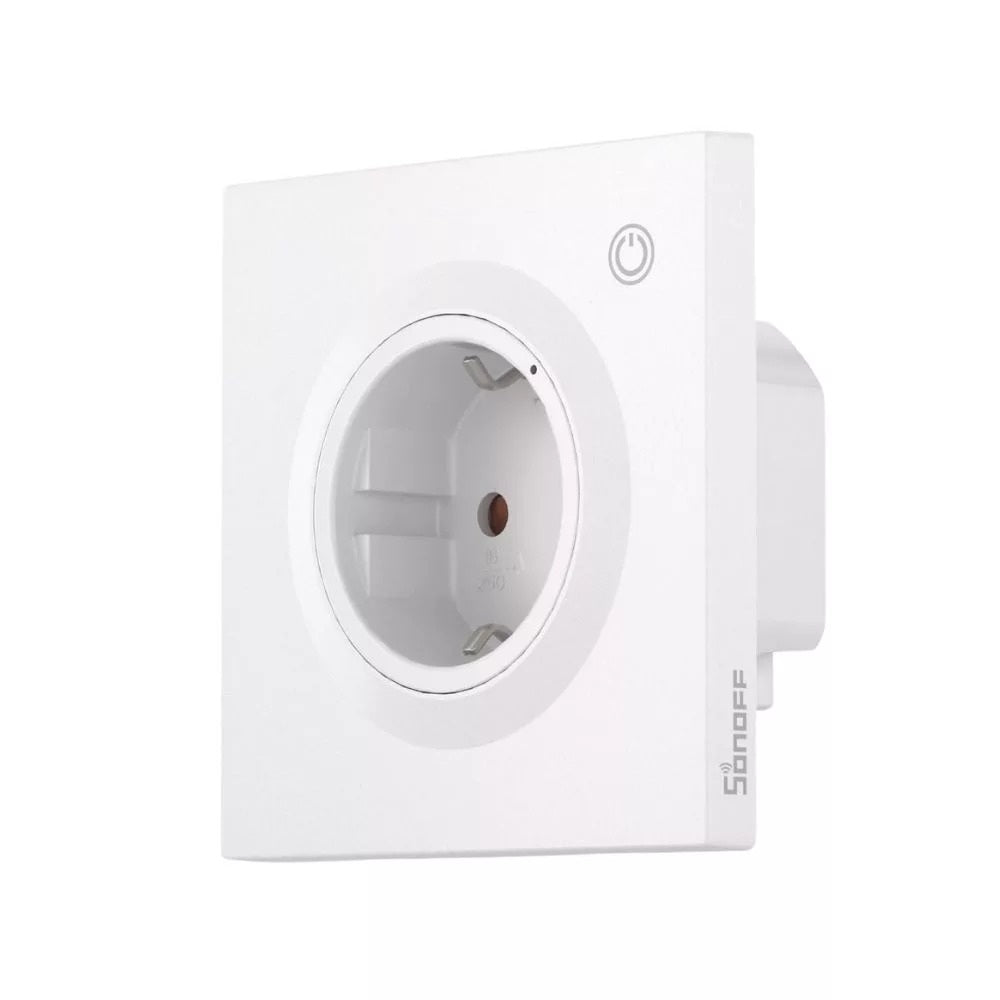

SONOFF WS01TPF-E Orb Socket Matter Wall Socket 16A Energy Monitoring – White

Product Description:

The SONOFF WS01TPF-E is a traditional wall socket that is ideal for areas where smart control is not required, but a stable, high-load connection is important. It is suitable for kitchen appliances, bathroom use, vacuum cleaners, televisions, routers, and other household devices.

Additional Features:

Suitable for: Indoors, especially for high-load household appliances.

Compatibility: Can be combined with SONOFF Fusion Series frames to ensure a uniform appearance.

Flame-retardant, heat-resistant housing: The housing material reduces risks of overheating.

Child safety lock: Prevents accidental contact with live openings.

Technical Specifications:

Model: WS01STPF-E

Frequency: 50/60 Hz

Max. current: 16 A (max. resistive load)

Dimensions: 86 x 86 x 39.6 mm

Recommended wiring: 1.5–2.5 mm² copper conductor (SOL/STR)

Operating temperature: -10 °C to 40 °C

Operating humidity: 5–95% RH (non-condensing)

Color: White.

Weight: 108 g/pcs

Rated load: Max. 16 A (resistive load).

Application area: Indoor

Material: PC (flame-retardant, heat-resistant design).

Product category: power socket / power strip

Conductor cross-section: 2, 5 mm2

Operating voltage: 100–250 V AC, 50/60 Hz.

Plug compatibility: Compatible with Type F (Schuko) plugs.

Recommended wire cross-section: 1.5–2.5 mm² solid/stranded copper conductor (SOL/STR).

Rated voltage: 100–250 V AC

Max. load: 4000 W

Housing material: PC

Connector standard: Type F (Schuko)

Device power supply: 230V AC (L + N)

Rated voltage (output): 230V AC

Rated power (output): 4000W

Output circuits / gangs: 1

Operating temperature range: -10°C - 40°C

Operating humidity range: 0% - 95% RH

IP rating: IP20

Size: 39.6 x 86 x 86 mm

Colour: white
