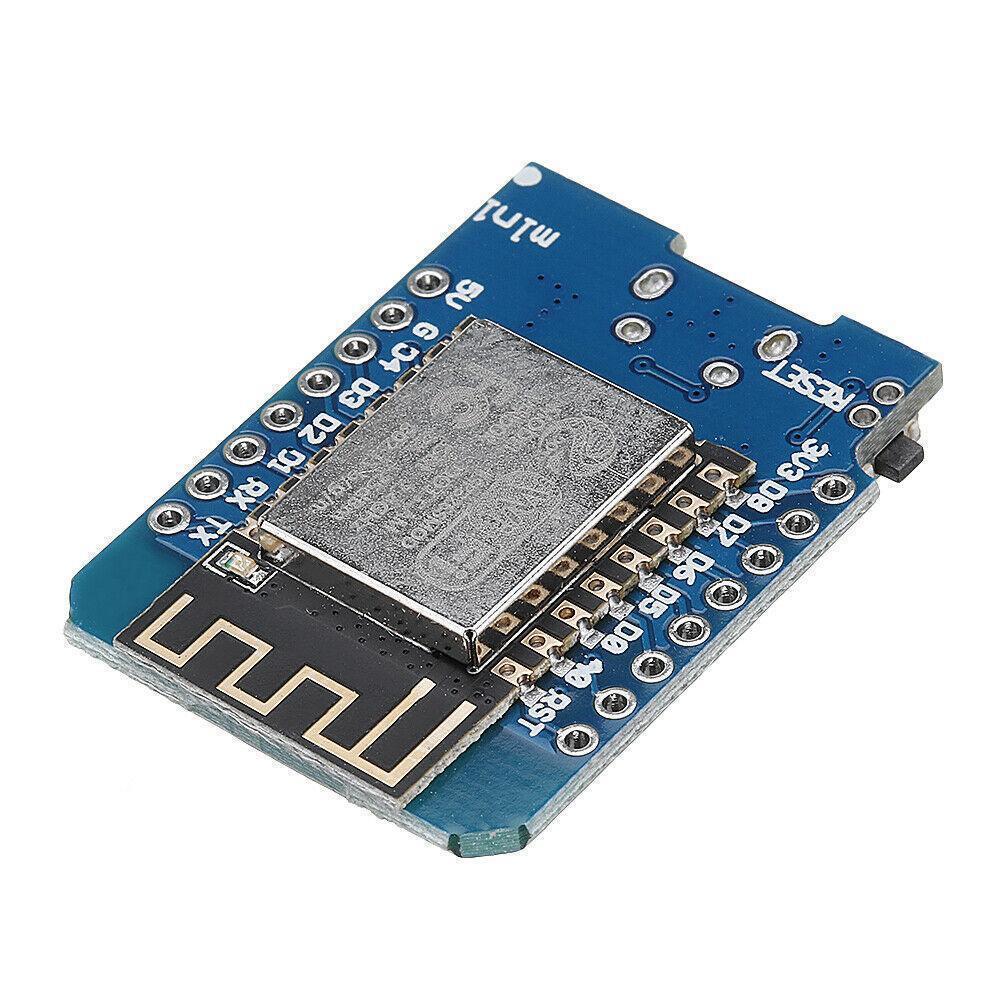

Wemos Geekcreit D1 mini V2.2.0 WiFi Internet DEV Board - TASMOTA - ioBroker

Article description:

WiFi development board

Already flashed with the latest Tasmota firmware.

Developer board with the very popular ESP8266 chipset and built -in WiFi module.

In conjunction with the ESP8266 module of the Wemos D1 Mini compatible boards and the diverse Arduino libraries, there are no limits to your creativity.

Tax relays, LEDs, values, or create your own IoT device.

With this small, light and cheap module, everything is simply possible.

Technical data:

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

32-bit microprocessor with 4MB flash

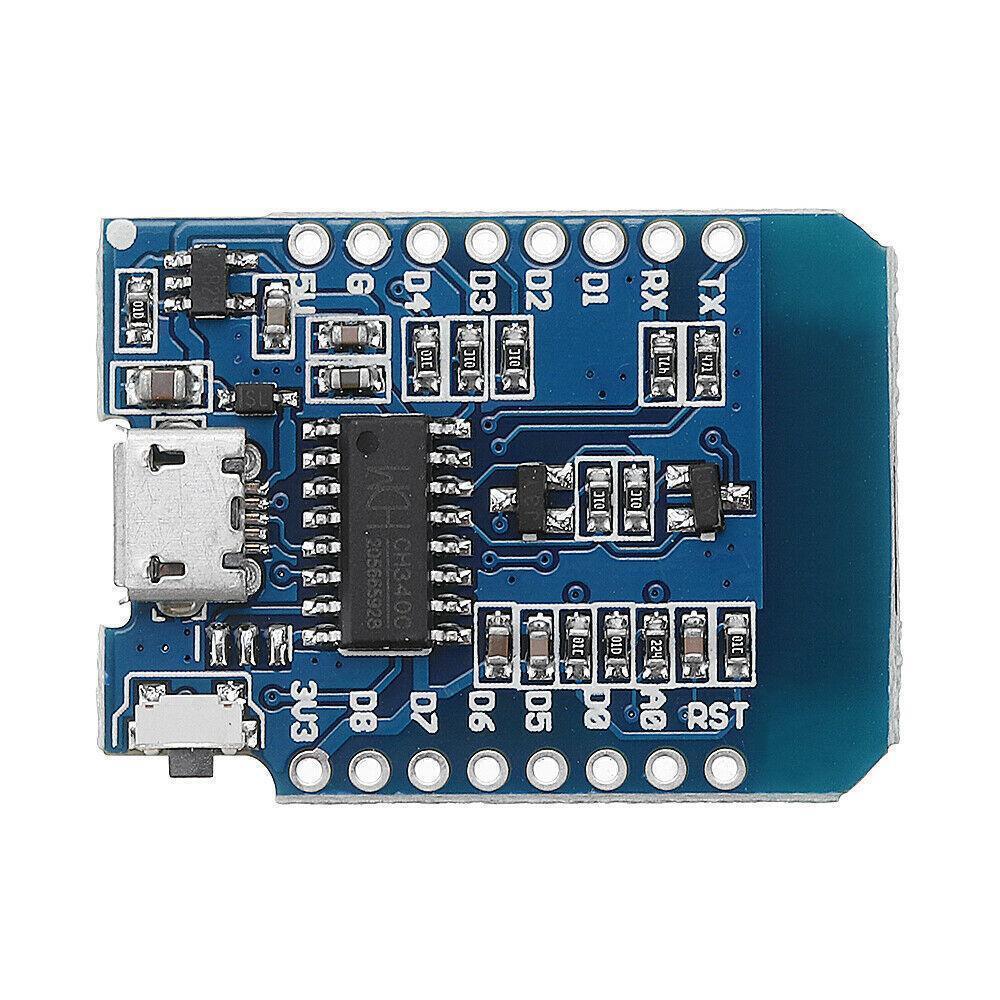

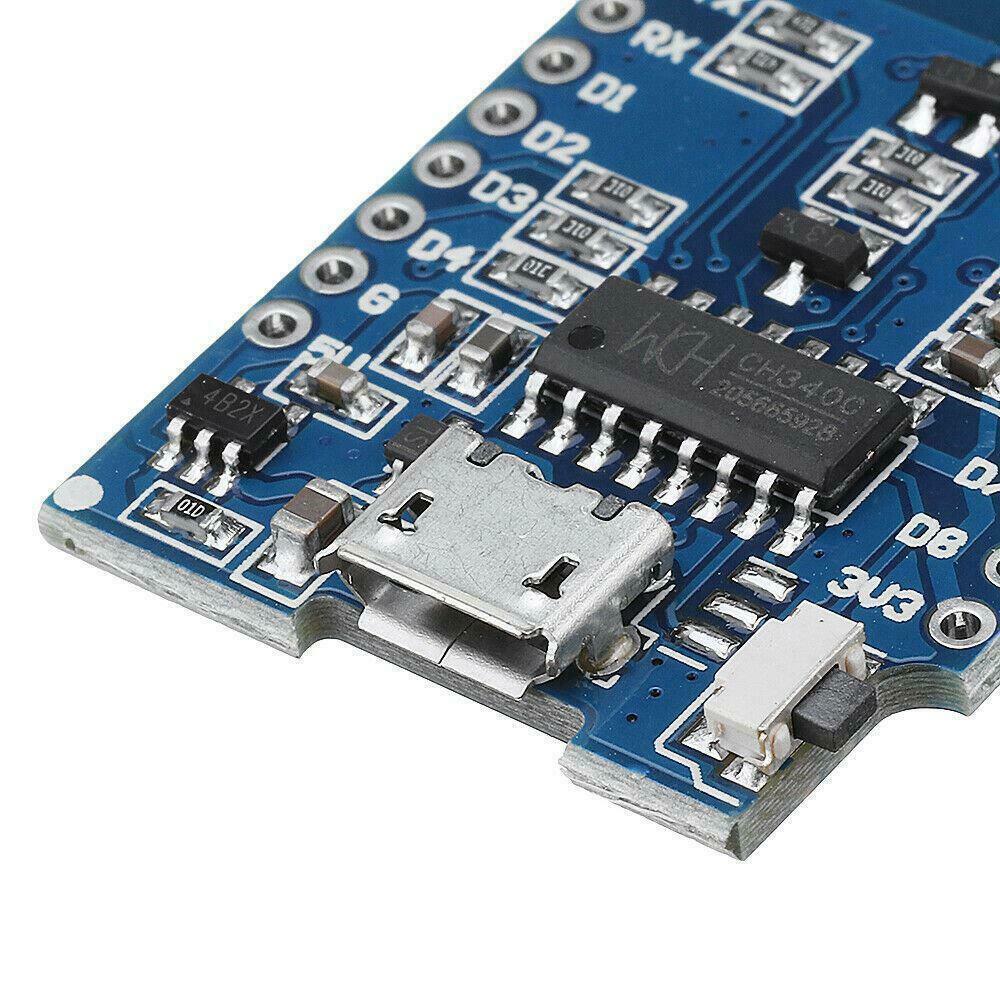

CH340 USB to serial converter, for simple flashes

Input voltage: 5V via micro USB

Input voltage: 3.3 V via analogue input

Interfaces: WiFi, USB (serial), SPI, I2C, Twi

11 digital in / output pins

All pins have interrupts

PWM / I2C & 1 wire supporting unit (except D0)

Compatible with Arduino

Compatible with Nodemcu

Compatible with Tasmota

Compatible with many Shields/modules

Further information:

Additional:

Model variants:

Tasmota German
