D1 Mini NodeMCU ESP32 WROOM WiFi IoT Dev Kit Board Arduino Micro USB Tasmota

Article description:

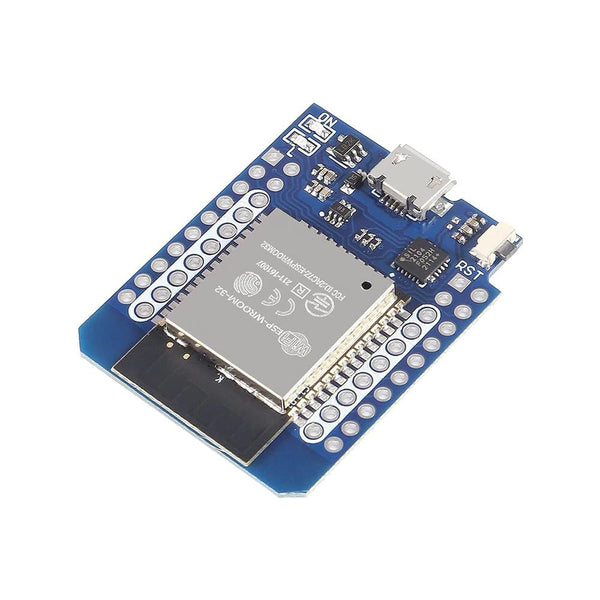

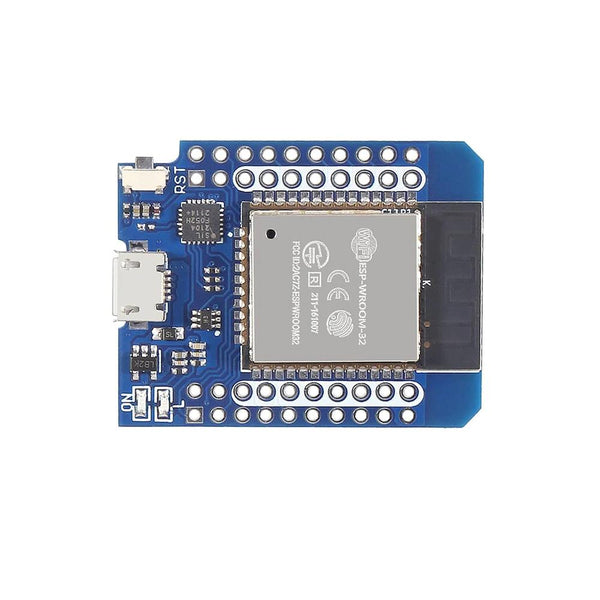

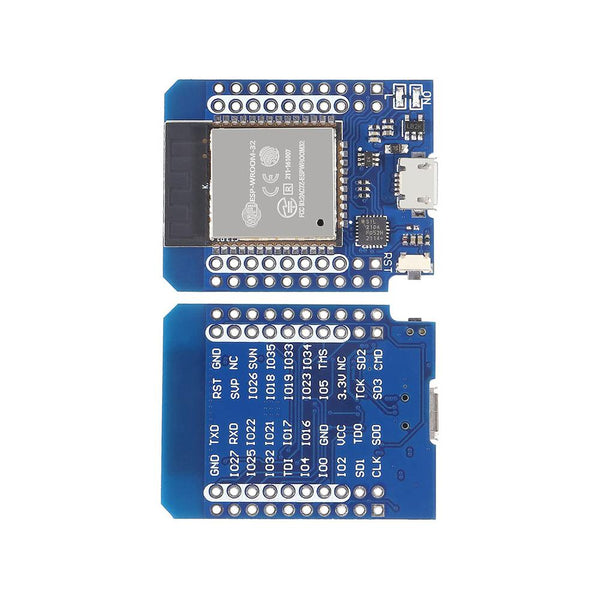

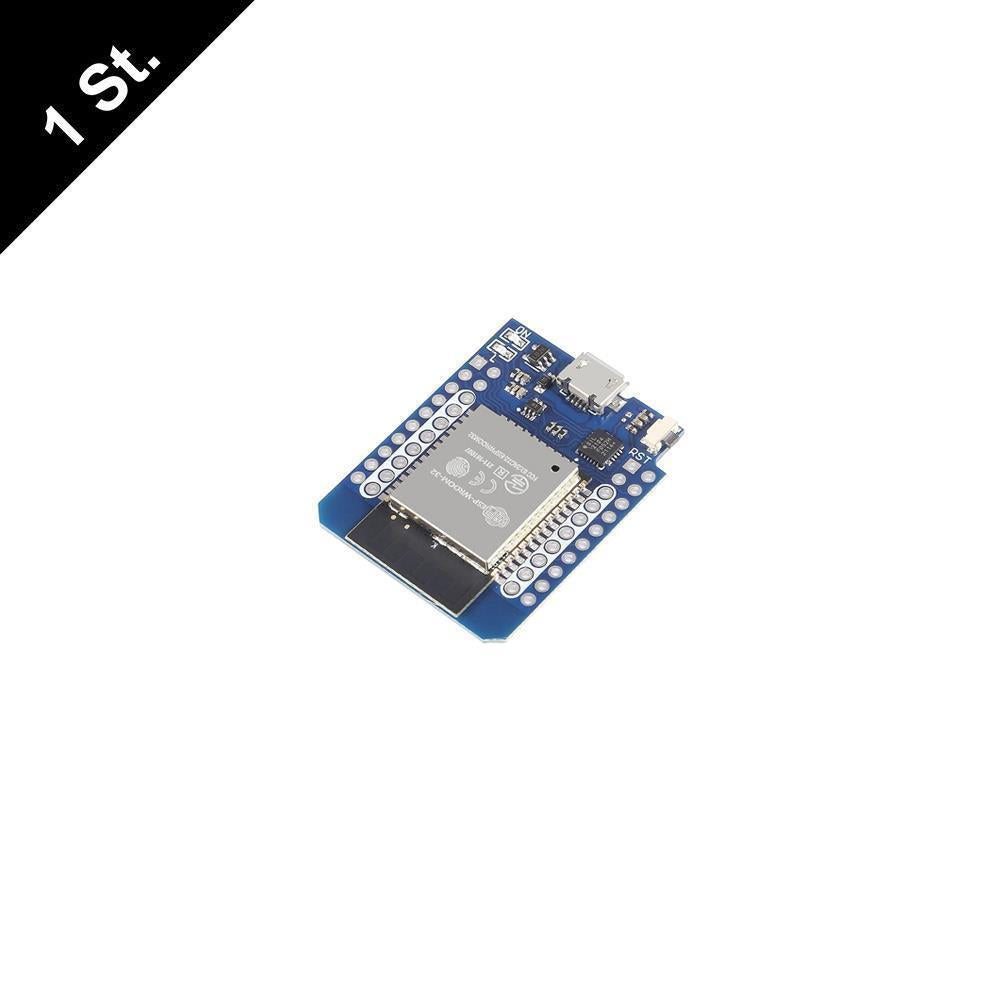

D1 Mini ESP-Wroom-32 WiFi developer board

Already flashed with the latest Tasmota firmware.

This D1 Mini Dual Core ESP-Wroom-32 Dev Kit is an Arduino compatible WiFi board. The all -purpose solution for your IoT (Internet of Things).

ESP32 is a safe, reliable and scalable developer board for a variety of applications.

Ultra-low power consumption, small volume, easy to embed into other products, works perfectly with the Arduino IDE.

You can even switch off the performance of the CPU and use the power -saving coprocessor to continuously monitor the status of the peripheral devices or to determine whether some of the analog levels exceed the threshold.

All important components are integrated in the board. Voltage supply, USB serial converter, WiFi module, etc.

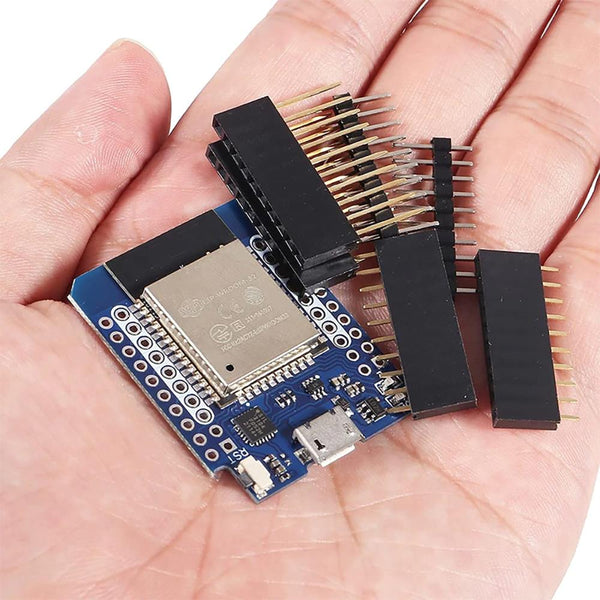

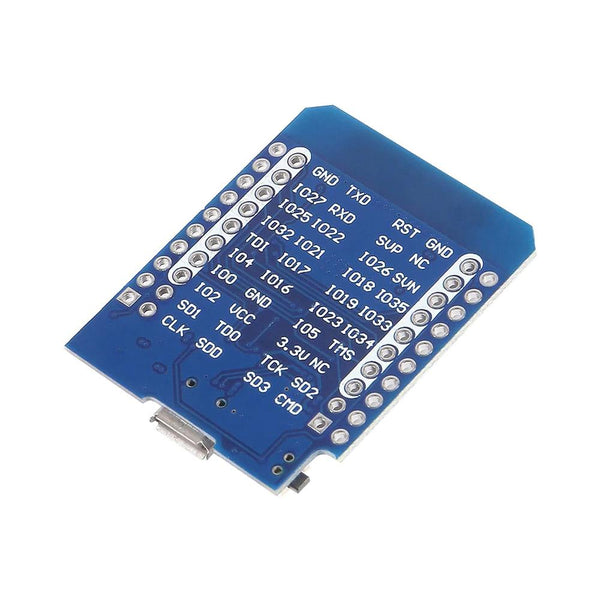

The I/O pins can be easily reached from the outside via the supplied pen strips. Before you can put the board into a Breadboard, you have to solder the pen strips beforehand.

Supports LUA program, easy to develop, supports LWIP protocol, Freertos, three modes: AP, StA and AP + StA.

Technical data:

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Bluetooth: Classic and BLE

Chipset: ESP-32

Processor: Tensilica LX6 dual core

RAM: 512KB

Storage: 4MB

Tact frequency: 80-240MHz

Operating voltage: 3.3V / 5V

Operating current average: 80mA

Power supply required min. Nominal power: 500 mA

Interfaces: UART / I2C / SPI / DAC / ADC

Work temperature: -40 ° C - 85 ° C

Micro USB connection

Compatible with Arduino

Compatible with Nodemcu

Compatible with Tasmota

Compatible with many Shields/modules
