ESP-12F ESP8266 Programmer Adapter WiFi Module Arduino IDE, IoT, Tasmota 14

Article description:

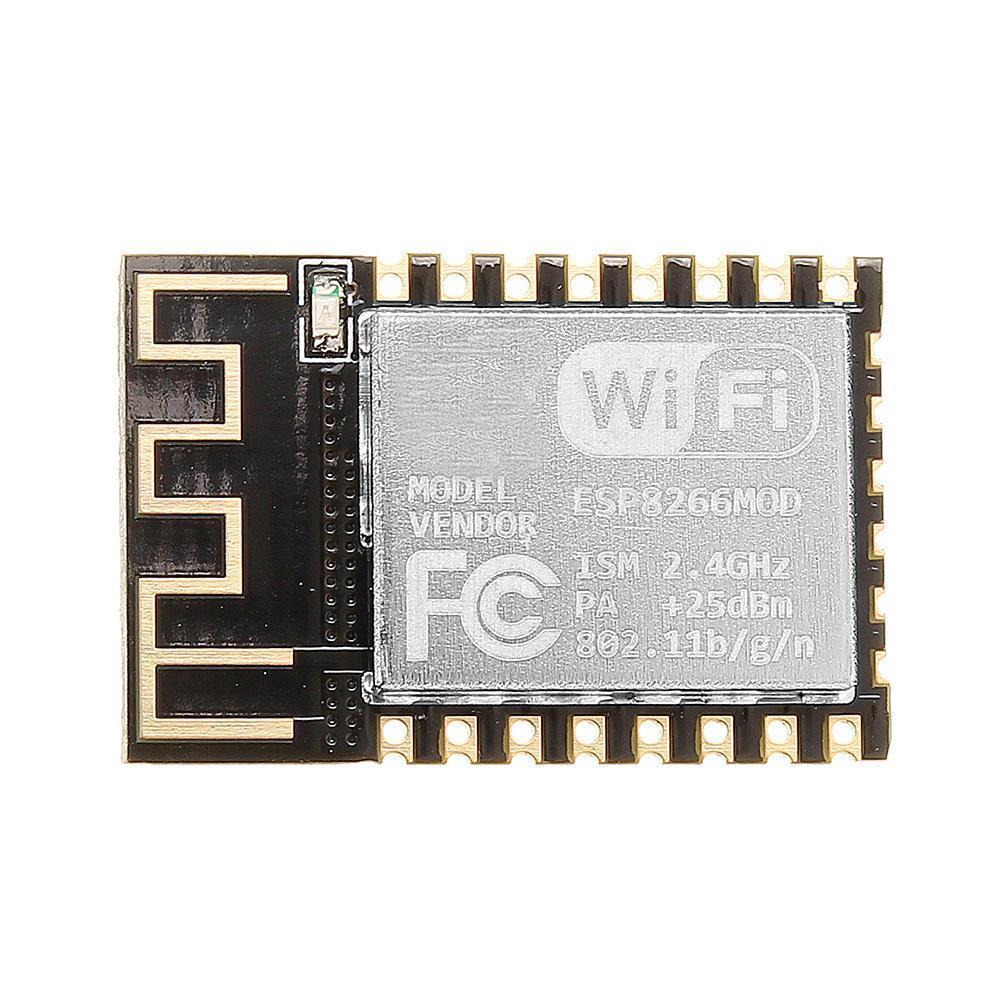

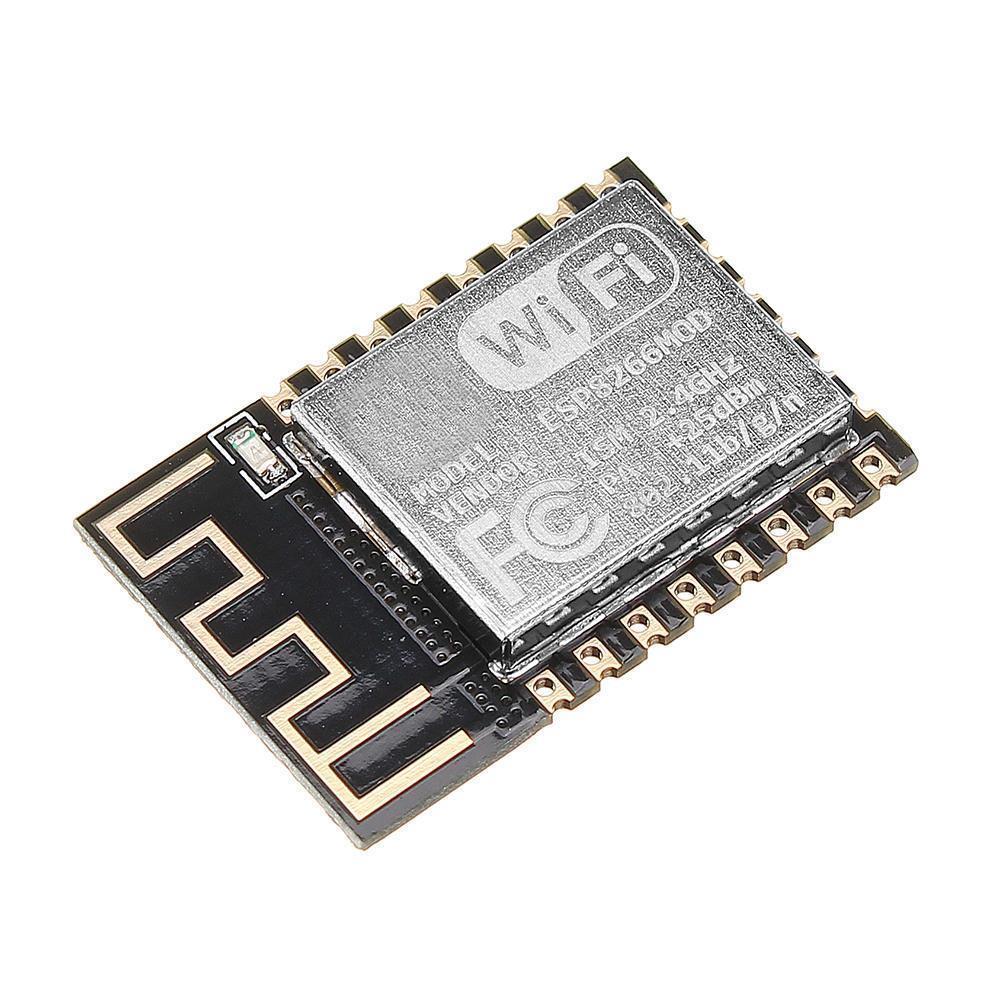

ESP-12F ESP8266 Wireless Transceiver Module

Already flashed with the latest Tasmota firmware.

The ESP-12F is a small and powerful WiFi module that allows you to easily integrate your projects into your WiFi network.

The new four-layer board design, a new performance-optimized RF revision antenna, communication performance has been increased by 30% to 50% compared to the ESP-12E!

Semi-hole chip technology, many IO's, metal shielding, FCC & CE & RoHS certification, built-in board PCB antenna and 4M Bytes Flash.

This small chip allows you to program your own IoT projects. Or you can use the numerous example libraries you can find on the Internet.

Bring your projects online. The module can be used very well with Arduino, Raspberry Pi, Tasmota, or many other projects.

Technical data:

Model.: ESP-12F

Microchip: ESP8266

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 24 x 14 x 7 mm

Weight: approx. 4g

Working temperature: -40°C - 125°C

Working current: up to 300mA

Input voltage: 3.0 - 3.6V (Recommended 3.3V)

Standby power consumption < 1.0mA

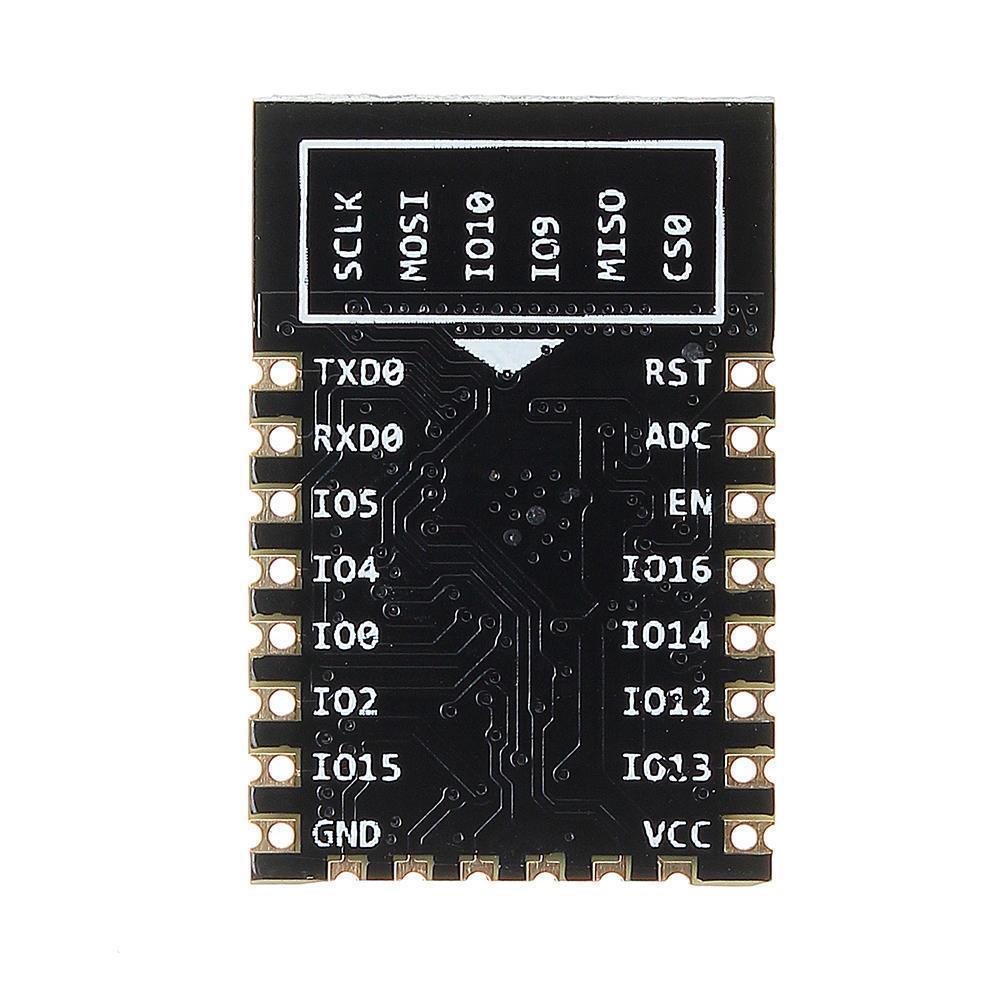

Interfaces: UART/HSPI/I2C/I2S/IR Remote Control/GPIO/PWM
