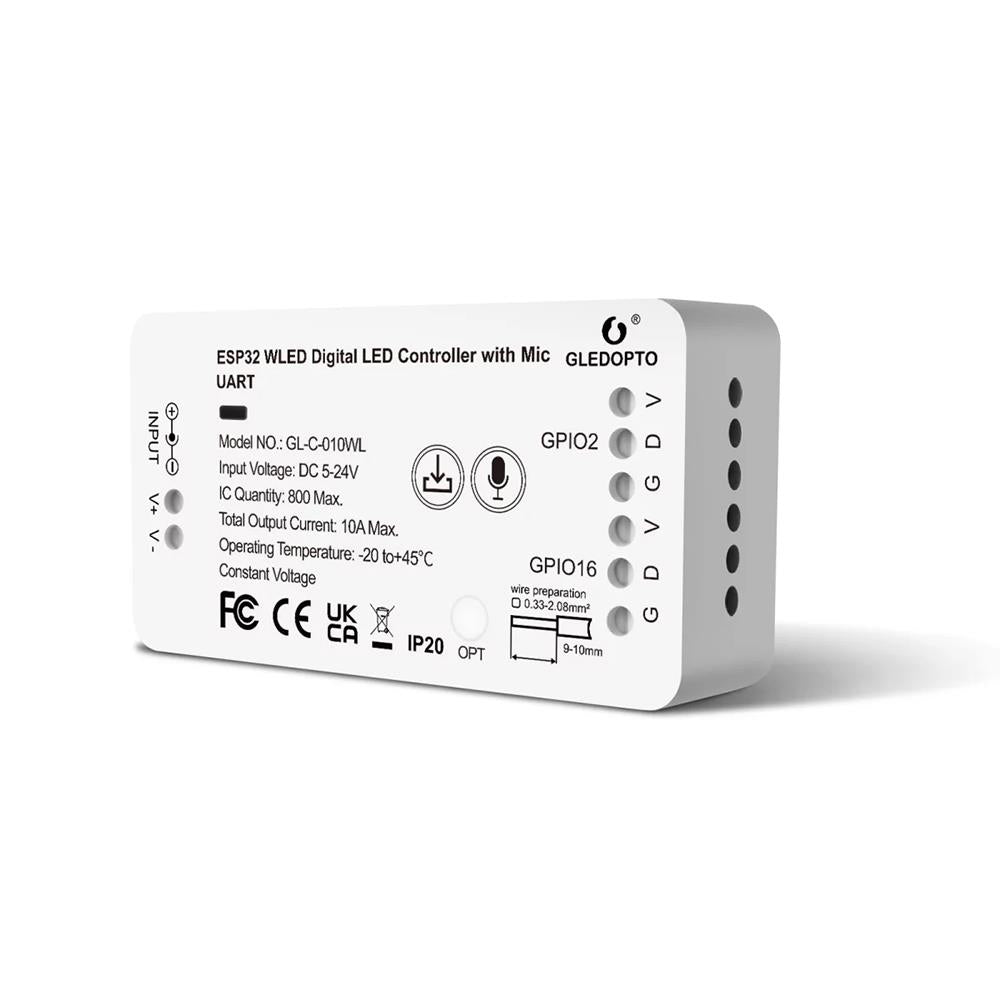

Gledopto GL-C-010WL-D 5V-24V Smart WiFi WLED LED Stripe Controller +MIC +UART

Article description:

WLED controller with ESP32 for LED Stripes

Let your digital light strips come to life with our WLED controllers equipped with the powerful ESP32 chip. With this innovative solution, you can customize your lighting according to your preferences. The WLED app, specifically designed for the WLED Access Point (AP), enables effortless control from your smartphone.

Versatile Control: Choose from 100 different lighting modes with our WLED controller. Whether you desire a cozy atmosphere or a vibrant light show, this device allows you to adapt your lighting to any mood. Additionally, you can control the lighting through music, thanks to the built-in microphone.

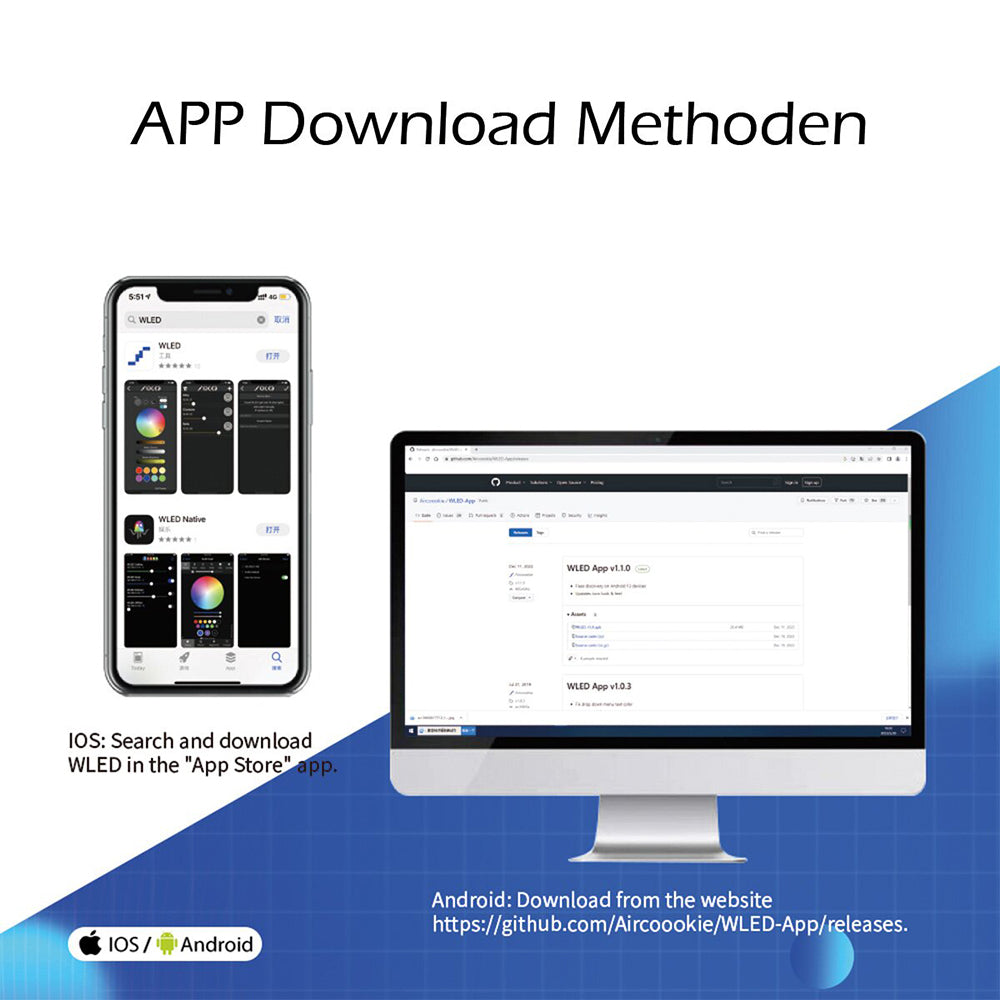

Easy App Control: The WLED app allows you to conveniently control your light strips directly from your smartphone. Easily change colors, brightness, and effects with a simple touch.

Reliable Connection: With the ESP32 chip, our controller offers a stable and reliable connection, eliminating worries about connectivity issues.

Microphone Control: Let the lighting glow to the rhythm of your music, thanks to the built-in microphone.

UART Download: The controller supports UART downloads via a Micro-B data cable. Simply open the device, remove the jumper cap, download the data via the cable, and then close the cap.

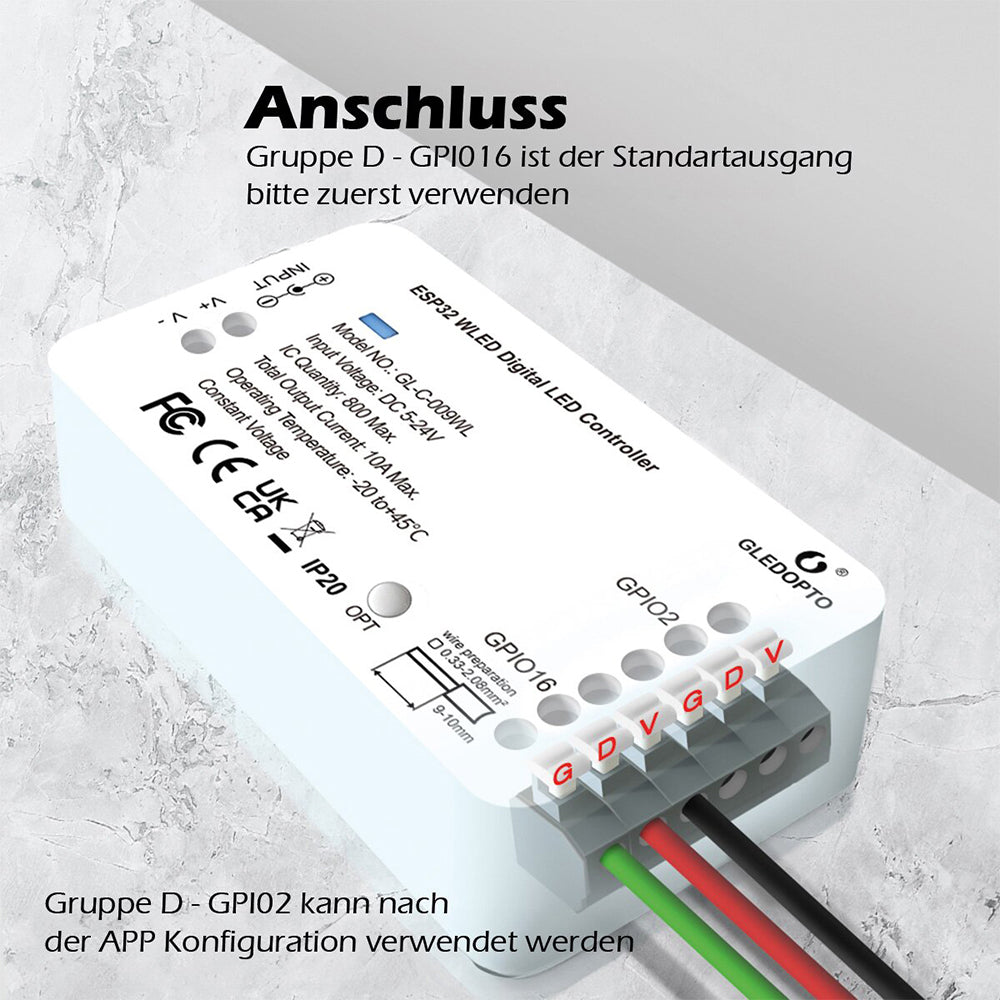

User-Friendly Installation: Installation is incredibly simple. Just connect your light strips, link the controller to the WLED AP, and you're ready to go.

Special features of the WLED firmware:

Features:

Integrated WS2812FX library for over 100 special effects

Fast Led Rush effects and 50 pallets

Modern user interface with color, effect and segment control

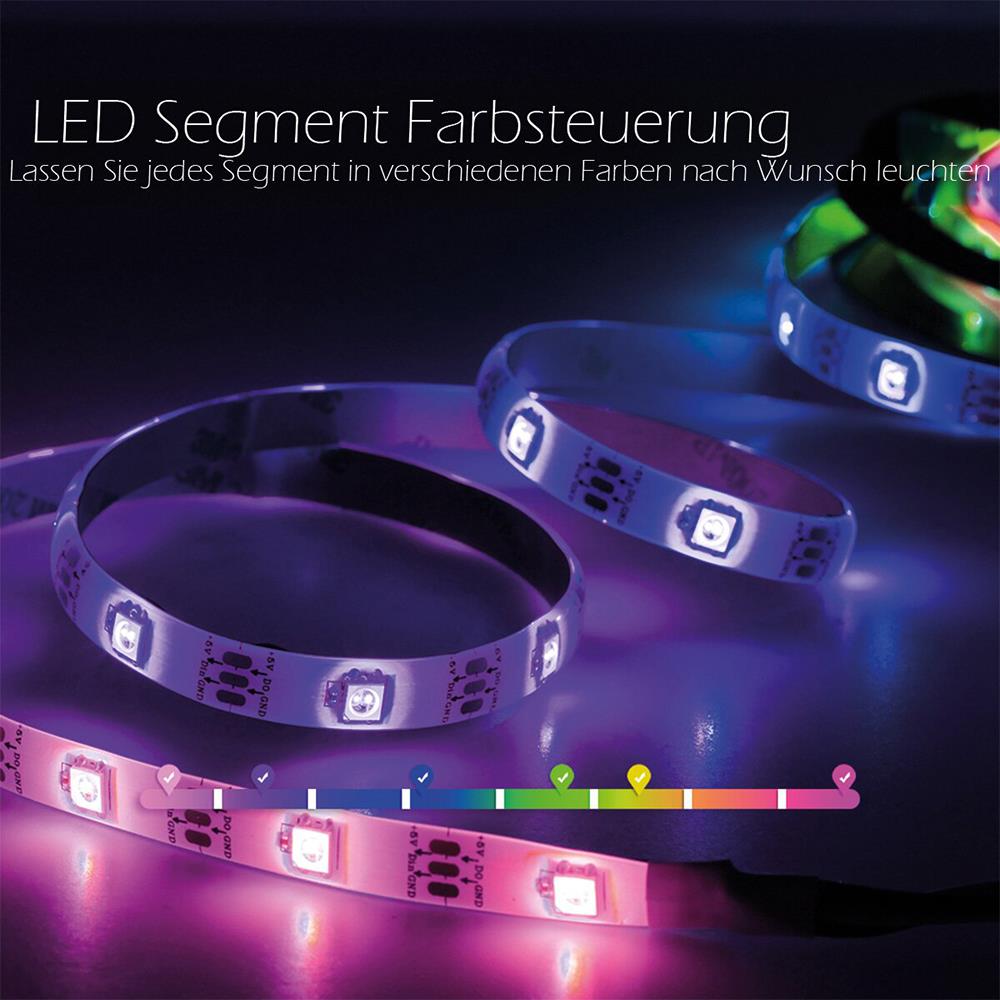

Sngements for adjusting various effects and colors for parts of the LEDs

Settings page - configuration via the network

Access point and station mode - automatic fail -safe AP

Support for RGBW stripes

Up to 250 user presets for easy storage and loading colors/effects, supports this.

Pre-settings can be used to automatically carry out API calls

Night light function (dimensions gradually)

Complete OTA software update capacity (HTTP + Arduinoota), password-protected

Configurable analog clock + support for the cronixie kit from Diameax

Configurable automatic brightness limitation for safer operation

File system-based configuration for easy backup of presets and settings

Notice:

The voltage required depends on the LED stripes used. For example, do not use DC12V power supply for DC5V stripes.

Technical data:

Model No: GL-C-010WL-D

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security Protocols: WEP/WPA-PSK/WPA2-PSK

Input Voltage: DC 5V-24V

Max. Total Current: 10A

Operating Temperature: -20°C - 45°C

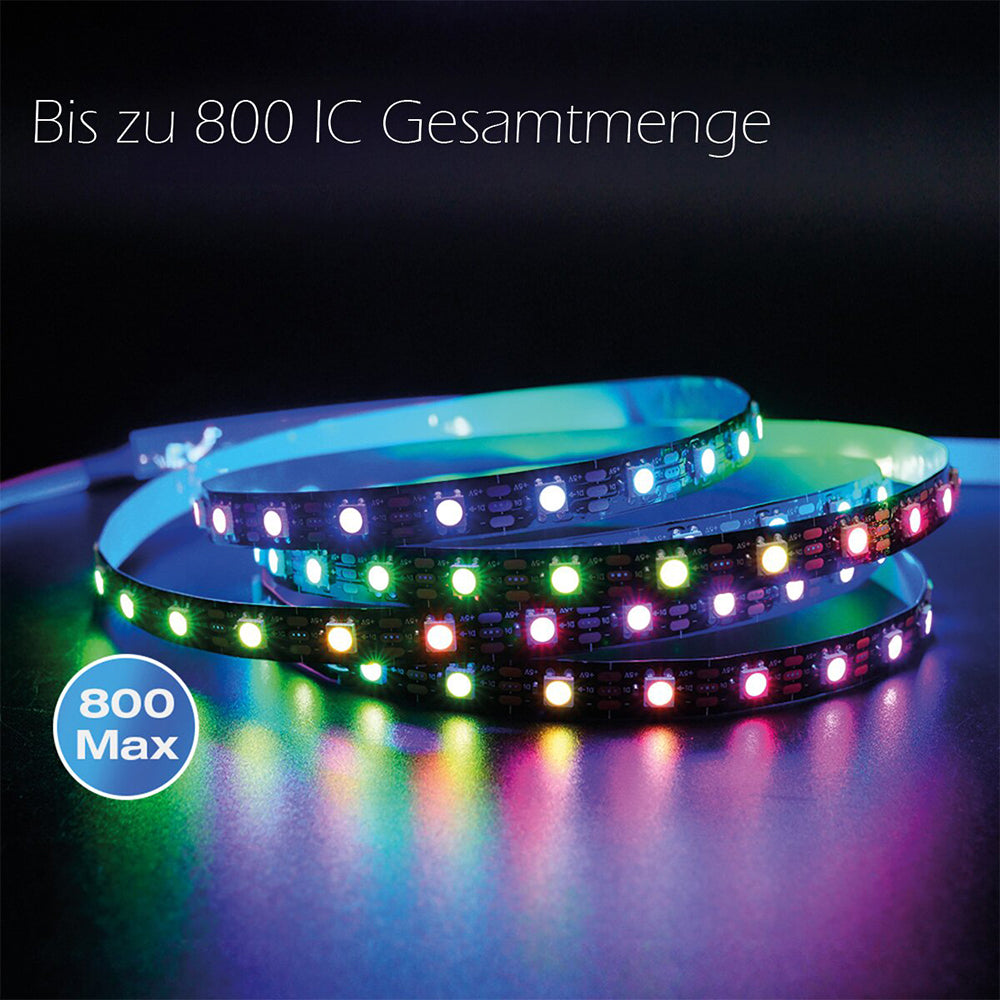

Supported IC: WS2811, WS2813, SK6812, SM16703P, GS8208, TMI814, FL19038, and others

Microphone: Yes

UART (USB-B port for firmware modification): Yes

For DIY Users: Yes

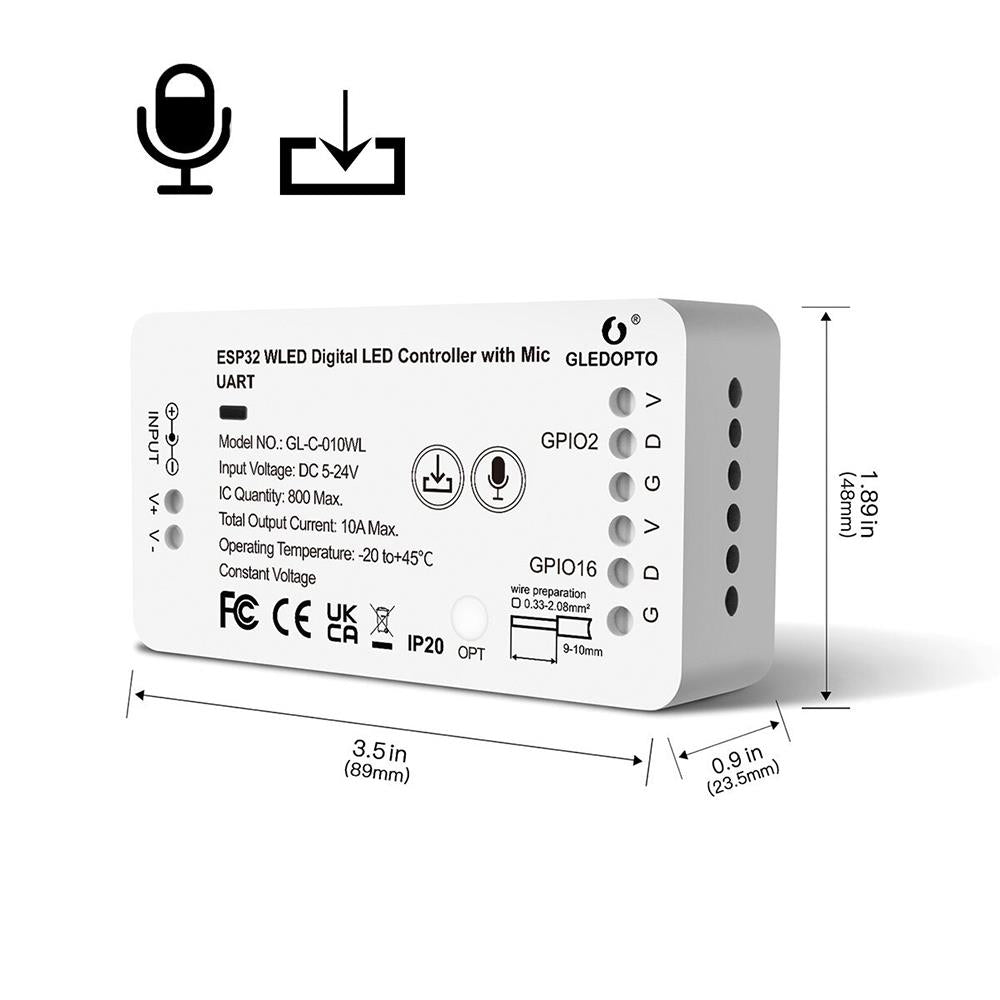

Size: 89x48x23.5mm
