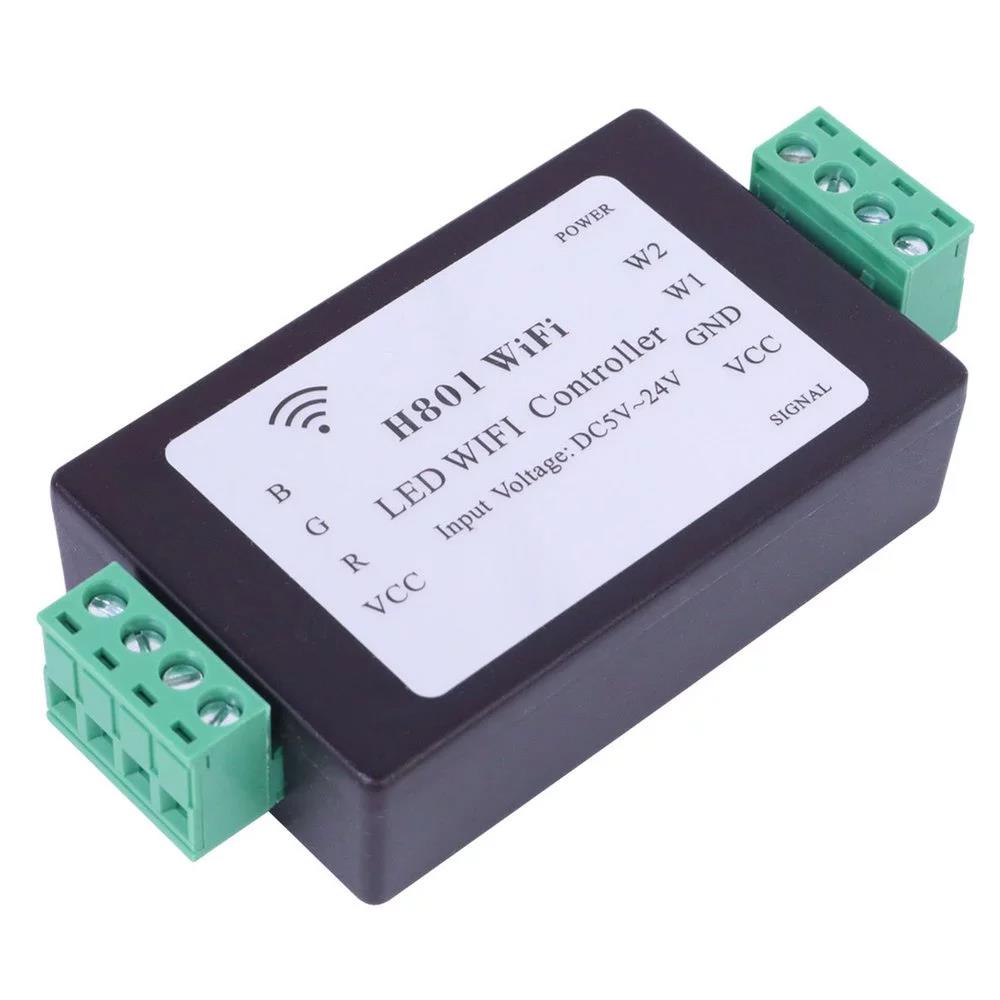

H801 ESP8266 LED WiFi RGBWW Controller for LED Stripes DC 5-24V Tasmota 15

Article description:

WiFi controller for LED stripes

Already flashed with the latest Tasmota firmware.

5 separate PWM channels for RGB, warm white and cold white.

Suitable for analog LED strips with common anode from 5–24 V DC.

Locally controllable via web interface, MQTT and Home Assistant.

Precise dimming and flexible color control for individual lighting scenes.

With the H801, you can turn simple LED strips into a fully featured smart home lighting system. Whether it’s warm white for a cozy evening or colorful accents for special moments – you always have full control over your lighting.

The five independent channels allow flexible control of RGB colors as well as warm and cold white. This makes it easy to create both atmospheric ambient lighting and functional task lighting – all with a single controller.

Thanks to the pre-installed Tasmota firmware, the system runs completely locally. No cloud, no dependencies – just maximum speed, stability and privacy. Ideal for users who want full control over their smart home.

Integration with Home Assistant or other MQTT-based systems is quick and straightforward. Automations, schedules and scenes can be easily created and tailored to your needs.

The H801 is perfect for living rooms, kitchens, indirect ceiling lighting or creative DIY projects. Please note: this controller is designed for classic analog LED strips – not for digital addressable LEDs.

Technical data:

Model: H801

Wi-Fi type: IEEE 802.11 B/g/n 2.4GHz

Security protocol: WEP/WPA-PSK/WPA2-PSK

Input voltage: DC 5-24V / power supply not included in the scope of delivery

Spending channel: 5-channel RGB color, WW (warm white), CW (cold white)

Frequency: 500Hz

Max. Input current: RGB/WW/CW, 5 x 4A

Max. Performance: 96watt

Channel performance: 0.5watt

Size: 93 x 45 x 20 mm

Further information:

Additional:

Brand new immediately available With Tasmota firmware

Model variants:

Tasmota German Tasmota English Tasmota Individual Language (Send US A Message) Ewelink (No Tasmota)
