Home Assistant Green Smart Home Hub 2X USB, Gigabit LAN, MicroSD opt. SMLIGHT

Article description Green:

Home Assistant Smart Home Hub

EASY TO START — The affordable Home Assistant Green is the easiest way you can start using Home Assistant. It's plug-and-play and comes with Home Assistant already installed.

SIMPLE SETUP — Plug and play. Get started right away.

WORKS WITH (ALMOST) EVERYTHING — Powerful hardware lets you control and automate everything in your home from a single app with Home Assistant.

INTEGRATED — Everything in one app. More than 1,000 built-in integrations support hundreds of thousands of smart devices and online services, with more regularly added by our community.

SIMPLE MIGRATION — Switch from other smart home ecosystems at your own pace. Home Assistant works with your existing Apple HomeKit, Google Home*, Samsung SmartThings**, and Amazon Alexa* setup, allowing a seamless and gradual migration for everyone in your home. * Home Assistant Cloud subscription is recommended for seamless integration with Google Home and Amazon Alexa voice assistants. ** Home Assistant Cloud subscription is recommended for using webhooks with Samsung SmartThings.

EXTENSIBLE — Expand compatibility as your home expands. You can add Home Assistant SkyConnect to connect Zigbee and Thread* devices, set up Home Assistant Cloud for voice assistants, and integrate third-party USB accessories to support other smart standards, such as Z-Wave or Bluetooth. *Thread support is currently under development.

TRUSTWORTHY — Your home is built to last, and so should your smart home. With Home Assistant, your smart home is private, truly owned and controlled by you.

IMPROVES EVERY MONTH — Home Assistant is built by one of the largest communities of open-source contributors. New features and improvements are added every month, ensuring your smart home never lets you down.

YOUR DATA IS PRIVATE AND LOCAL  — Home Assistant keeps your data locally, which means you are safe from invasive privacy practices and you can access your smart home even when the Internet is down.

---

Article description SMLIGHT:

USB ZigBee 3.0 Thread (Matter) gateways

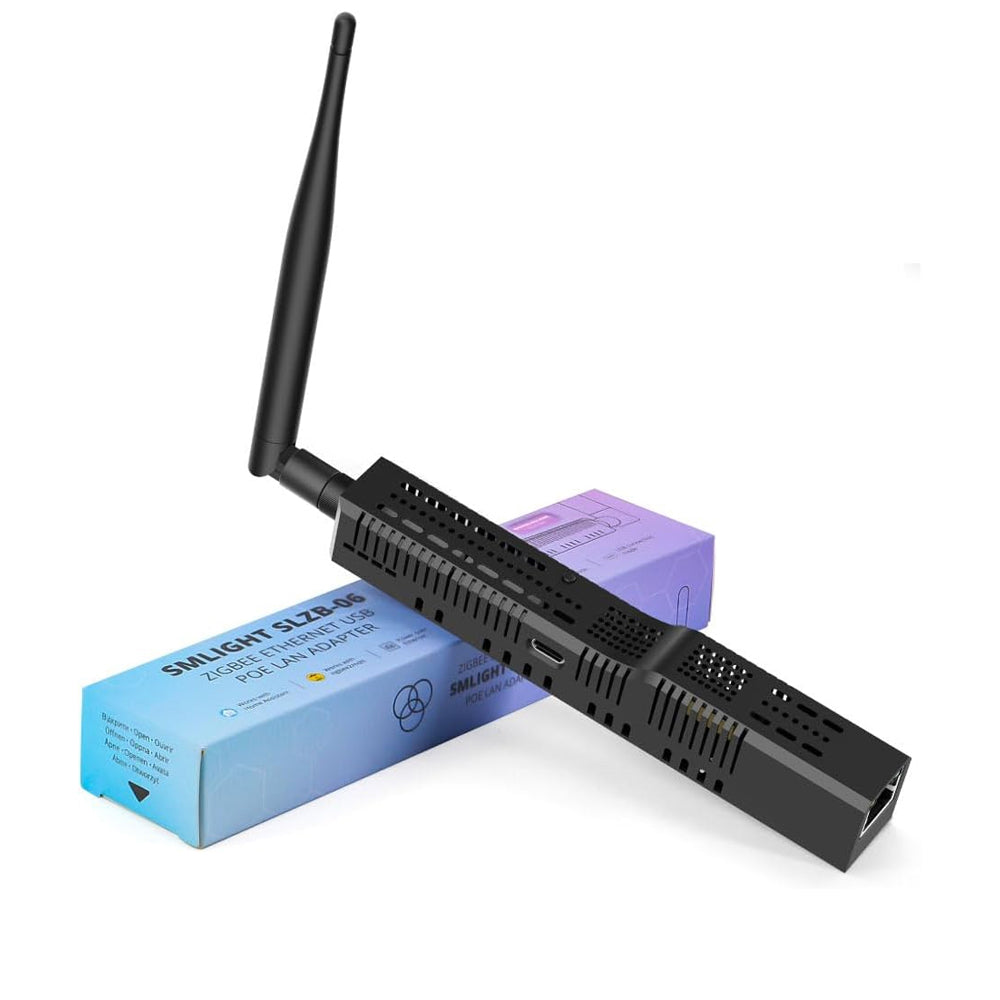

The SMLIGHT SLZB-06 series is a versatile range of Zigbee adapters that function as Zigbee-to-LAN, USB, or Wi-Fi adapters.

Depending on the model, the adapters are equipped with a CC2652P / CC2652P7 / CC2652P10 (Texas Instruments) or EFR32MG21 (Silicon Labs) chip – both offer outstanding performance for smart home applications.

Power is supplied via PoE (Power over Ethernet), USB-C, or micro-USB. A key feature is the optoelectronic isolation between Ethernet and USB, allowing both to be used simultaneously and safely.

---

Flexible connectivity: Works via Ethernet (PoE), USB-C, or Wi-Fi.

High-performance Zigbee chips: CC2652P/P7/P10 or EFR32MG21 – depending on the model.

Expandable Zigbee capacity: Manage up to 150 devices per adapter. Multiple adapters can be used to increase total network capacity proportionally.

Secure Zigbee network expansion: LAN coordinators are more reliable than standalone Zigbee routers as they are less prone to connection losses.

Independent placement: Thanks to LAN/Wi-Fi, the adapter can be placed independently of the server for optimal performance.

Zigbee2MQTT, ZHA, and Thread support: Compatible with Home Assistant, OpenHAB, and other smart home platforms.

ESP32 for high stability: The integrated ESP32 ensures solid performance and enhanced system reliability.

ESP32 Autoboot: Simplifies flashing via USB-C – perfect for updates or custom development.

Compact Design: Only 22 mm wide – ideal for tight installation spaces.

---

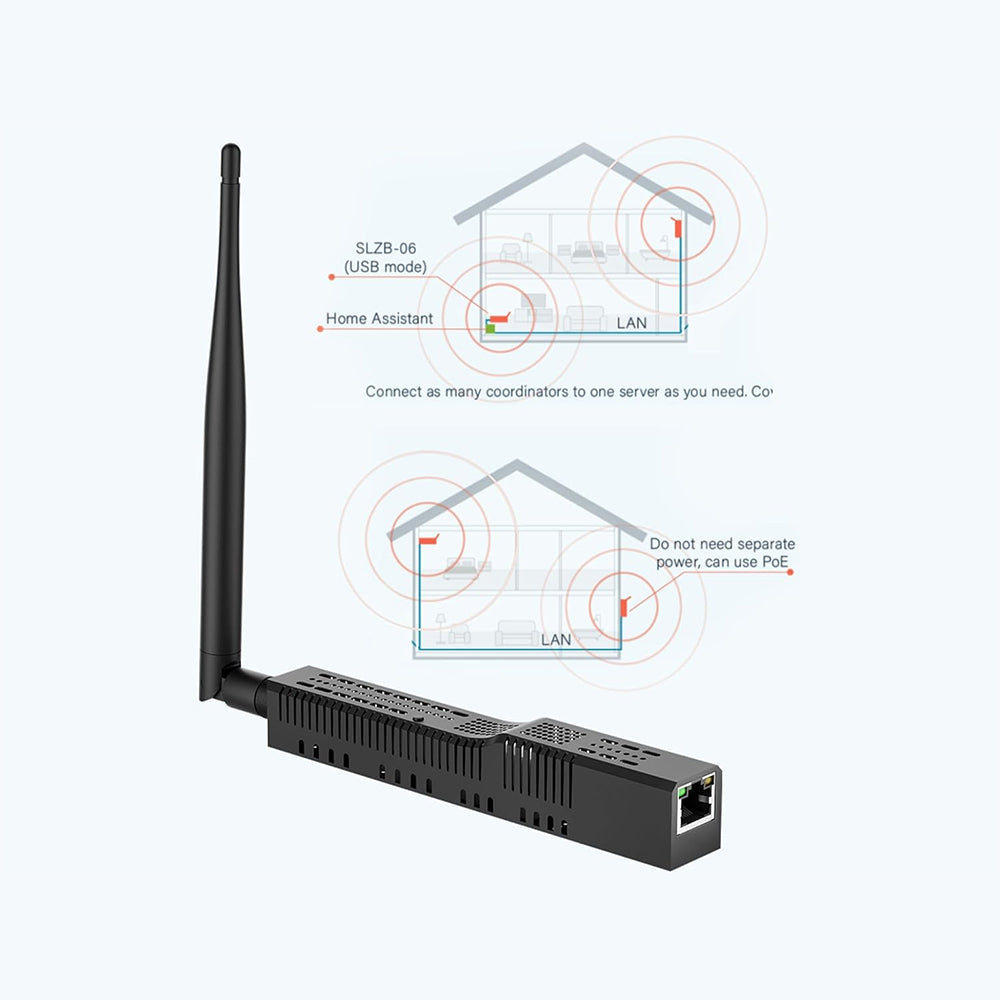

Recommended Use Cases for the SMLIGHT SLZB-Series

Thanks to its flexible power supply options and versatile network connectivity, the SLZB-06 is ideal for:

Smart home systems with multiple Zigbee devices

Large areas requiring a stable Zigbee network

Installations where the Zigbee coordinator needs to be positioned separately from the Home Assistant hub

Multi-building scenarios (e.g., houses, garages, offices) connected to a single Zigbee network

Why optoelectronic isolation between Ethernet and USB?

Thanks to the isolation between USB-C and Ethernet, both interfaces can be used simultaneously without interference. This means you can connect the adapter to Home Assistant via USB while also integrating it into your network via Ethernet.

Why a 5 dB antenna?

The included 5 dB antenna significantly improves the Zigbee signal range, ensuring a more stable connection between your smart home devices.

---

Specifications Green:

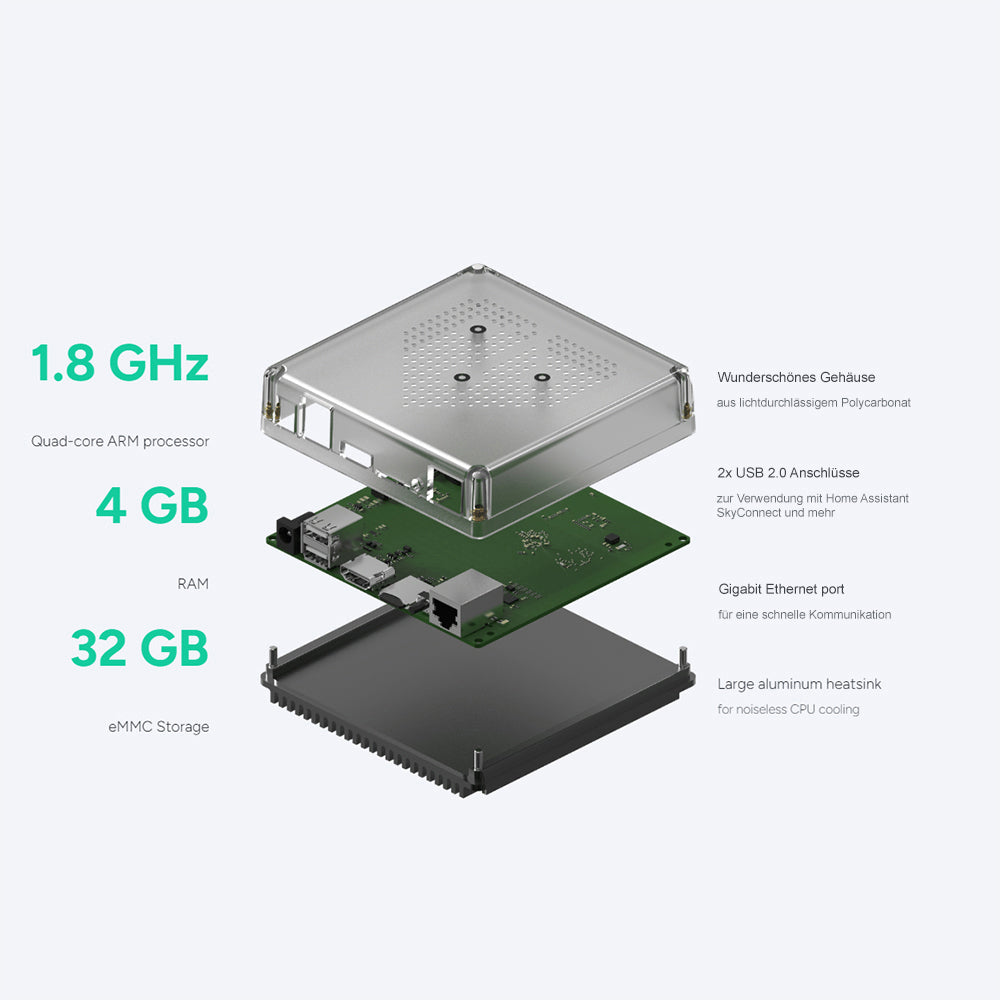

Hardware specifications

SoC: Rockchip RK3566 SoC with quad-core Arm Cortex-A55 CPU

CPU Frequency: 1.8 GHz

Storage: 32 GB eMMC flash drive

Memory: 4 GB LPDDR4X

Interfaces

Status LEDs: White (power indicator), Green (activity indicator), Yellow (system health indicator)

Power supply: DC barrel connector, 5.5 mm * 2.1 mm / 12 V DC, 1 A

Battery: CR2032. Not included. Optional.

Energy consumption Idle: ~1.7 W at 12 V

Energy consumption Load: ~3 W at 12 V

USB: 2x USB 2.0 Type-A Host ports, 5 V up to 2 A (combined)

Display: HDMI port, for diagnostic purposes only

External storage: MicroSD slot, for recovery purposes only

Networking: Gigabit Ethernet port

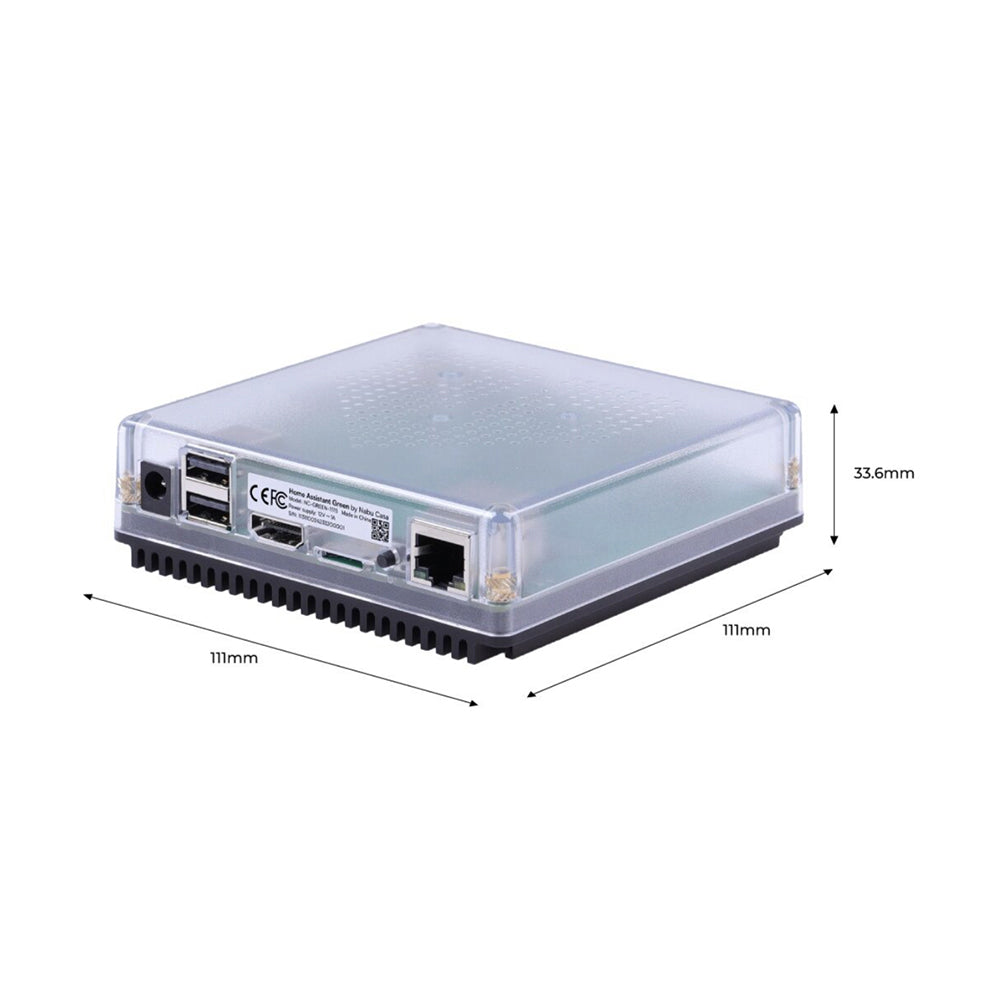

Dimensions and weight

Length: 112 mm / 4.41 inches

Width: 112 mm / 4.41 inches

Height: 32 mm / 1.26 inches

Weight: 340 g / 12 oz

Materials

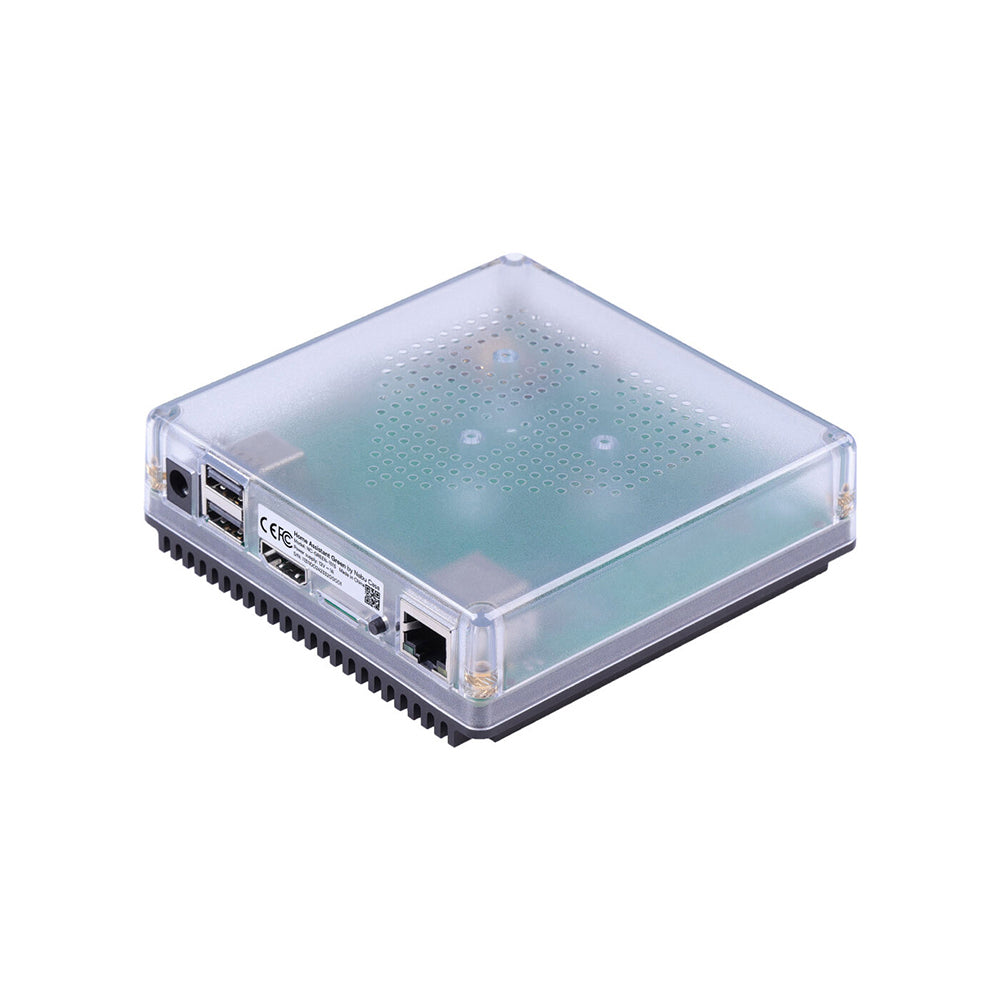

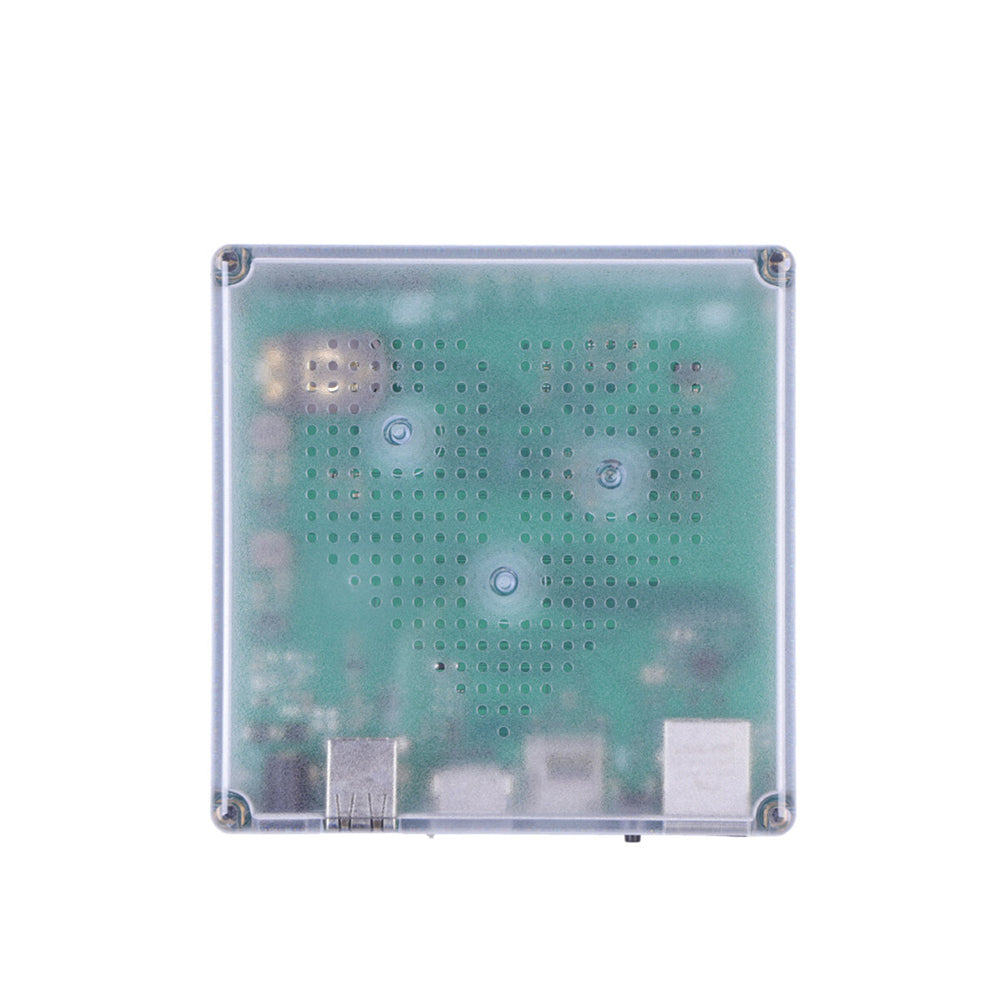

Enclosure: Semi-transparent polycarbonate plastic

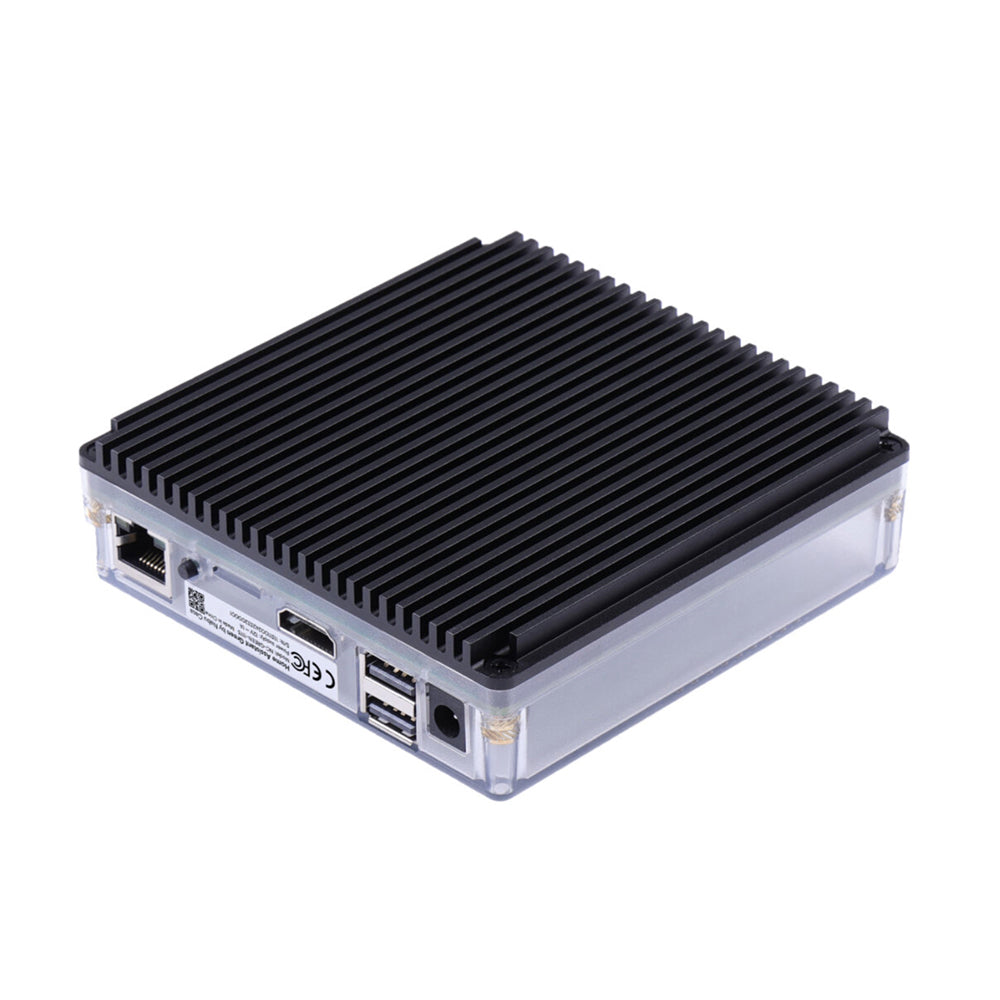

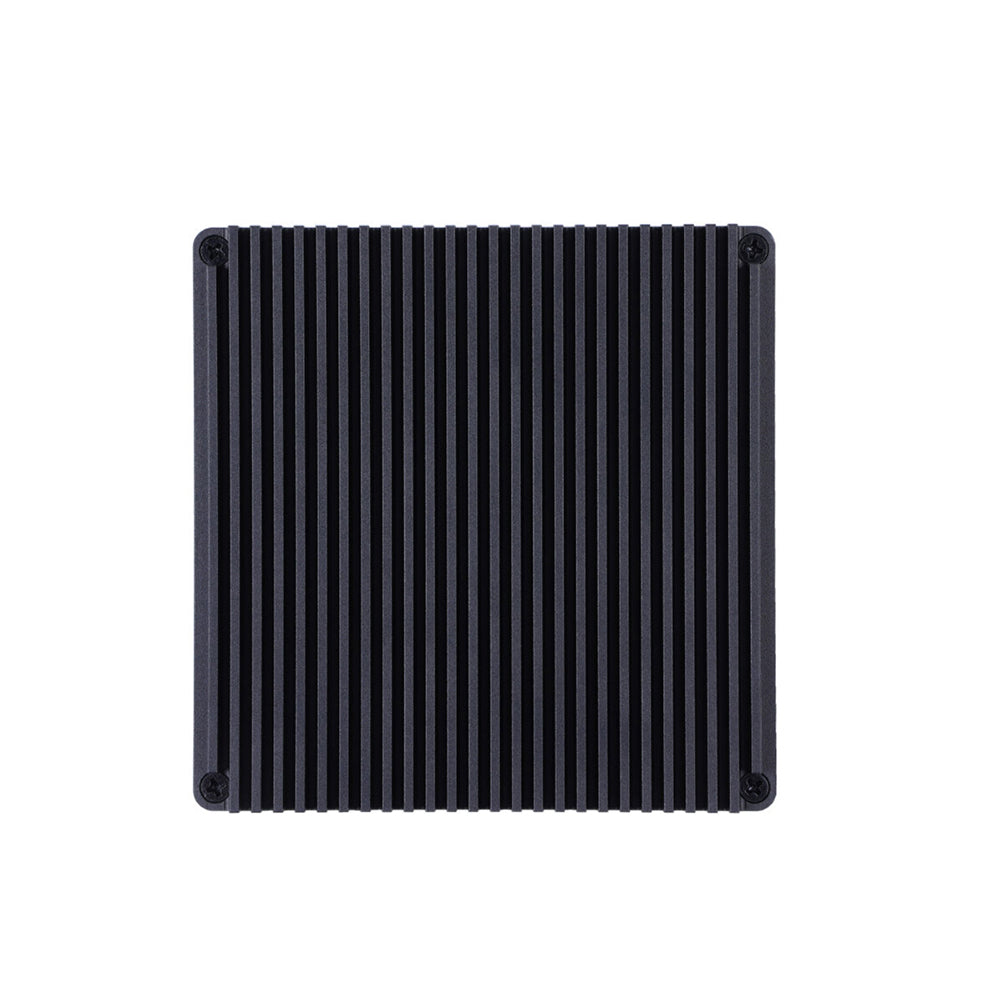

Heatsink: Anodized aluminum

Packaging: Chipboard

Environmental conditions for operation

Temperature: O °C to 40 °C / 32 °F to 104 °F

Humidity: Non-condensing

Room conditions: Indoor use only, Keep in dry, not excessively dusty environment as this can cause damage to the unit.

Product information

Model No.: NC-GREEN-1175

Origin: Made in PRC

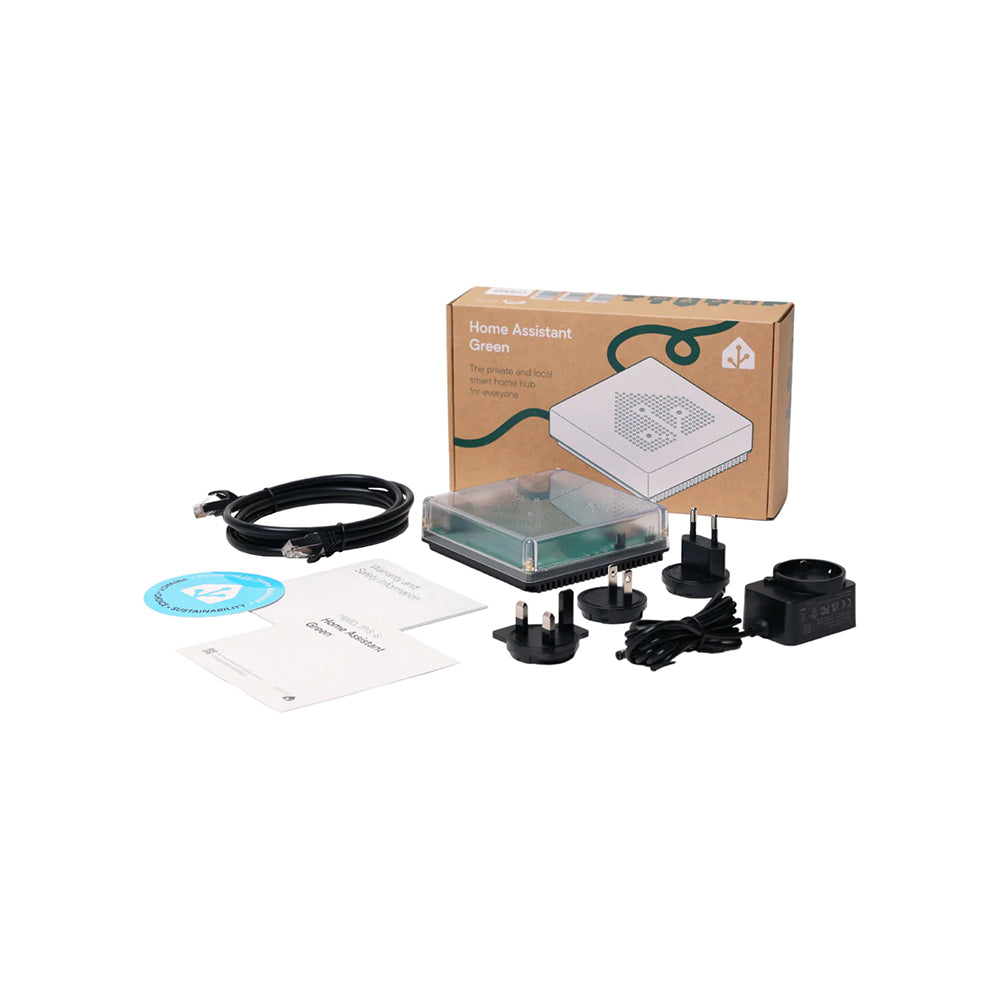

What's in the box

Home Assistant Green smart home hub

1x Gigabit Ethernet cable

Universal power supply, 12 V DC, 1 A, Comes with plug adapters for EU, US, and UK

Quick Start Guide

Warranty and Safety Information

Specifications SMLIGHT:

Model Variants:

SLZB-06: CC2652P (Texas Instruments), 88 KB RAM, 352 KB Flash

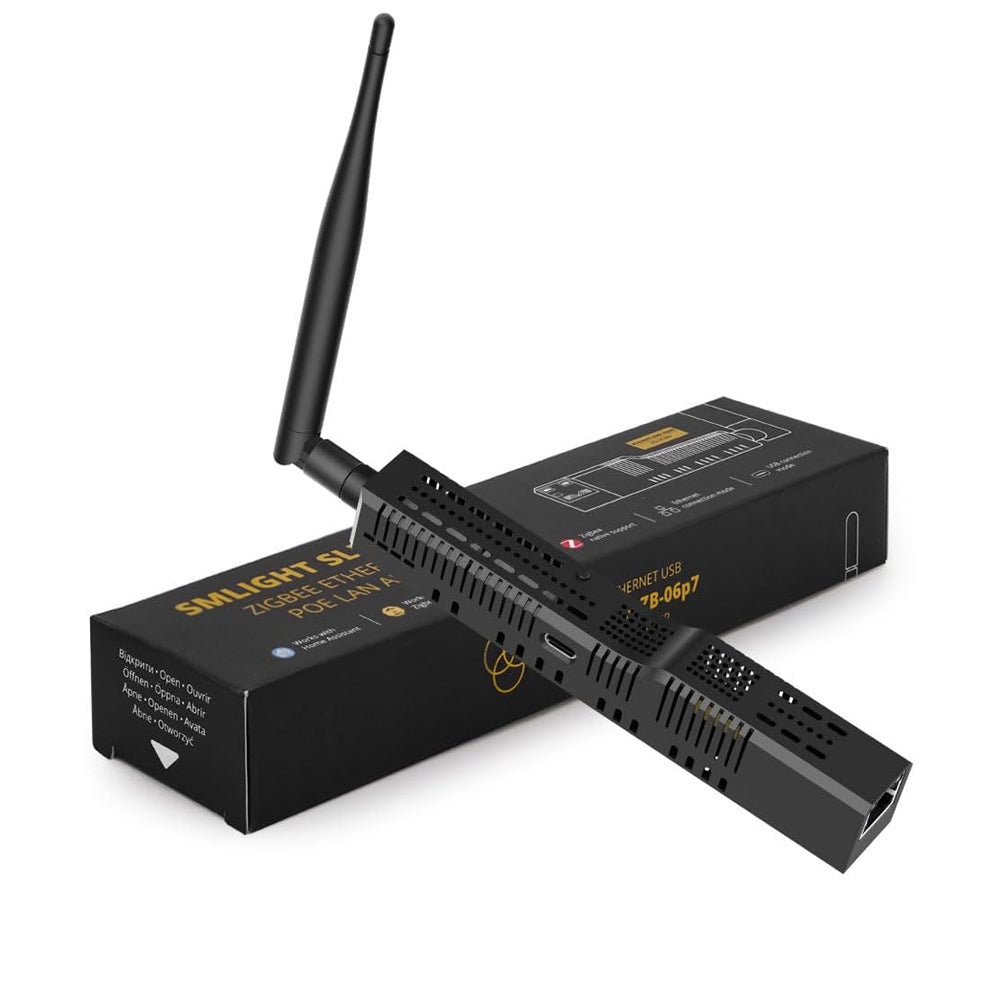

SLZB-06P7: CC2652P7 (Texas Instruments), 152 KB RAM, 704 KB Flash

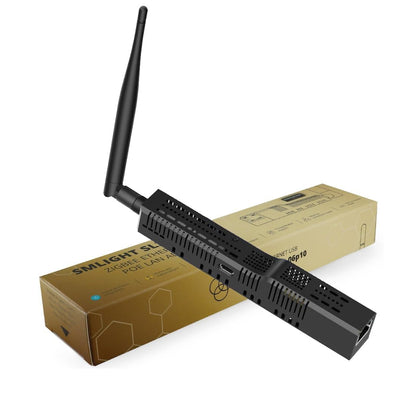

SLZB-06P10: CC2674P10 (Texas Instruments), 152 KB RAM, 704 KB Flash

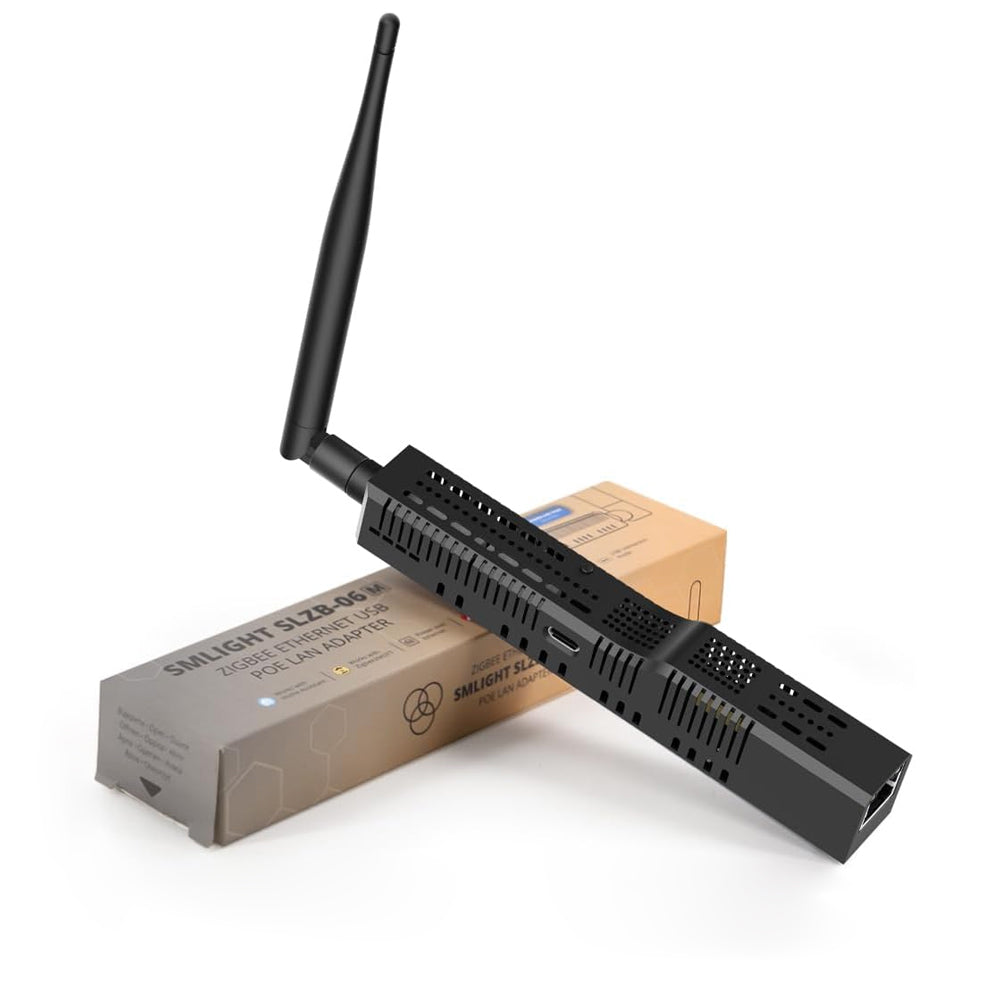

SLZB-06M: EFR32MG21 (Silicon Labs), 96 KB RAM, 1024 KB Flash

Main Controller: ESP32 (Espressif)

USB/UART Bridge: CP2102 (921600 bps)

Ethernet SoC: LAN8720

Zigbee SoC Output Power: up to +20 dB

Additional Antenna: +5 dB

Ethernet Support: Yes

Wi-Fi Support: Yes

PoE Support: Yes, IEEE 802.3af (15W)

USB Type-C Control: Yes

ESP32 Autoboot: Yes, via DTR/RTS

Pre-flashed: Yes, with Zigbee and ESP firmware

Zigbee 3.0 Coordinator Mode: Yes

Zigbee 3.0 Router Mode: Yes

Zigbee to Ethernet: Yes

Zigbee2MQTT Support: Yes

Thread Support SLZB-06, SLZB-06P7, SLZB-06M: Yes, possible via firmware update, but not in parallel with Zigbee

Thread Support SLZB-06P10: Yes, natively supported (hardware designed for parallel Zigbee + Thread operation)

Housing: Compact design, < 22 mm width

Dimensions (LxWxH): 160 x 22 x 24 mm

Weight: 10 g

Operating Environment: +5 °C to +35 °C

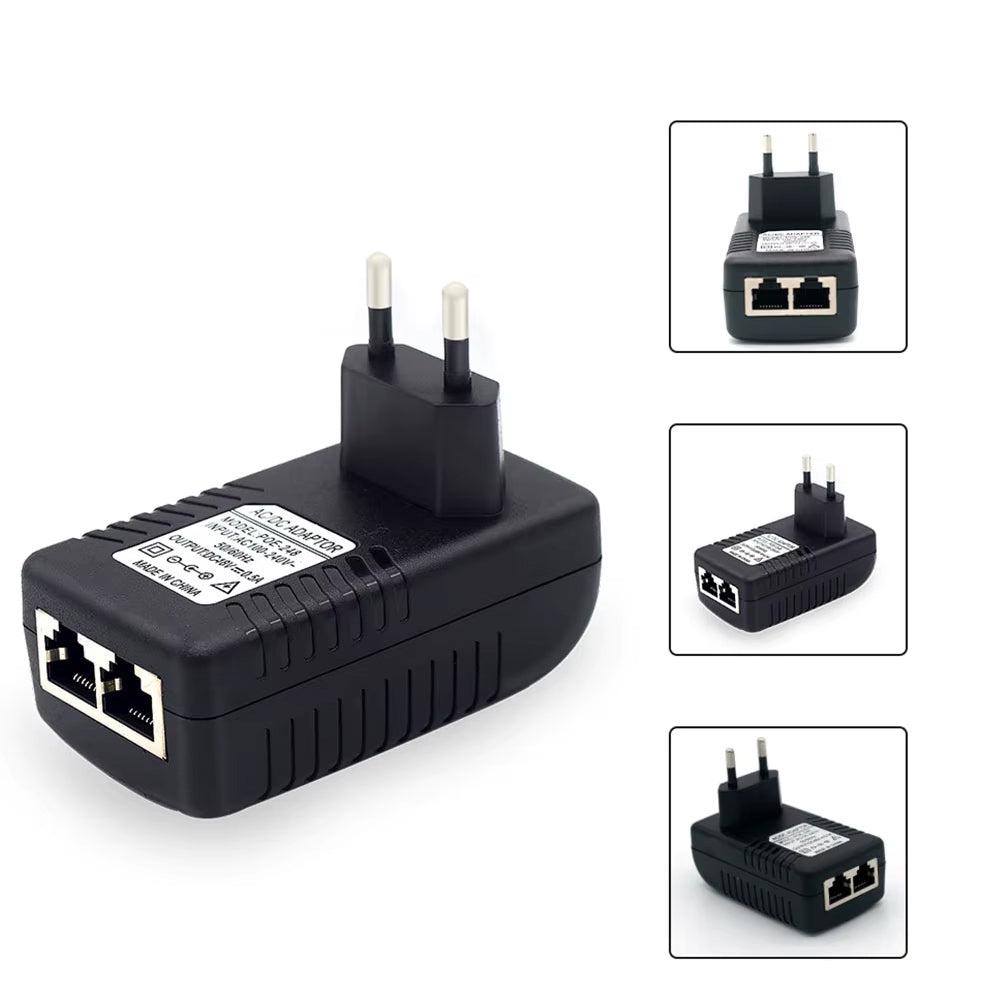

Specifications PoE Injector:

Input Voltage: 100-240V AC, 50-60Hz

Output Voltage: 48V DC

Output Power: 24W

PoE Standard: IEEE 802.3af/at

Ethernet Speed: 10/100Mbps

Ports: 1x RJ45 input, 1x RJ45 output (PoE)

Operating Temperature: 0°C to 40°C

Storage Temperature: -20°C to 70°C

Humidity: 10% to 90% non-condensing

Dimensions: 140 x 60 x 35 mm

Weight: 350g

Model Variants:

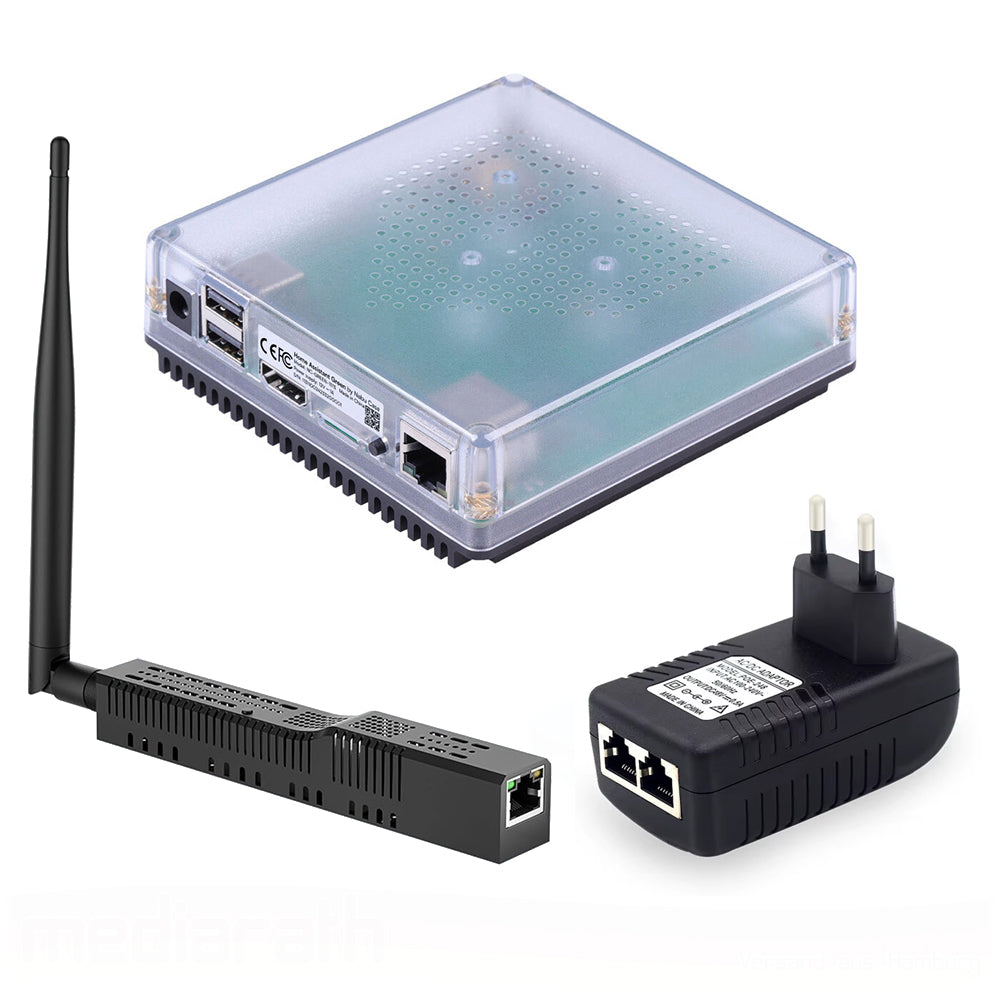

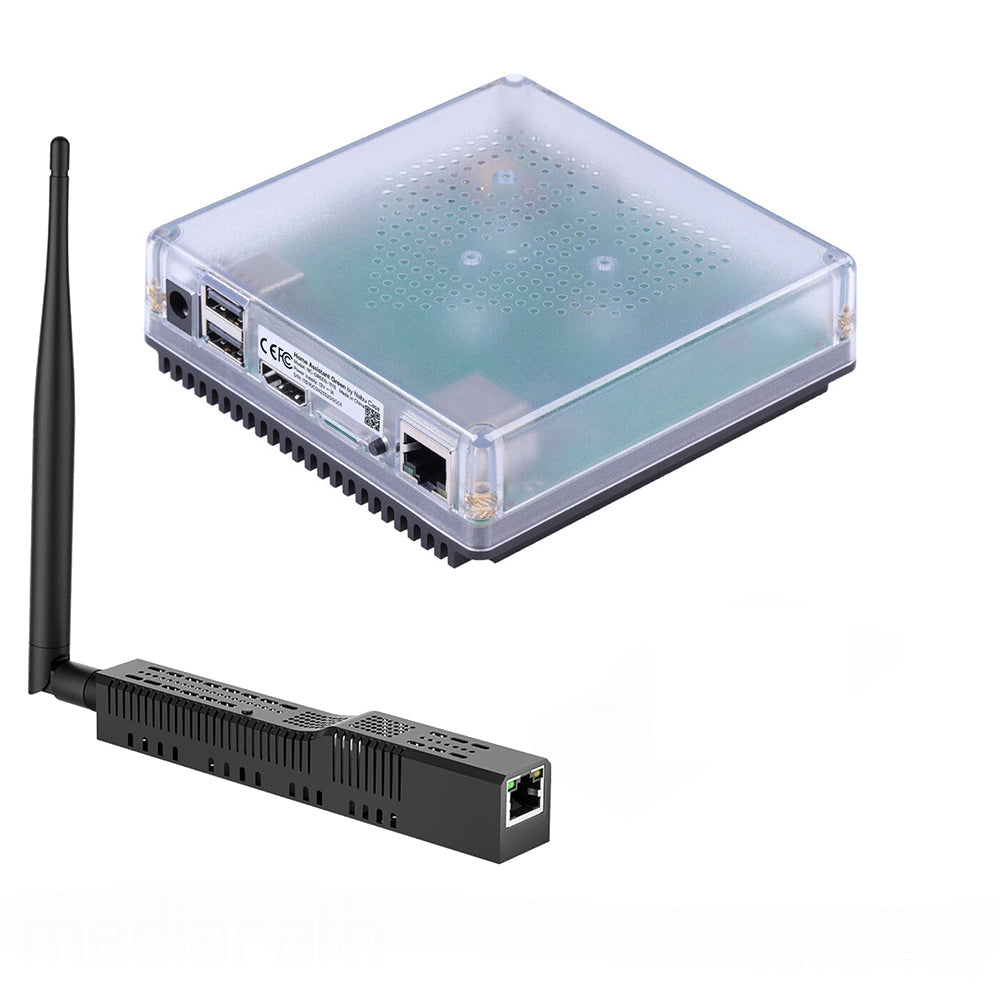

Green + SLZB Series (see variant selection) + PoE Injector Green + SLZB Series (see variant selection) Green only SLZB-06 only SLZB-06P7 only SLZB-06P10 only SLZB-06M only PoE Injector only
