Shelly 2PM Gen3 WiFi 2-Kanal-Schalter mit Tasmota
Shelly 2PM Gen3 WiFi 2-Kanal-Schalter mit Tasmota
Out of stock
Couldn't load pickup availability
Features & Compatibility
Shelly 2PM Gen3 with Tasmota
Pre-flashed with Tasmota 15 and prepared for local integration via MQTT.
Shelly 2PM Gen3 is a dual-channel in-wall relay for controlling lighting, socket circuits, roller shutters, blinds and other bidirectional AC motors.
Both channels measure energy consumption. In cover mode, position and slat angle can be automated.
The Tasmota firmware enables cloud-independent integration with home automation solutions. Wi-Fi, Bluetooth gateway, MQTT, webhooks and scripting provide extensive local automation options.
Safety functions including overheating, overcurrent, overvoltage and overpower protection support reliable operation.
Technical Specifications
Dimensions (H x W x D): 37 x 42 x 16 mm (±0.5 mm)
Weight: 30 g

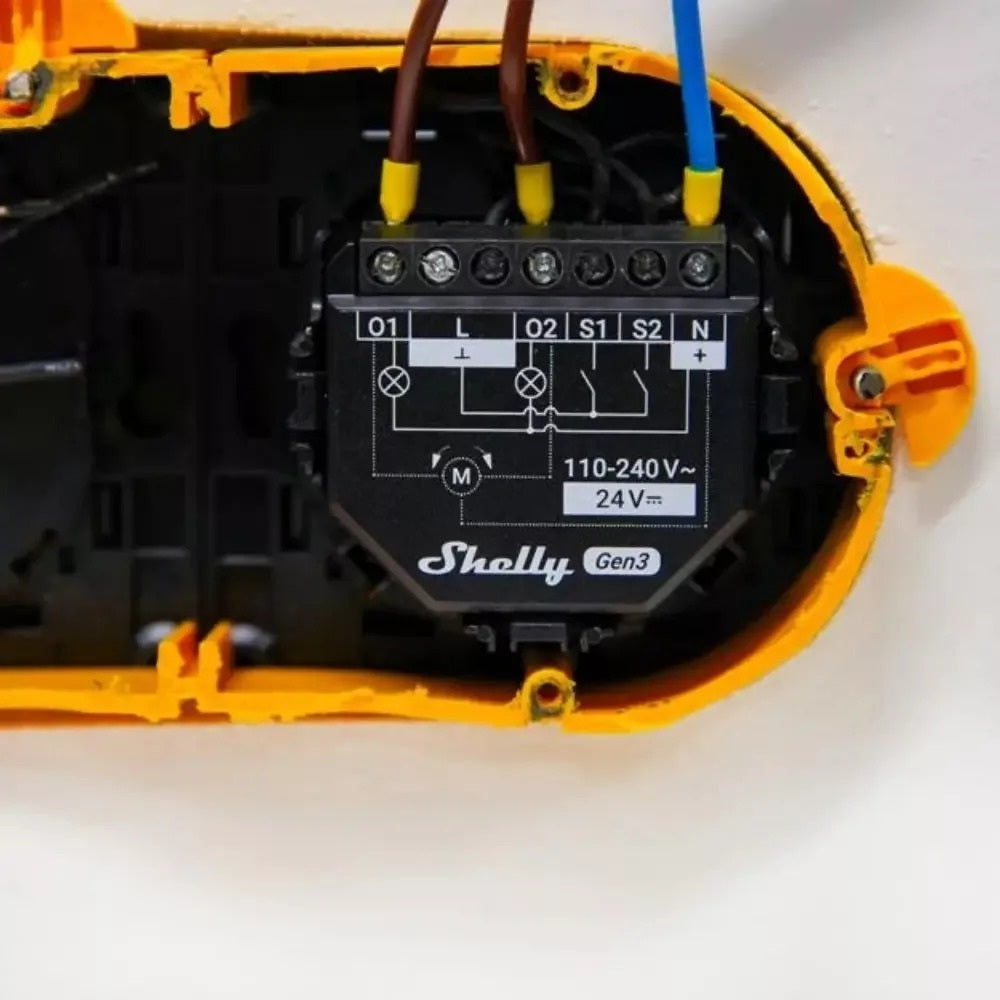

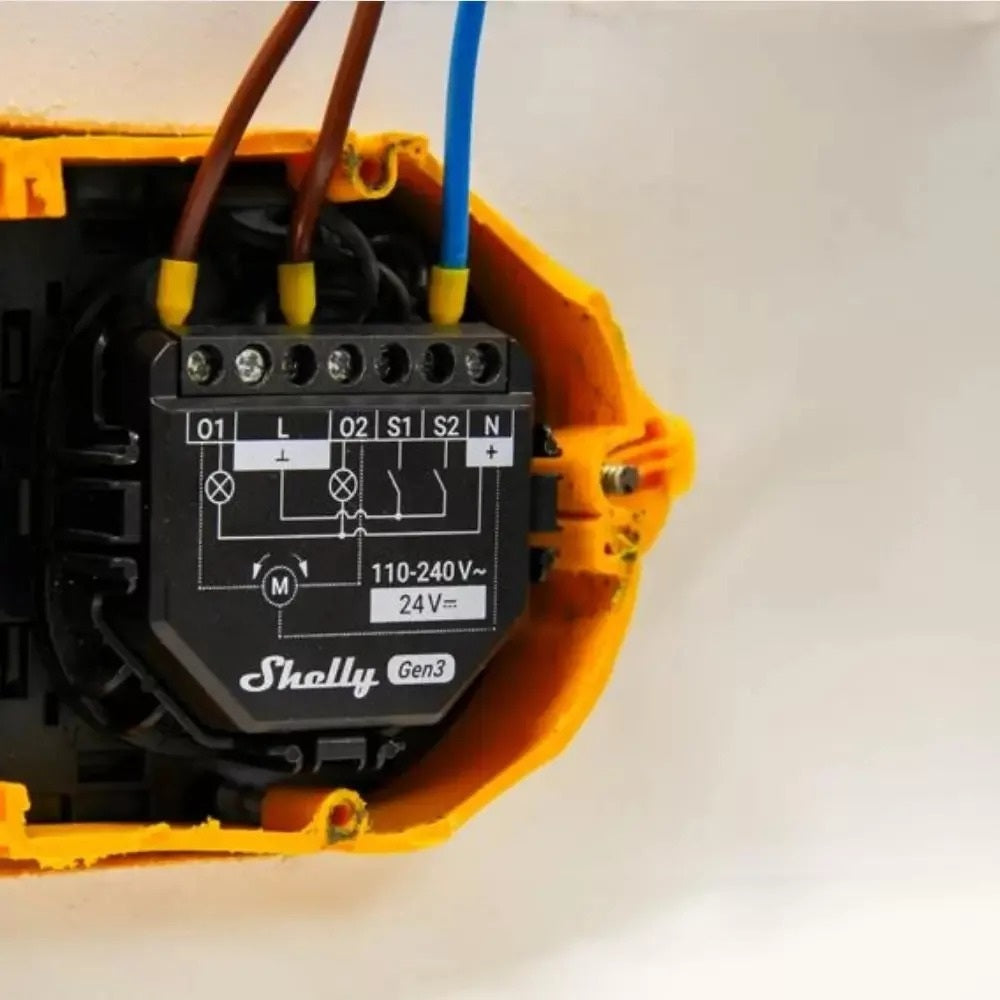

Mounting: Wall box
Housing material: Plastic
Operating temperature: -20 °C to 40 °C
Humidity: 30% to 70% RH
Power supply: 110-240 V AC / 24 V DC (±10%), 50/60 Hz
Power consumption: < 1.4 W
Max. switching voltage: 240 V AC / 30 V DC
Max. switching current AC: 10 A per channel, 16 A total, 18 A peak
Max. switching current DC: 10 A
Channels: 2 relay outputs with power metering
Wi-Fi: 802.11 b/g/n, 2.4 GHz; up to 30 m indoors / 50 m outdoors
Bluetooth: 4.2; gateway function
Processor: ESP-Shelly-C38F, 8 MB flash
Supported functions: MQTT, webhooks, HTTPS, UDP, TLS, scripting and schedules
Safety functions: Overheating, overvoltage, overcurrent and overpower protection
Model Variants
Tasmota German
Tasmota English
Tasmota in an individual language (please send us a message)
Shelly original firmware (without Tasmota)
