Shelly Plus 1 Mini Gen3 8A DC-AC ESP32 flush-mounted WiFi switch relay Tasmota 14

Article description:

Flush-mounted Smart WiFi relay

Already flashed with the latest Tasmota firmware.

Shelly PLUS 1 Mini Gen3 is one of the smallest, open source, WiFi-equipped devices for intelligent circuit control. Due to its small size, you can install it behind a socket/light switch like a normal light switch.

The Shelly Plus Mini Gen3 product line is the compact mini version of the Shelly Plus series. It offers the same smart features, but with a smaller size and lower maximum power.

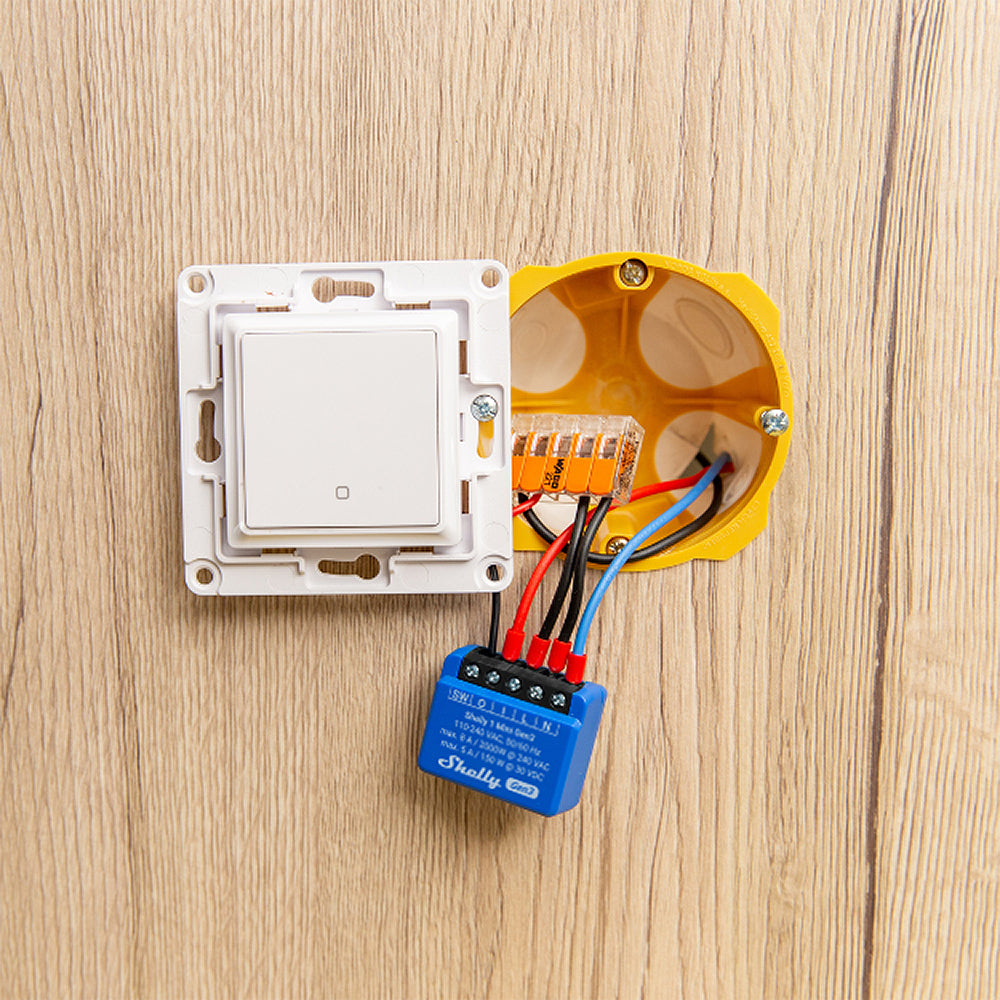

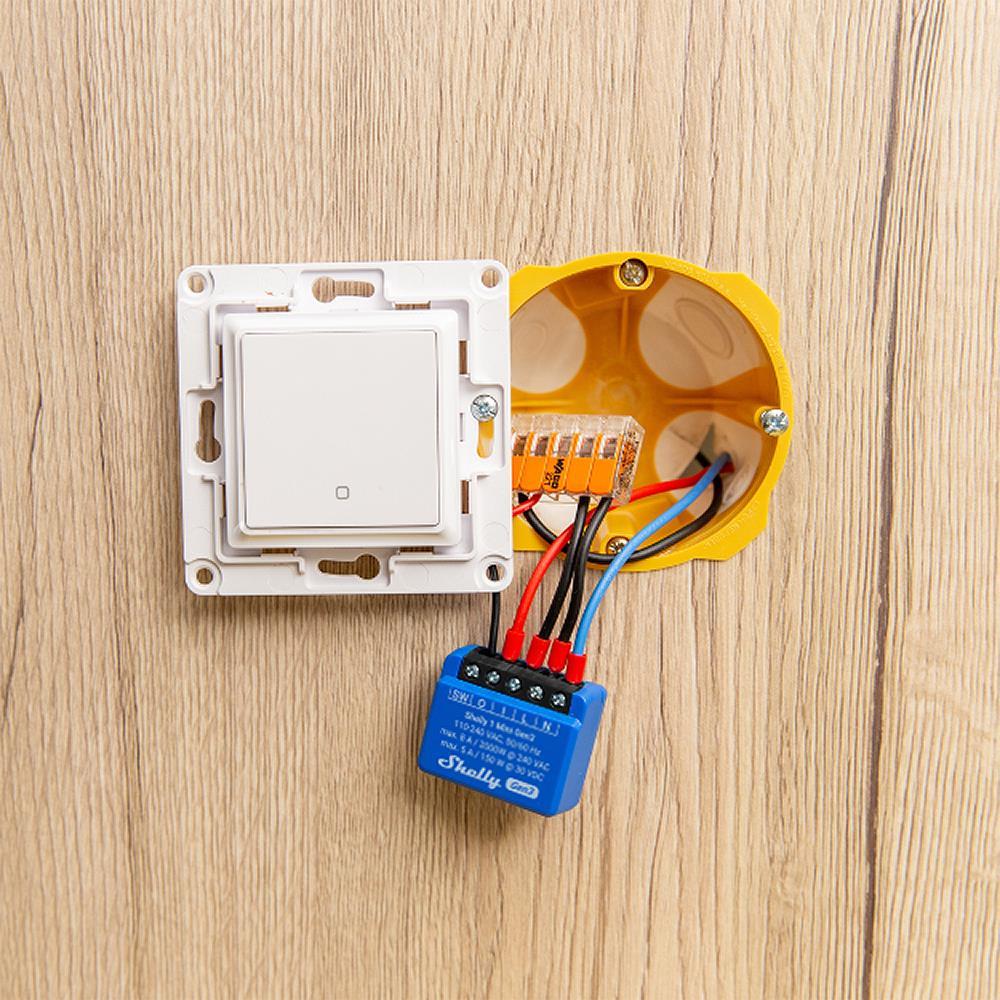

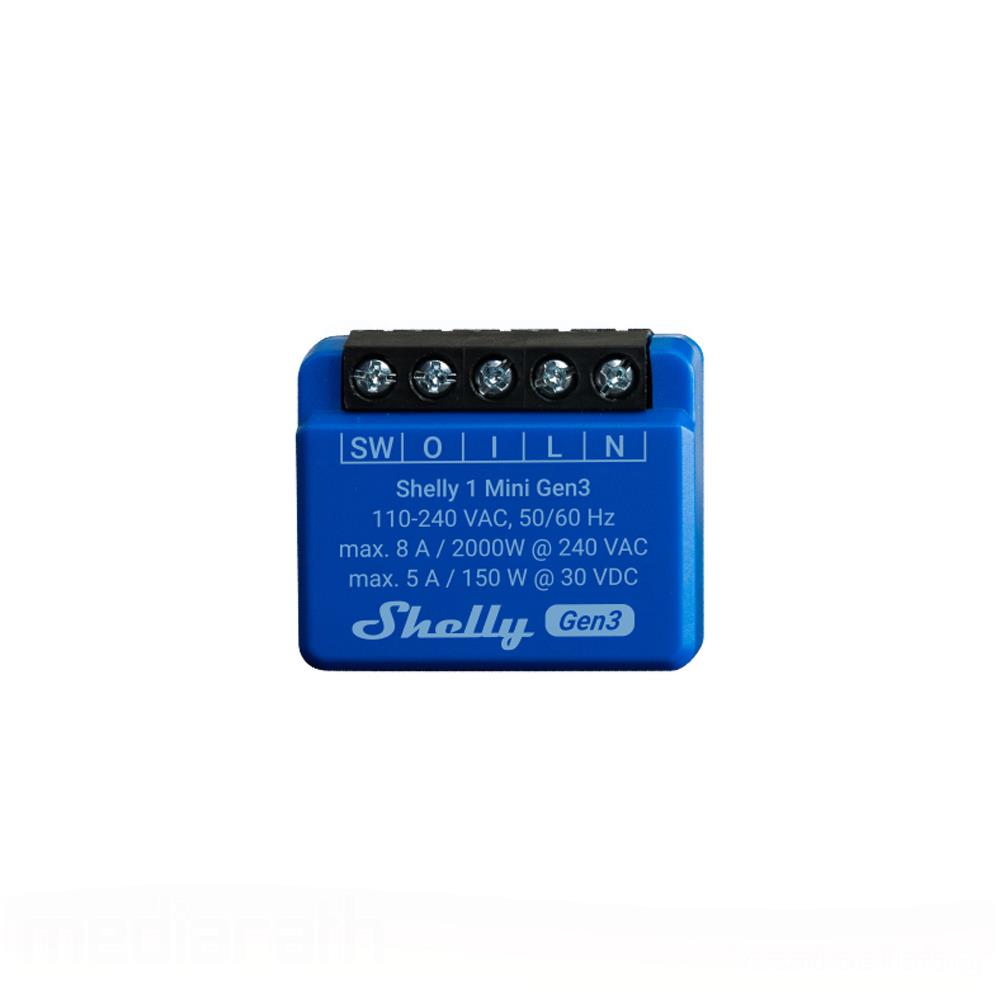

The small dimensions of the Plus Line Mini Gen3 devices allow for easy installation behind any wall switch or wall socket and are fully retrofittable. Each Plus Mini Gen3 device comes with a wiring diagram printed on the case to ensure safe and easy installation.

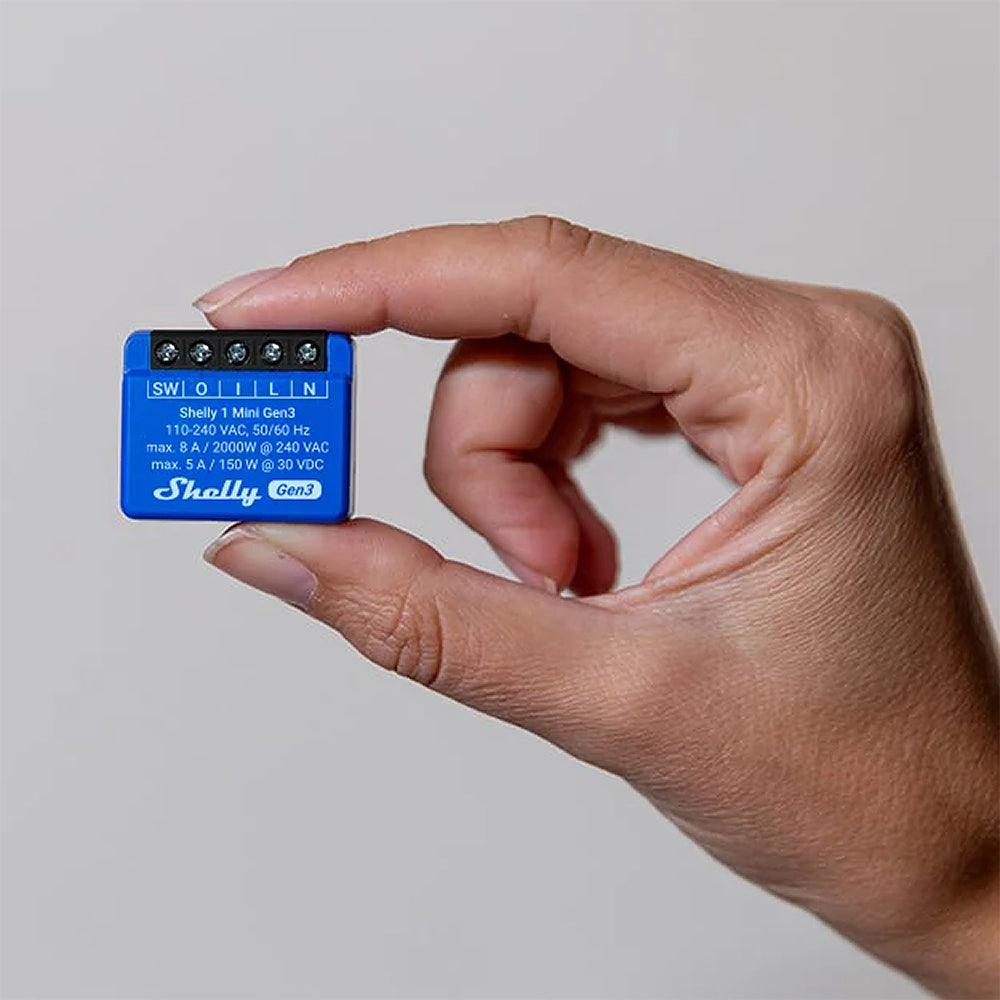

The world's smallest relay switch for intelligent control. Automate your lighting, irrigation system or other small electrical devices in less than 10 minutes and control them from anywhere. Shelly PLUS 1 Mini Gen3 is small enough to fit behind any wall switch or outlet, is retrofittable, and is compatible with your existing smart ecosystem.

• No hub required!

• Easy control via the Shelly Smart Control app, most platforms and protocols, and voice assistants.

• Use it with Alexa, Home Assistant or your favorite automation platform.

• Supports up to 8A at 240VAC and 5A at 30VDC dry contacts (floating) - option for contactor control

• Wi-Fi range extender and Bluetooth gateway.

• Extremely fast processor for immediate response - ESP32.

• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates.

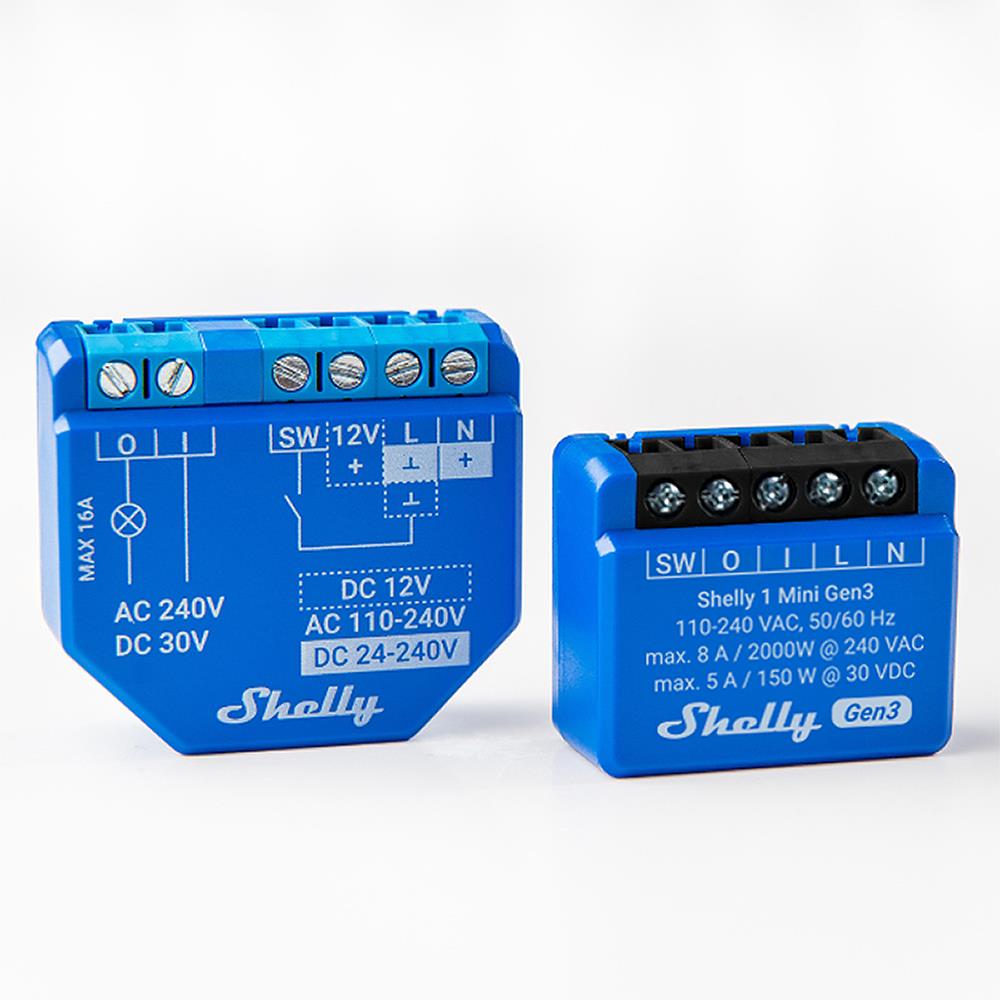

Designed with convenience in mind, these mini relays offer all the capabilities of the Plus Series in a compact and space-saving form factor. With a 35% reduced size compared to the Shelly Plus devices, the Shelly Plus Mini are perfect for tight spaces where traditional relays simply won't fit. Despite their small size, the Shelly Plus Mini devices do not compromise on performance or functionality.

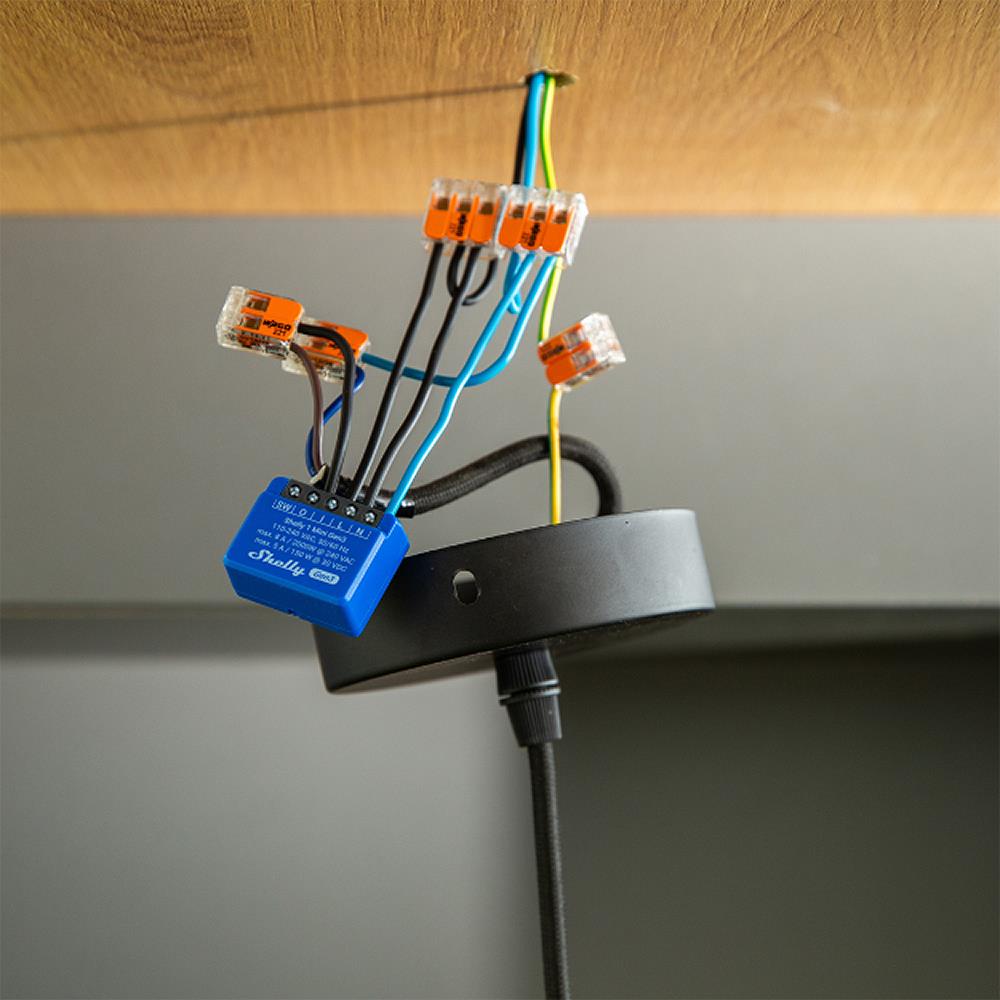

Size matters! - The Shelly Plus Mini devices open up a world of possibilities, allowing you to seamlessly integrate them into even the tightest spaces and switch boxes. Thanks to their reduced size, the Shelly Plus Mini Relays fit effortlessly into all Types of electrical distribution boards, including Danish wall boxes. Additionally, you can discreetly install it directly into the device you want to control or monitor.

Technical data:

General

Brand: Shelly

Color: Color: blue, with printed drawing

Electrical Properties

2-way or 3-way switching: Yes

Smart Home Protocols

Bluetooth: Bluetooth pairing with the phone. Additionally, Bluetooth remote controls can be paired with it to control it remotely. Additionally, Bluetooth hub capabilities allow control of other non-Bluetooth Shelly devices.

Remote control, intelligent control

Controllable from Internet: Yes

Cloud mode: Yes, Shelly devices can connect to the factory cloud (optional Setting).

MCU

Processor: ESP-Shelly-C38F

Flash memory: 8 MB

More functions

Power supply of the device: AC (110V-) (phase and neutral)

Power supply of the device: 110V-240V AC

Built-in relay: Yes

External switch supported: Yes

History: yes: On/off history in the app (the last 50 events for each Shelly account)

Manufacturer smartphone app: Yes, a free app (Shelly Cloud) is available for iOS and Android.

Max. Power consumption: 0.3W

Inching: Yes, Auto On and Auto Off Settings available

MQTT support: Yes

Notification functions: send email, receive notifications in the Shelly app.

Number of groups / circuits: 1

Overheating protection: Yes

Physical on/off switch on device: Yes

Product Type: smart WiFi relay, also for dry contact

Rated current (output): 8A (AC), 5A (DC)

Rated voltage (output): potential-free contact, max. 30V DC, max. 250V AC

Remote control options: Bluetooth, Wi-Fi

REST API support: Yes

Timers: Yes, (after synchronizing the time on the Internet) a limited number of schedules work in offline mode, additional schedules can be executed in online mode from the cloud.

Supported Integrations: Compatible with Amazon Echo, Google Home, HomeSeer, openHAB, Home Assistant, ioBroker, Hubitat, Hoobs, Symcan, Domoticz, nymea, SmartThings (Beta) and REST API.

Voice control: Compatible with Amazon Alexa and Google Assistant

Web admin interface: Yes, with almost the same functionality as in the app.

Wi-Fi: Yes

Wi-Fi standards: 802.11 b/g/n (2.4 GHz)

Wiring: 230V AC (phase and neutral)

Dimensions: 2.9 × 3.5 × 1.6 cm

More information:

More:

New goods available immediately with Tasmota firmware

Model variants:

Tasmota german Shelly original (no Tasmota)
