Shelly Plus 2PM 16A DC-AC Smart WiFi energy feed per channel Tasmota 14 PV

*VAT-free delivery according to Section 12 Para. 3 UStG.

Since January 1st, 2023, photovoltaic products have been exempt from VAT due to a funding measure. This means that private individuals receive significant tax relief when purchasing solar products to promote solar energy.

The following requirements must be met:

• My delivery address is in Germany.
• The installation only takes place if the photovoltaic system is installed on or near my private home, apartments as well as public and other buildings that are used for activities serving the public good.
• I confirm that the installed gross output of the photovoltaic system according to the market master data register (MaStR) is or will not be more than 30 kW (peak).
• I am the operator of the photovoltaic system. The ordered goods will not be resold commercially.
• I confirm that the components ordered are used exclusively to use the electricity generated by solar modules for energy management.

By ordering this VAT-exempt product, I confirm that the delivery is VAT-free in accordance with Section 12 Para. 3 UstG and that the requirements for the tax rate of 0% are met. If it subsequently turns out that these requirements were not met contrary to the confirmation (e.g. through an external audit), I agree that the underpaid sales tax will be subsequently invoiced.

Please note that orders with a company address or multiple orders that exceed the maximum order Quantity of 2 pieces will be canceled and the purchase amount will be refunded.

To ensure the smooth process, we ask you to contact us BEFORE purchasing if you have any questions or are unclear. Thank you very much.

You can find further information in the document from the Federal Ministry of Finance:

Zero tax rate for sales in connection with certain Photovoltaic systems

Article description:

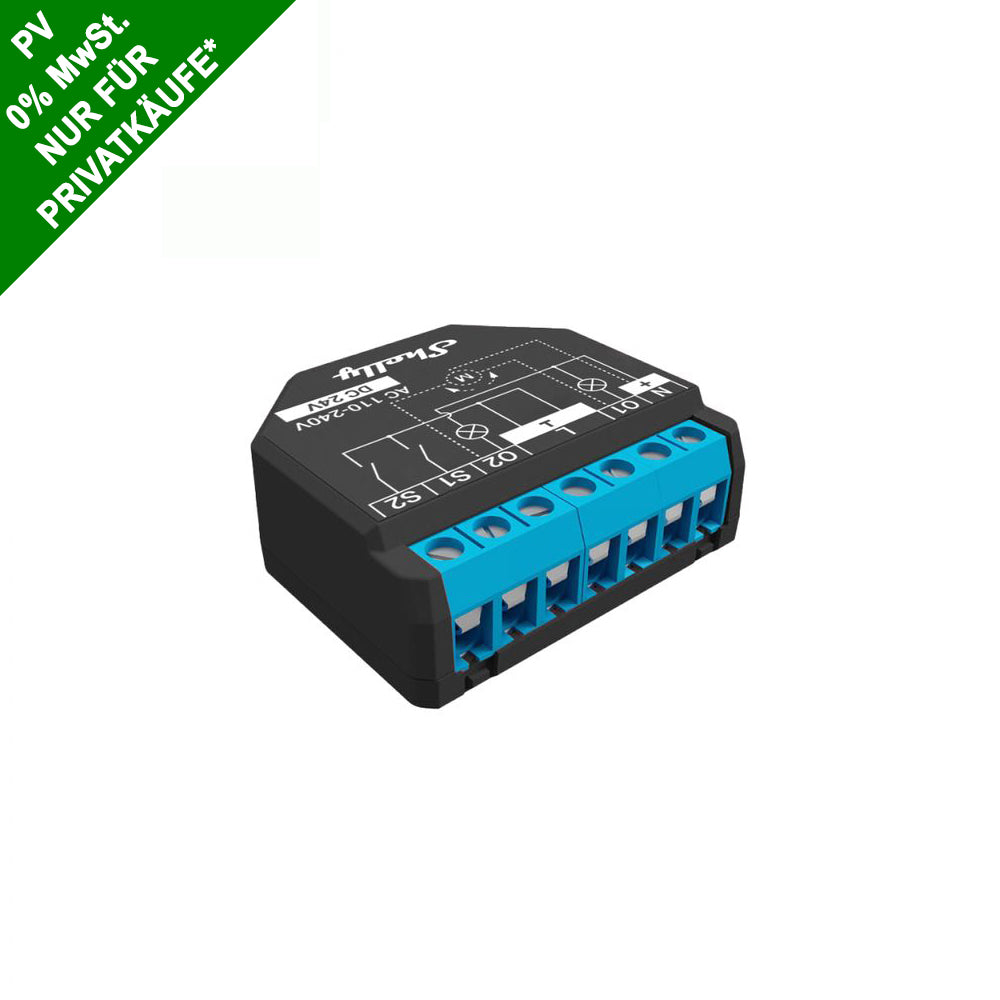

2 channel WiFi Smart Switch for energy supply

Already flashed with the latest Tasmota firmware.

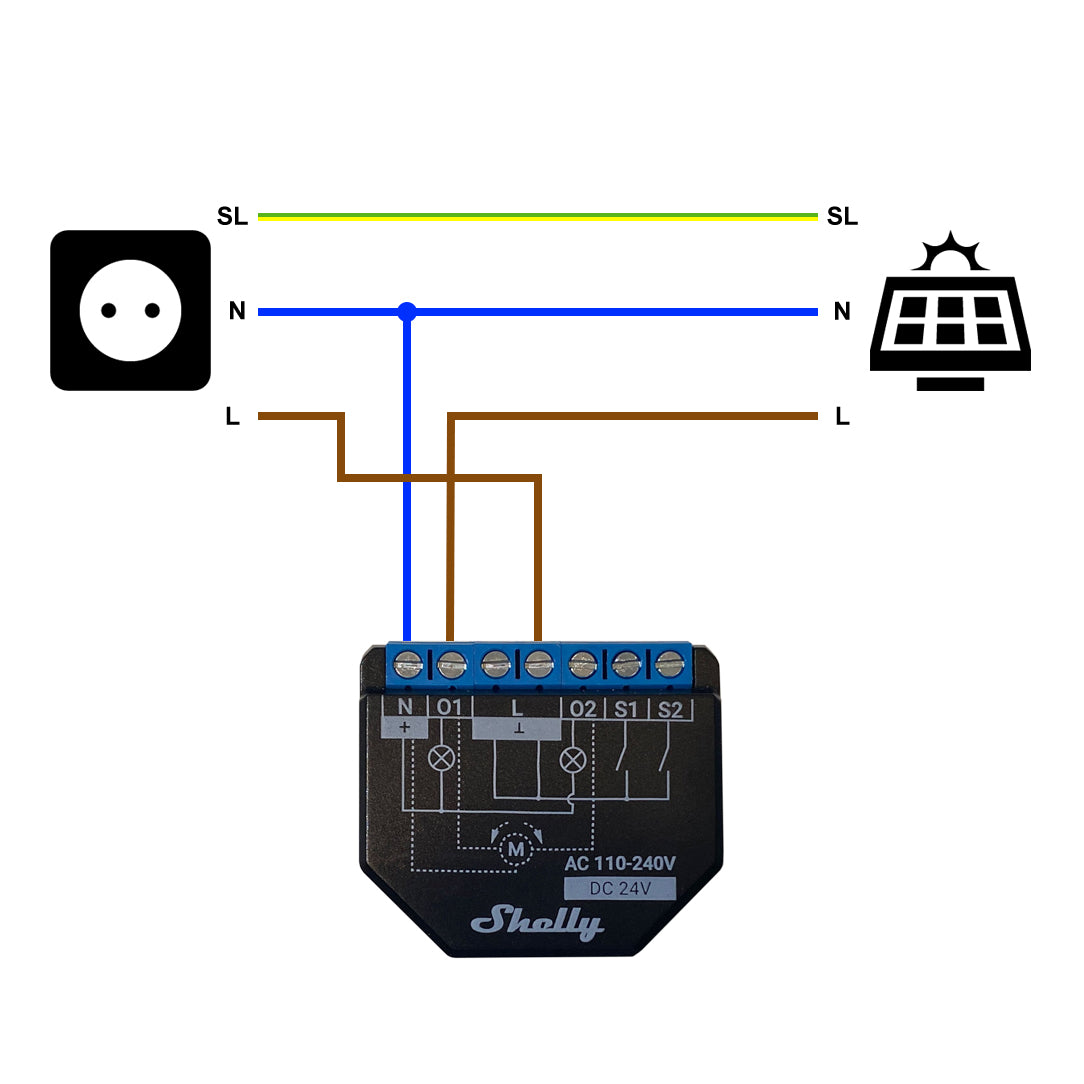

Solar feed-in - The Shelly Plus 2PM Wifi Switch proves to be an extremely useful device for monitoring solar yield. The switch is simply installed between the inverter and the house installation or socket. In order to efficiently control the yield, the Tasmota variant is particularly suitable, as the data can be further processed via MQTT. This means that many different evaluations can be created. With the help of suitable graphical representations such as Influx or Grafana, the data can also be visualized in an appealing way.

Shelly Plus 2PM is a single-phase, dual-channel smart relay that supports up to 10A per channel and 16A total current (18A peak).

It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption.

The roller shutter control allows you to control and monitor roller shutters, blinds, curtains, gates or other bi-directional AC motors.

The Shelly Plus 2PM fits into flush-mounted boxes and allows the switching of numerous devices such as lamps, roller shutters and many other electrical consumers. If you use deep flush-mounted boxes, the Shelly Plus 2PM even fits behind light switches and transforms them into smart switches in no time.

The internal temperature sensor is used to protect against overheating. If the internal temperature exceeds a danger level, the device will turn off.

The Shelly Plus 2PM is conveniently controlled with the unchanged firmware via the free mobile Shelly app or via Google Home or Amazon Alexa. The Tasmota version can be easily integrated into numerous home automation solutions via MQTT.

Wireless! No HUB required - Connect the Shelly Plus 1 directly to your home Wi-Fi.

Control remotely! Control your home lighting no matter where you are. No more leaving the lights on and coming home in the dark.

Wide range of voltage support. Shelly Plus 2PM can be used to control a wide range of devices and apparatus.

Sunrise/SunSet Schedules! Shelly Plus 2PM can automatically follow sunrise and sunSet and control your lighting accordingly.

Technical data:

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 42 x 38 x 17 mm

Minimum mounting opening: Ø 50mm

Working temperature: -20°C - 40°C

Input voltage AC: 110-240 V ±10%, 50/60Hz

Input voltage DC: 24V ±10%

Max. Switching voltage: 240 VAC / 30 VDC

Max. Input current per channel: 10A

Max. Input current: 16A (18A peak)

Radio range: up to 50 m free field and up to 30 m indoors (depending on the nature of the building)

Power consumption in standby mode: <1.4 W

Channels: 2 switching channels

Power consumption measurement: Yes, on every channel

Device temperature protection: Yes

Bluetooth: Yes
