Shelly Plus 2PM 16A DC-AC Switch WiFi Power Metering per Channel Tasmota 14

Article description:

2 channel flush-mounted WiFi Smart Switch with power consumption measurement

Already flashed with the latest Tasmota firmware.

Shelly Plus 2PM is a single-phase, dual-channel smart relay that supports up to 10A per channel and 16A total current (18A peak).

It is equipped with two power meters for each channel and an overpower protection function to limit your energy consumption.

The roller shutter control allows you to control and monitor roller shutters, blinds, curtains, gates or other bi-directional AC motors.

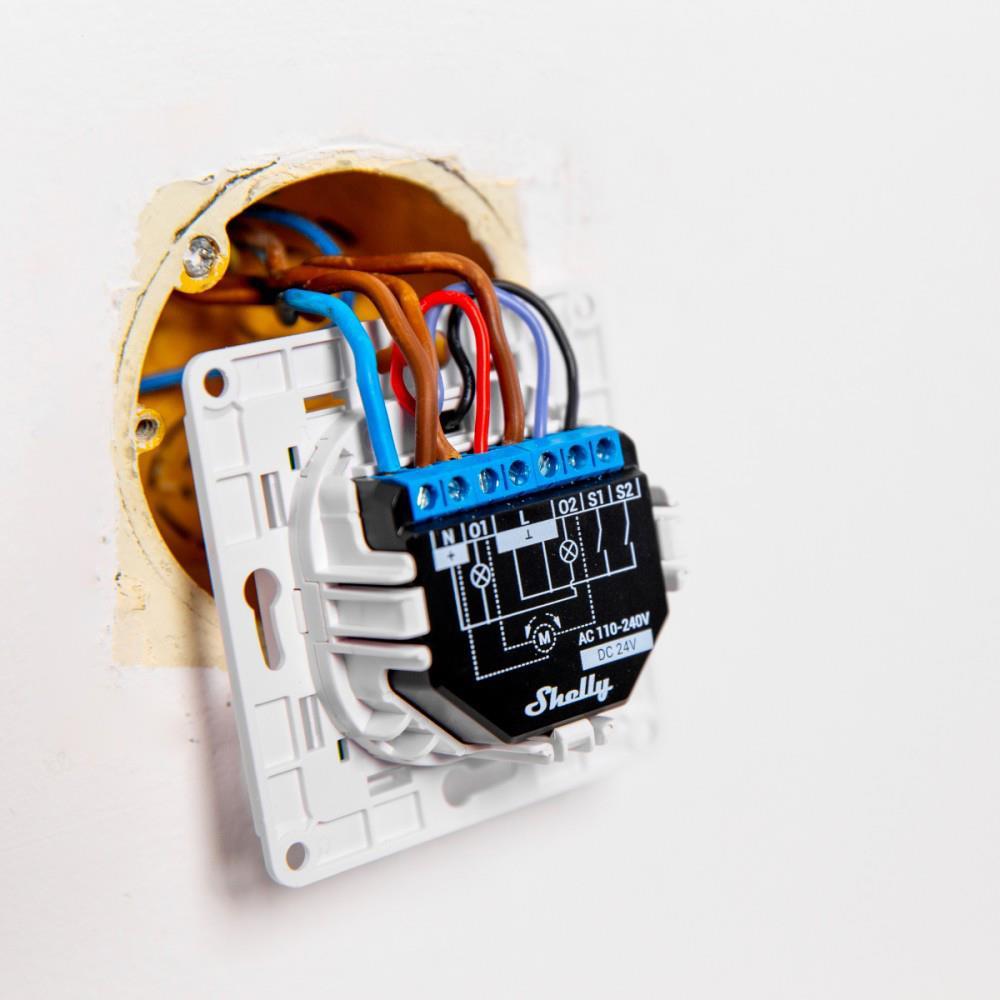

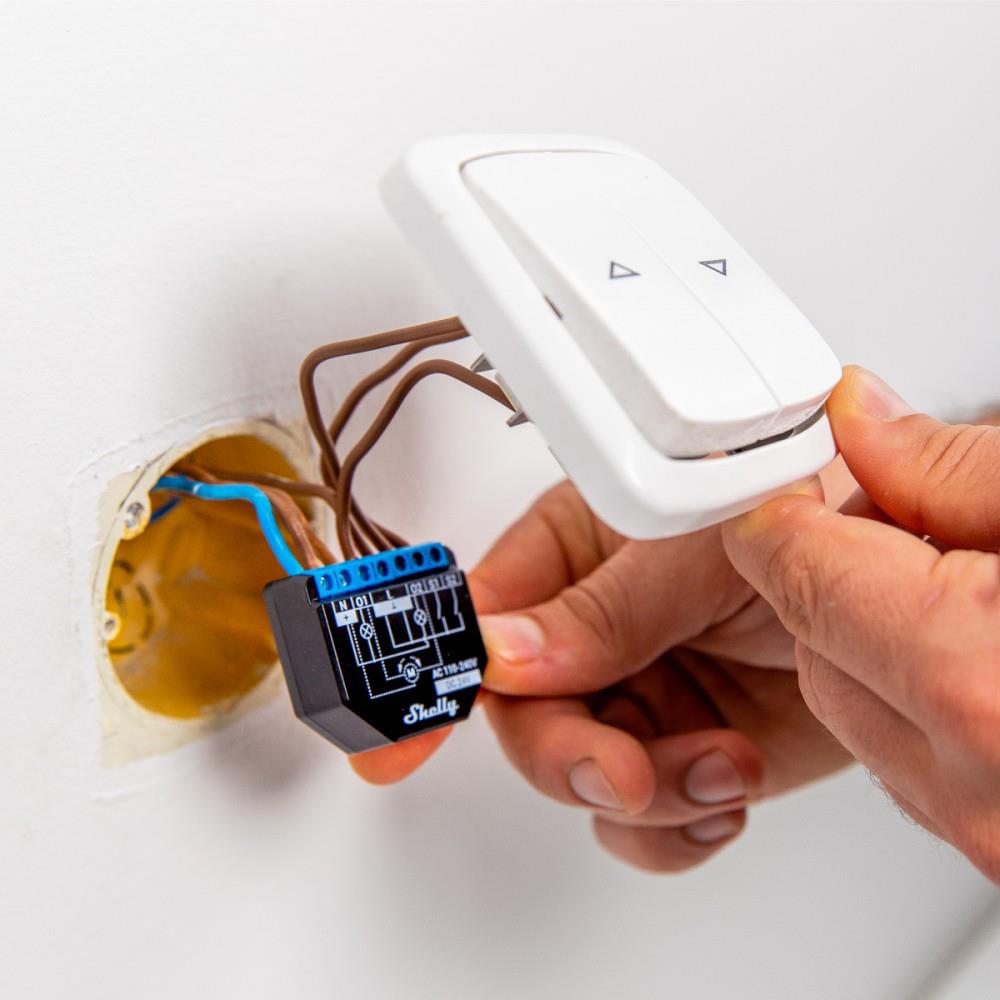

The Shelly Plus 2PM fits into flush-mounted boxes and allows the switching of numerous devices such as lamps, roller shutters and many other electrical consumers. If you use deep flush-mounted boxes, the Shelly Plus 2PM even fits behind light switches and transforms them into smart switches in no time.

The internal temperature sensor is used to protect against overheating. If the internal temperature exceeds a danger level, the device will turn off.

The Shelly Plus 2PM is conveniently controlled with the unchanged firmware via the free mobile Shelly app or via Google Home or Amazon Alexa. The Tasmota version can be easily integrated into numerous home automation solutions via MQTT.

Wireless! No HUB required - Connect the Shelly Plus 1 directly to your home Wi-Fi.

Control remotely! Control your home lighting no matter where you are. No more leaving the lights on and coming home in the dark.

Wide range of voltage support. Shelly Plus 1PM can be used to control a wide range of devices and apparatus.

Sunrise/SunSet Schedules! Shelly Plus 2PM can automatically follow sunrise and sunSet and control your lighting accordingly.

Technical data:

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 42 x 38 x 17 mm

Minimum mounting opening: Ø 50mm

Working temperature: -20°C - 40°C

Input voltage AC: 110-240 V ±10%, 50/60Hz

Input voltage DC: 24V ±10%

Max. Switching voltage: 240 VAC / 30 VDC

Max. Input current per channel: 10A

Max. Input current: 16A (18A peak)

Radio range: up to 50 m free field and up to 30 m indoors (depending on the nature of the building)

Power consumption in standby mode: <1.4 W

Channels: 2 switching channels

Power consumption measurement: Yes, on every channel

Device temperature protection: Yes

Bluetooth: Yes
