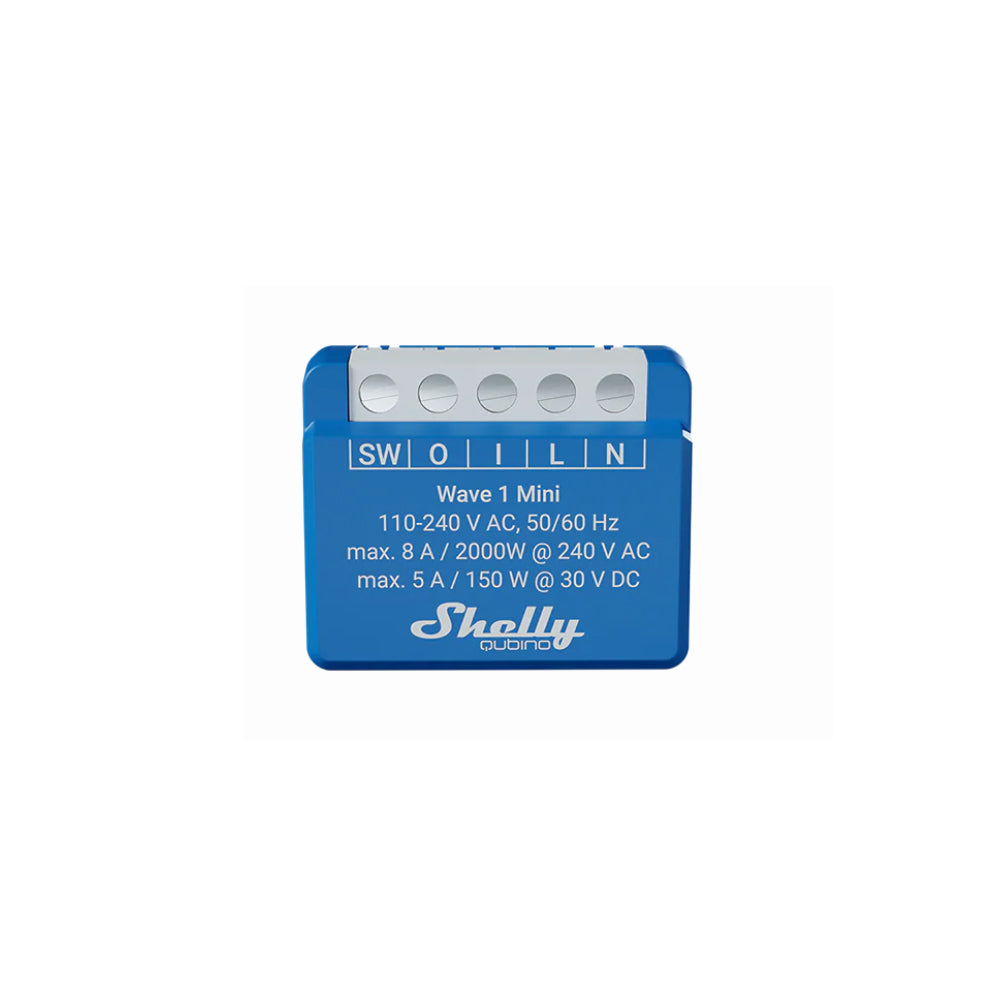

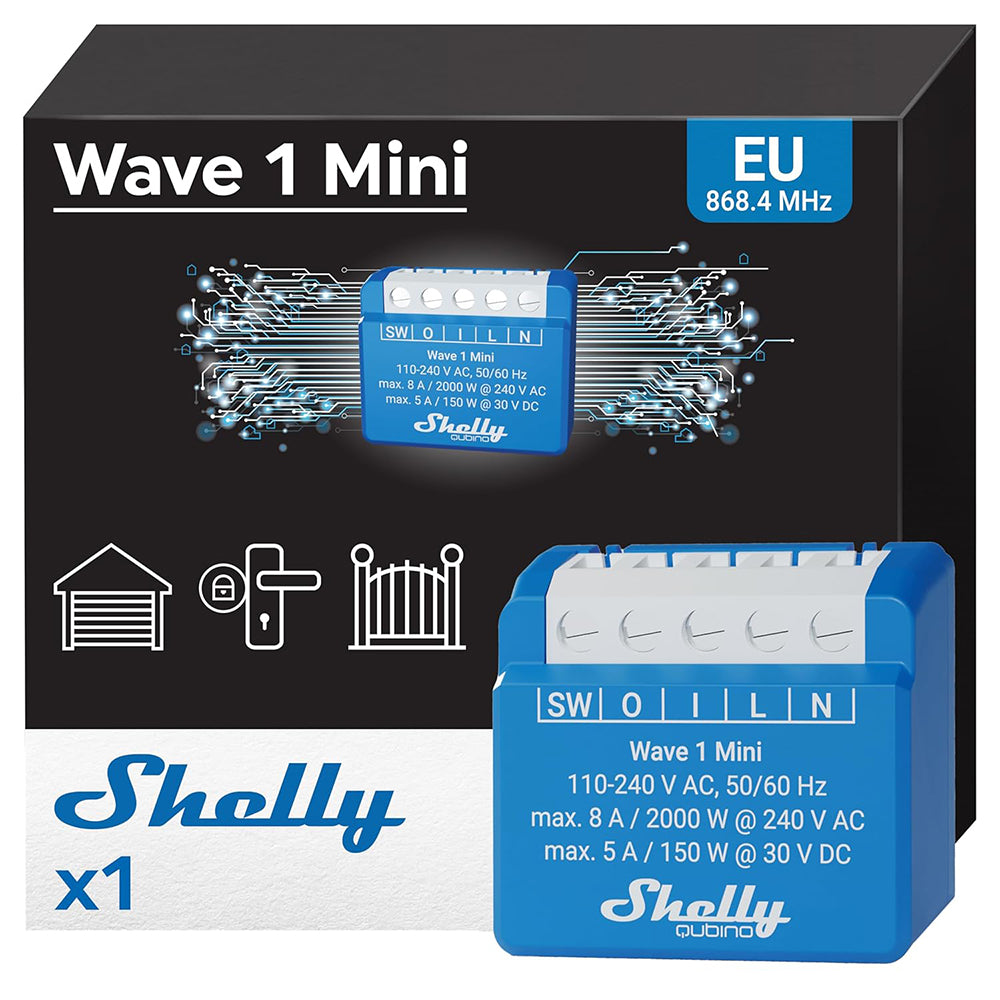

Shelly Wave 1 MINI 1 Channel Smart Switch 8A 240V AC 5A 30V DC Z-WAVE

Article description:

Flush-mounted Z-Wave smart relay switch

The Shelly Wave 1 Mini is a highly secure and extremely energy-efficient Z-Wave smart switch, compatible with all certified Z-Wave gateways.

Its ultra-compact design makes it ideal for use in the smallest wall boxes or behind outlets.

It uses the Z-Wave 800 series and supports SmartStart for automatic setup.

Security 2 (S2) authentication ensures a high level of protection for your Z-Wave network.

Its standby power consumption is less than 0.3 W, making it highly energy-efficient.

Supports over-the-air (OTA) firmware updates to keep your device up to date.

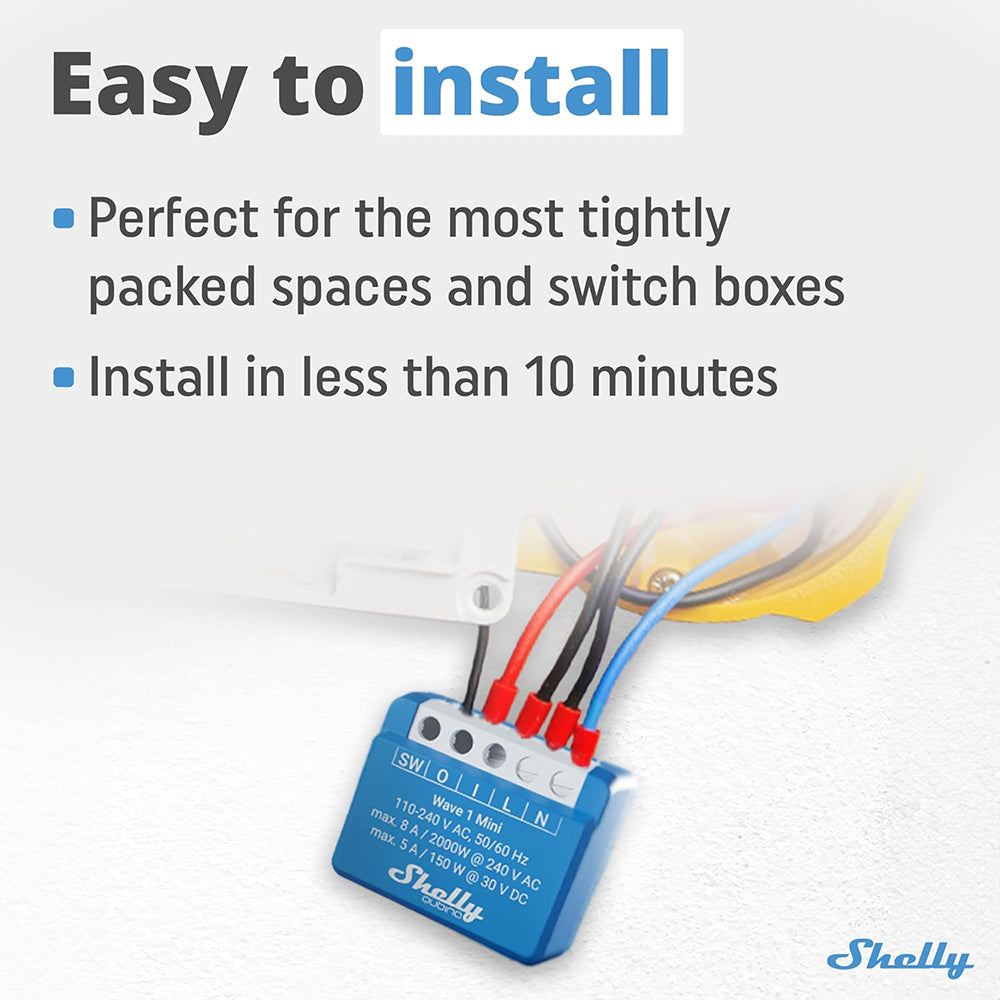

Fast and easy installation in most wall boxes or outlets – perfect for retrofit projects.

Compatible with over 4,000 Z-Wave-certified devices and Z-Wave gateways.

A Z-Wave gateway (smart hub) is required for configuration and is not included.

Key Features

Supports up to 8 A at 240V AC and 5 A at 30 V DC

Dry contacts (potential-free)

Very low power consumption: 0.3 W

Z-Wave frequency: 868. MHz (CEPT countries)

Latest generation Z-Wave 800 series chip

Automatic pairing via SmartStart

Security 2 Authenticated (S2) for maximum protection

Supports over-the-air (OTA) firmware updates

Quick and easy installation in most switches and sockets

Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices

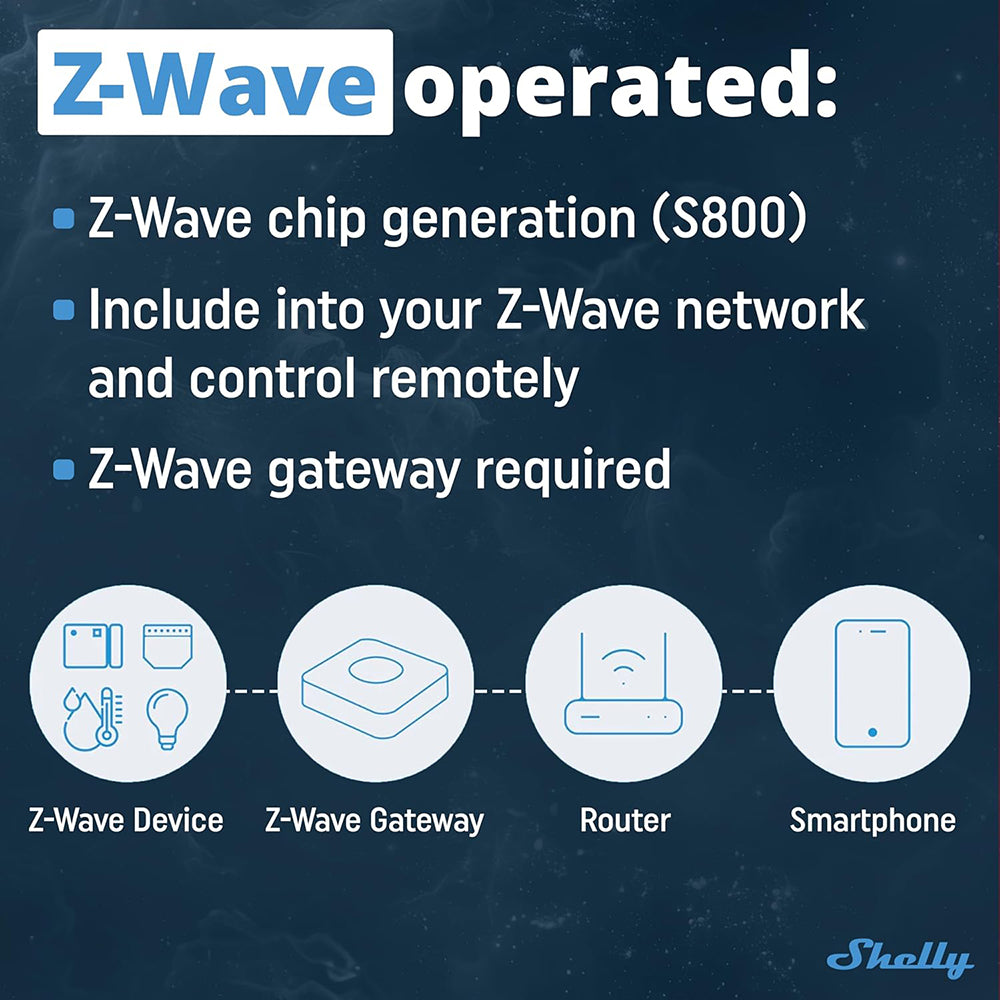

Shelly + Z-Wave Integration

Z-Wave enables smart home devices to communicate seamlessly through a centralized smart hub – regardless of brand or platform. Shelly Qubino devices feature the latest Z-Wave S800 chip, one of the most trusted and standardized smart home technologies worldwide.

Maximum Security: Security 2 with AES128 encryption for the highest level of protection for your Z-Wave network

Ultra-low power consumption: The device consumes less than 0.3 W

High Compatibility: Compatible with all certified Z-Wave devices and gateways

Extended Range: Up to 40 m indoors; acts as a Z-Wave repeater to extend network coverage

Reliable Connection: Operates on a sub-GHz frequency for stable, interference-free wireless communication

SmartStart: Enables fully automatic inclusion in your Z-Wave network

Z-Wave devices have specific requirements for proper operation – a compatible Z-Wave hub is mandatory. For details, visit the official Z-Wave Alliance website: www.z-wavealliance.org

Technical Specifications:

Power supply: 110–240 V AC, 50/60 Hz

Power consumption: < 0.3 W

Max. switching voltage (AC): 240 V

Max. switching current (AC): 8 A

Max. switching power (AC): 2000 W

Max. switching voltage (DC): 30 V

Max. switching current (DC): 5 A

Overheating protection: Yes

Wireless range: Up to 40 m indoors (depending on building structure)

Z-Wave repeater: Yes

Processor: Z-Wave® S800

Z-Wave frequency: 868.4 MHz (CEPT)

Max. radio transmission power: < 25 mW

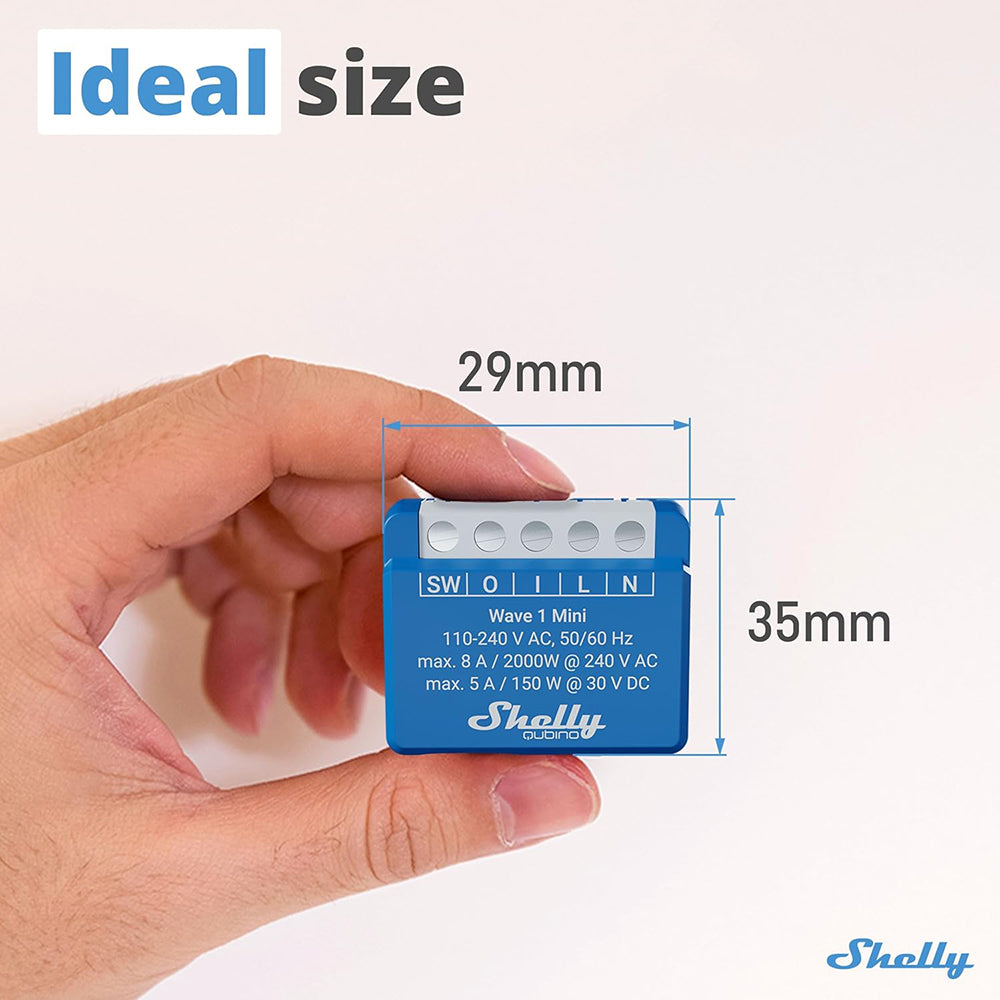

Dimensions (H × W × D): 29 × 35 × 16 mm (±0.5 mm)

Weight: 19 g (±1 g)

Mounting: Flush-mounted, wall box

Max. terminal torque: 0.4 Nm

Conductor cross-section: 0.5–1.5 mm² (AWG 20–16)

Stripped wire length: 5–6 mm

Housing material: Plastic

Color: Blue

Operating temperature: –20 °C to +40 °C

Humidity: 30–70 % RH

Maximum altitude: 2000 m
