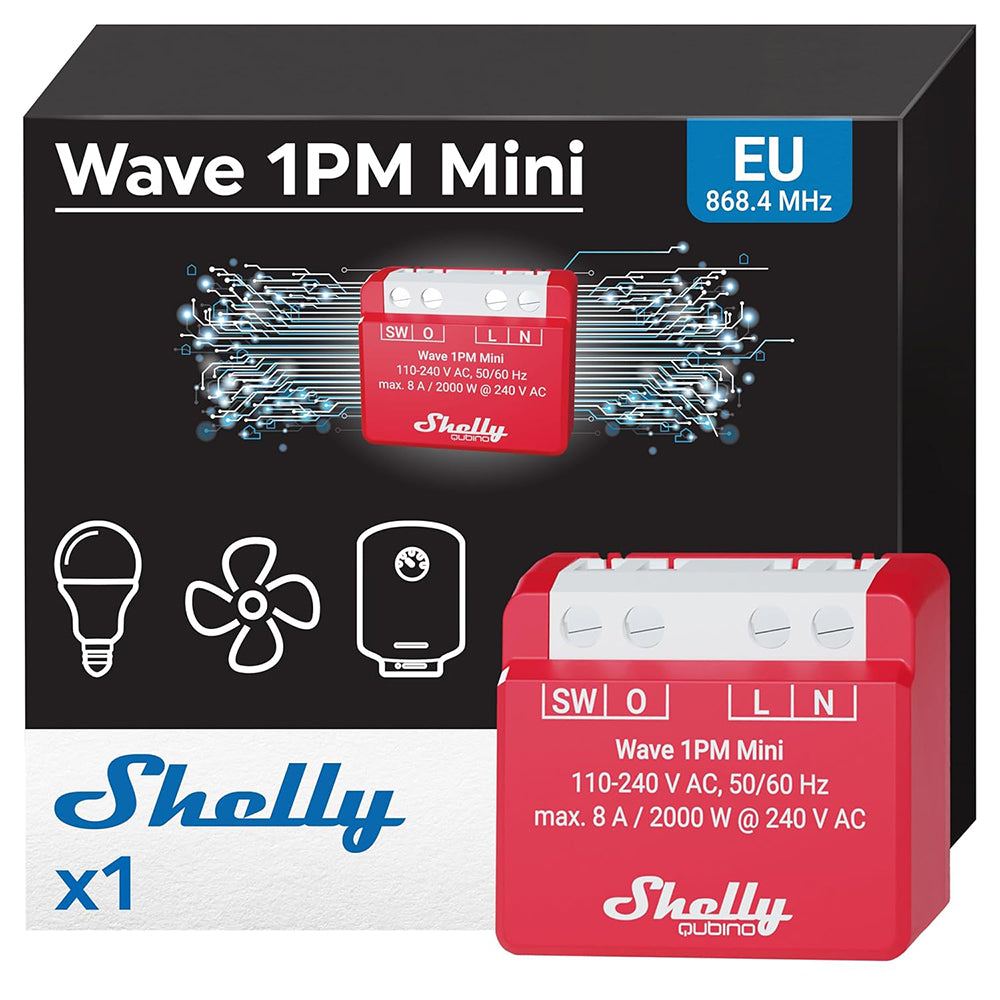

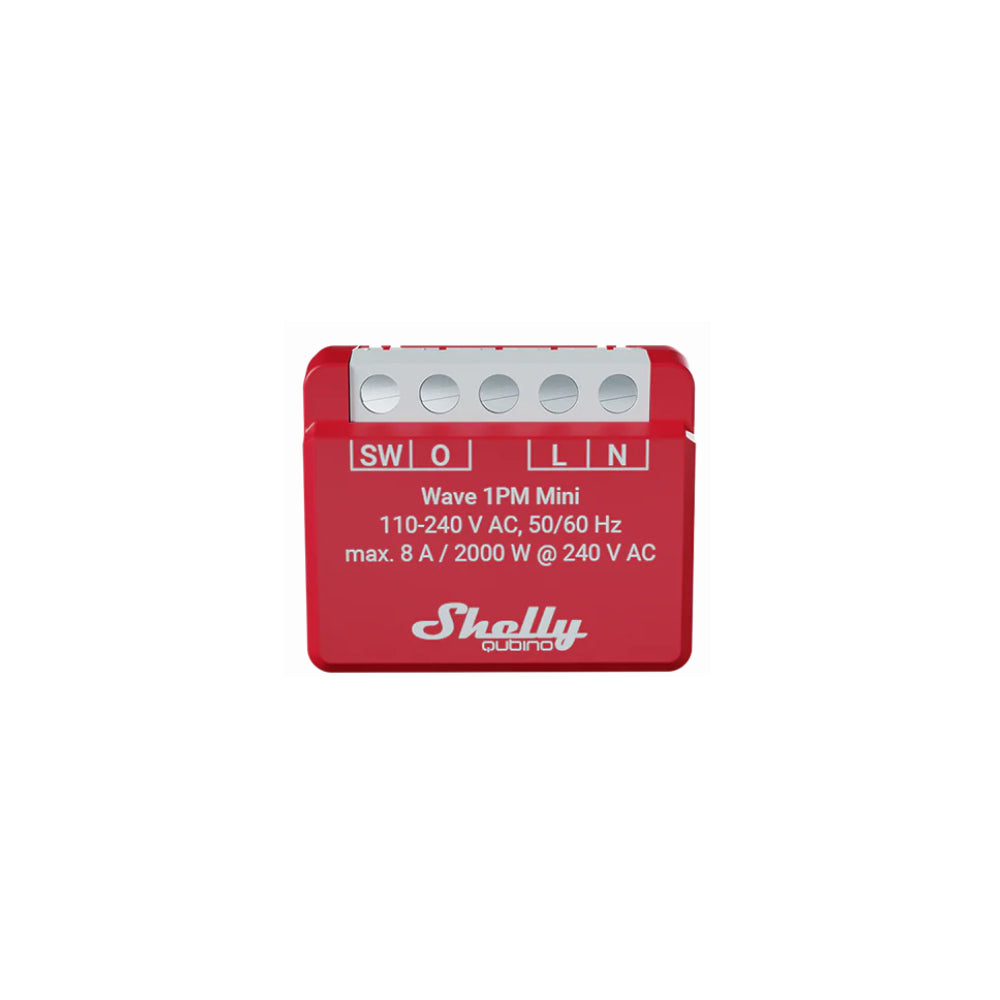

Shelly Wave 1PM MINI 1 Channel Smart Switch with Power Metering 8A 240V AC Z-Wave

Article description:

In-Wall Mini Smart Z-Wave Relay with Power Metering

The world’s smallest Z-Wave smart switch with power metering. Control your lighting or a wide range of small electrical appliances remotely and monitor their energy consumption.

The Shelly Wave 1PM Mini is a highly secure and extremely energy-efficient Z-Wave smart switch, compatible with all certified Z-Wave gateways.

Thanks to its ultra-compact design, it fits perfectly into even the smallest switch boxes or sockets.

The Wave 1PM Mini uses the Z-Wave 800 series – including SmartStart for automatic setup.

Security 2 Authenticated encryption ensures maximum network protection.

With a standby power consumption of less than 0.3 W, the switch is exceptionally efficient.

Supports over-the-air firmware updates, keeping your device up to date at all times.

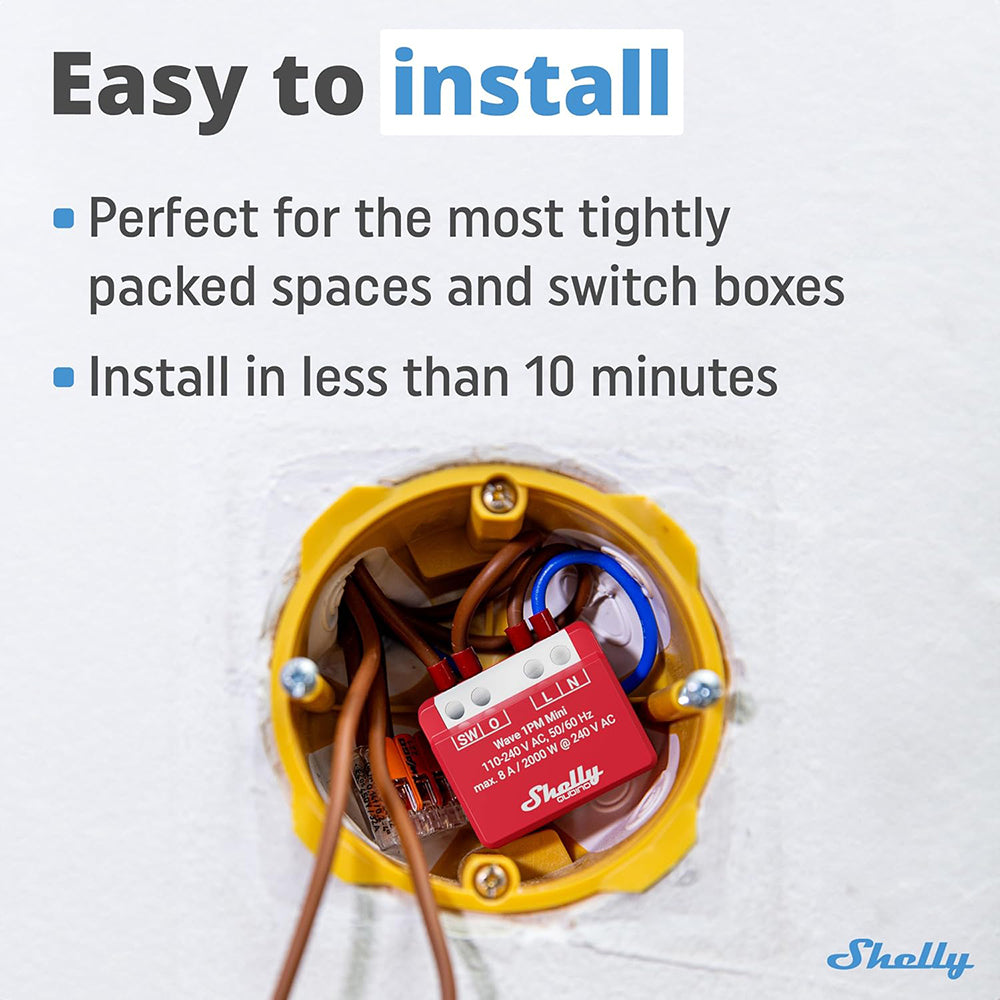

Its quick and easy installation in most switch or socket boxes makes it ideal for retrofitting.

Works with over 4,000 Z-Wave devices and is compatible with Z-Wave gateways.

Create custom scenes by combining the Wave 1PM Mini with any other Z-Wave devices (gateway required).

A gateway (Z-Wave smart hub) is not included but is required to configure the device.

Main Features

Supports up to 8 A at 240 V AC​​

Power metering

Very low power consumption: 0.3 W

Z-Wave frequency: 868. MHz (CEPT countries)

Latest generation Z-Wave 800 series chip

Automatic pairing via SmartStart

Security 2 Authenticated (S2) for maximum protection

Supports over-the-air (OTA) firmware updates

Quick and easy installation in most switches and sockets

Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices

Shelly works with Z-Wave

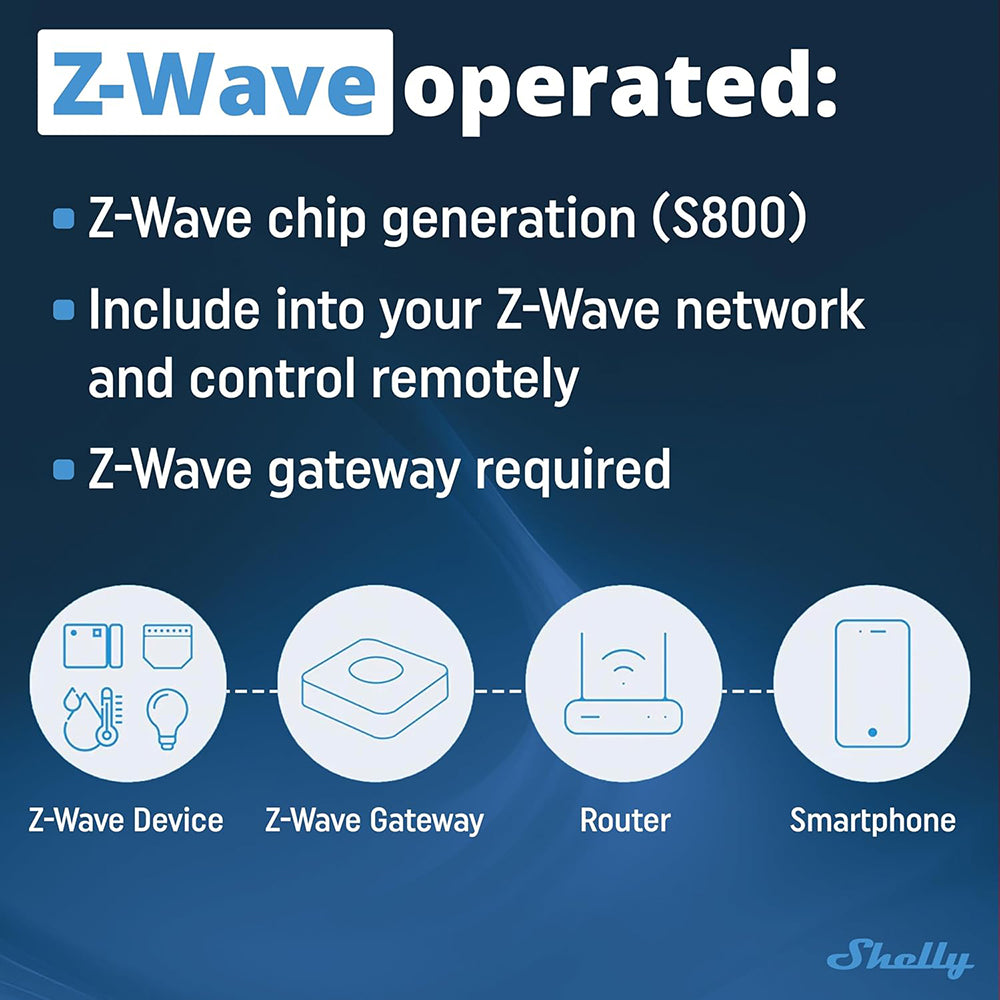

Z-Wave enables smart home devices to communicate seamlessly through a centralized smart hub – regardless of brand or platform. Shelly Qubino devices feature the latest Z-Wave S800 chip, one of the most trusted and standardized smart home technologies worldwide.

Maximum Security: Security 2 with AES128 encryption for the highest level of protection for your Z-Wave network

Ultra-low power consumption: The device consumes less than 0.3 W

High Compatibility: Compatible with all certified Z-Wave devices and gateways

Extended Range: Up to 40 m indoors; acts as a Z-Wave repeater to extend network coverage

Reliable Connection: Operates on a sub-GHz frequency for stable, interference-free wireless communication

SmartStart: Enables fully automatic inclusion in your Z-Wave network

*Z-Wave devices have specific requirements to function correctly – for example, a supported Z-Wave hub must be used. For more information, visit the official website: www.z-wavealliance.org

Technical Specifications:

Power supply: 110–240 V AC, 50/60 Hz

Power consumption: < 0.3 W

Power measurement [W]: Yes

Max. switching voltage (AC): 240 V

Max. switching current (AC): 8 A

Max. switching power (AC): 2000 W

Overheating protection: Yes

Overload protection: Yes

Distance: Up to 40 m indoors (depending on local conditions)

Z-Wave® repeater: Yes

CPU: Z-Wave® S800

Z-Wave® frequency band: 868.4 MHz

Maximum radio frequency power transmitted: < 25 mW

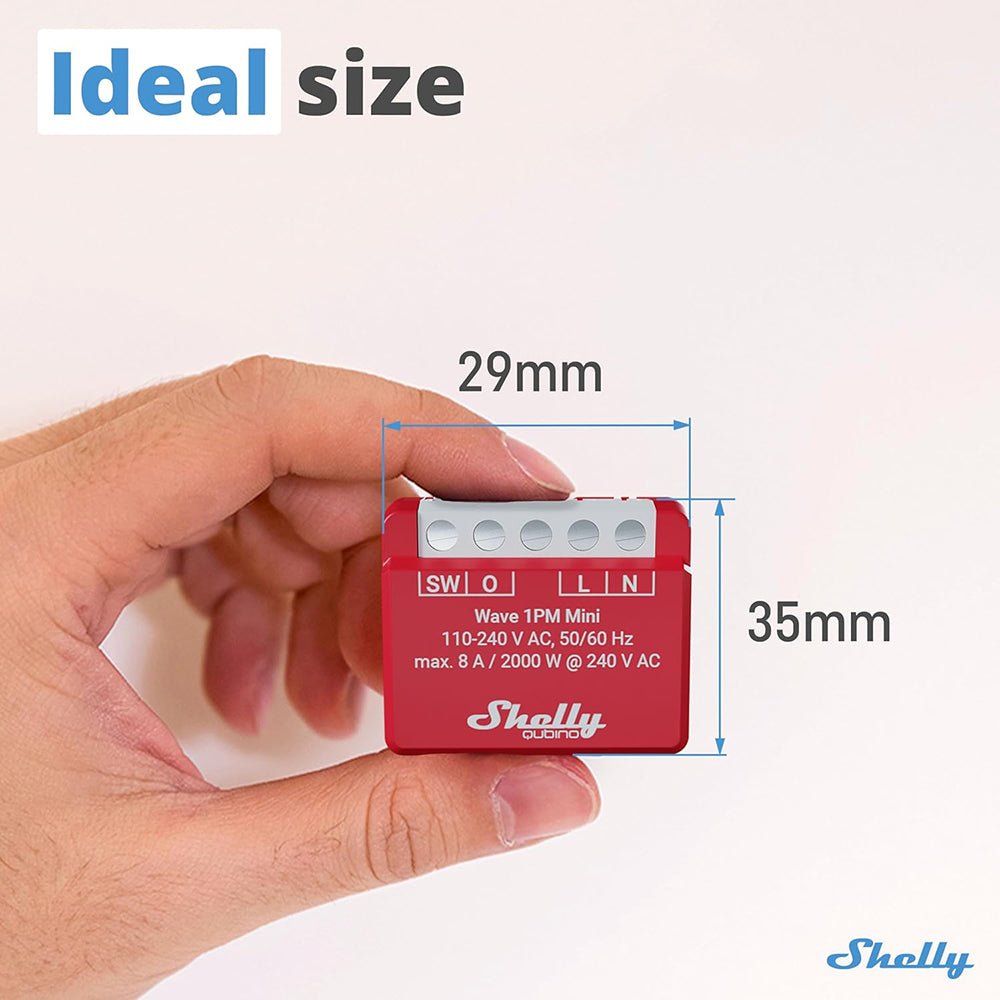

Size (H × W × D): 29 × 35 × 16 ±0.5 mm / 1.11 × 1.35 × 0.63 ±0.02 in

Weight: 18 ±1 g / 0.63 ±0.04 oz

Mounting: Wall box

Screw terminals max. torque: 0.4 Nm / 3.54 lbf·in

Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG

Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in

Shell material: Plastic

Color: Red

Ambient temperature: –20 °C to +40 °C / –5 °F to 105 °F

Humidity: 30 % to 70 % RH

Max. altitude: 2000 m / 6562 ft
