SMLIGHT PoE Splitter LAN Ethernet 100 Mbps + USB-C Power for Zigbee SLZB Dongle

Product Description:

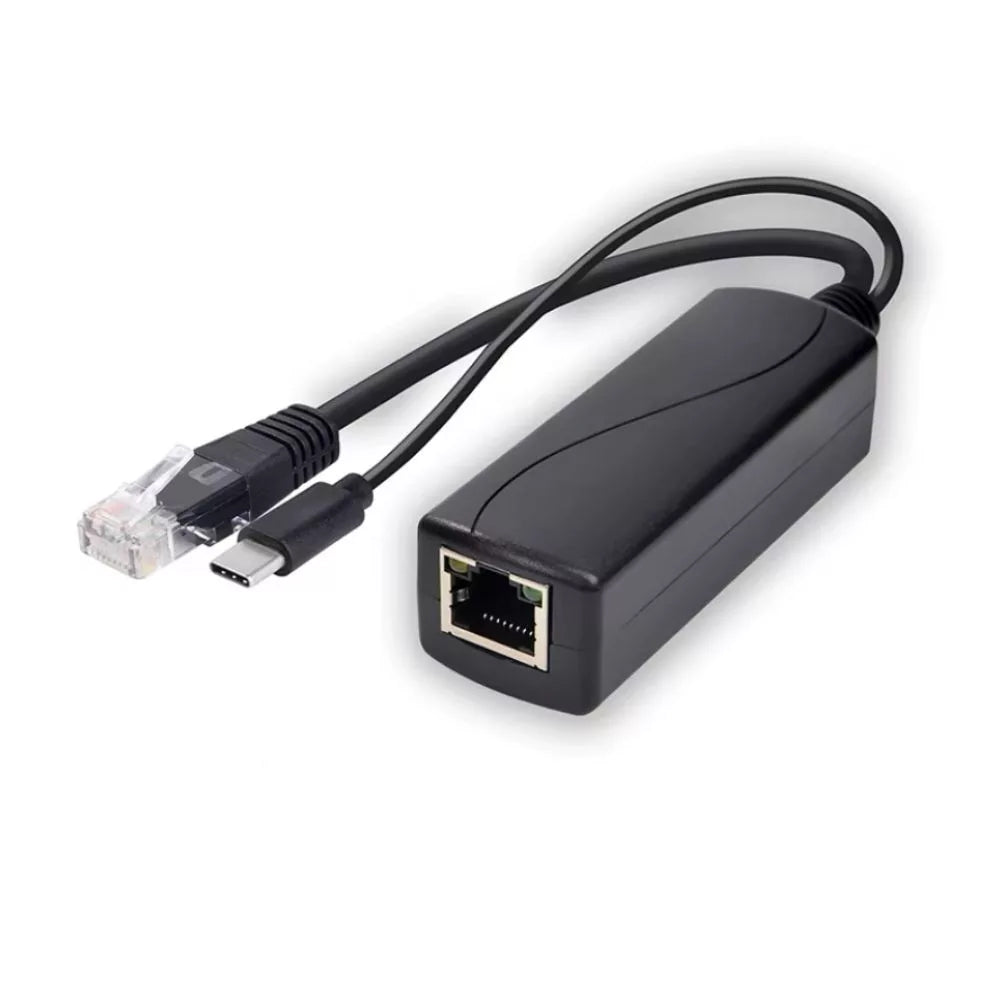

SMLIGHT PoE Splitter 100Mb – Ethernet + USB-C

The SMLIGHT PoE Splitter 100Mb allows devices without native PoE support to be powered through an Ethernet cable. The splitter separates the PoE signal transmitted through the network cable into a 5V power supply via USB-C and a separate 10/100 Mbps Ethernet connection.

This makes it possible to transmit power and network data through a single Ethernet cable to the installation location. It is particularly useful for smart home and IoT devices where no separate power outlet is available.

The PoE splitter supports the IEEE 802.3af and IEEE 802.3at standards and is suitable for use with compatible PoE switches and PoE injectors. Automatic PoE detection ensures that power is only activated when a suitable PoE source is detected.

Note: The splitter provides a 5V DC output via USB-C. Before connecting a device, please make sure that it is suitable for 5V power input via USB-C.

Main Features:

PoE to USB-C: Converts PoE power supplied over Ethernet into a stable 5V power output via USB-C.

Power and Network over One Cable: Transmits power and data together through the Ethernet cable and separates them again at the installation point.

10/100 Mbps Ethernet: Provides a wired network connection alongside the USB-C power output.

IEEE 802.3af/at Compatible: Suitable for use with compatible PoE switches and PoE injectors.

Automatic PoE Detection: Power output is only activated when a suitable PoE source is detected.

Galvanic Isolation: 2.5 kV isolation improves operational reliability and protection against electrical interference.

Plug & Play: No configuration or additional setup required.

Recommended Applications:

Powering smart home and IoT devices with a USB-C power input.

Connecting Home Assistant systems and compact network devices.

Powering Raspberry Pi systems and similar devices via a central PoE infrastructure.

Use with Zigbee coordinators, network gateways and compatible SMLIGHT devices.

Installing network devices in locations without a directly available power outlet.

Use in network cabinets, multimedia enclosures, junction boxes and other confined installation spaces.

How It Works:

A compatible PoE switch or PoE injector transmits network data and power together through the Ethernet cable. The SMLIGHT PoE Splitter separates both signals again at the installation point.

The network connection is provided through the RJ45 Ethernet port, while power is supplied through the USB-C output at 5V DC.

This means that only a single Ethernet cable needs to be routed to the connected device.

Specifications:

Product Type: PoE Splitter

Model: SMLIGHT PoE Splitter 100Mb USB-C

PoE Standard: IEEE 802.3af / IEEE 802.3at

PoE Input Voltage: 44-57V DC

Output Voltage: 5V DC

Power Output: USB-C

Network Connection: RJ45 Ethernet

Ethernet Speed: 10/100Mbps

PoE Detection: Automatic

Galvanic Isolation: 2.5kV

Supported PoE Pinouts: 1/2 (+) and 3/6 (-), as well as 4/5 (+) and 7/8 (-)

Power Source: PoE Switch or PoE Injector

Manufacturer: SMLIGHT

Manufacturer SKU: poe-split-100mb

EAN: 5999572034320

Scope of Delivery:

1x SMLIGHT PoE Splitter 100Mb – Ethernet + USB-C
