Article description:

USB Zigbee 3.0/Thread Gateway

The SONOFF Dongle Lite MG21 is a compact Zigbee 3.0 USB coordinator built on the proven, energy-efficient EFR32MG21 radio chipset. It delivers stable, fast and reliable wireless communication for smart-home platforms such as Home Assistant (ZHA), Zigbee2MQTT, openHAB, ioBroker, Domoticz and Jeedom. The dongle is ideal for creating a local Zigbee network, pairing devices from different brands and managing them centrally without any cloud dependency.

Its slim, lightweight design allows easy installation in various USB ports, or it can be positioned interference-free using the included 0.5 m USB extension cable. The adjustable external antenna offers flexible alignment and achieves stable coverage of up to 140 meters in open environments. The extended antenna design also minimizes interference from nearby USB 3.0 ports and peripheral devices.

The dongle ships with preinstalled EmberZNet firmware and supports fast and seamless pairing of Zigbee devices. It can also be used as a Zigbee router to extend network range and improve mesh stability. For advanced users, the MG21 supports additional firmware modes such as Zigbee NCP, Zigbee Router, OpenThread RCP and MultiPAN. This enables operation alongside a Thread Border Router for Matter-over-Thread devices, allowing both Zigbee and Thread devices to be managed with a single dongle.

The MG21 works out-of-the-box on Windows, Ubuntu, Raspberry Pi OS and in Docker environments with true plug-and-play behavior. For users who need deeper customization, the dongle supports easy firmware flashing via the SONOFF Dongle Flasher Tool.

Highlights:

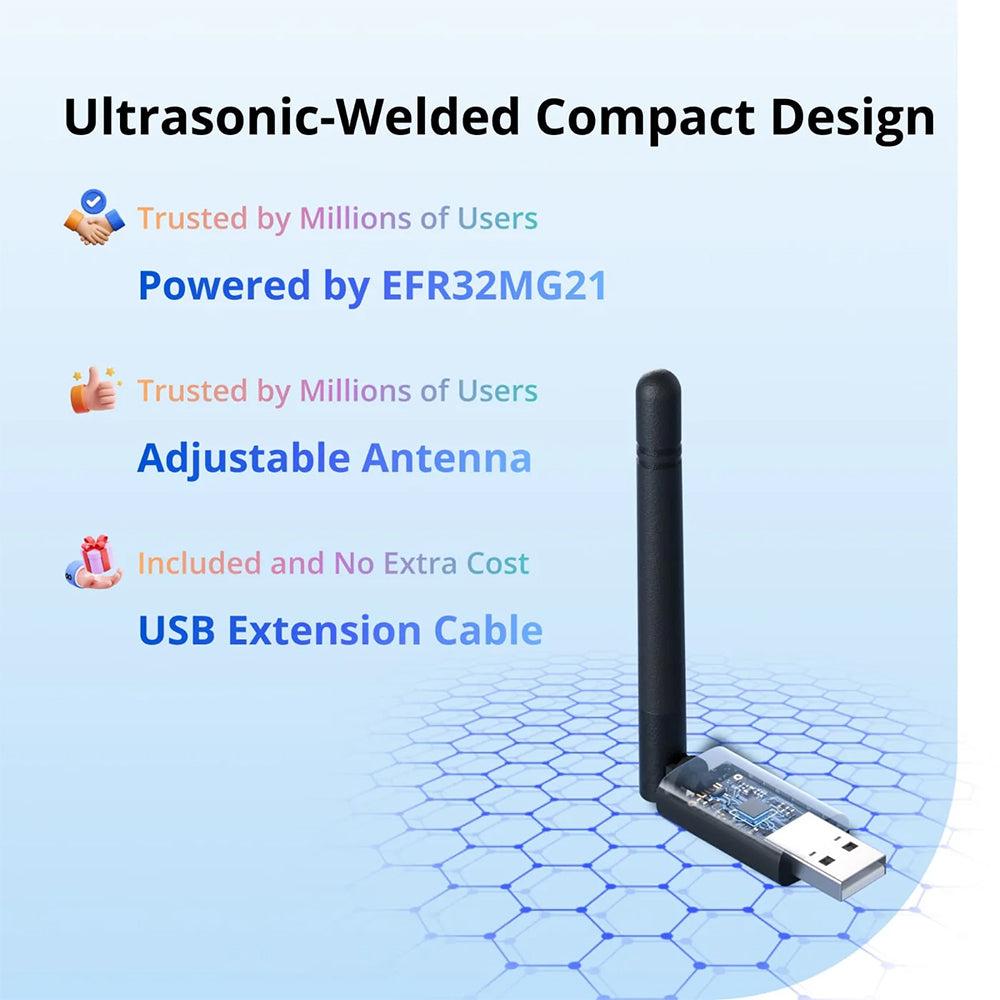

Proven EFR32MG21 Chip – A widely trusted Zigbee radio used in millions of installations, ensuring stable and reliable wireless performance.

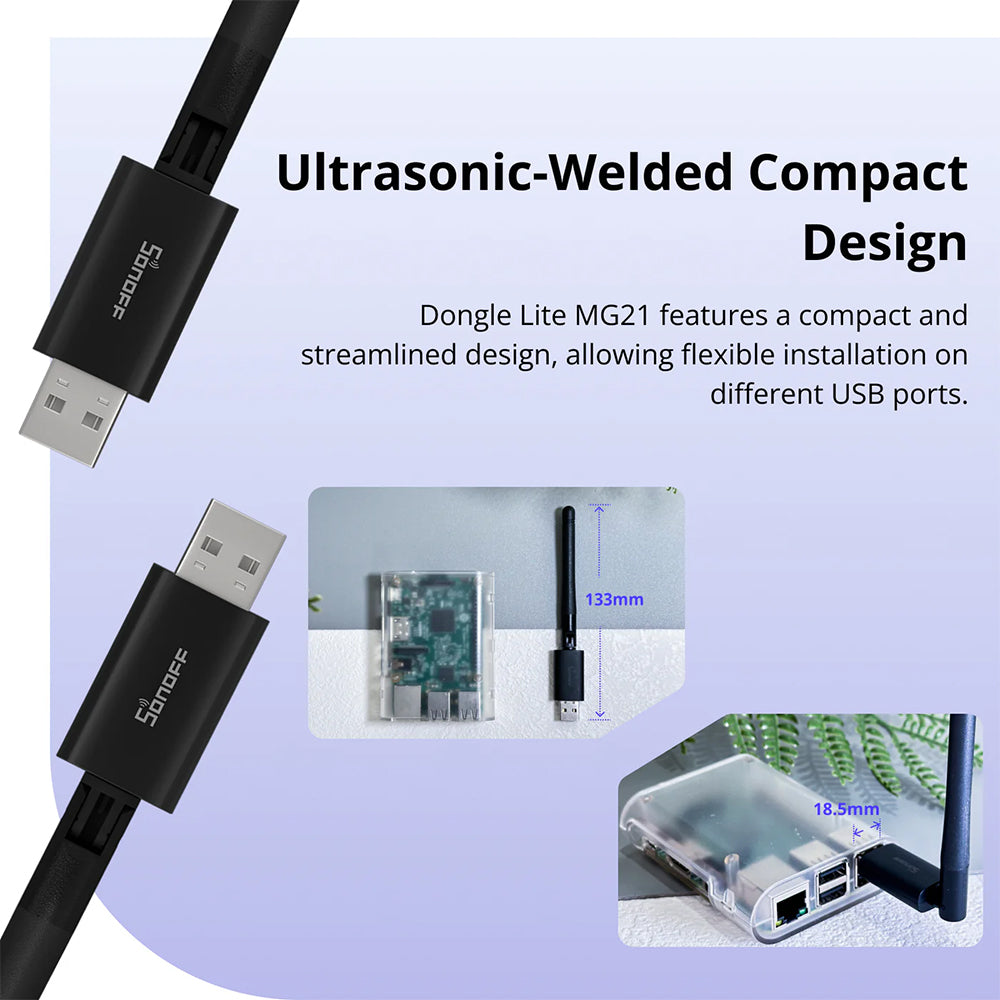

Compact Form Factor – About 65% smaller than the classic ZBDongle-E, making it highly flexible for tight USB ports or discreet installation behind devices.

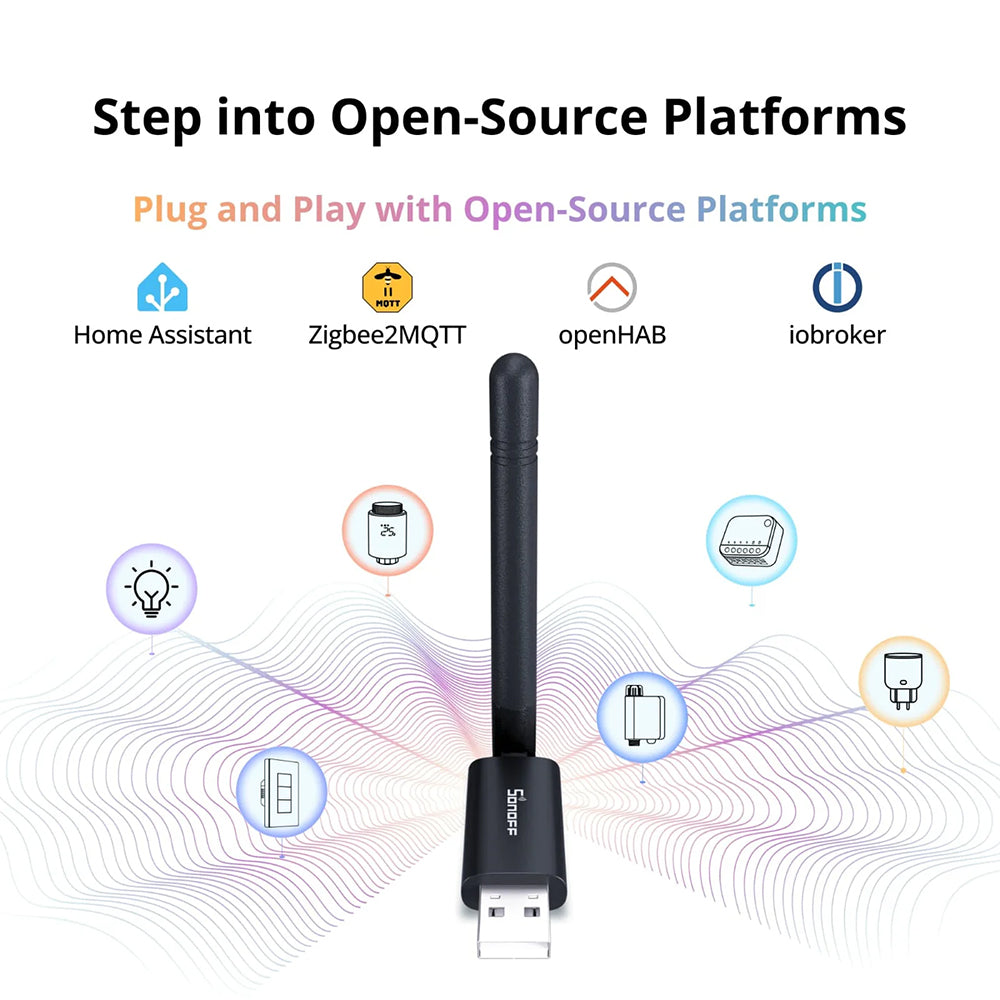

Broad Platform Compatibility – Works seamlessly with leading open-source platforms such as Home Assistant, Zigbee2MQTT and openHAB for unified Zigbee device control.

Easy Firmware Flashing – Supports hassle-free firmware flashing via the SONOFF Dongle Flasher Tool, enabling simple switching between different firmware types and operating modes.

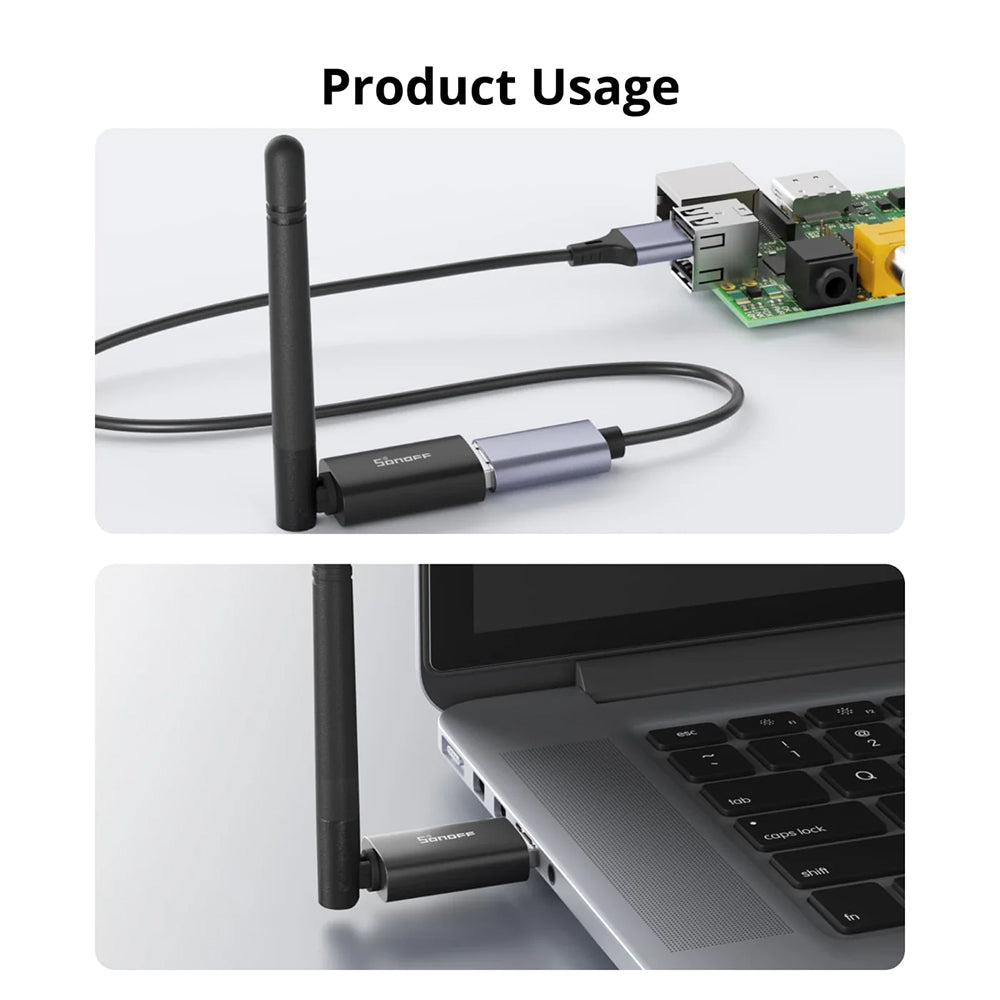

Includes USB Extension Cable – The included USB extension cable allows flexible placement and helps reduce interference from USB 3.0 ports.

Zigbee 3.0 USB Gateway – Operates as a full Zigbee 3.0 gateway for pairing and managing Zigbee devices from various brands locally without cloud reliance.

High Output Power +20 dBm – Enhanced transmit power improves network stability and extends coverage in your Zigbee mesh.

Durable Aluminum Housing – The aluminum enclosure effectively reduces electromagnetic interference from nearby peripherals and improves overall signal quality.

External SMA Antenna – Adjustable external antenna for optimal orientation and maximum signal coverage wherever needed.

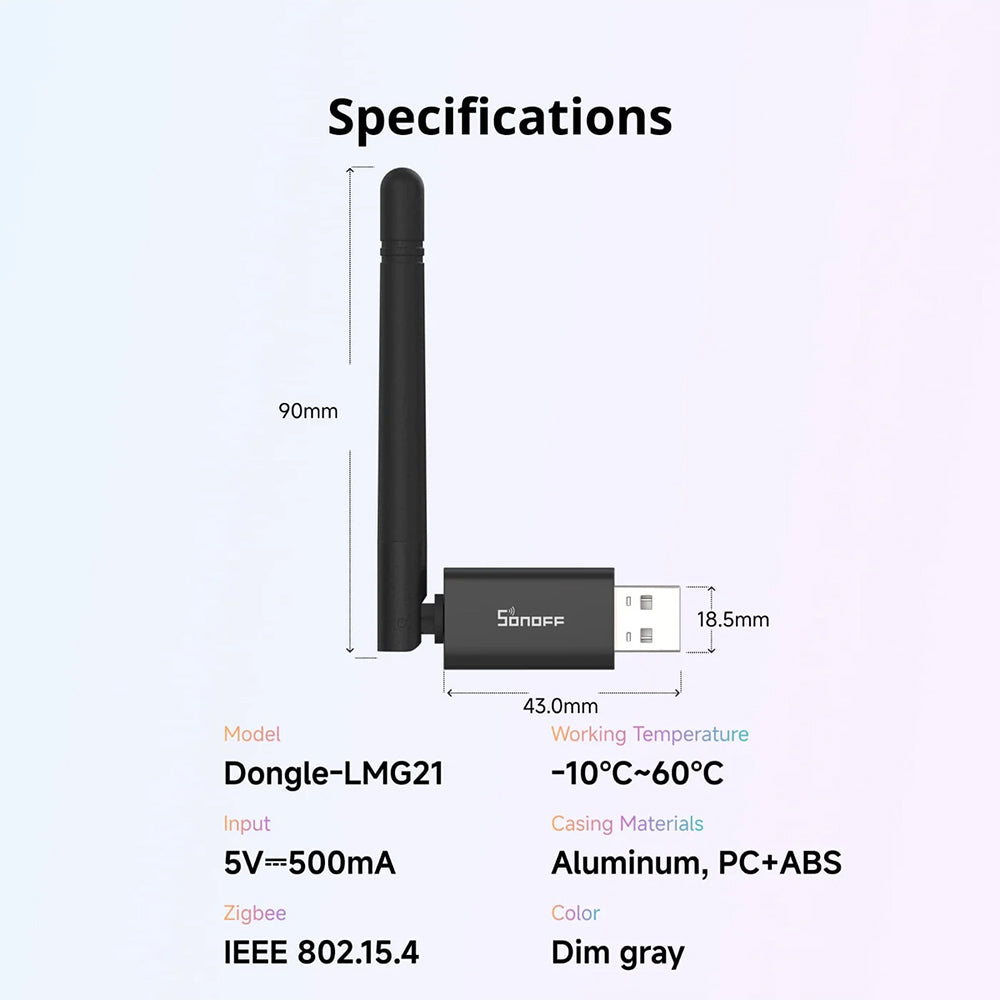

Technical data:

Model: SONOFF Dongle-LMG21 (Dongle Lite MG21)

Radio Chip (SoC): Silicon Labs EFR32MG21

Protocols: Zigbee 3.0 (IEEE 802.15.4)

Optional firmware protocols: Zigbee NCP / Zigbee Router / OpenThread RCP / MultiPAN (Thread)

Compatible platforms: Home Assistant (ZHA), Zigbee2MQTT, openHAB, ioBroker, Domoticz, Jeedom

Operating systems: Windows, Ubuntu, Raspberry Pi OS, Docker

Input voltage: 5 V DC / 500 mA

Wireless range: up to 140 m (open environment, depending on placement and antenna orientation)

Antenna: external, adjustable SMA antenna (≤180°)

Housing material: Aluminum, PC+ABS

Color: Dove grey

Dimensions: 133 × 18.6 × 10.1 mm

Operating temperature: –10 °C to +60 °C

Humidity: 5–95% RH (non-condensing)

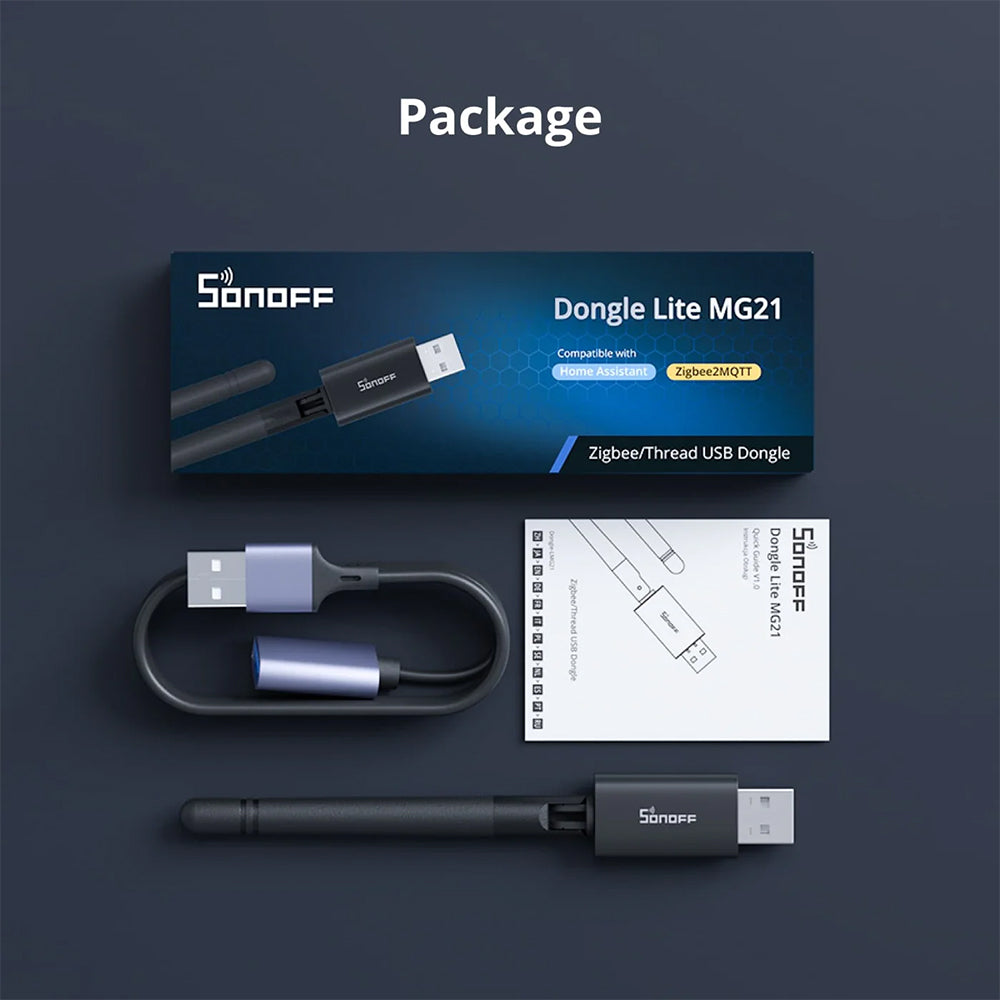

Package contents: Dongle-LMG21, adjustable SMA antenna, 0.5 m USB extension cable

Further information:

Additional:

Brand new immediately available
