SONOFF DUAL R3 LITE 2 Channel WiFi Smart Switch Tasmota 14 - Alexa - iobroker

Article description:

2 channel flush-mounted WiFi Smart Switch

Already flashed with the latest Tasmota firmware.

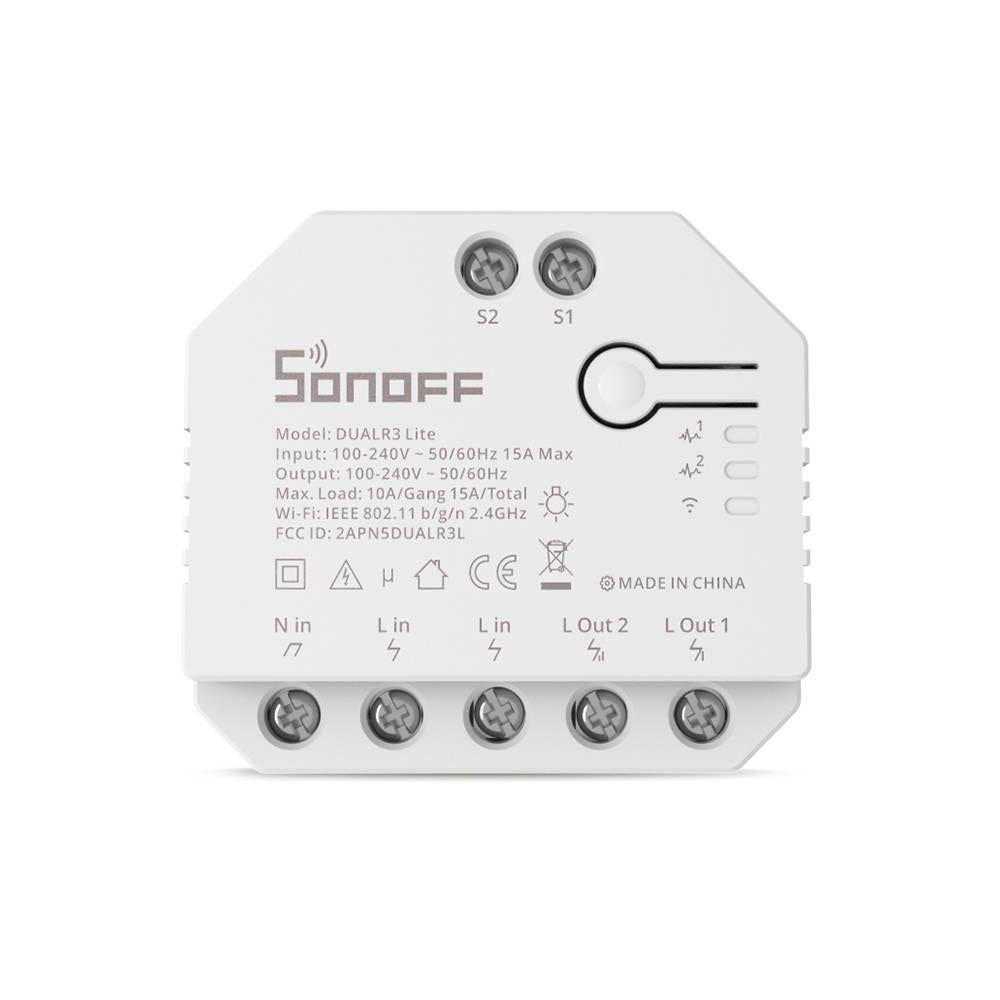

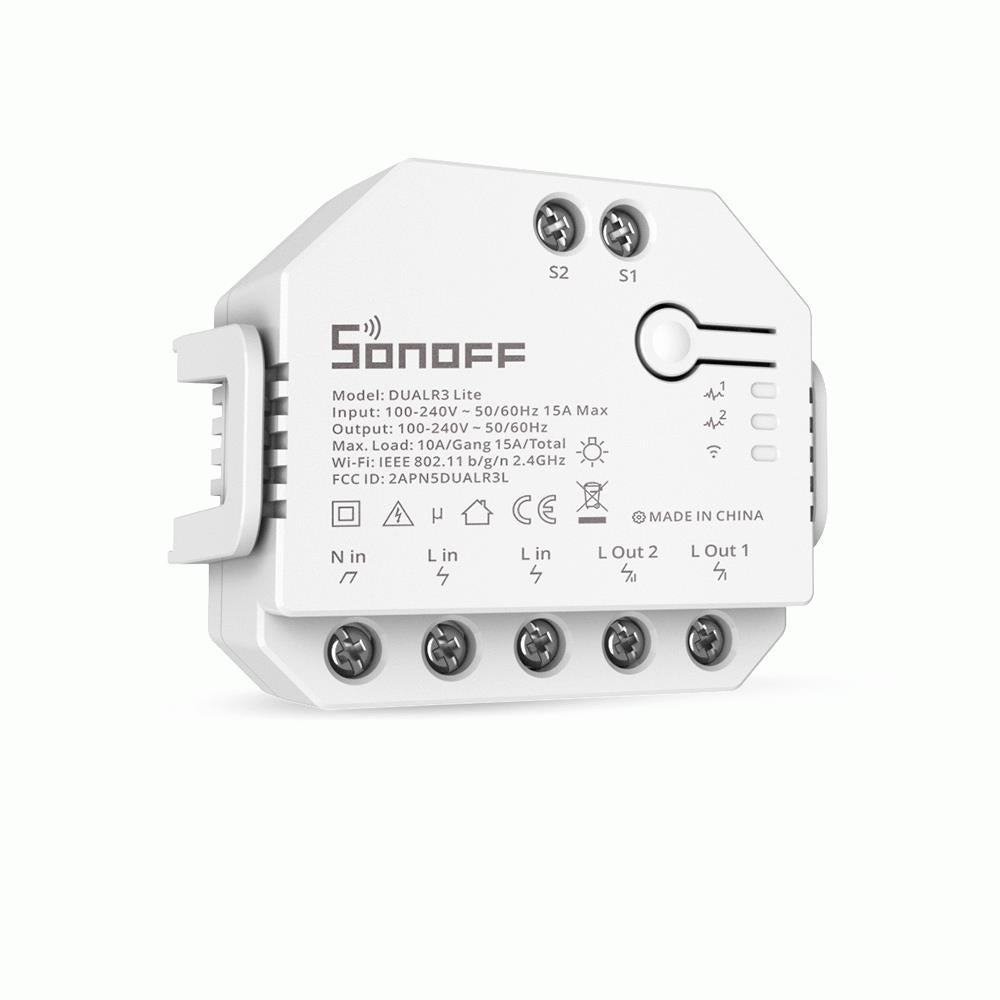

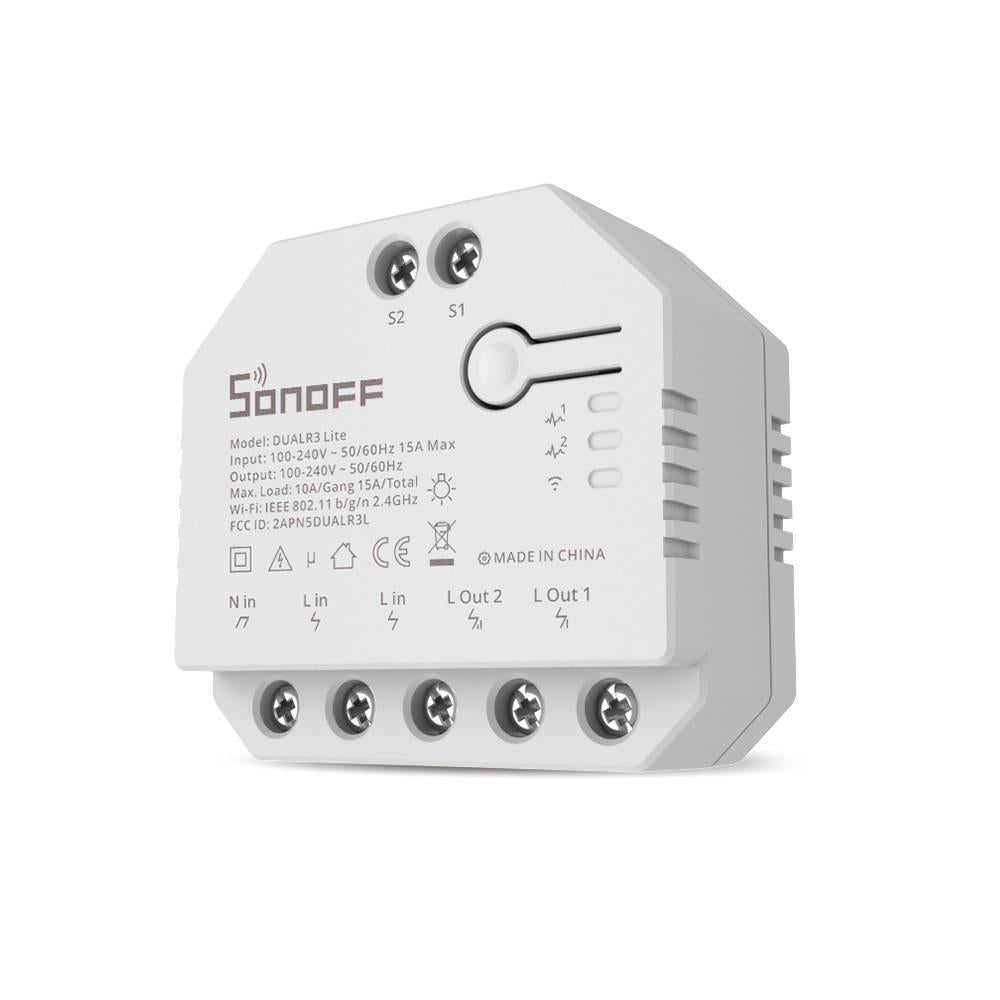

SONOFF DUALR3 Lite takes your home to the next level. DUALR3 is a flush-mounted Wi-Fi smart dual relay switch module that installs behind any standard switch to transform it into a smart switch for wireless remote control using mobile devices or voice commands.

This switch can be used for different Types of devices. Including lighting, household appliances and motorized equipment such as roller shutters, shutters, blinds, awnings, etc.

It is TUV certified and offers reliable quality and advanced safety without you having to worry about the potential risk of fire and overheating.

Matching:

SPLASH-PROOF HOUSING

SONOFF R2 waterproof box is made of PC V0 material, which is dustproof and prevents objects from entering. Making it ideal for protecting your SONOFF switch in wet environments.

SONOFF Waterproof Box R2 IP64 TH-Elite TH-Origin POW-Elite POW-Origin NSPanel TX

Technical data:

Manufacturer no.: 6920075776966

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 54 x 49 x 24 mm

Weight: 58g

Working temperature: -10°C - 40°C

Working humidity: 5% - 95%

Input voltage: 100V ~ 240V AC (50-60Hz)

Max. Power: 2200W/10A 1 channel 3300W/15A total

Max. Motor control power: 10-240W / 1A

Number of channels: 2

MCU: ESP32

Material: PC V0
