SONOFF NSPanel Touch Display Wall Switch Smart Scene Wall Switch Tasmota 14

SONOFF NSPanel Touch Display Wall Switch Smart Scene Wall Switch Tasmota 14

Regular price €67,99 EUR
Regular price €0,00 EUR Sale price €67,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock - Delivery time 1-3 working days

Article description:

WiFi Smart Scene Touch Display Wall Switch

Already flashed with the latest Tasmota firmware.

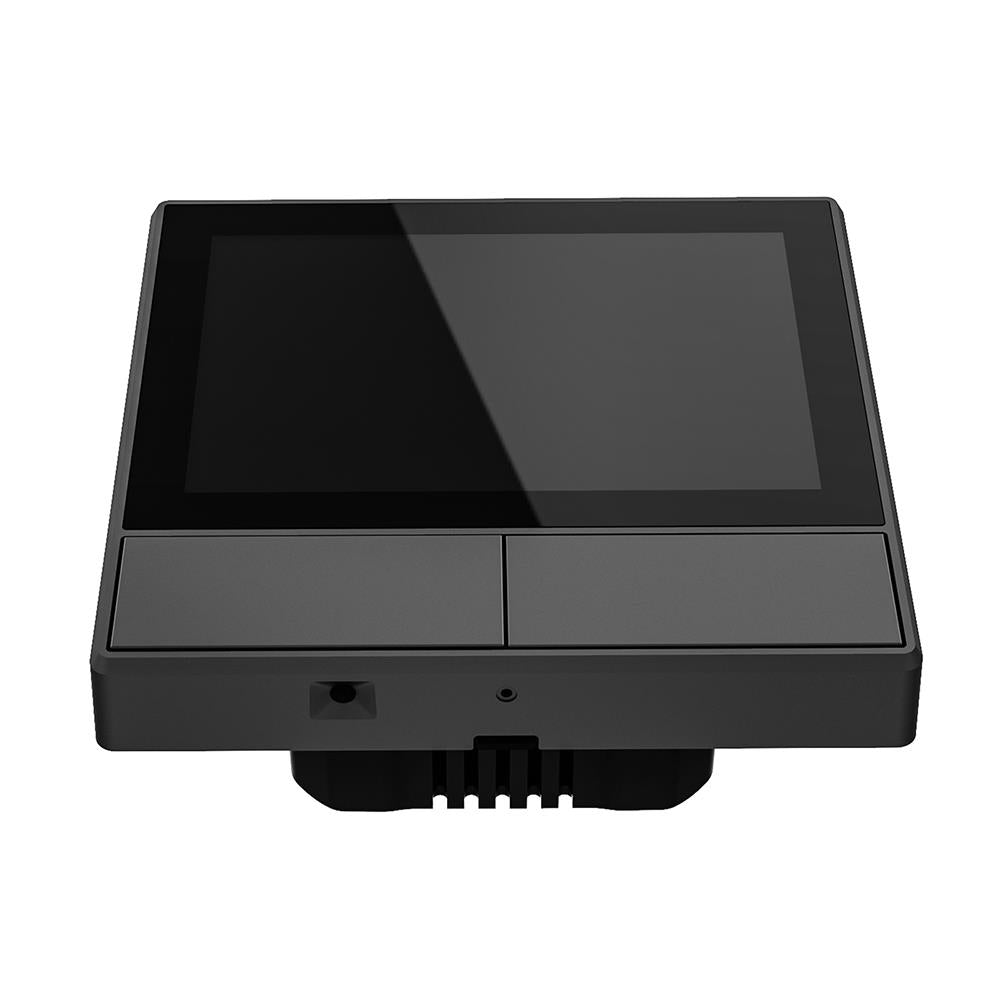

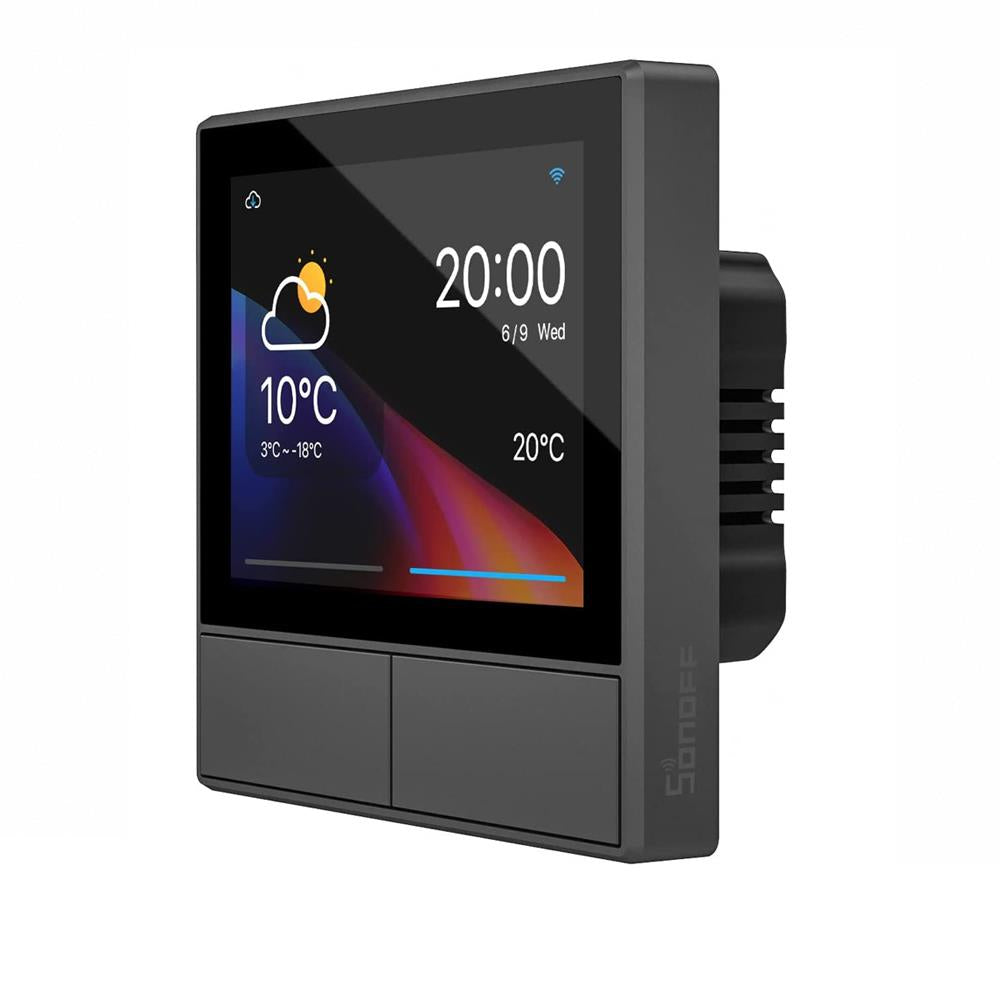

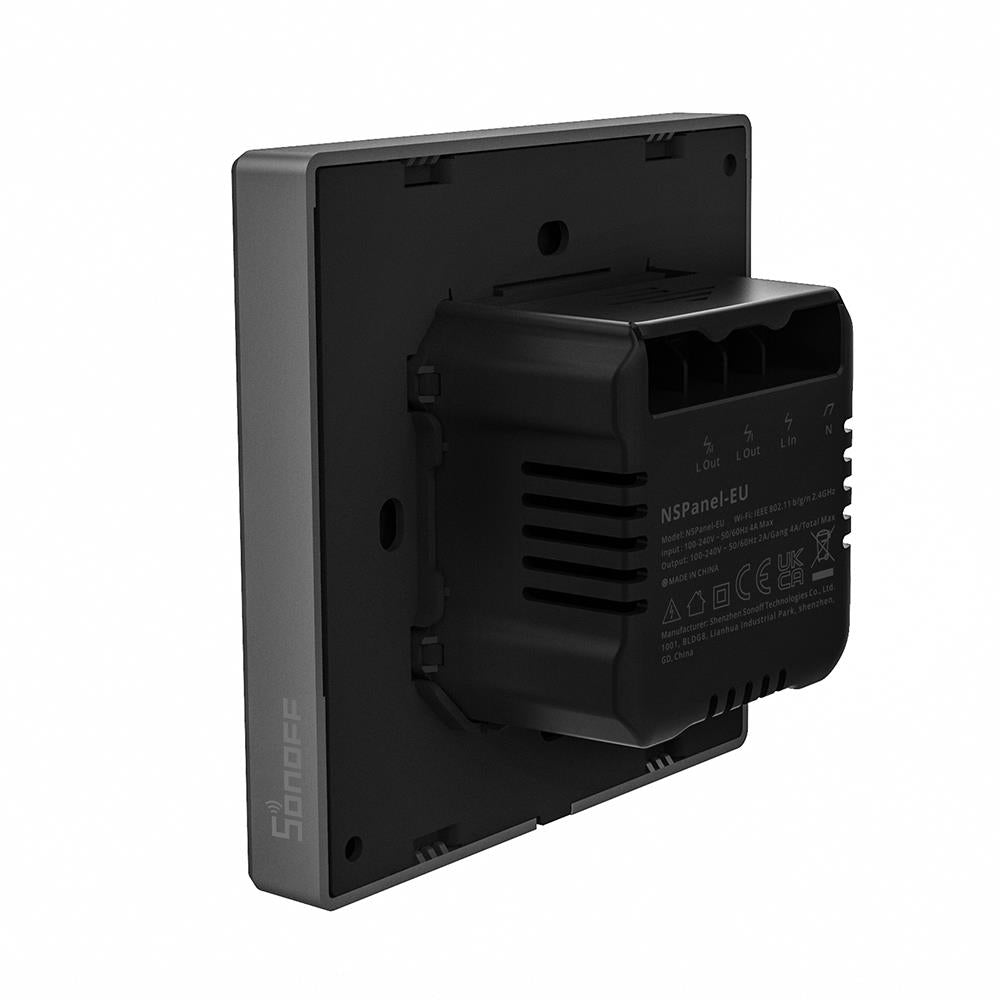

The SONOFF NS Panel is a smart home wall switch with 8.89cm / 3.5 inch display. Two separate channels can be switched using the two buttons (Lamp 1 & Lamp 2). The display is easy and quick to use. The integrated temperature meter shows the current temperature on the display. It is also possible to display widgets on the NS panel. The NS panel can be mounted in any standard flush-mounted box.

All in One Control Center - you can control and regulate various scenes via the SONOFF NS panel. The NS panel is compatible with almost all SONOFF devices.

Home Automation Thermostat - with the built-in powerful thermostat, different indoor temperatures can be Set at different times and the NS Panel will automatically activate the heating or cooling devices according to your Settings to keep the room at a temperature you specify.

Time & Know the weather - Thanks to the built-in sensors and the WiFi connection, the NSPanel can show you the weather, the indoor and outdoor temperatures as well as the time and date at any time.


Matching:

SPLASH-PROOF HOUSING

SONOFF R2 waterproof box is made of PC V0 material, which is dustproof and prevents objects from entering. Making it ideal for protecting your SONOFF switch in wet environments.

SONOFF Waterproof Box R2 IP64 TH-Elite TH-Origin POW-Elite POW-Origin NSPanel TX


Special features of the Tasmota firmware

Up to 8 widgets in 12 different designs can be displayed on the NSPanel.

Relays, buttons, buzzers and temperature sensors are part of Tasmota like any standard switch.

Use the "Buzzer" command to control the buzzer.

To specify the widgets and thermostat Settings to use, you must edit the "widget" and "atc" variables in the nspanel.be file.

The state of the relays is displayed on the bottom bars of the main screen using "Set_power()" in the driver.

Time and date are automatically updated every minute according to Tasmota time using "Set_clock()".

Weather updates NSPLocation value is used with function "Set_weather()" to fetch data from wttr.in. Since no date range can currently be provided, it has been replaced by using felt temperature.

Indoor temperature is updated in TelePeriod using NSPanel temperature probe data with "Set_temp()" functions. You can change the source by commenting out the associated tasmota.add_rule triggers, or update remotely using NSPSend {"temperature":24.5, "tempUnit": "C"}.

Every touch event is reported in the Tasmota logs and can be used in Rules with the trigger "NSPanel#...".

If you want the ability to reSet the screen, change GPIO4 to "Relay 3". This pin needs to be low for the screen to turn on, so Set the PulSetime3 2 to temporarily pull it high enough for the screen to reSet.


Important note:

The NSPanel as a Tasmota variant is already delivered with the preSet template. All other Settings still need to be further configured to your individual wishes. JSON commands are used for this. You should have a certain basic knowledge so that you can do it yourself.

For more Setup information, visit: https://templates.blakadder.com/sonoff_NSPanel.html


NS Panel Lovelace UI

The NSPanel can be easily converted from the Tasmota console to the popular Lovelace UI.

NsPanel Lovelace UI is a firmware for the Nextion screen within NSPanel in the design of HomeAssistant's Lovelace UI design.

You can find installation instructions and configuration documentation at https://docs.nspanel.pky.eu/.

Everything is dynamically configurable through a yaml configuration, no need to code or use Nextion Editor

It works with Tasmota and MQTT. There is an AppDaemon app to control the panel and update it with content from HomeAssistant.

Technical data:

Model: NSPanel-EU

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Bluetooth: 4.2 BLE

Size: 86 x 86 x 41.7 mm

Display size: 8.89cm / 3.5 inches

Display resolution: 480x320px

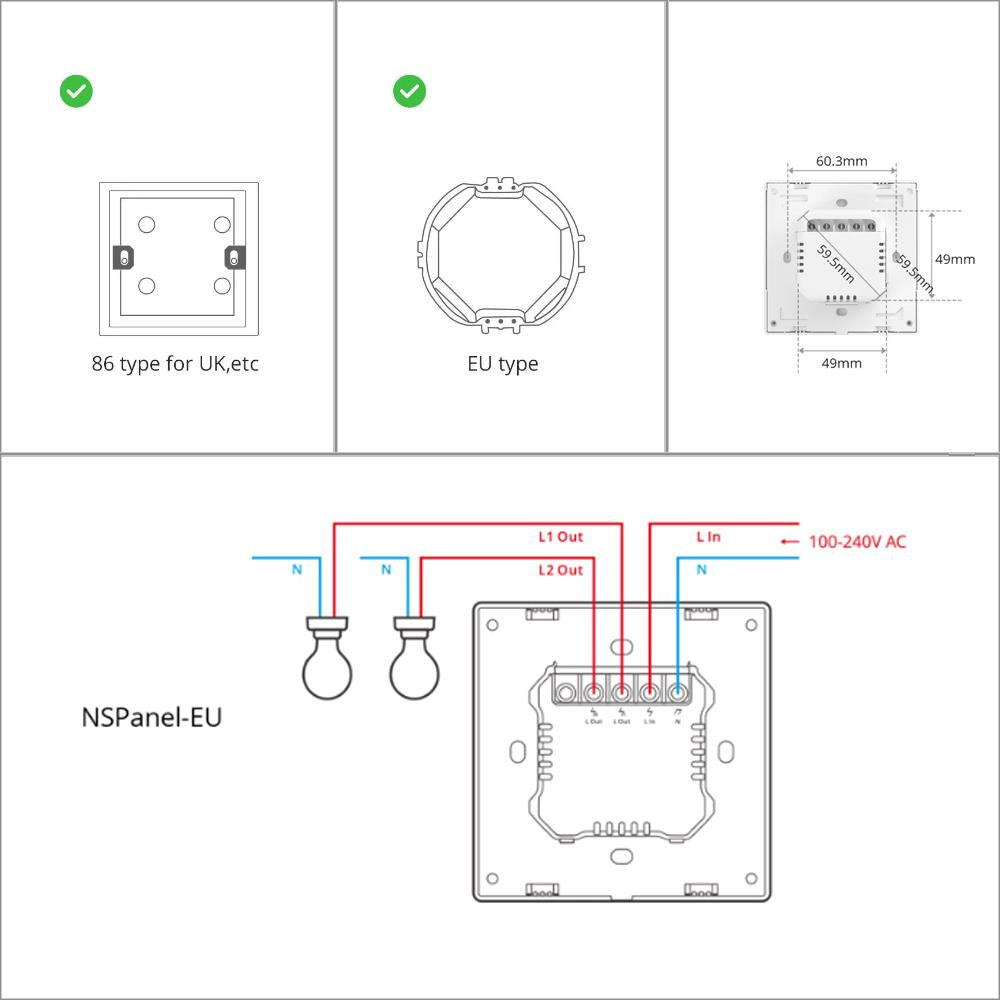

Input voltage: 100V ~ 240V AC (50/60Hz)

Max. Input current: 4A (2A per channel)

Max. Power: 600W (300W per channel)

Material: PC V0 + CRS + Tempered Glass

More information:


More:

New goods available immediately with Tasmota firmware


Model variants:

Tasmota german eWeLink (no Tasmota)
