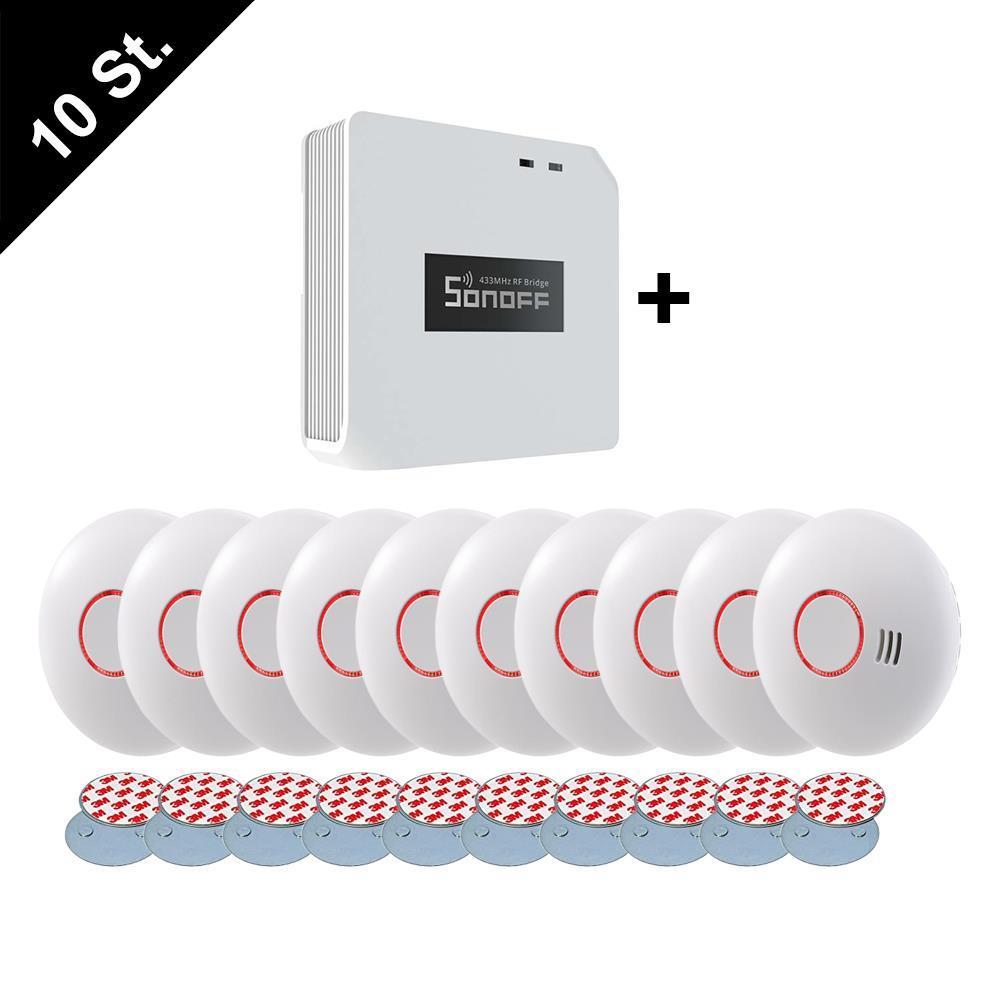

Unitec EIM-213 wireless smoke detector Sonoff RF BridgeR2 WiFi RF Smart Hub Tasmota 15

Product Description Wireless Smoke Detector:

Wireless Smoke Detector

Safety for your home - Tested according to DIN EN 14604:2005 / AC: 2008

Wireless connection of multiple smoke detectors - Thanks to the wireless function of the smoke detector, you can connect up to 15 detectors of the same series wirelessly. If one of the interconnected smoke detectors goes off, it will alert the entire network. This ensures that all people in the house are alerted, even across multiple floors and distances. The wireless range is 20 meters, allowing you to install your detectors flexibly.

Practical mute function when frying food - The smoke detector triggers an alarm of 85 dB in case of smoke development. If the smoke detector has detected smoke and switched to alarm mode, you can mute the alarm for about 10 minutes by pressing the test button. This is particularly useful if the detector was accidentally triggered while cooking. For example, you can finish frying your burgers in peace without being accompanied by a constant signal tone. After that, the detector switches back to normal operating mode.

Manual and automatic testing function for your personal safety - Every 30 - 40 seconds, the smoke detector performs an automatic function test. You can recognize this by the flashing LED light. However, you can also manually check its function at any time. For this, you can use the test function. We recommend testing the smoke detector manually at least once every 3 months.

Acoustic and optical indication when the battery is depleted - The smoke detector checks the battery for you. As soon as the battery is depleted, the detector announces this with a recurring beep. Two AA batteries are included in the delivery for immediate use after purchase.

Compatible with Sonoff RF BridgeR2 with Tasmota: With the help of the Sonoff RF BridgeR2, you can easily integrate your smoke detectors into your smart home system and make them smart. The RF Bridge is capable of recognizing the RF codes during an alarm trigger and forwarding them via MQTT. Through this integration, you can seamlessly incorporate your smoke detectors into your smart home setup and benefit from the advantages of a connected system.

Functionality of the smoke detectors: The smoke detectors emit an alarm signal in case of an emergency. Each smoke detector has a unique code that can be received by the Sonoff RF Bridge and processed via MQTT.

Obtaining the smoke detector code: To obtain the code of a smoke detector in the Sonoff RF Bridge, simply press the test button on the smoke detector for 5 seconds to simulate an alarm. This will make the code visible in the web GUI of the RF Bridge. Once you have obtained the code of the corresponding smoke detector, you can process it via MQTT as desired. (Note: The smoke detectors only send a code in case of an alarm, not when the battery status is low.)

Compatible with Home Assistant: The RF Bridge connects to Home Assistant via MQTT and sends the recognized RF codes to the MQTT broker of your Home Assistant system. In the configuration.yaml, you create MQTT binary sensors, give them a name, and assign them the corresponding RF code. These manually created sensors can be displayed on the dashboard, allowing you to create further automations.

Features:

Triggers an alarm of >85 dB in case of smoke development

Connection of up to 15 detectors possible

Wireless range > 20 meters

Practical mute function

LED function display to ensure functionality

Acoustic and optical indication for necessary battery replacement

Manual testing function for your personal safety

Two AA batteries included

With dowels and screws + user manual

Help for installing your smoke detector can be found in the included user manual. If you want to avoid drilling and doweling into the ceiling, you can also order the magnetic mounting set.

Product Description RF BridgeR2:

Sonoff 433MHz RF WiFi Bridge

Already flashed with the latest Tasmota firmware.

RF433.92MHz and Wi-Fi protocol support - Helps you connect 433.92MHz RF devices with Wi-Fi devices and expand the smart home ecosystem.

Strong connectivity, limitless possibilities - The bridge supports adding up to 64 RF 433.92MHz devices published by SONOFF, such as the PIR3-RF PIR motion sensor and the DW2-RF wireless door/window sensor, to make your home smarter.

Additional device types - The bridge also recognizes signals from 433.92MHz smoke detectors, 433.92MHz door magnet sensors, 433.92MHz human body IR motion sensors, 433.92MHz water sensors, and many other 433.92MHz sensors. The prerequisite is that these devices operate with a code such as PT2260, PT2262, PT2264, or EV1527. However, rolling codes and dynamic codes, such as those used in garage door openers, roller shutters, and curtain controls, are not supported.

Compatible with 433.92MHz remote controls & easy management - If you have dozens of RF433.92MHz devices and are struggling to control them, this RF BridgeR2 will help you organize. Simply migrate the devices to your smartphone. Compatible with 433.92MHz remote controls for easier control. You can add up to 16 devices and up to 64 buttons.

RF alarm & triggering smart scenes - You can add alarms to trigger the device by setting up a smart scene. For example, as soon as the door is opened (in conjunction with the DW2 door/window sensor), you will receive a notification and the lights will automatically turn on.

NO PORTISCH OPTION

This was only possible with the old black variant, which is no longer on the market.

Technical Data Wireless Smoke Detector:

Manufacturer: Unitec EIM-213

Wireless connection range: > 20 m

Wireless networking: 433.92MHz

Networkable: Yes (wireless)

Operating principle: optical

Voltage: 3 Volts

Battery included: Yes (2x 1.5V DC AA Alkaline)

Low battery warning: Yes

Alarm volume (dB): 85

Test button: Yes

Protection class (IP): IP20

Operating temperature (°C): +4°C to +38°C

Diameter: 120x35.5 mm

Installation: Wireless

Mute button: Yes / Mute time approximately 10 minutes

Delivery includes: Wireless smoke detector, mounting accessories, batteries, user manual

Certification: DIN EN 14604:2005 / AC: 2008

Technical Data Mounting Set:

Magnetic mounting pads

56mm diameter

High-quality 3M adhesive pad

1 min. Quick installation without drilling

Technical Data Sonoff RF2 Bridge:

Model: RF BridgeR2

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 62 x 62 x 20 mm

Weight: 39g

Operating temperature: -10°C - 40°C

Input voltage: 5V Micro USB, power supply not included

Material: PC V0
