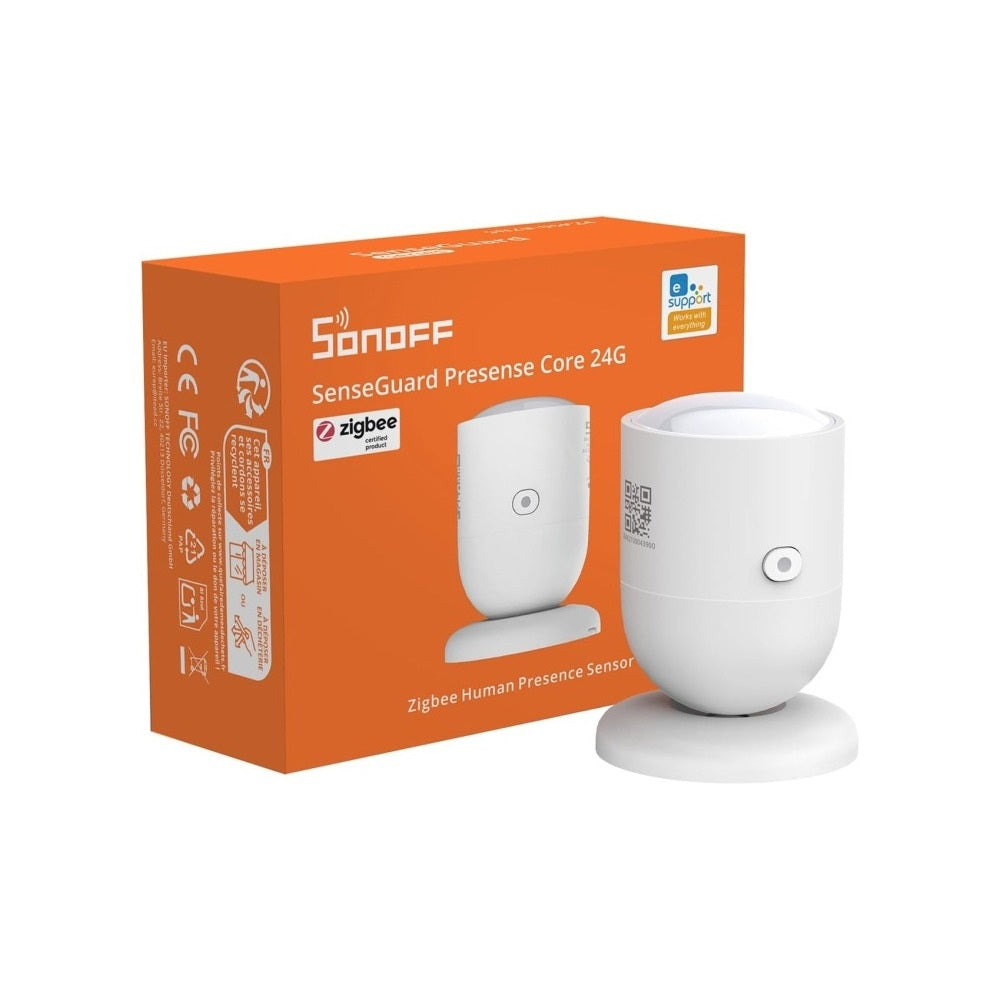

SONOFF SenseGuard Presence Core 24G SNZB-06P24 Zigbee Microwave Presence Sensor

Product Description:

Precise presence detection with advanced radar technology

The Sonoff SenseGuard Presence Core 24G (SNZB-06P24) is a Zigbee presence sensor based on 24 GHz mmWave radar technology. It reliably detects whether people are in a room and can capture even the smallest human micro-movements such as breathing or posture changes.

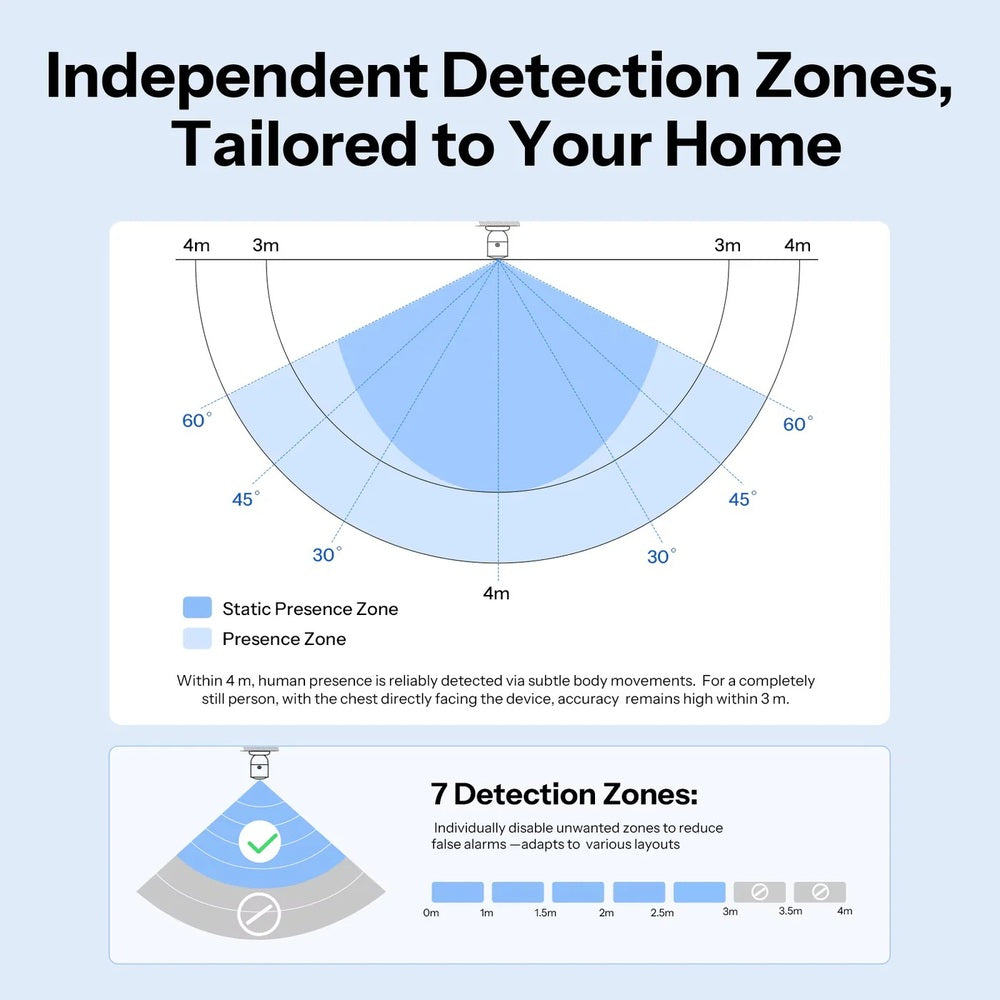

With a detection range of up to 4 meters and a detection angle of 110°, the sensor can be divided into seven individually configurable zones. This allows for targeted monitoring of relevant areas.

The sensor offers automatic interference filtering, enabling it to recognize and filter out recurring interference sources such as fans or air conditioners, which increases reliability.

An integrated light sensor measures ambient brightness and enables intelligent automations, such as automatically turning on lights when someone is present and the brightness falls below a certain threshold.

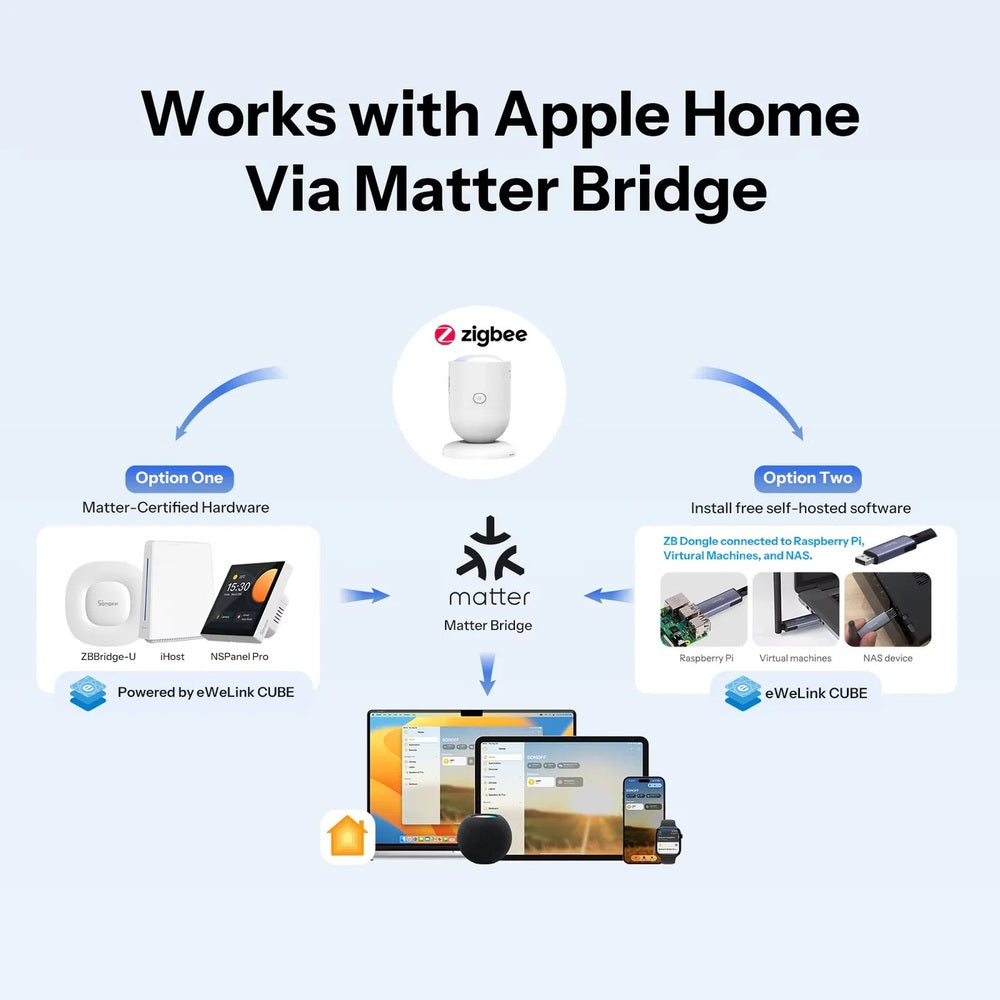

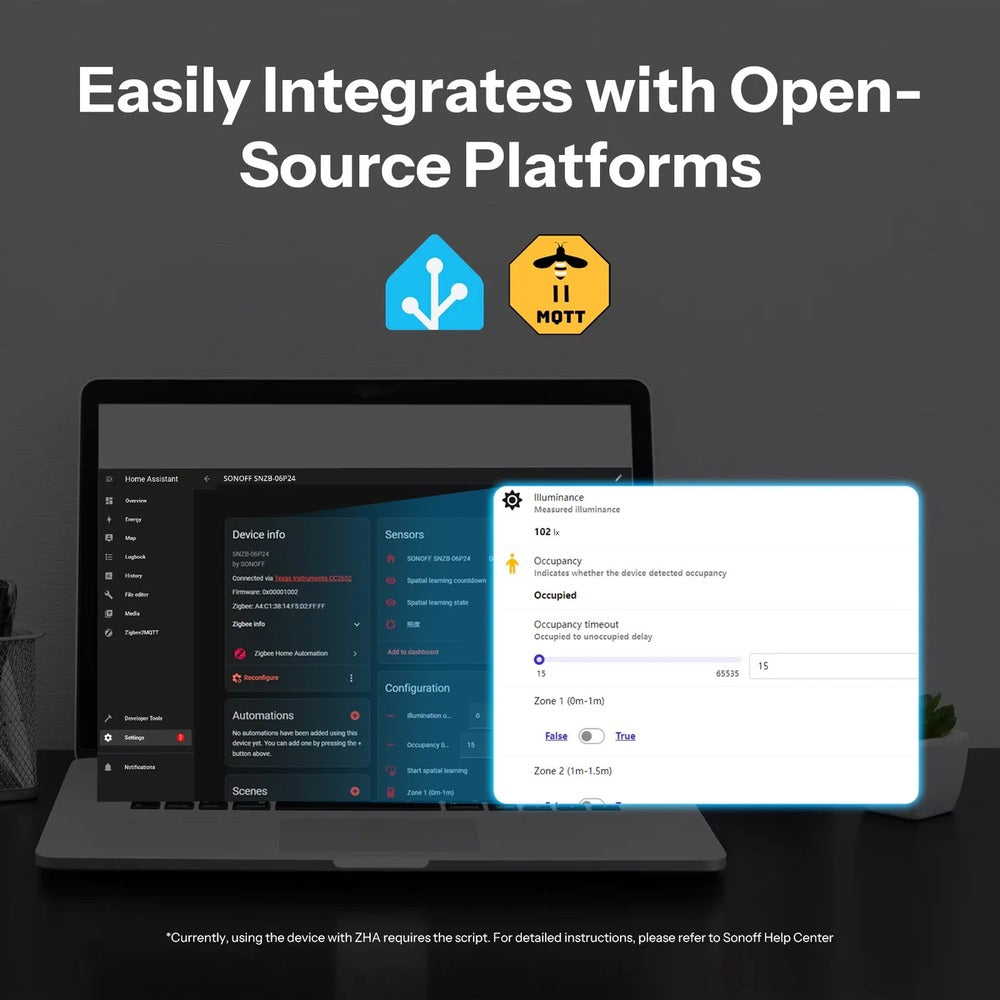

The sensor is compatible with Zigbee 3.0 and can be used with platforms like Home Assistant, SmartThings, Alexa, and eWeLink. Configuration is done locally via Bluetooth.

Additional Features:

24 GHz mmWave radar: Highly sensitive presence detection that recognizes even the smallest human movements.

7-zone detection range: The detection range can be divided into seven independently configurable zones.

Automatic interference filtering: Reduces false alarms by filtering out interference sources.

Integrated light sensor: Allows measurement of ambient brightness and supports light automations.

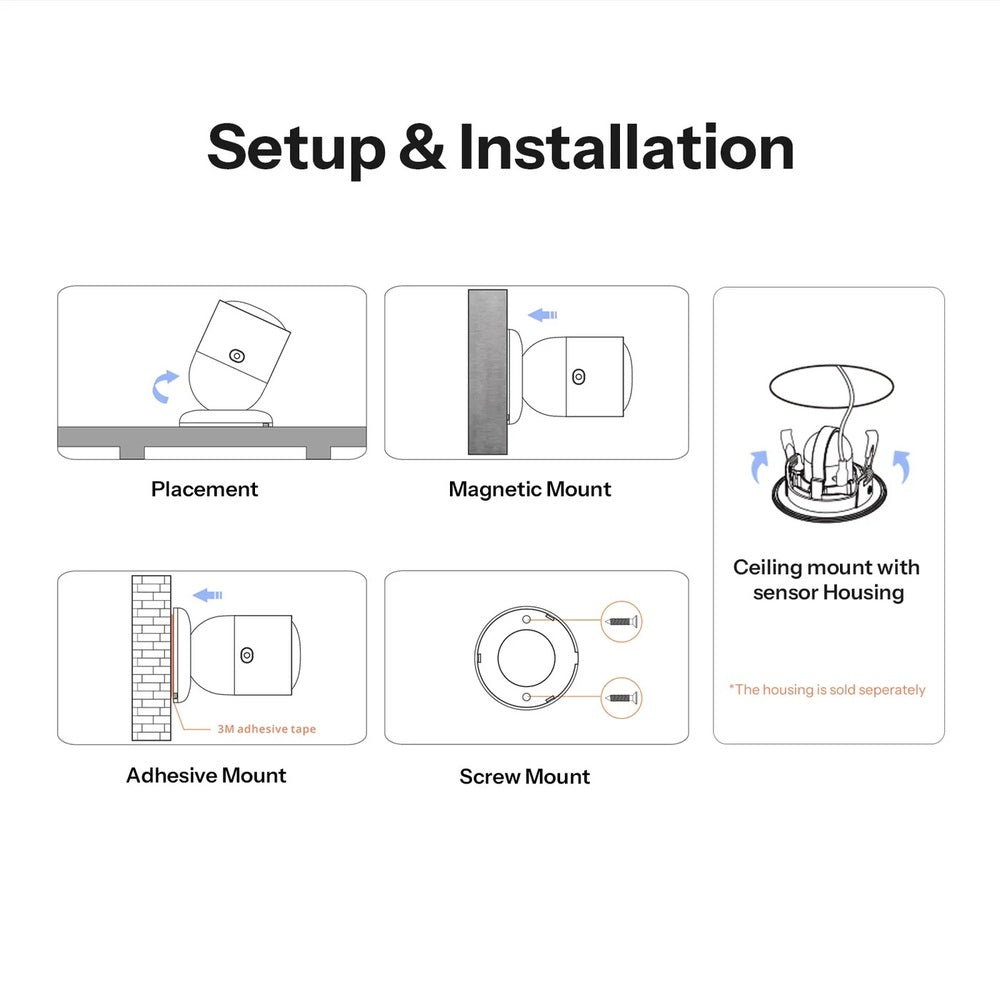

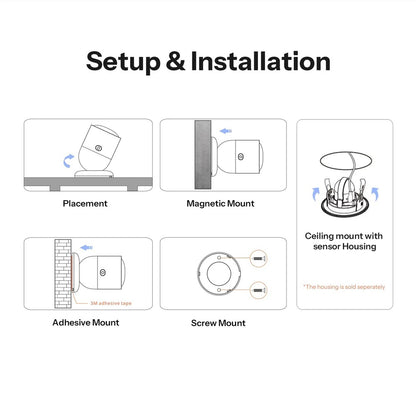

Flexible installation: Can be installed magnetically, adhesively, freestanding, or as a built-in version.

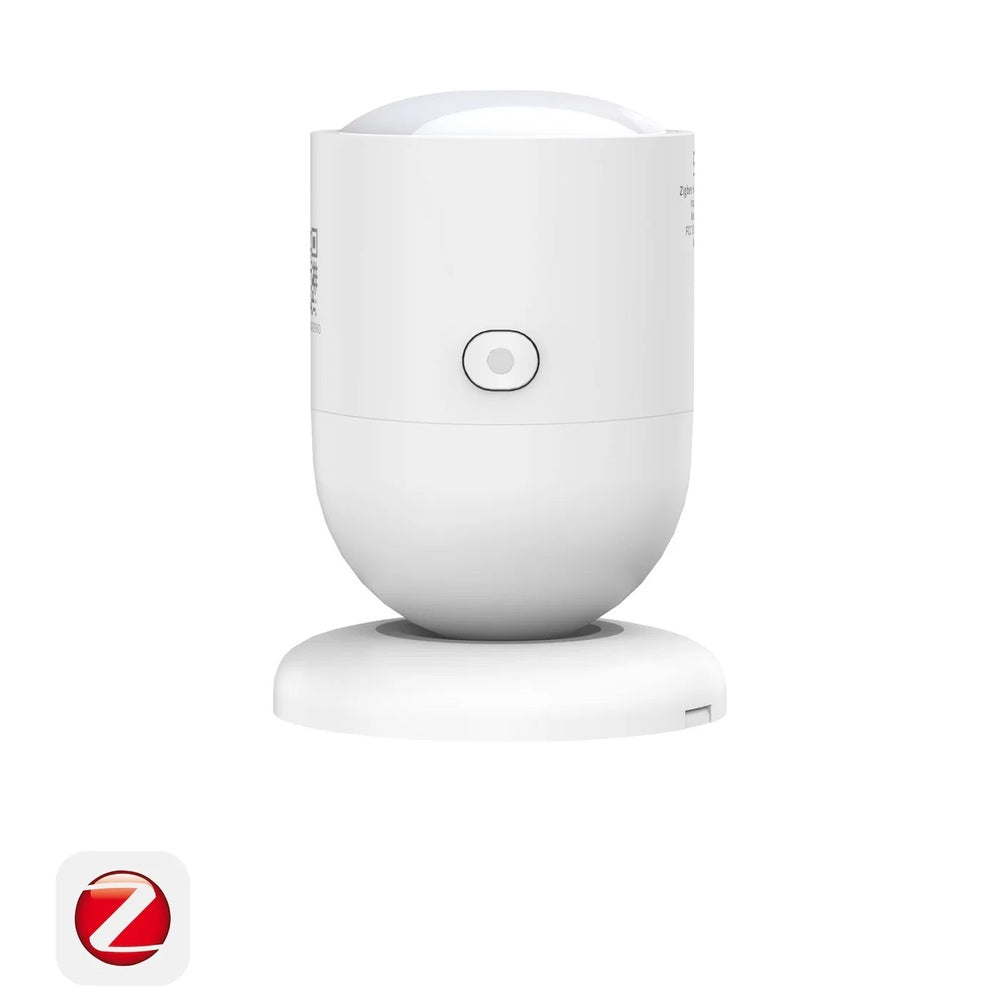

Adjustable sensor head: Allows adjustment of the detection angle.

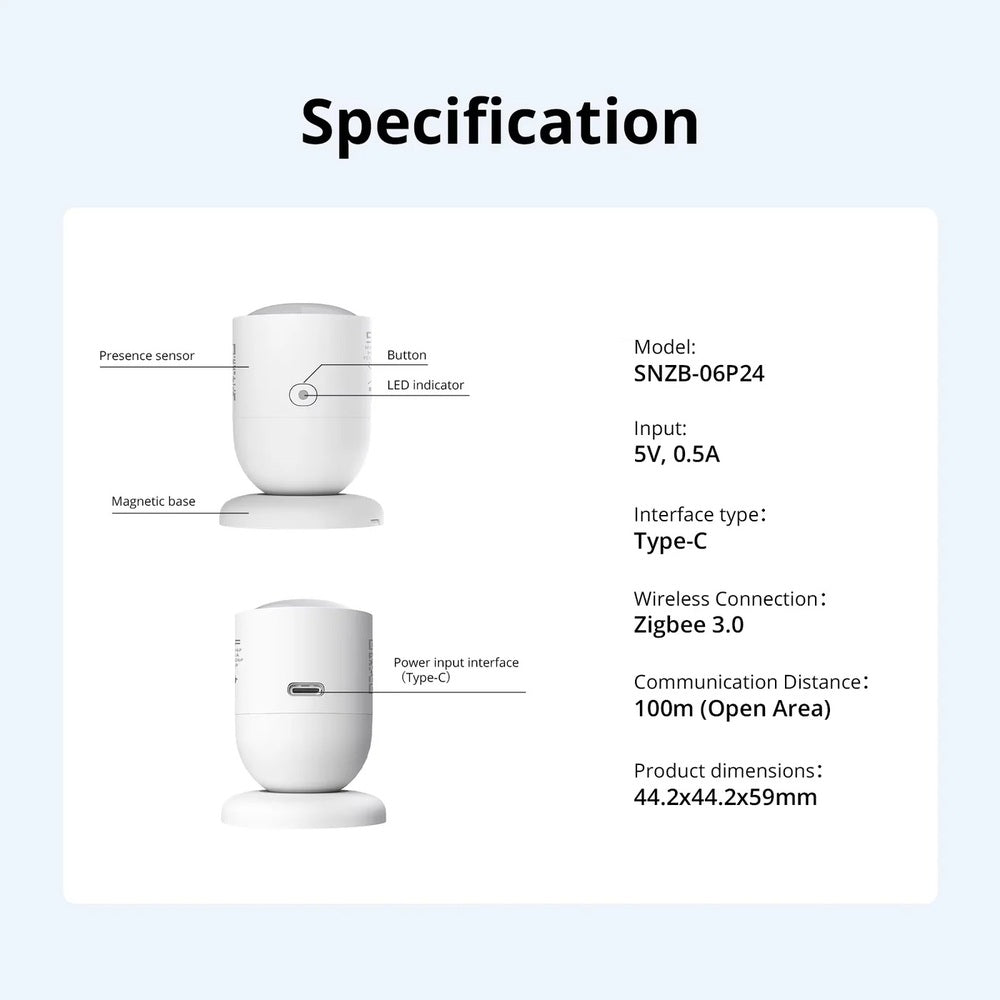

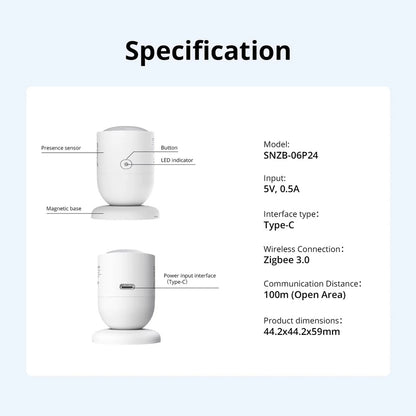

Technical Specifications:

Model: SNZB-06P24

Dimensions: 44.2 × 44.2 × 59 mm

Weight: 112 g/pcs

Color: White

Operating temperature: -10°C to +60°C

Operating humidity: 0–90% RH, non-condensing

MCU: TLSR8656

Housing material: PC + ABS

Product category: sensor

Device power supply: 5V DC USB-C

Operating temperature range: -10°C - 60°C

Operating humidity range: 0% - 90% RH

IP rating: IP20

Size: 59 x 44.2 x 44.2 mm

Colour: white
