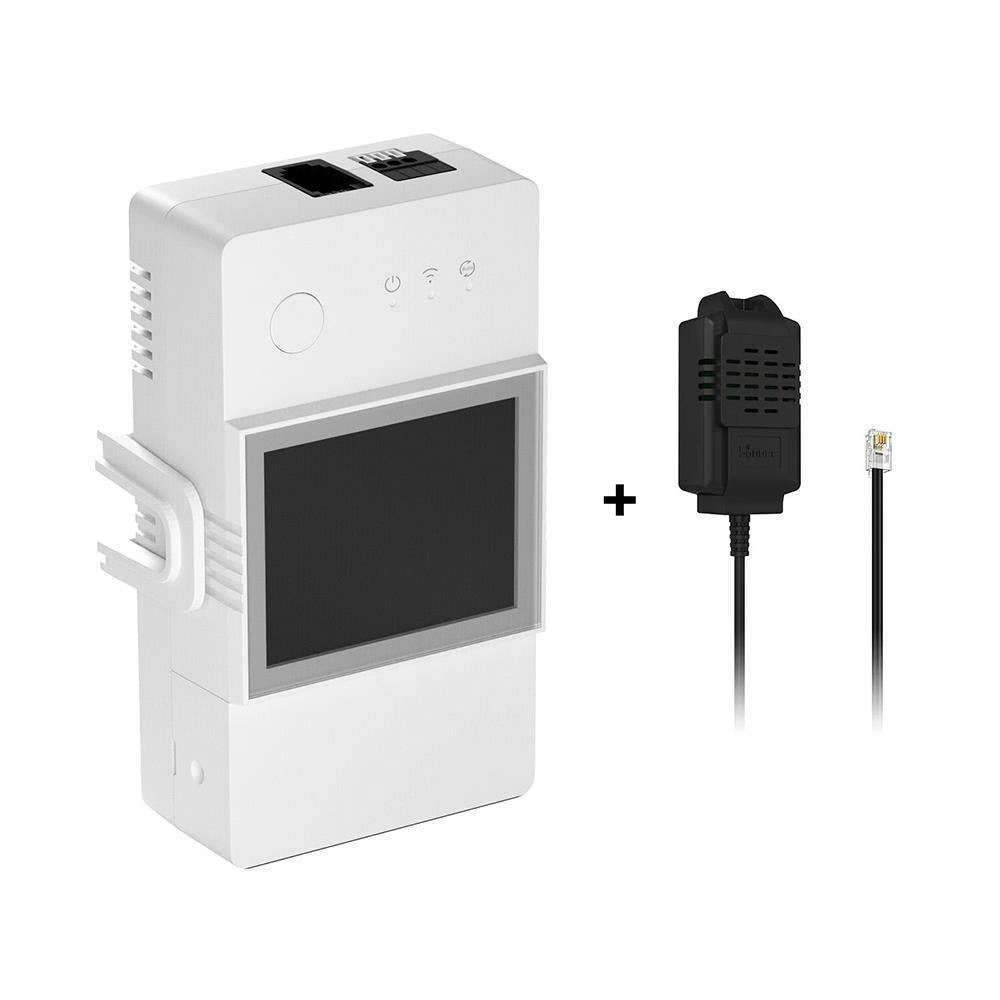

SONOFF THR316D TH Elite 16A Sensor Controlled WiFi Smart Switch Tasmota 14

SONOFF THR316D TH Elite 16A Sensor Controlled WiFi Smart Switch Tasmota 14

Regular price €36,99 EUR
Regular price €0,00 EUR Sale price €36,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock - Delivery time 1-3 working days

Article description:

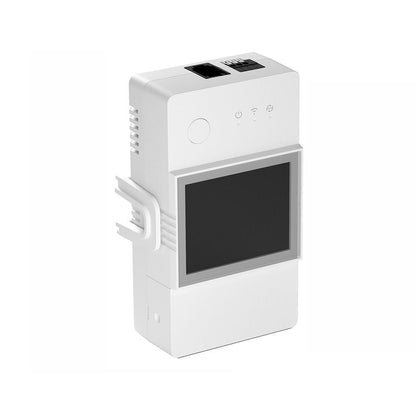

WiFi Smart Switch with sensor connection and display

Already flashed with the latest Tasmota firmware.

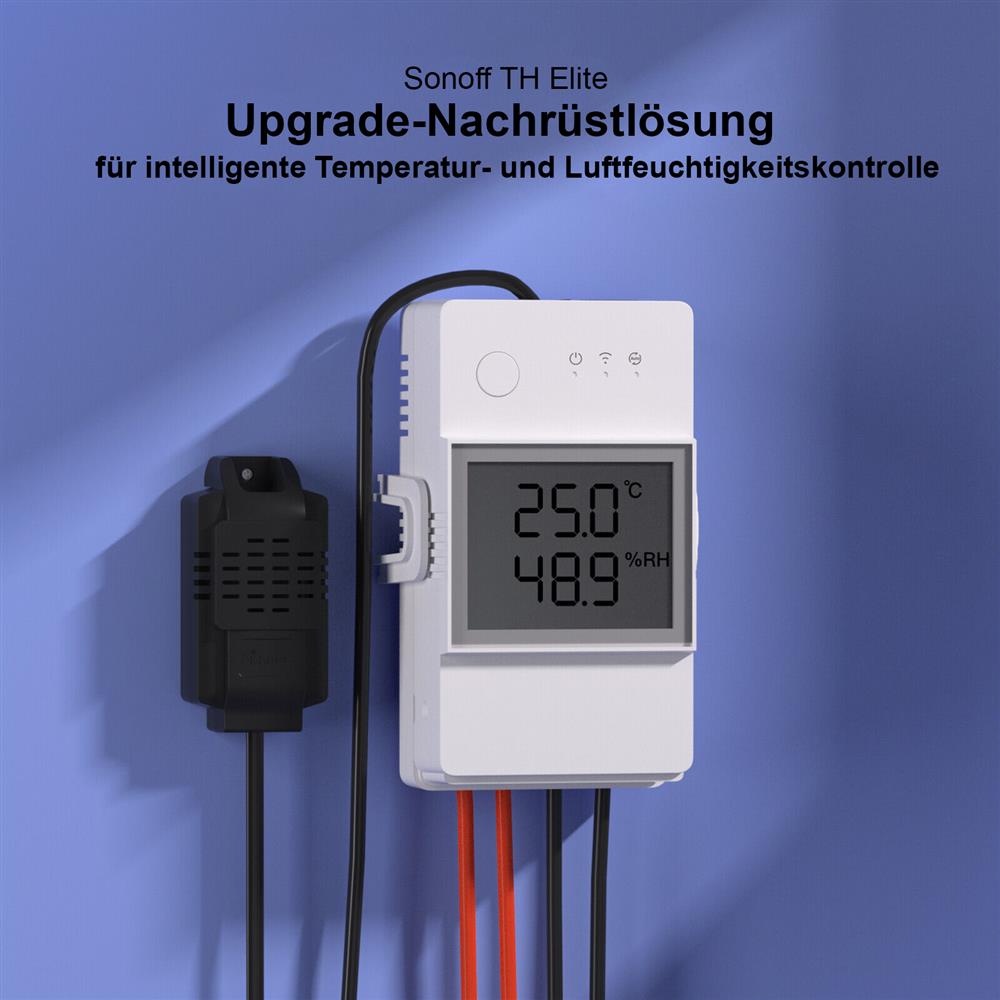

LCD Screen - Real-time monitoring of temperature and humidity data. The screen refreshes every 5 seconds.

16A Maximum Load & Dry contact output - Supports a maximum of 16A load. This makes the TH Elite compatible with more household appliances. Additional dry contact output.

Historical 6-month temperature and humidity data by hour - Evaluation of temperature and humidity data by hour, day and month. The last 6 months of data can be exported in .xlsx format and is accurate to the hour.

Fully functional - The TH Elite has the most basic functions, such as app control, voice control, schedule, tap Setting, power on state, etc.

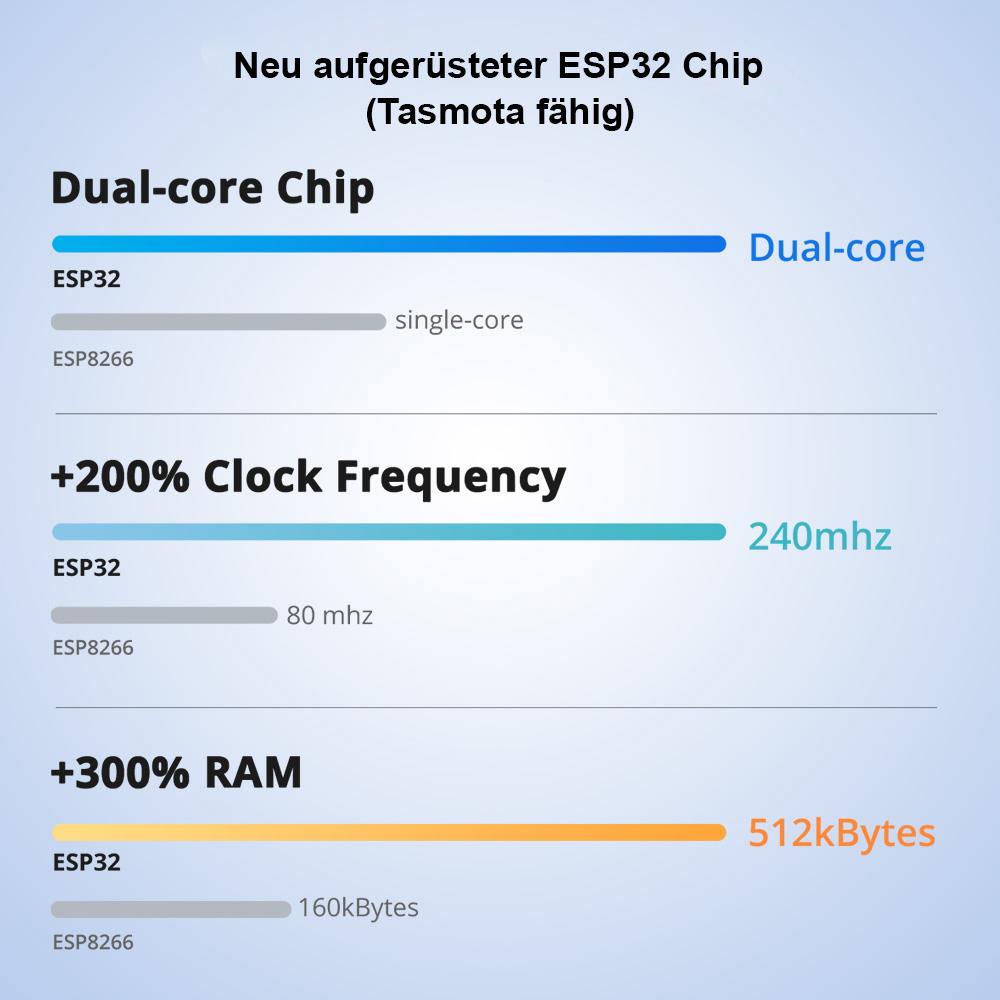

SONOFF TH Elite is an intelligent temperature and humidity monitoring switch, with a newly upgraded ESP32 chip, which is 200% faster than the previous ESP8622 chip. With an LCD screen, the TH Elite monitors temperature and humidity in real time. Once the values ​​reach the preSet threshold, the device's on/off status can be changed.

Supports connecting devices with a maximum load of 16A, such as a washing machine.

You can replace your traditional dry contact thermostat with TH Elite to control the combi boiler or other systems controlled by a normal switch.

TH Elite turns your traditional thermostat into a smart device, automating your irrigation system and providing an easy way to monitor temperature and humidity.

The eWeLink version is compatible with Amazon Alexa & Google Assistant. The Tasmota version is compatible with Amazon Alexa. Many other voice assistants can be controlled via the home automation connection / MQTT.


Also available as TH Elite 20A version:

SONOFF THR320D TH Elite 20A Sensor-Controlled WiFi Smart Switch Tasmota

Further information:

The sensors THS01 and WTS-01 (RJ11) already have the RJ11 socket. Simply plug into TH Elite and use. MS01 comes with a free RJ11 adapter.

If you already have the 2.5mm audio jack sensor (Si7021/AM2301/DS18B20) and want to use it with the new TH Elite, an RJ11 adapter is required. This is also available in the shop.


Matching:

SPLASH-PROOF HOUSING

SONOFF R2 waterproof box is made of PC V0 material, which is dustproof and prevents objects from entering. Making it ideal for protecting your SONOFF switch in wet environments.

SONOFF Waterproof Box R2 IP64 TH-Elite TH-Origin POW-Elite POW-Origin NSPanel TX


Technical data TH Elite:

Model: THR316D

MCU: ESP32

Wi-Fi Type: IEEE 802.11 b/g/n 2.4GHz

Security protocols: WEP/WPA-PSK/WPA2-PSK

Size: 98 x 54 x 31 mm

Weight: 120g

Working temperature: -10°C - 40°C

Working humidity: 5% - 95%

Input voltage: 100V ~ 240V AC (50/60Hz)

Max. Input current: 16A

potential-free output: 5-30V, 1A Max.

Material: PC V0

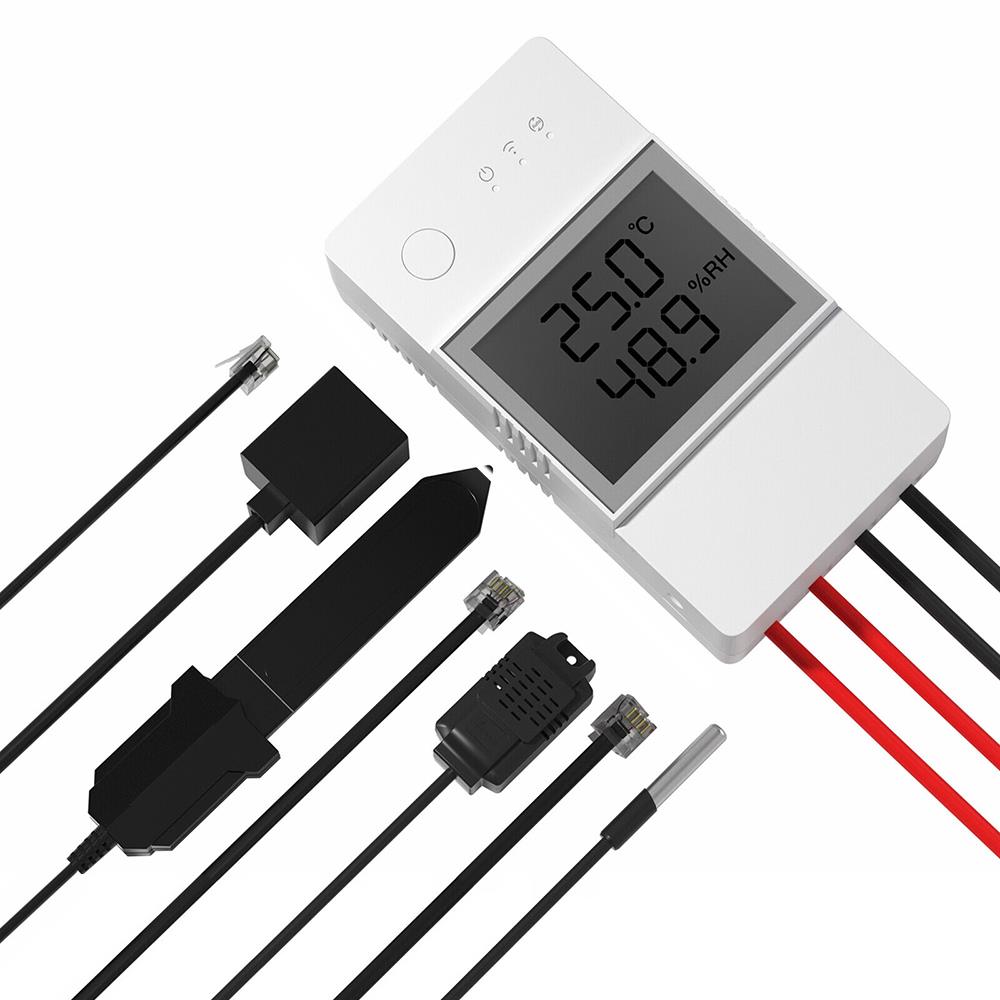

Technical data sensors:

THS01 Sensor

Sensor Type: Temperature and humidity sensor

Plug Type: RJ11 4P4C

Temperature measuring range: -40°C~+85°C

Humidity measurement range: 0~100%RH

Cable length: 50cm

WTS-01 Sensor

Sensor Type: Waterproof Temperature Sensor

Plug Type: RJ11 4P4C

Working temperature: -40°C~+115°C

Length: 1.5m

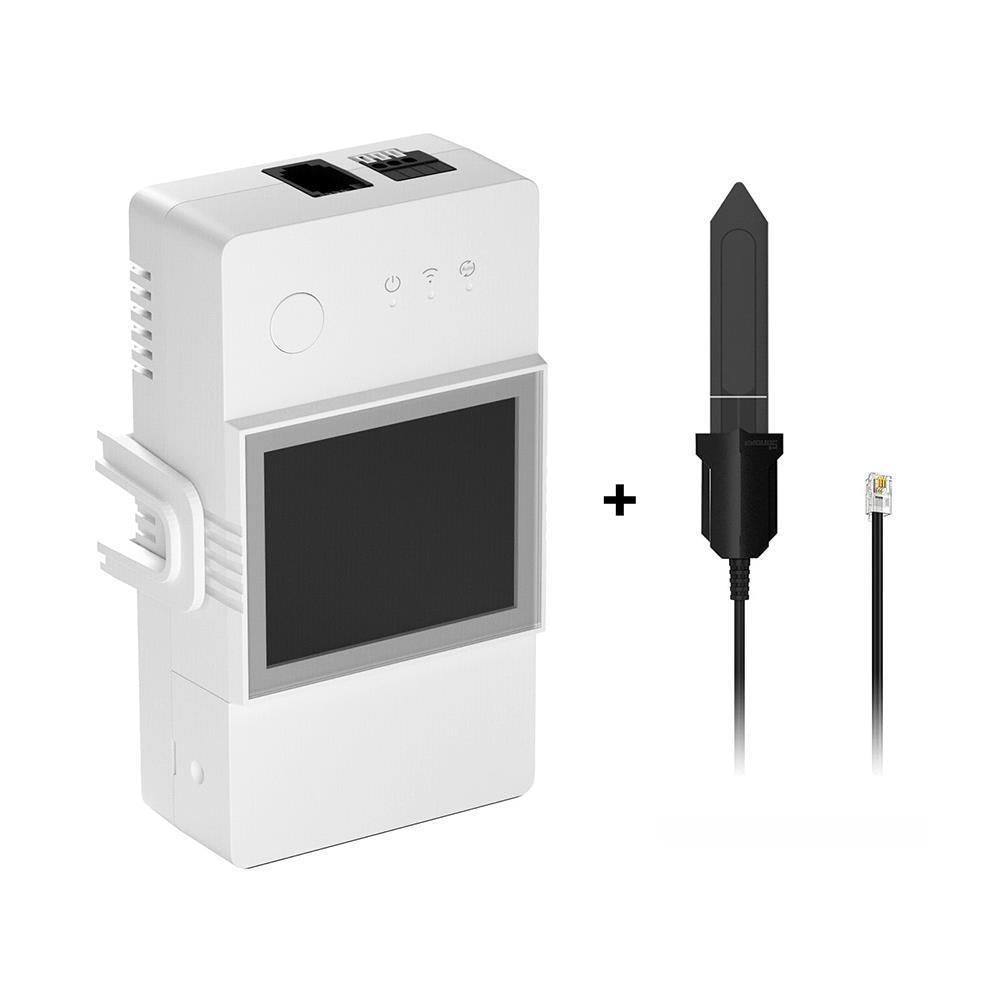

MS01 Sensor

Sensor Type: Soil moisture sensor

Humidity measurement range: 0~100%RH

Operating temperature range: 0°C~60°C

Cable length: 50cm

RL560 Sensor Extension Cable

Conductor resistance: max.10Ω

Insulation resistance: min.5MΩ

Length: 5m cable length

max. expandable length: THS01 & DS18B20 up to 60m, MS01 up to 10m

More information:


More:

New goods available immediately with Tasmota firmware


Firmware variants:

Tasmota german Tasmota english Tasmota individual language (send us a message) eWeLink (no Tasmota)


Set variants:

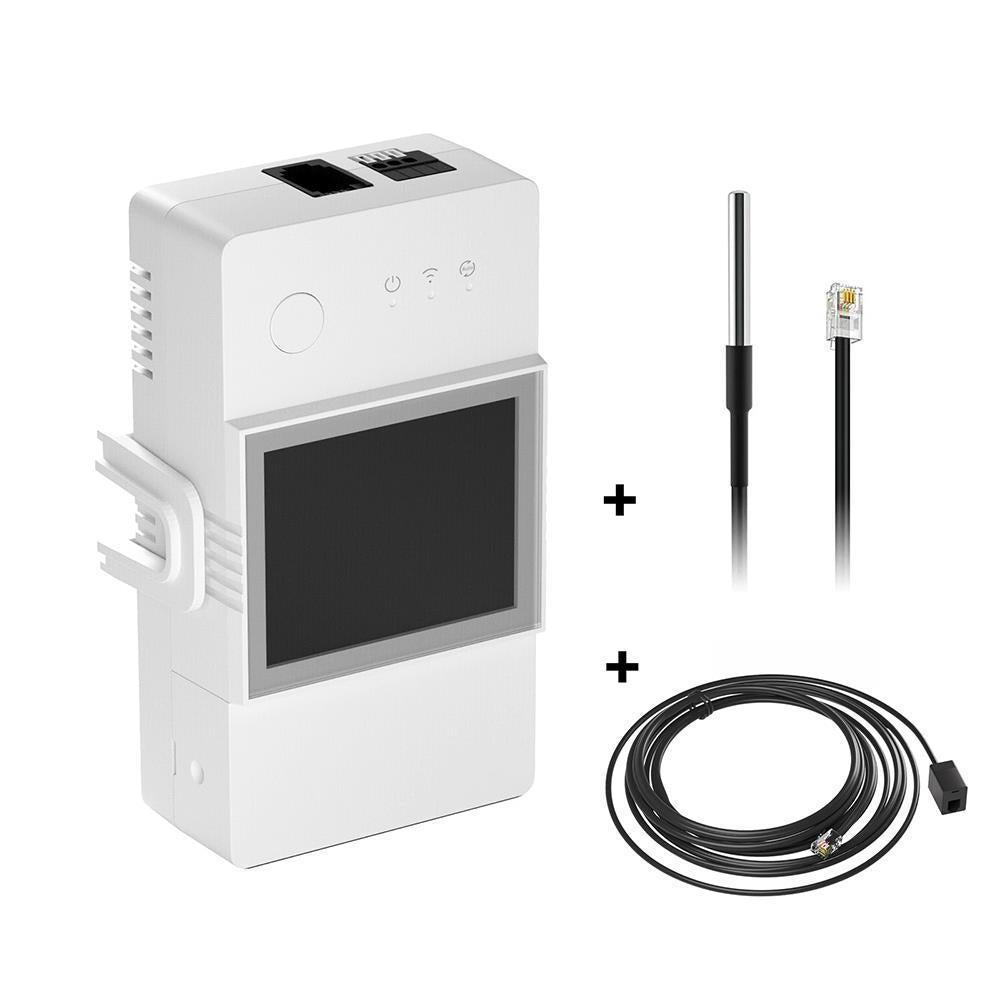

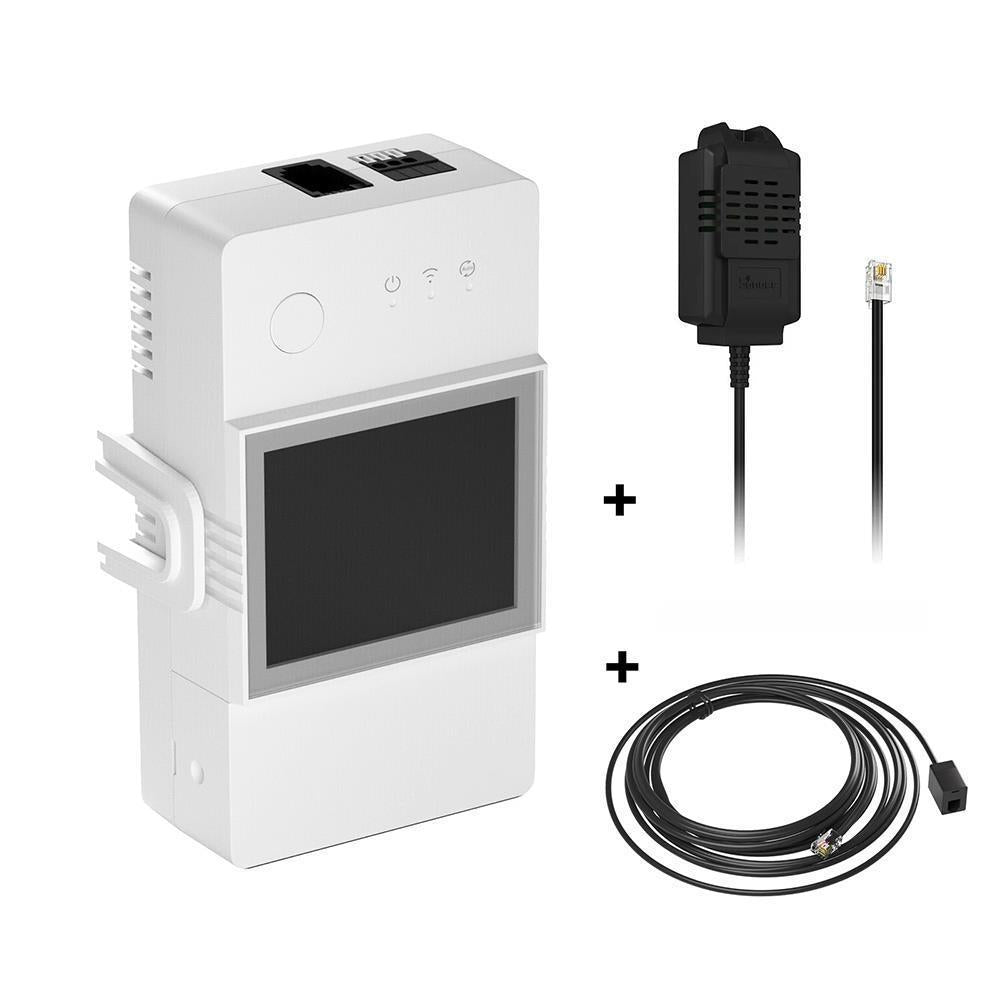

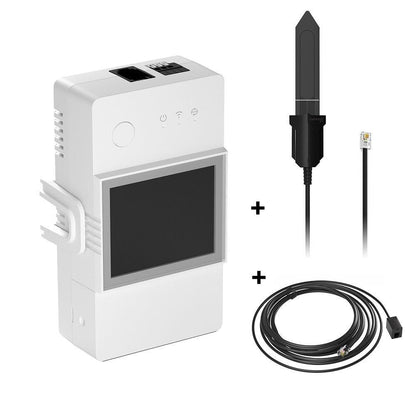

THR316D without sensor THR316D+THS01 THR316D+THS01+RL560 THR316D+WTS-01 THR316D+WTS-01+RL560 THR316D+MS01 THR316D+MS01+RL560
