SONOFF Zigbee 3.0 USB Dongle Plus ZBDongle-E Zigbee2MQTT Home Assistant openHAB

SONOFF Zigbee 3.0 USB Dongle Plus ZBDongle-E Zigbee2MQTT Home Assistant openHAB

Regular price €27,99 EUR
Regular price €0,00 EUR Sale price €27,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock - Delivery time 1-3 working days

ZIGBEE PROMOTION:

Get 5% discount on your purchase in the online store!

Use the code:



ZIGBEE5%



When buying 2 or more cigbeal products and enjoying intelligent technology at an unbeatable price.

Beat and save now!


Article description:

USB ZigBee 3.0 Gateway

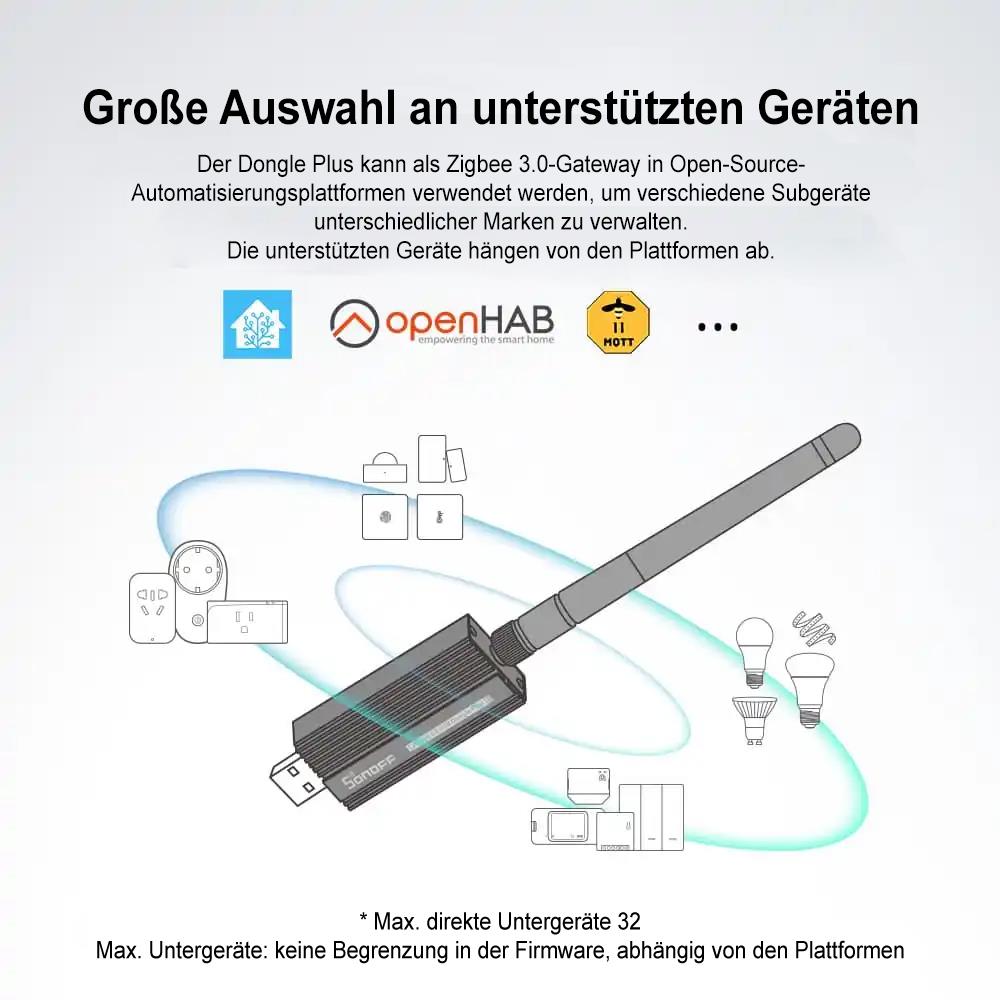

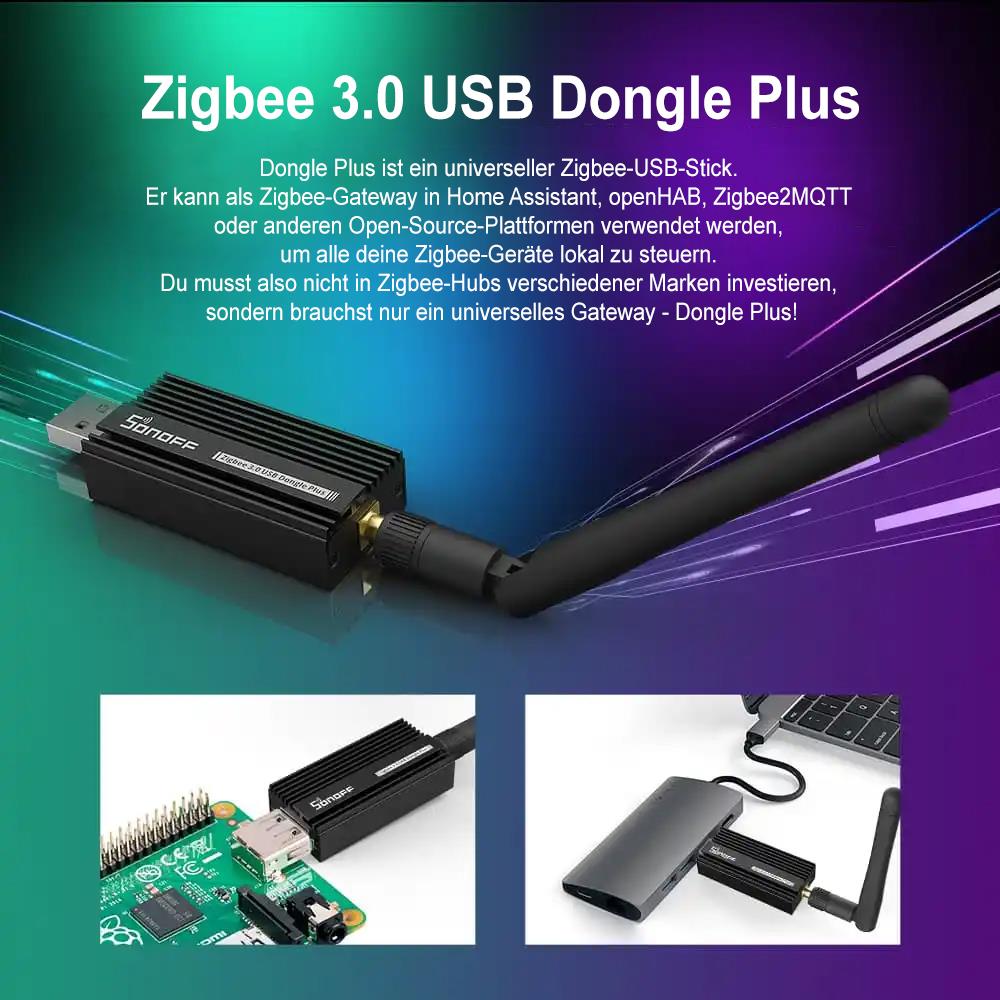

Sonoff Dongle-E can be used as a ZigBee gateway in Home Assistant, Openhab, ZigBee2MQtt or other open source platforms for local control of all ZigBee devices. It enables the simultaneous connection of up to 32 devices and works more efficiently than CC2531 or Conbee II / III. You no longer have to invest in ZigBee hubs from different brands, everything you need is a universal gateway - Dongle Plus!

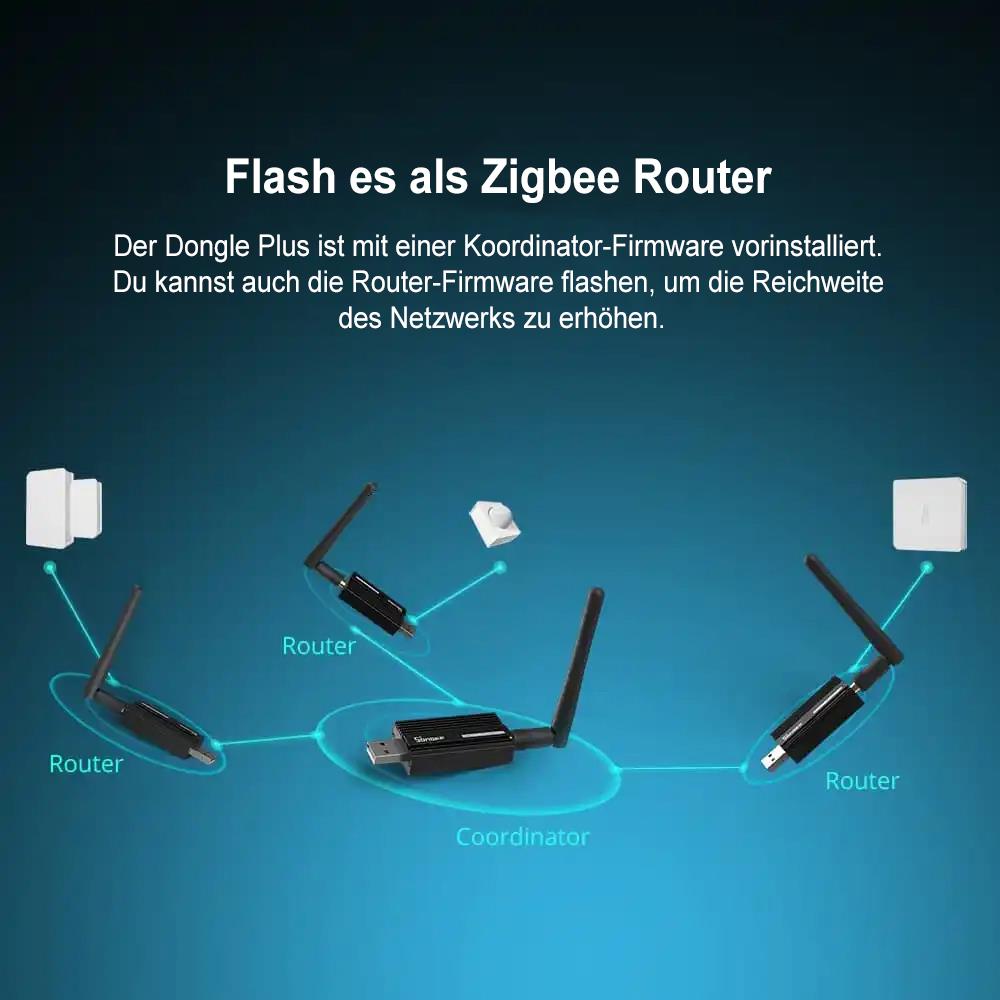

You will use the Dongle Plus as a ZigBee 3.0 gateway in open source platforms to manage different devices from different brands or to flash the firmware of your router to increase the range of the network. You can also purchase a 1.5 meter long USB cable for a larger signal range. The product works with platforms such as Home Assistant, Openhab, ZigBee2MQtt, etc. In addition, it supports Linux, Ubuntu, Raspbian, Windows and MacOS.

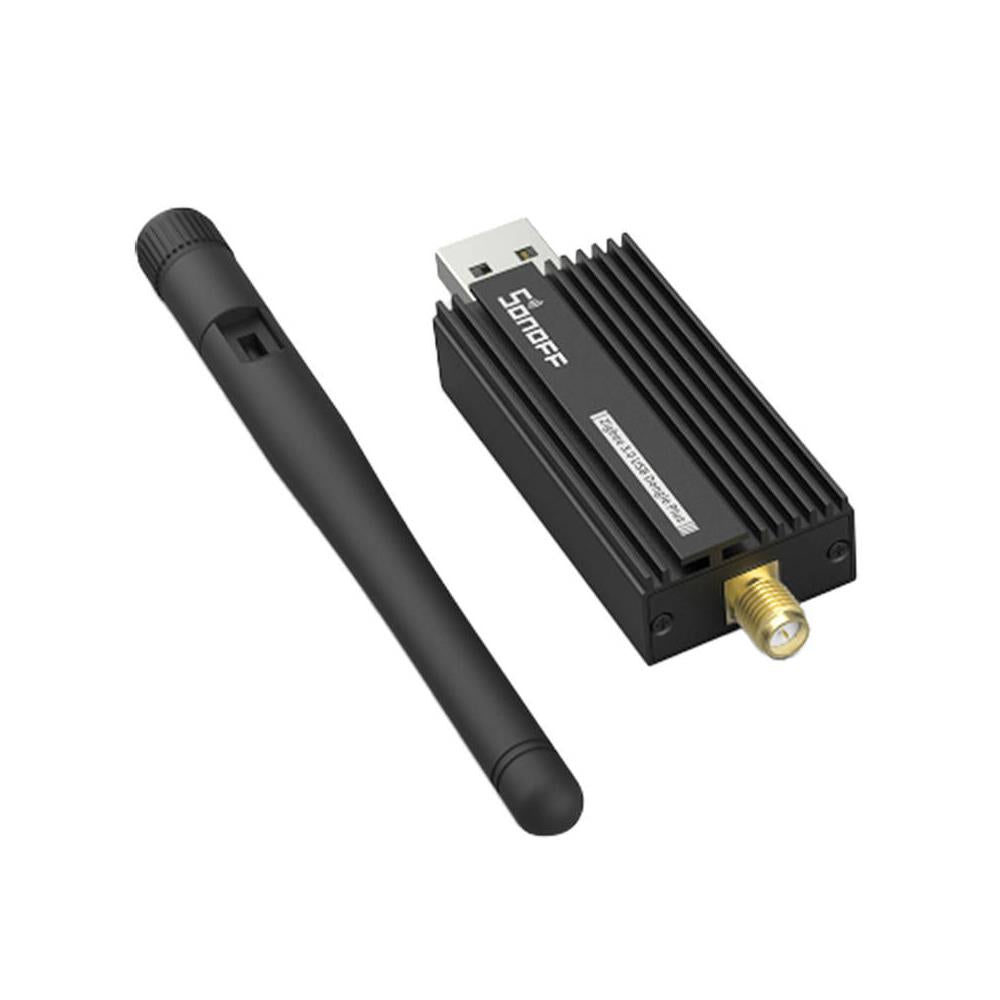

The product is made from an aluminum alloy that improves the signal transmission. In addition, it eliminates disorders of peripheral devices. It has an external SMA antenna, the position of which you can also set. What is more, the output reinforcement of +20dbm 3x has the signal area.


Also available with the new multi-protocol firmware (Multipan)

This already supports Matter, Thread & ZigBee. Currently, Multipan is only supported by home assistant.

Here goes directly to the offer:

SONOFF ZigBee 3.0 USB Dongle Plus E Matter Thread ZHA Home Assistant SkyConnect


Flash with ZigBee coordinator firmware based on Eznet 6.10.3 ex works

Support of smart home platforms such as Home Assistant, Openhab, ioBroker, ZigBee2MQTT and many more

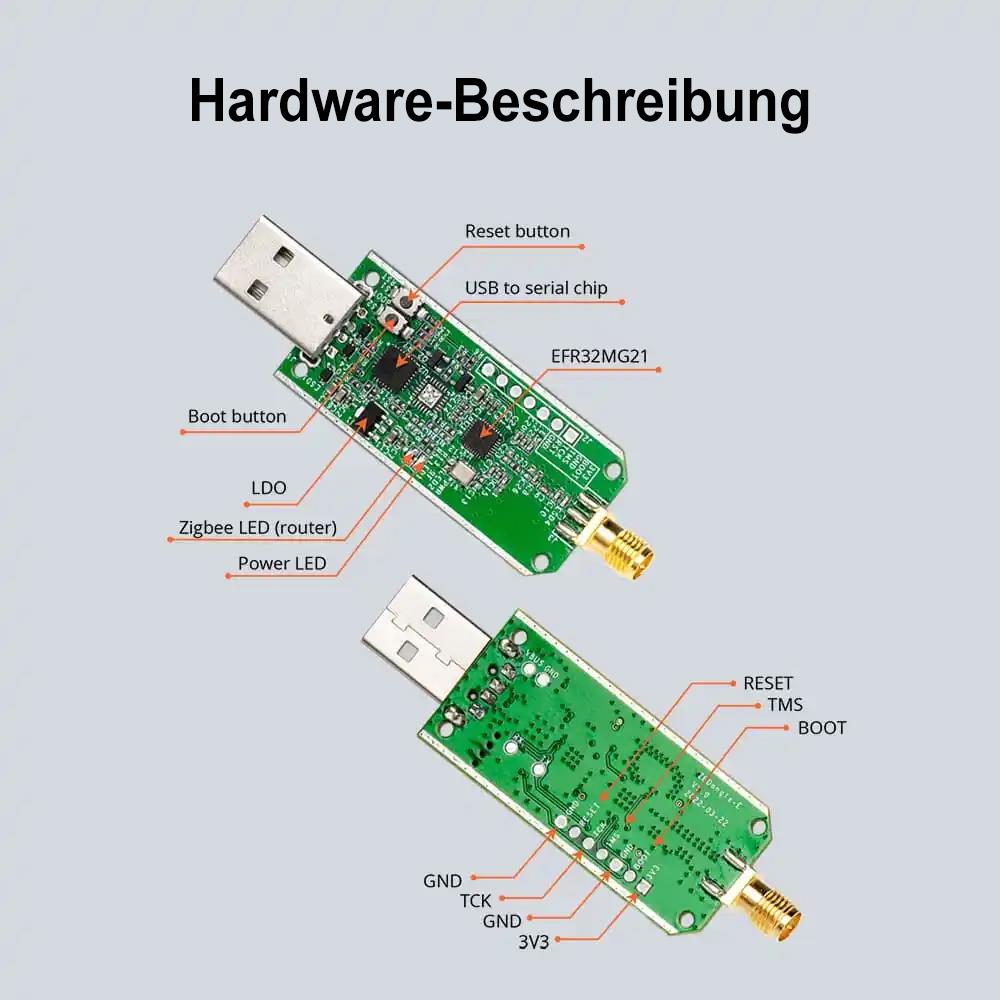

Based on EFR32MG21

+20dBM output reinforcement

Aluminum housing effectively reduces signal disorders by peripheral devices

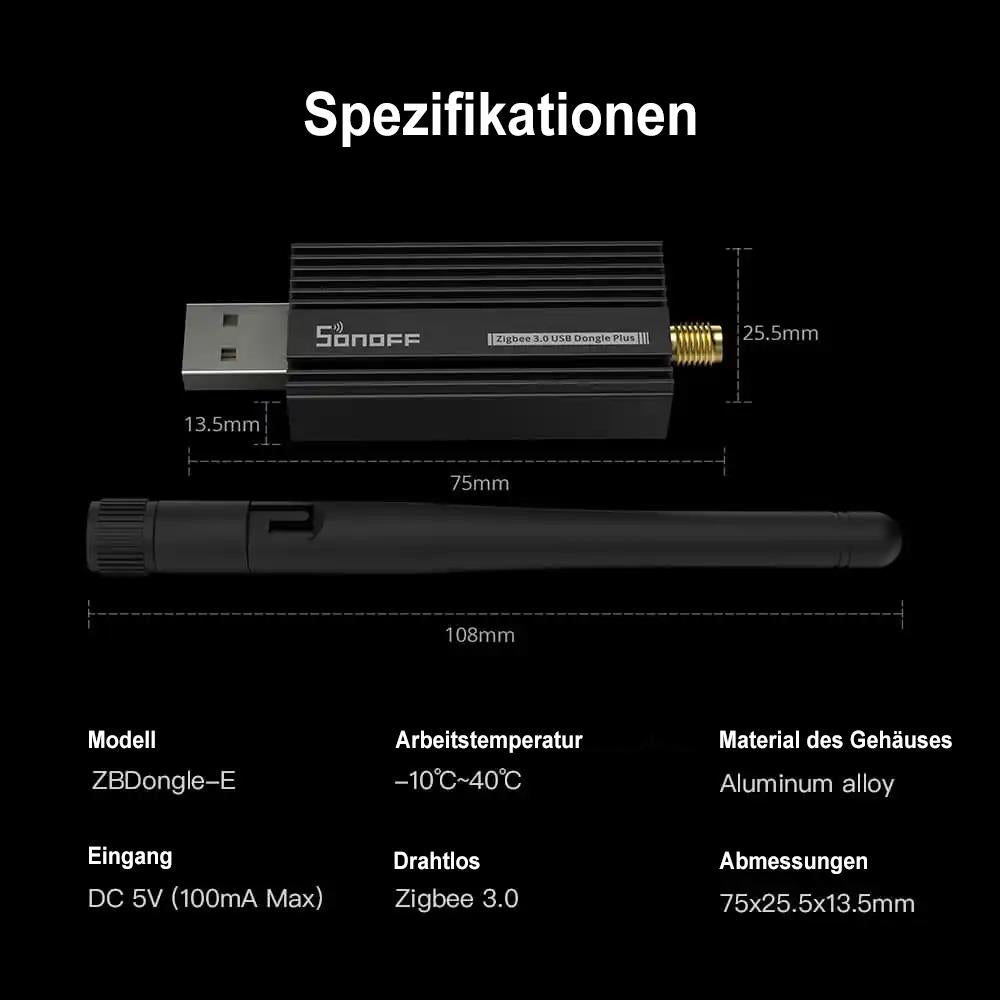

Technical data:

Model: e.g.

Tigbee type: IEEE 802.15.4 2.4GHz ZigBee 3.0

Security protocols: WPA/WPA2

Type of encryption: AES-128

Size: 75 x 25.5 x 13.5 mm

Input voltage: DC 5V (100mA max)

Weight: 30g

Work temperature: -10 ° C - 40 ° C

Job moisture: 5% - 95%

Material of the housing: aluminum alloy

Further information:


Additional:

Brand new immediately available

PDF DateiQuickstart Guide DE/EN

PDF DateiWarranty & Safety Information

PDF DateiDatasheet

PDF DateiDeclaration of Confirmity
